用于手持刮削，可双向操作并折叠存放。
专利摘要
一种手持式刮刀装置，包含可折叠的多刀片枢转头。枢转头由至少两个刮削元件组成，这些刮削元件彼此保持固定角度，同时允许头部组件独立于手柄进行枢转动作。刮削元件彼此之间的角度被设定为使得当两个刮削元件共同抵靠工作表面时，它们将保持在有利于在推和拉两个方向上进行刮削动作的角度姿态。枢转头可以折叠以便更有效地存放，或者作为特定刮削应用的替代配置。
Original abstractA hand-held scraper device containing a stowable multi blade pivoting head. The pivoting head is comprised of at least two scraping elements which remain at a fixed angle relative to each other while still allowing a pivoting action of the head assembly independently from the handle. The angle of the scraping elements relative to each other is set such that as the two scraping elements are jointly presented against the work surface they will be maintained at an angular attitude conducive to a scraping action in both a push and pull direction. The pivoting head can be collapsed for more efficient stowage or as an alternate configuration for specific scraping applications.

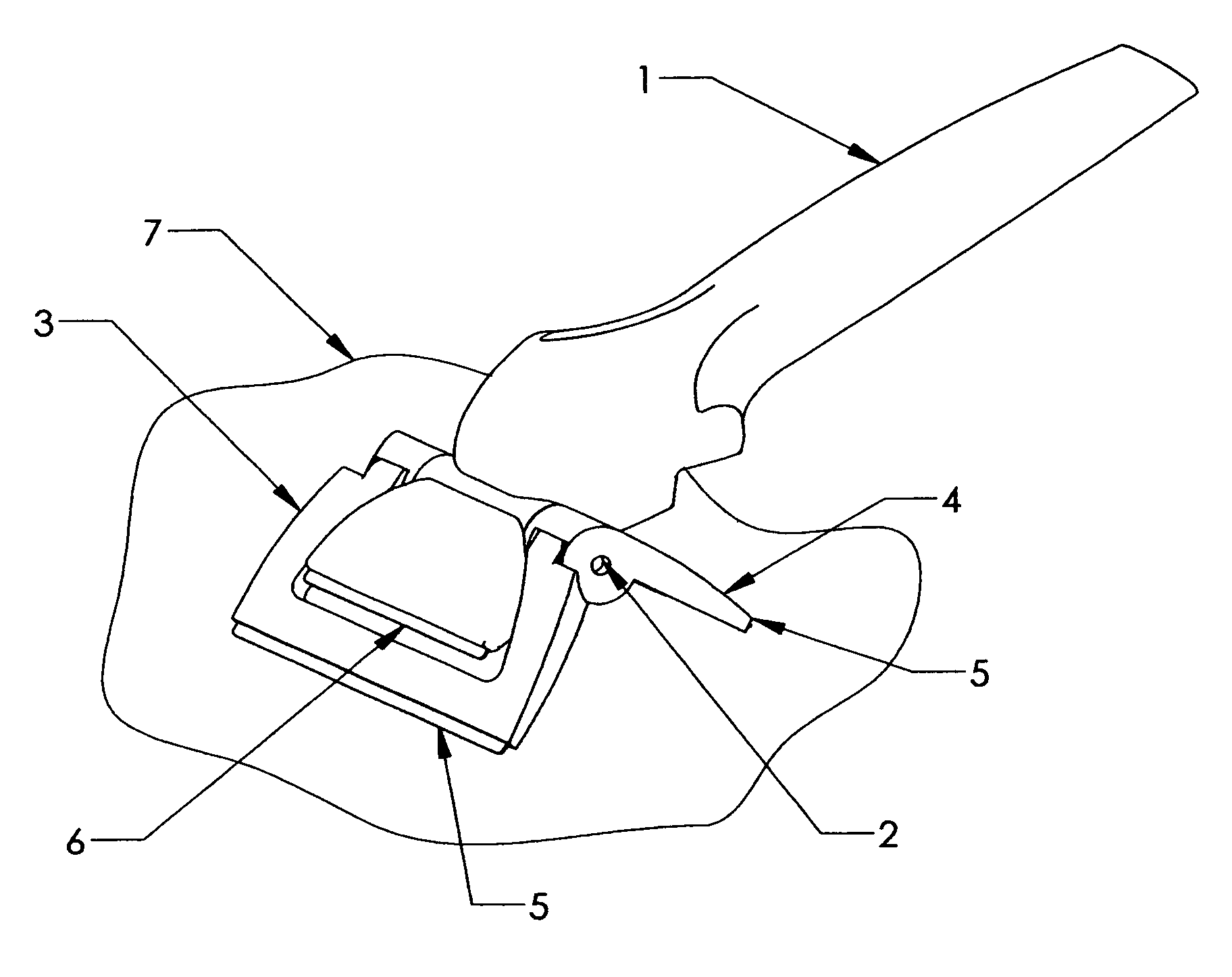

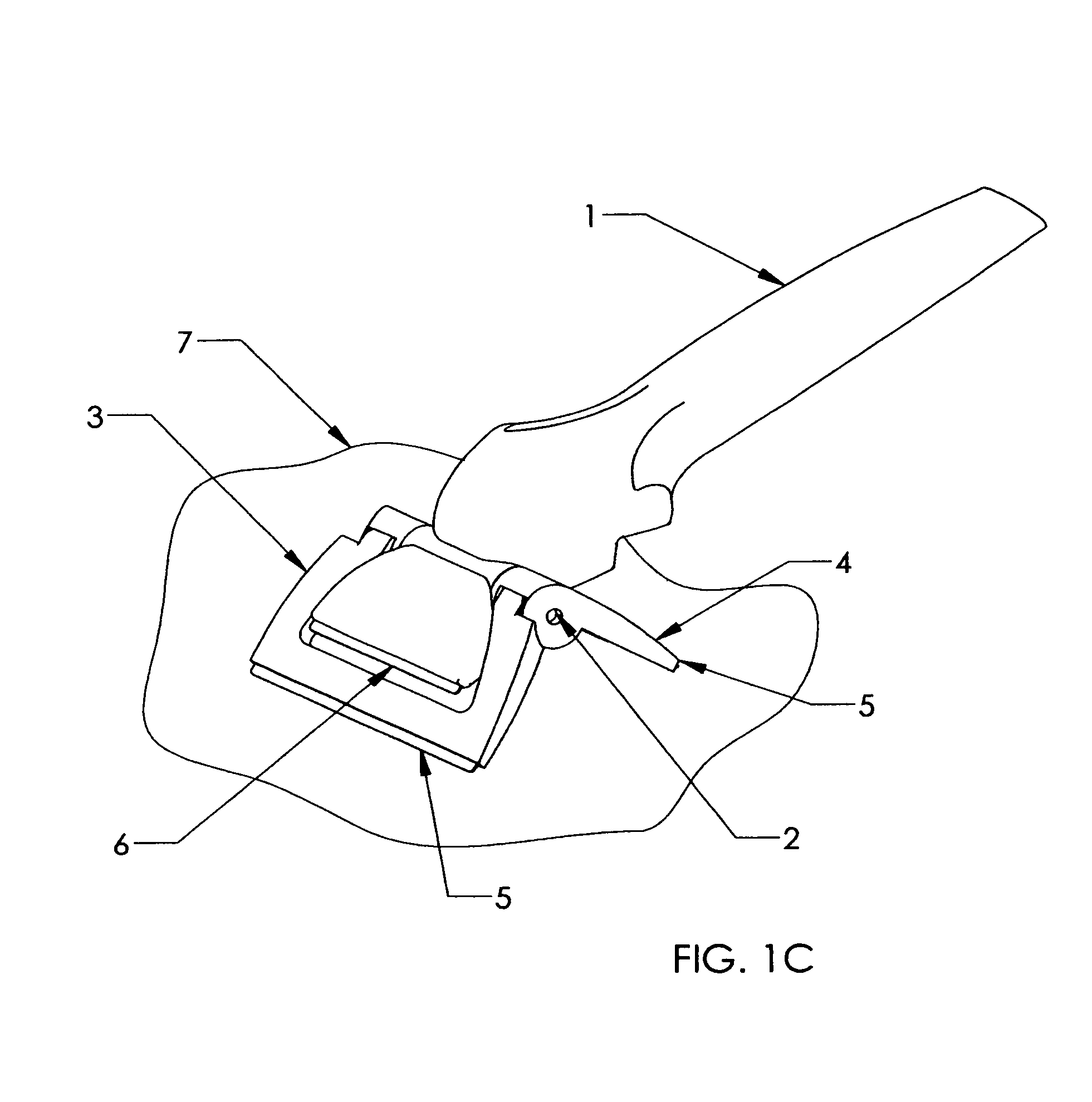

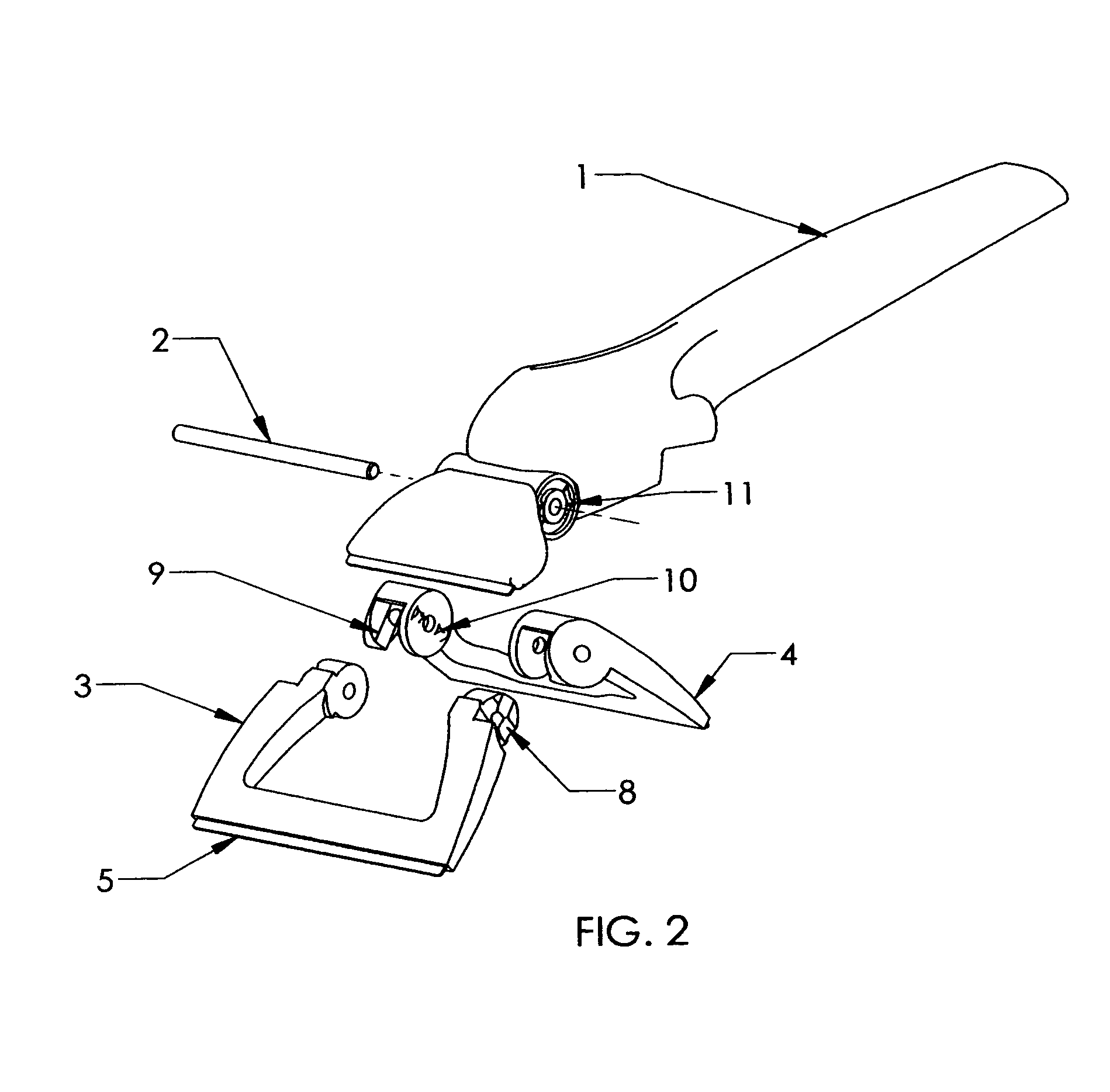

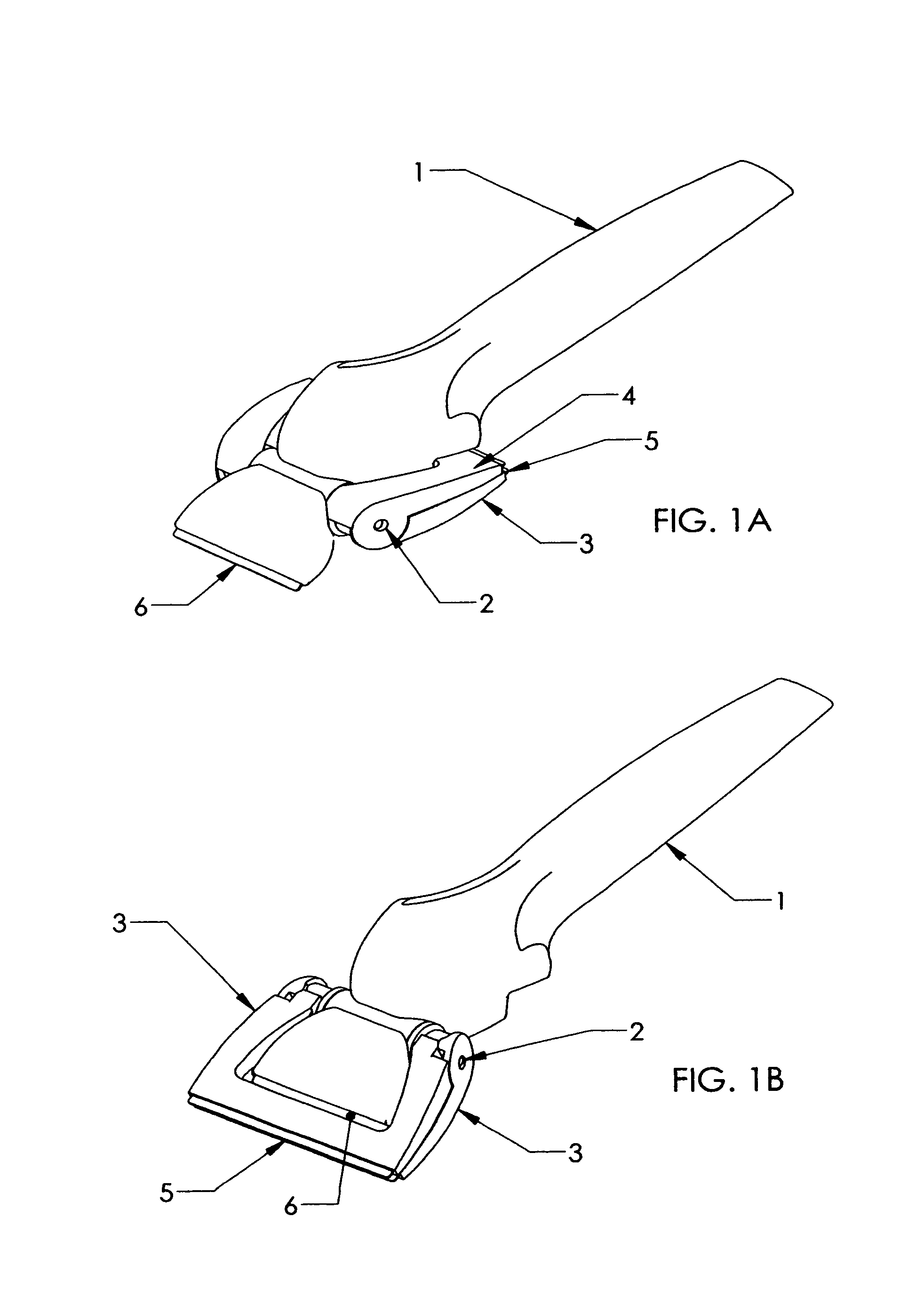

专利附图（8）
