抽屉式洗碗机的盖密封件

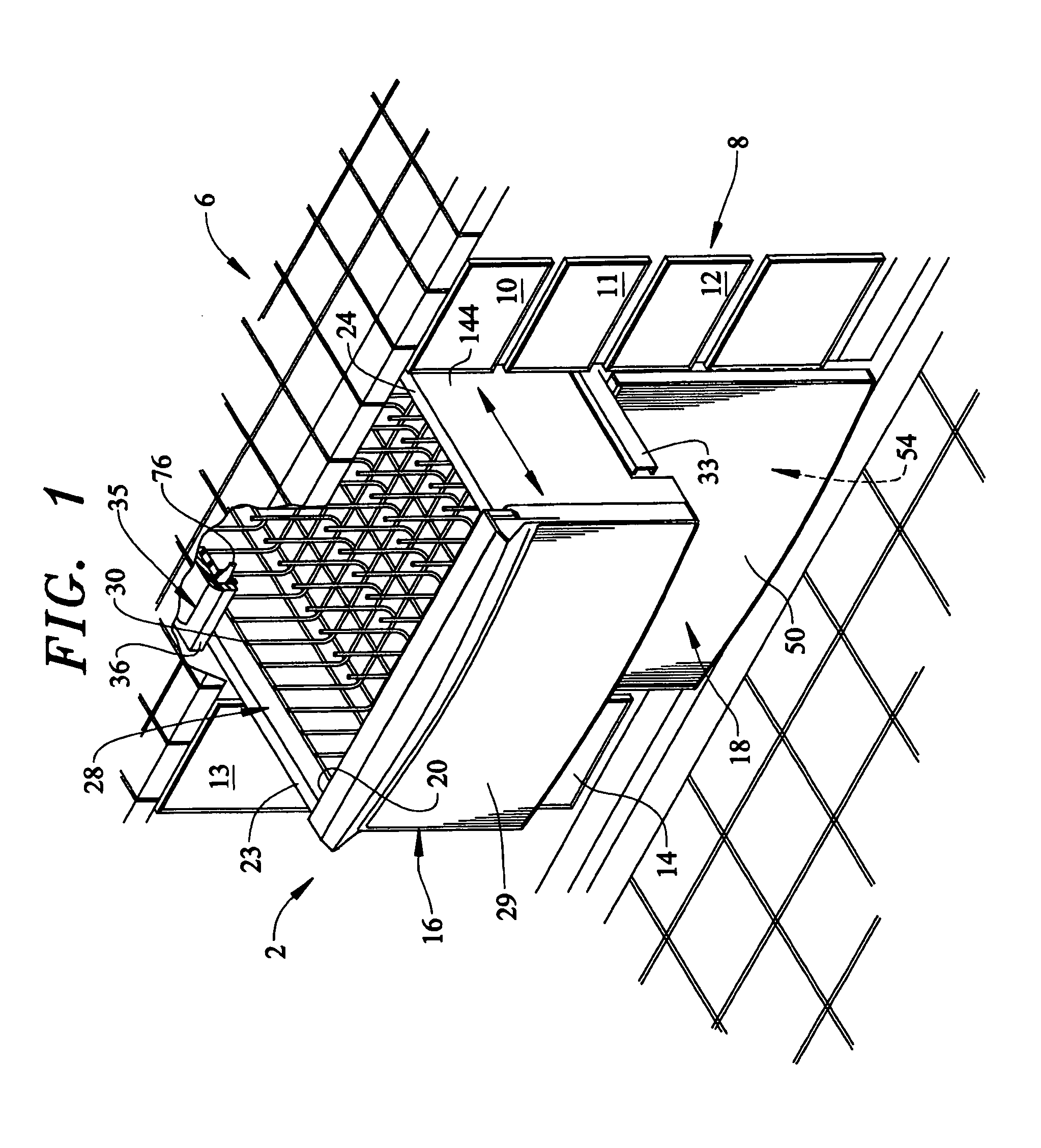

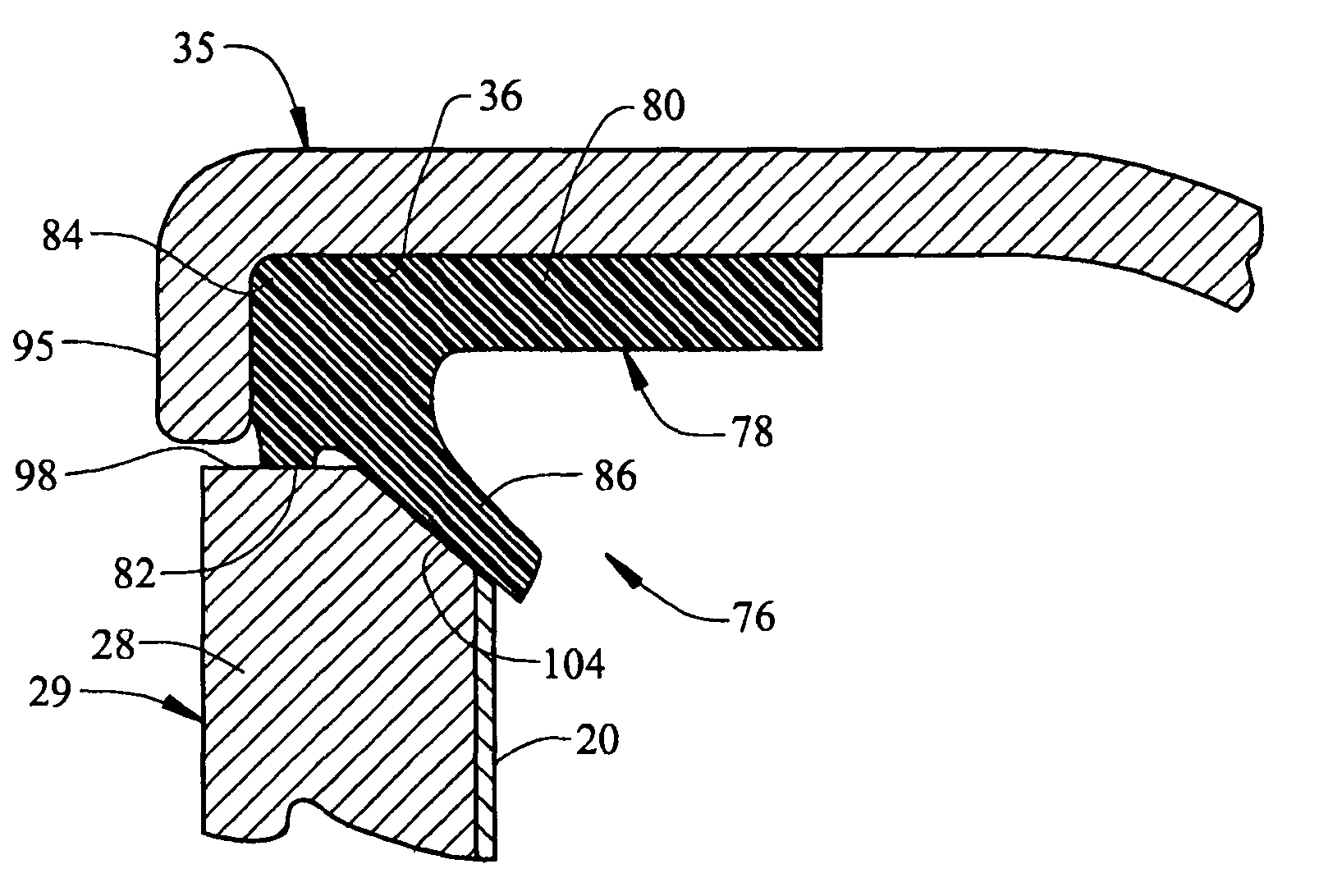

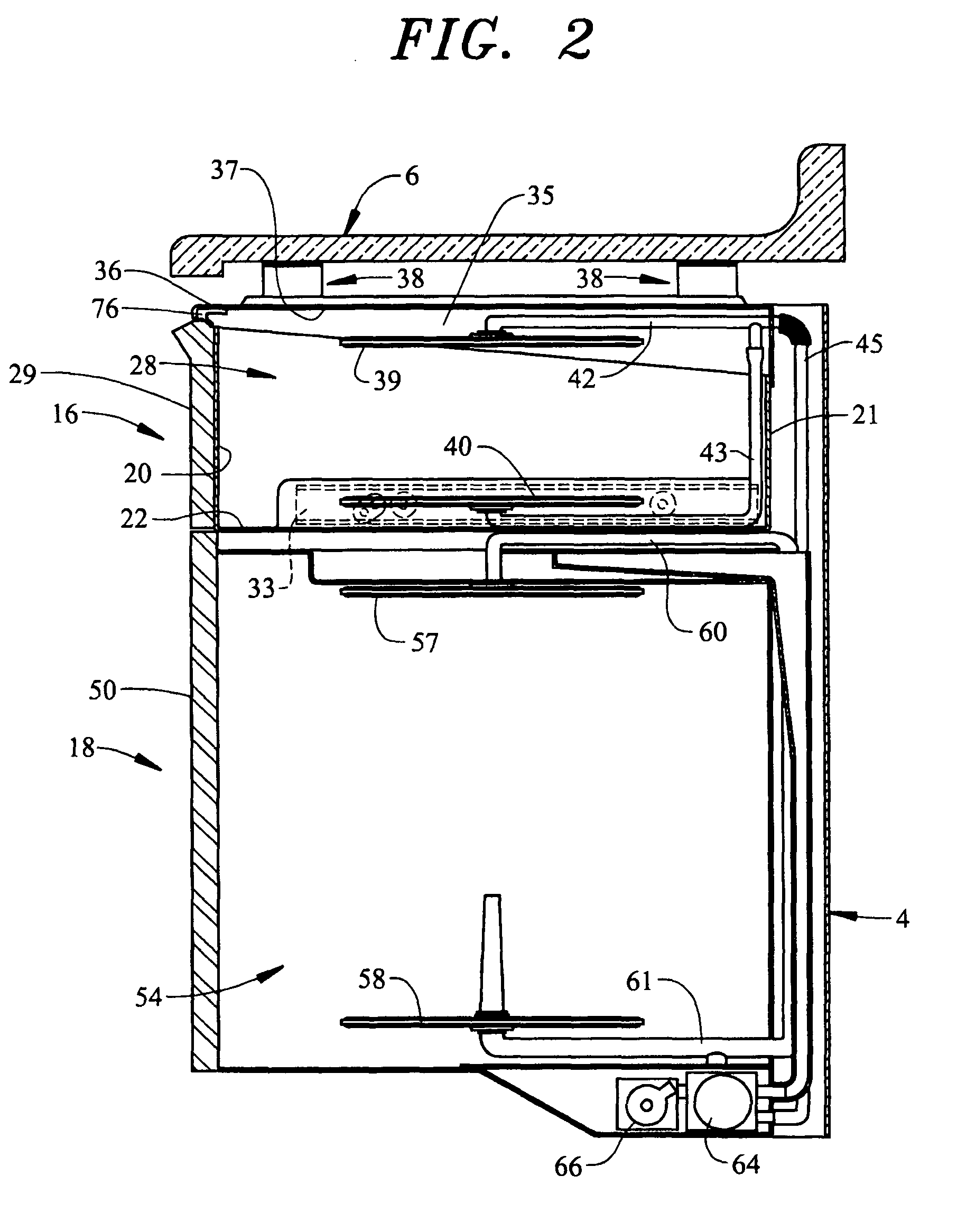

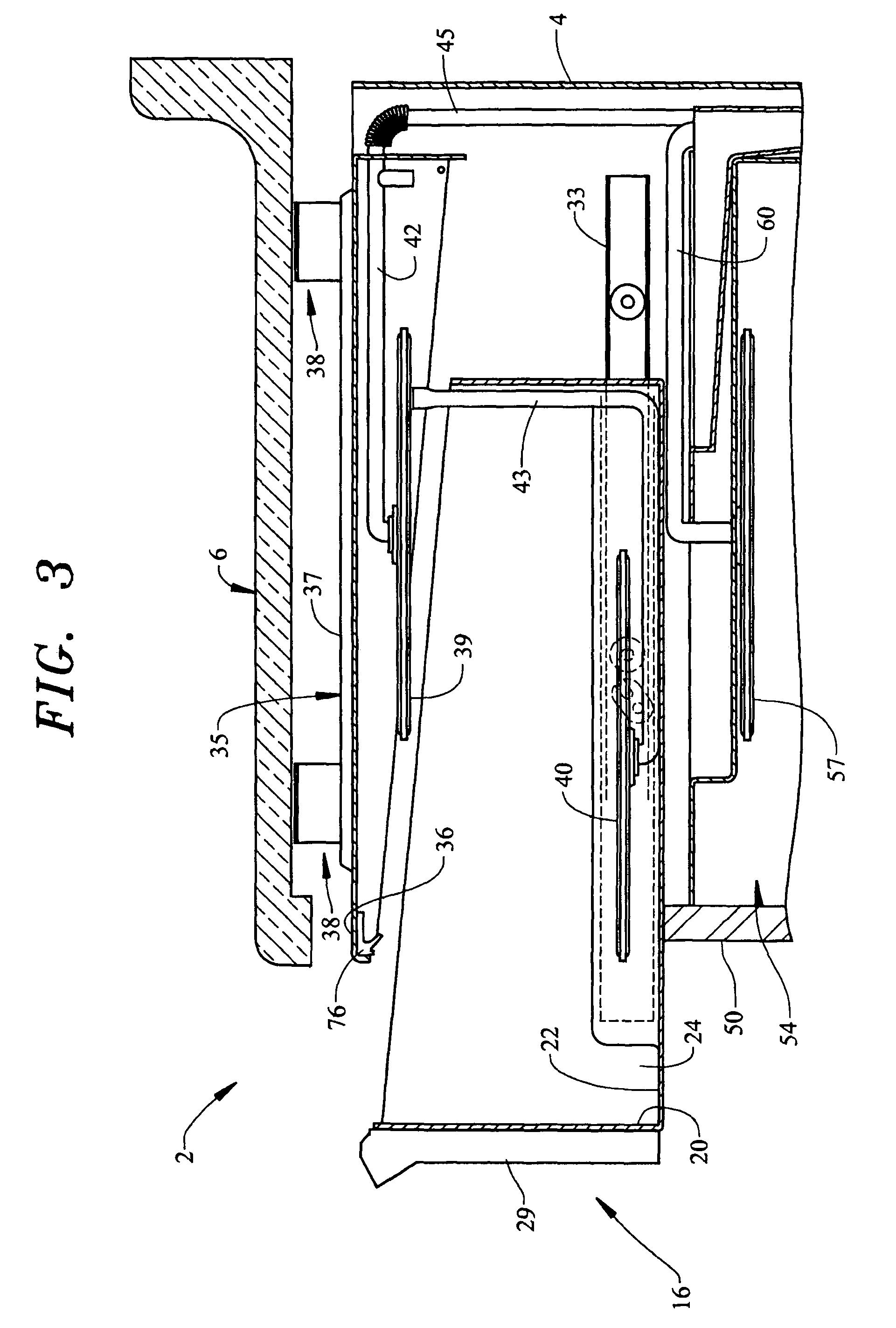

Original abstractA drawer-type dishwasher includes a frame assembly, a wash tub slidably mounted in the frame assembly, and a lid member. The lid member can be lowered onto the wash tub when the wash tub is shifted into the frame assembly, and raised when the wash tub is shifted out of the frame assembly. The lid member includes a seal element that abuts the wash tub when the lid member is lowered. The seal element includes a base portion, an angled, deflecting finger portion and a flat pad portion which projects from the base portion. When the seal element is urged against the wash tub, a compressive force is applied to the flat pad portion causing the deflecting finger to seal against the wash tub in a manner that substantially shields the deflecting finger from excessive compressive forces.
