便于安装和移除分配管的洗碗机结构。
专利摘要
在洗碗机中，安装有洗涤喷嘴的洗涤水分配管布置在洗涤室内，并且可移除地连接到与洗涤泵出口侧连通的第一连接管。同样，安装有冲洗喷嘴的冲洗水分配管布置在洗涤室内，并且可移除地连接到与冲洗泵出口侧连通的第二连接管。这些连接在洗涤室底部的洗涤水箱内进行，因此洗涤水分配管和冲洗水分配管可以容易地从洗涤室安装和移除。此外，洗涤水分配管和冲洗水分配管被单元化，因此处理非常容易。
Original abstractIn the dishwasher, a washing water distribution pipe on which washing nozzles are installed is arranged within a washing chamber, and is connected removably to a first connecting pipe that communicates with the outlet side of a washing pump. In the same way, a rinsing water distribution pipe on which rinsing nozzles are installed is arranged within the washing chamber, and is connected removably to a second connecting pipe that communicates with the outlet side of a rinsing pump. These connections are made within a washing water tank in the bottom of the washing chamber, therefore the washing water distribution pipe and the rinsing water distribution pipe can be easily installed and removed from the washing chamber. Moreover, the washing water distribution pipe and the rinsing water distribution pipe are unitized, so handling is extremely easy.

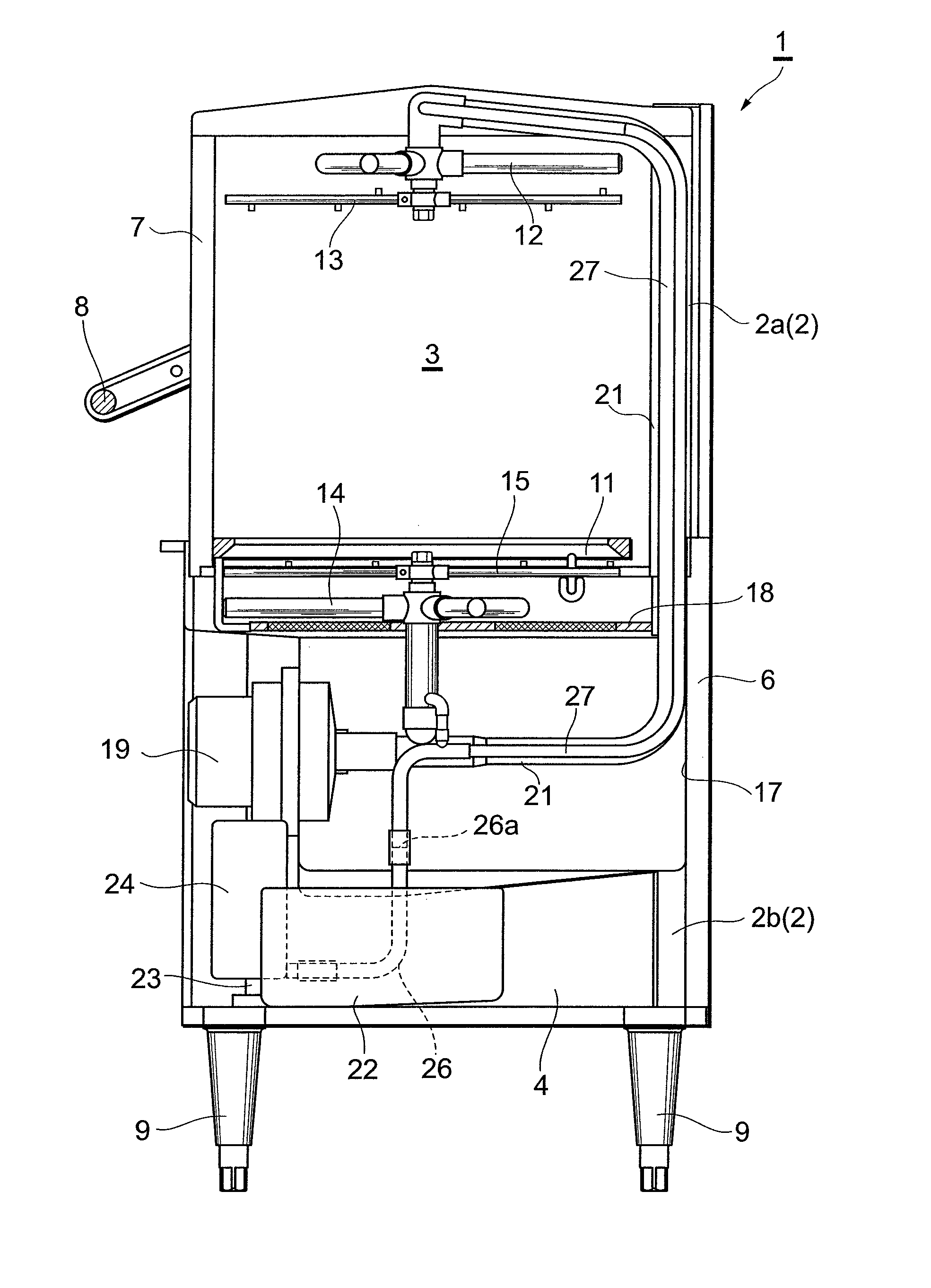

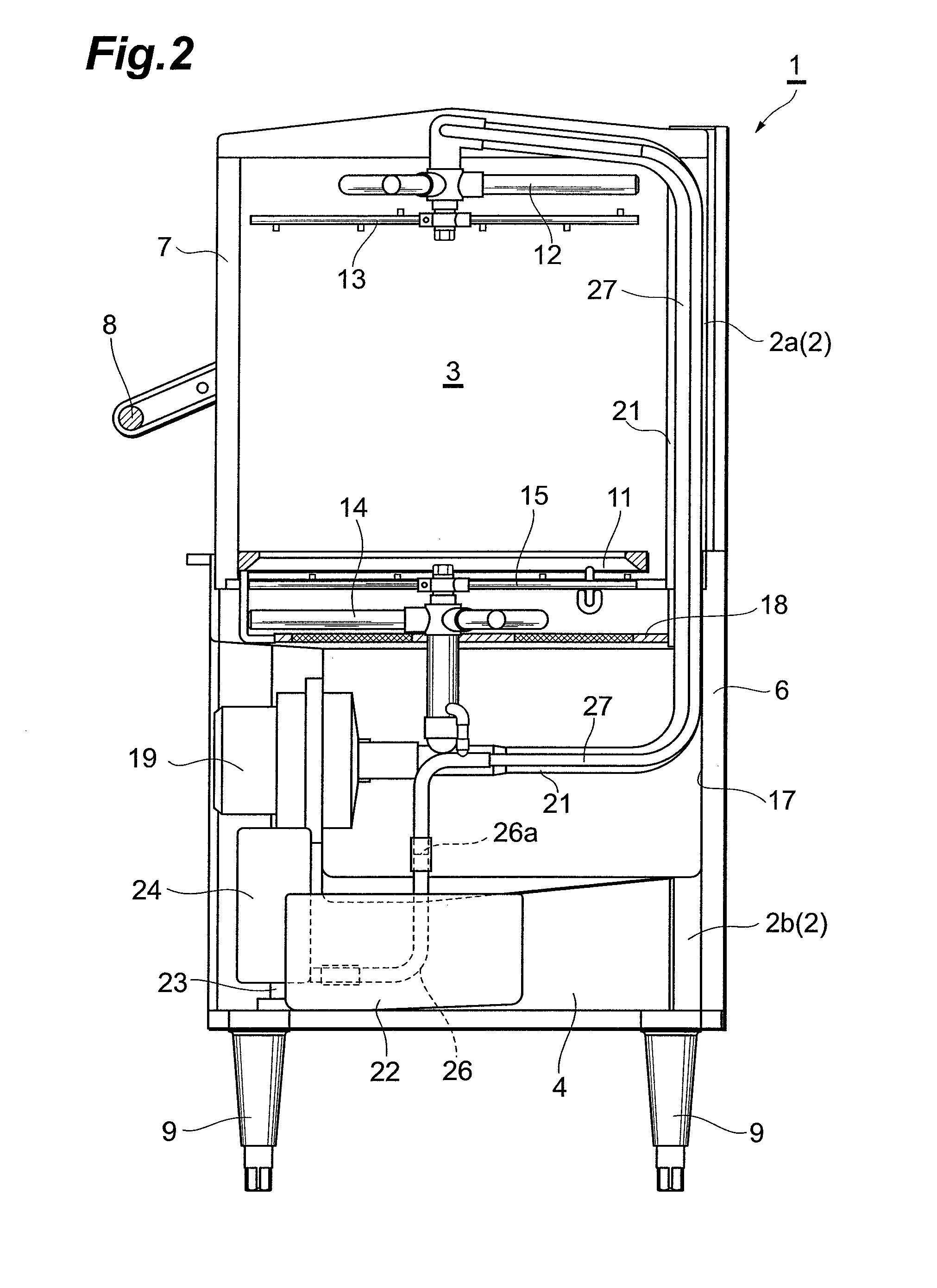

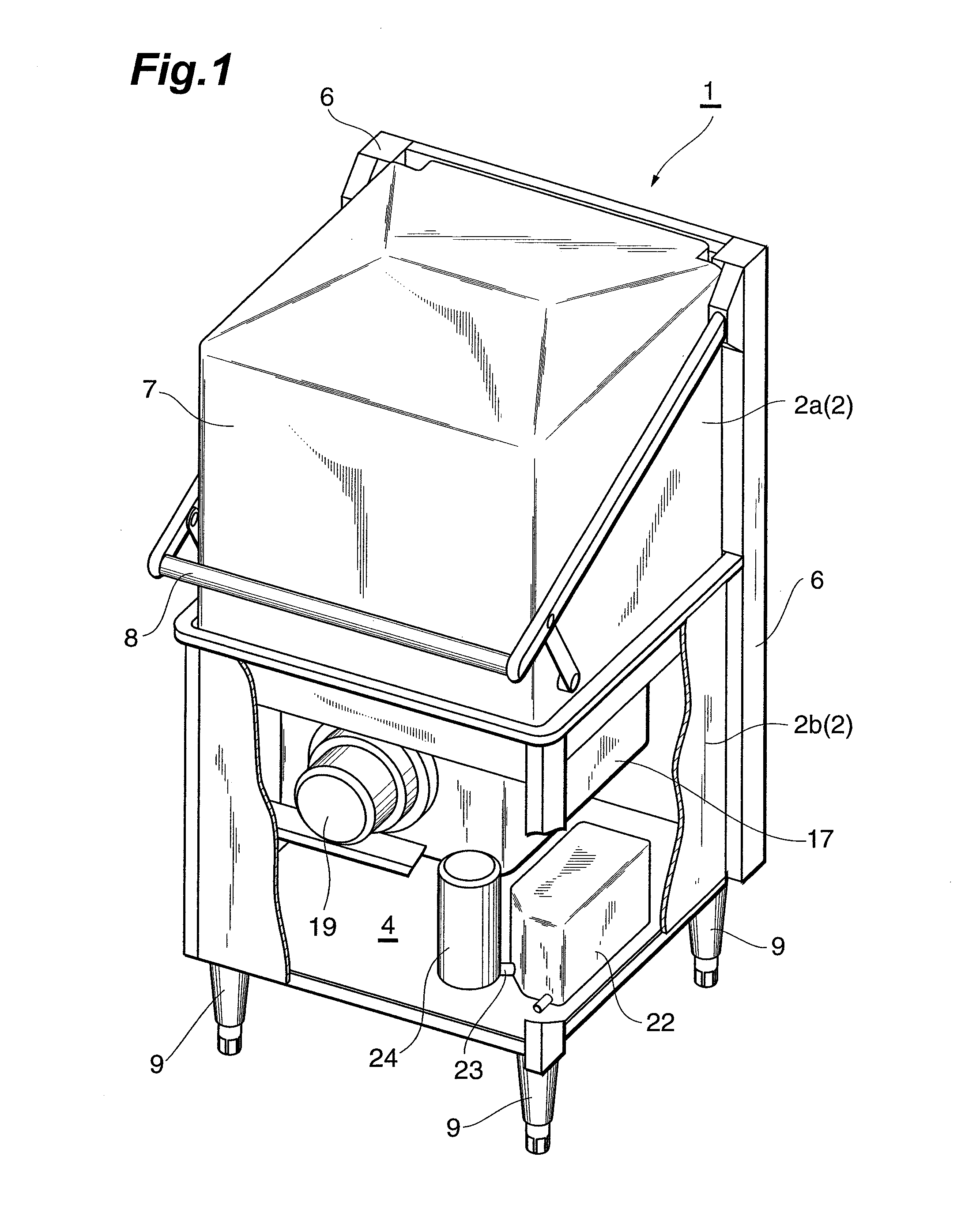

专利附图（8）
