用于涂抹睫毛膏，刷部交替堆叠以均匀涂覆。
专利摘要
提供一种盘式睫毛膏刷，用于将涂有睫毛膏溶液的睫毛化妆，其刷部在刷杆末端整体形成，并且形状为多个三角形样椭圆盘以120度角交替排列连续堆叠。在盘式睫毛膏刷中，刷部1设置在刷杆2的一端，睫毛膏帽3设置在刷杆2的另一端，并且刷部1在刷杆2的末端形成为如同盘堆叠；睫毛膏刷包括刷部10，其在刷杆末端整体形成，并且形状为多个三角形样椭圆盘以120度角交替排列连续堆叠。由此，在刷部10的外周分别形成有板齿12突出的齿凸出部分14和板齿12凹陷的齿凹陷部分16；并且在齿凸出部分14和齿凹陷部分16之间形成齿间隔部分18。

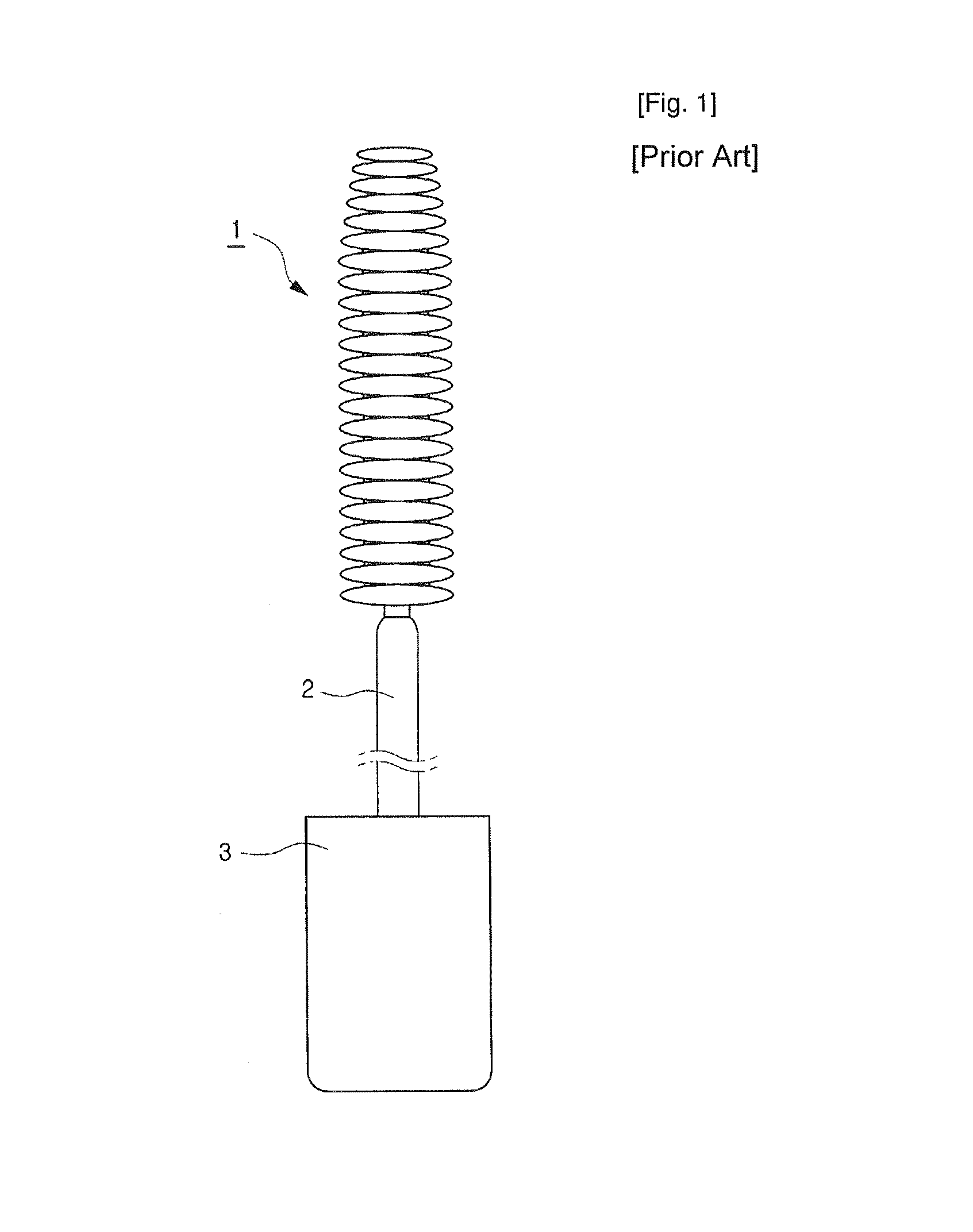

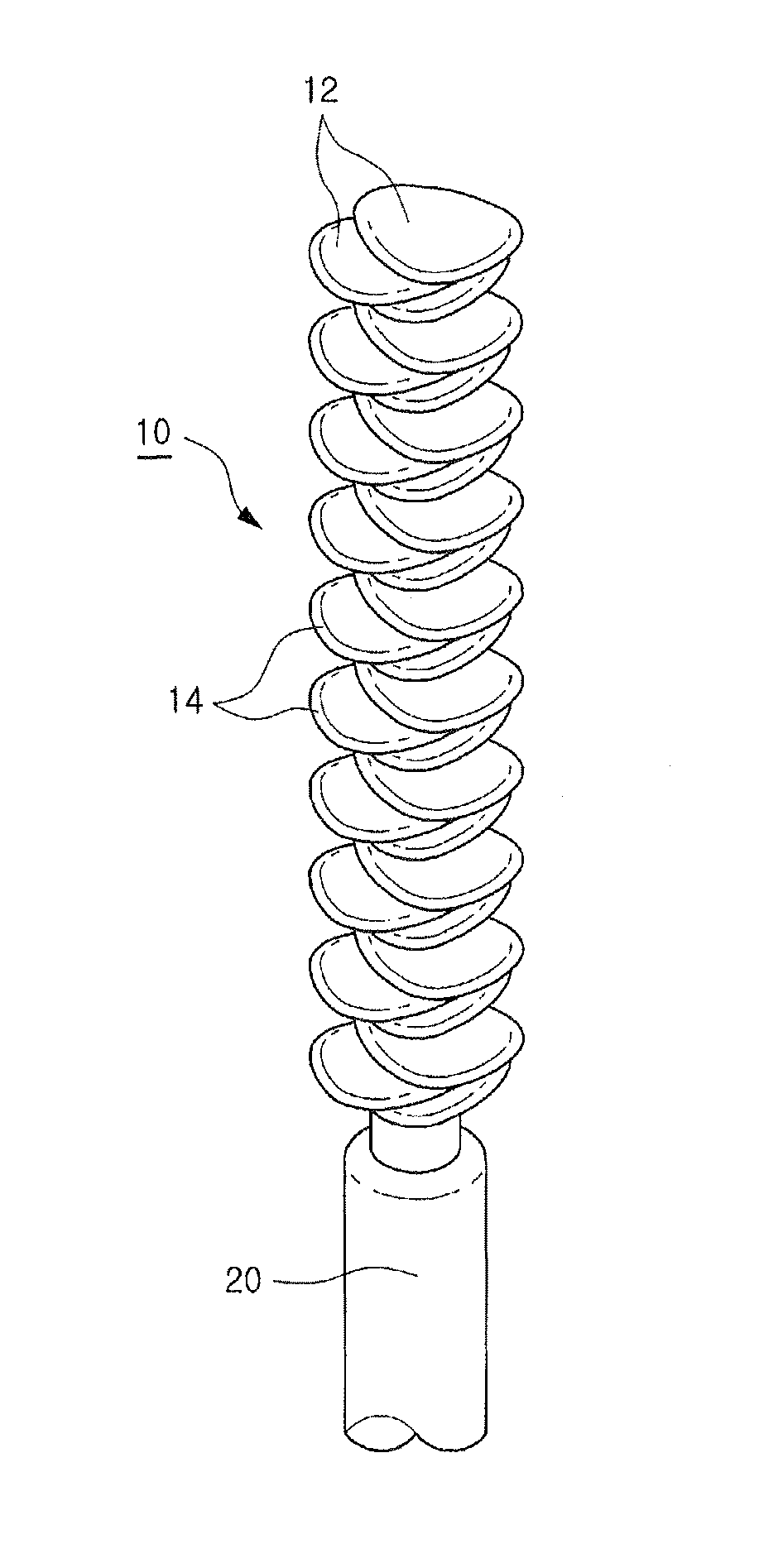

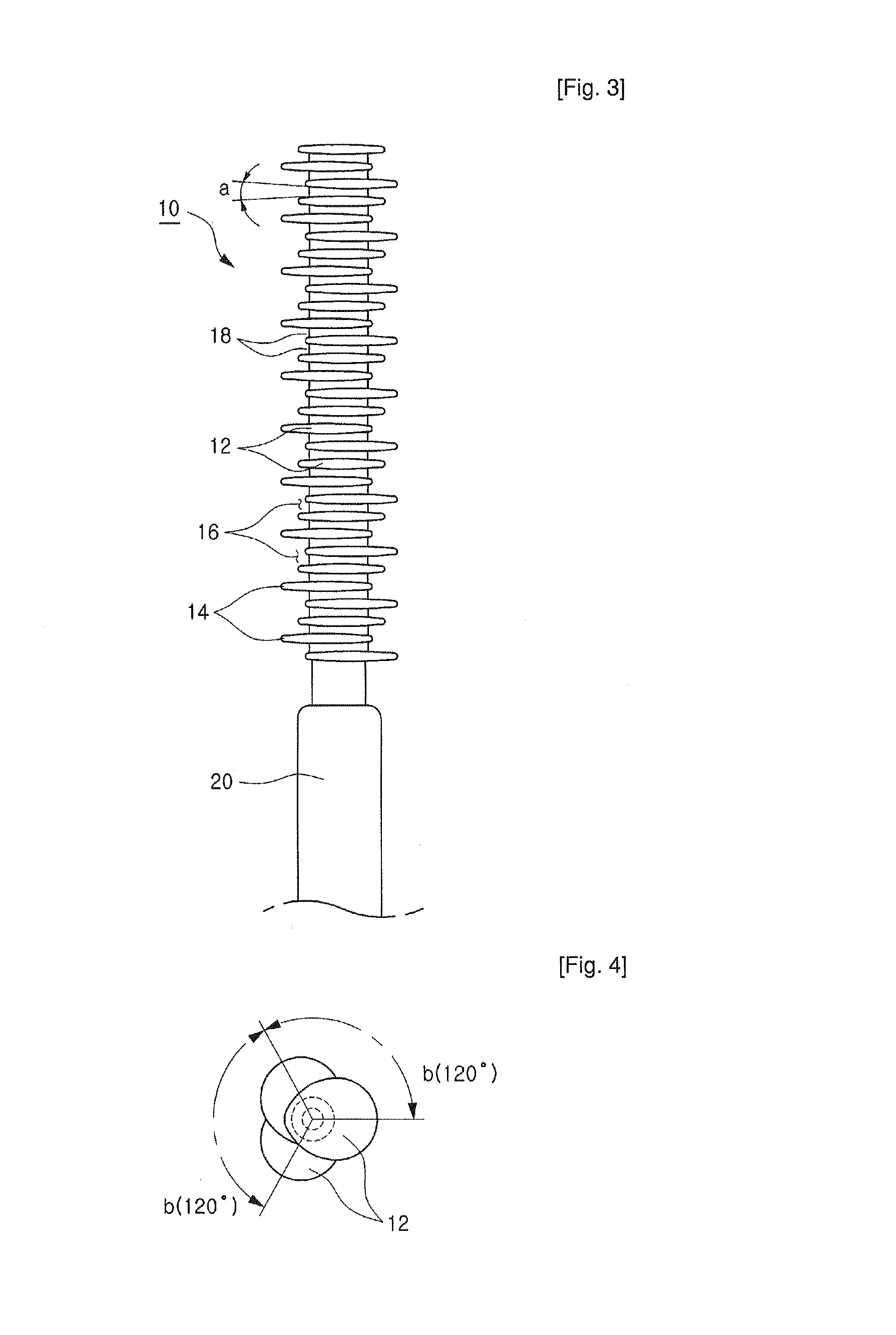

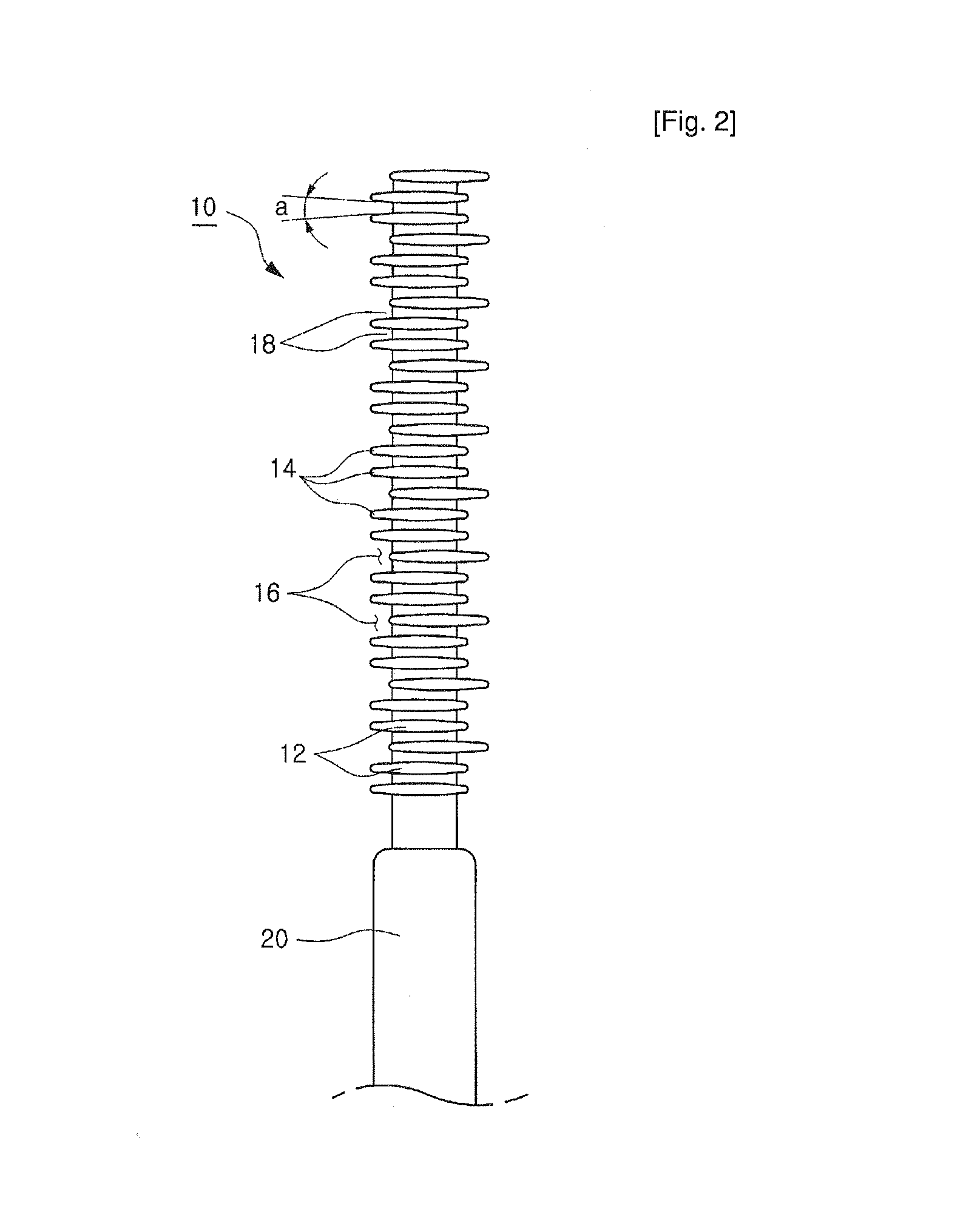

Original abstractProvided is a disk-type mascara brush, used to makeup eyelash with mascara solution applied thereto, whose brush portion is formed whole at the end of a wand and in such a shape that pluralities of triangle-like elliptic disks are piled consecutively with an alternated arrangement with the angle of 120 degree. In a disk-type mascara brush where a brush portion 1 is provided at one end of a wand 2 , a mascara cap 3 is provided at the other end of a wand 2 and the brush portion 1 is formed at the end of the wand 2 as if disks are piled; the mascara brush includes a brush portion 10 which is formed whole at the end of the wand and in such a shape that plurality of triangle-like elliptic disks are piled consecutively with an alternated arrangement with the angle of 120 degree. Thereby, a tooth-protruded portion 14 , where the plate-tooth 12 is protruded, and a tooth-indented portion 16 , where the plate-tooth 12 is indented, are formed at the outer circumstance of the brush portion 10 respectively; and a tooth-spaced portion 18 is formed between the tooth-protruded portion 14 and the tooth-indented portion 16.
专利附图（8）
