用于喷雾降温或加湿，易于安装。
专利摘要
一种喷雾系统可包括至少一条预制喷雾管线，其包括至少一个喷雾三通，该三通具有从主体向外延伸的至少一个臂，主体中限定有横向螺纹孔，以及延伸穿过至少一个臂并至少进入主体且与横向螺纹孔流体连通的纵向孔。一种形成喷雾系统的方法可包括预制至少一条喷雾管线，通过：将具有第一预定直径孔的至少一个管子的端部与至少一个喷雾三通的至少一个臂对齐，该臂具有大于第一预定直径的第二预定直径；以及将至少一个臂压配合到至少一个管子的端部中，从而使至少一个管子的端部部分变形。
Original abstractA misting system may include at least one prefabricated mist line comprising at least one mist tee having at least one arm extending outwardly from a body, a latitudinal threaded hole defined in the body, and a longitudinal hole extending through the at least one arm and at least into the body and in fluid communication with the latitudinal threaded hole. A method of forming a misting system may include prefabricating at least one mist line by: aligning an end of at least one tube having a hole there through of a first predetermined diameter with at least one arm of at least one misting tee that is of a second predetermined diameter greater than the first predetermined diameter; and press-fitting the at least one arm into the end of the at least one tube, thereby deforming an end portion of the at least one tube.

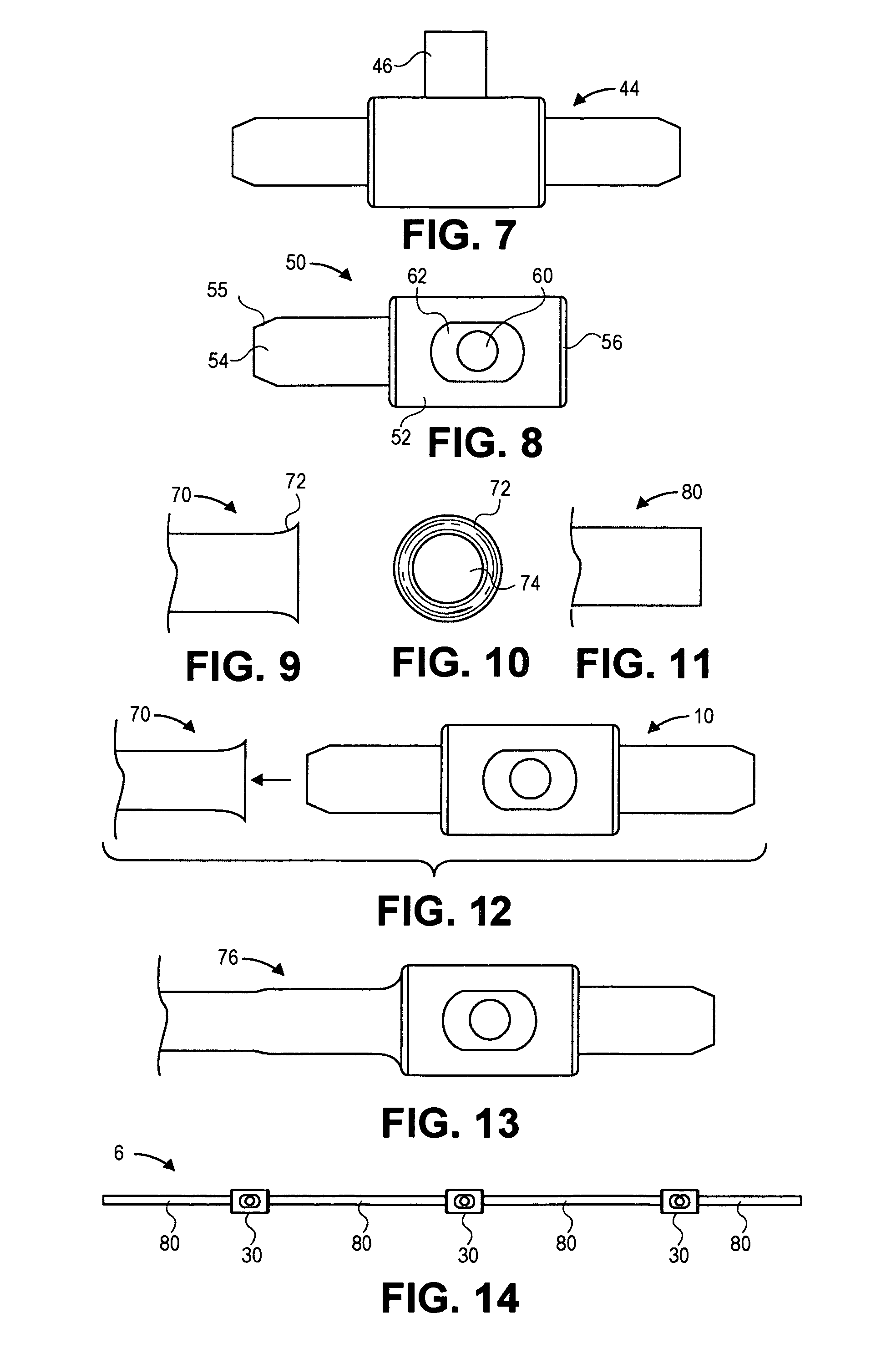

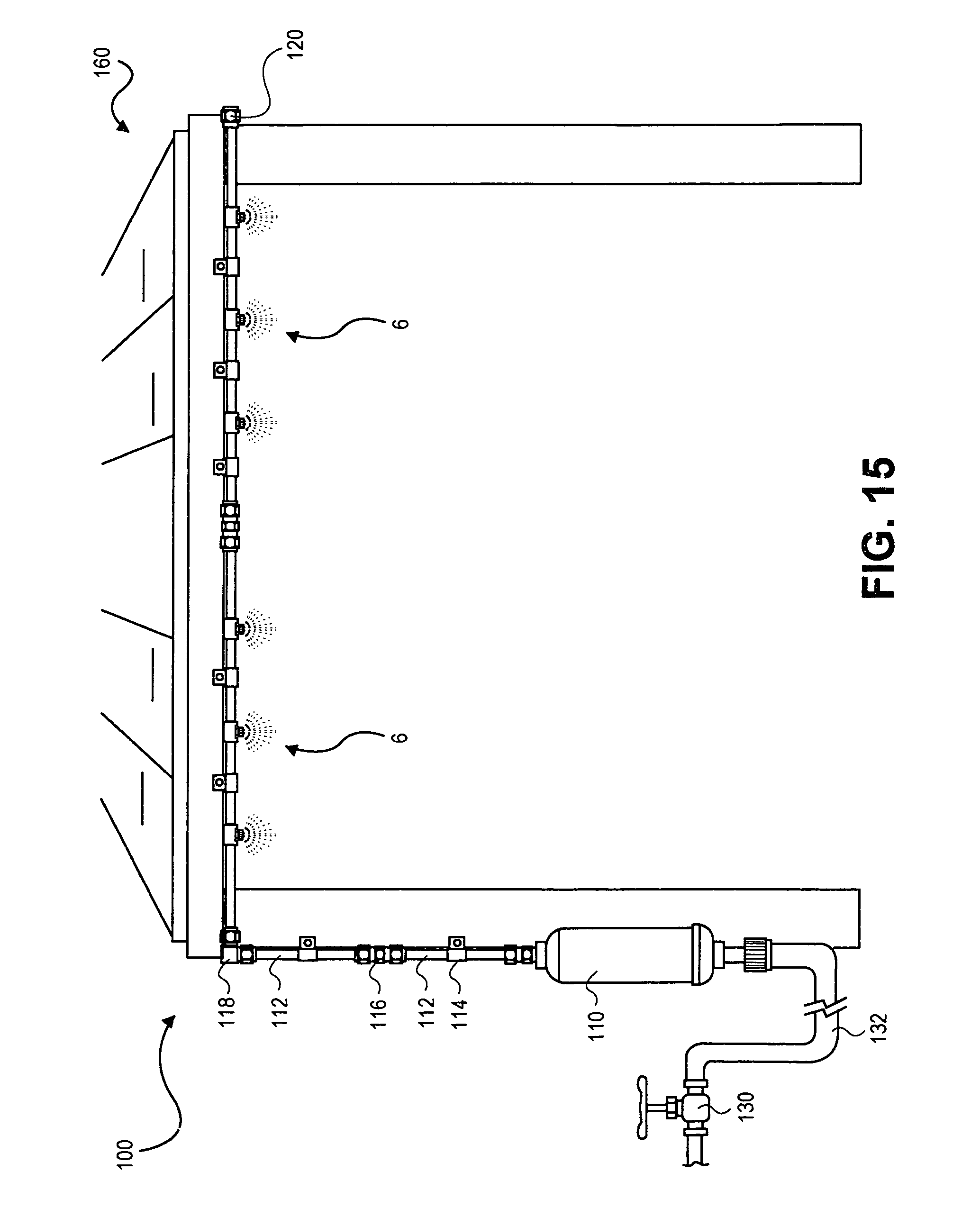

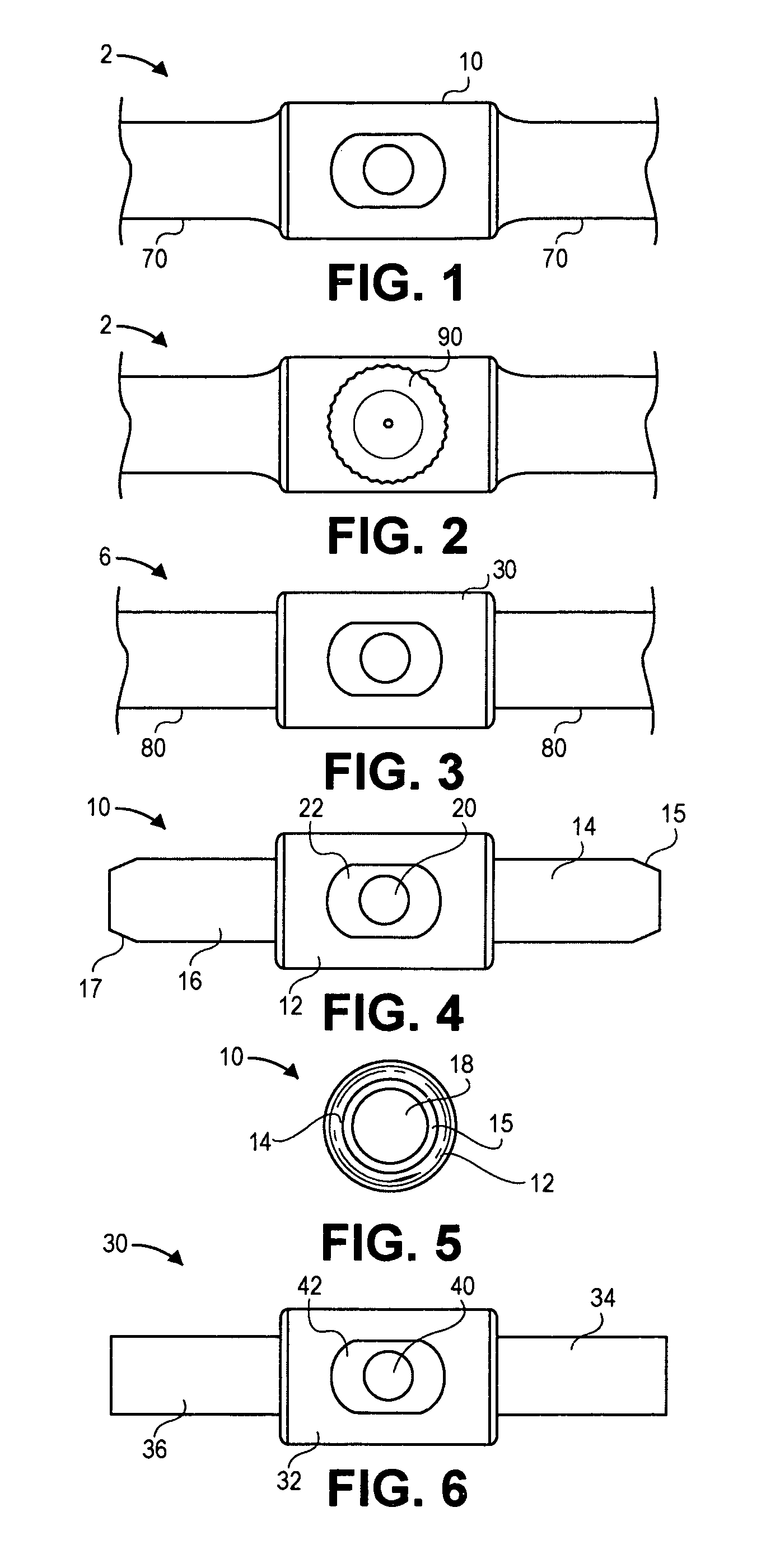

专利附图（8）
