用于吸尘器，提高机动性。
专利摘要
一种真空吸尘器形式的表面处理设备，具有主体、表面处理头和支撑组件。所述支撑组件可在支撑位置和存储位置之间移动，在支撑位置其支撑主体，在存储位置其基本上抵靠主体。当不需要时，基本上抵靠设备主体的支撑组件的设置提高了设备在使用中可实现的机动性和运动范围。支撑组件可以由用户可压下的踏板带出支撑位置，这使得设备用户友好。
Original abstractA surface-treating appliance in the form of a vacuum cleaner has a main body, a surface-treating head and a support assembly. The support assembly is moveable between a supporting position, in which it supports the main body, and a stored position, in which it lies substantially against the main body. The provision of a support assembly that lies substantially against the main body of the appliance when not needed improves the maneuverability and range of motion achievable by the appliance in use. The support assembly may be brought out of its supporting position by a user-depressible pedal, which makes the appliance user-friendly.

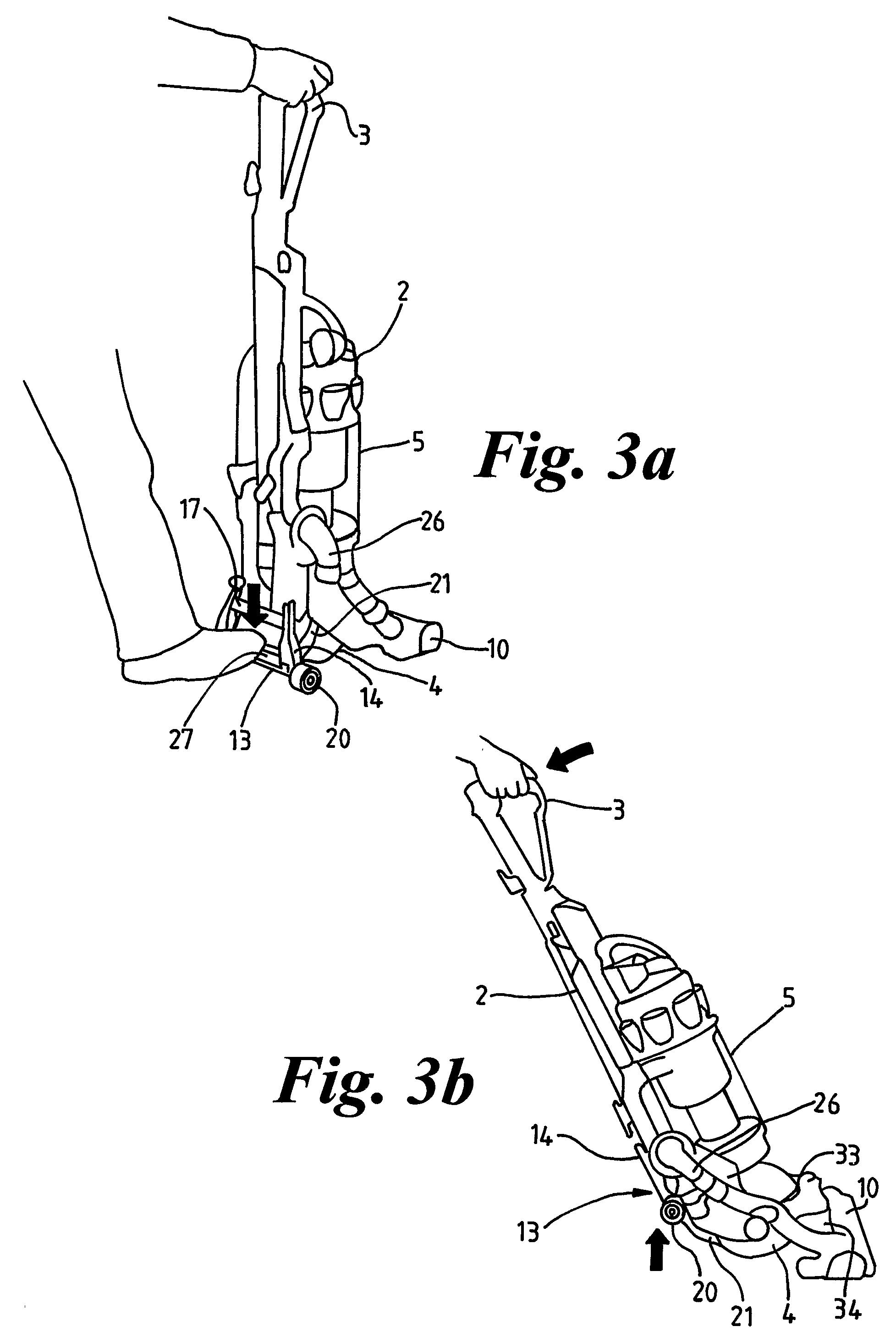

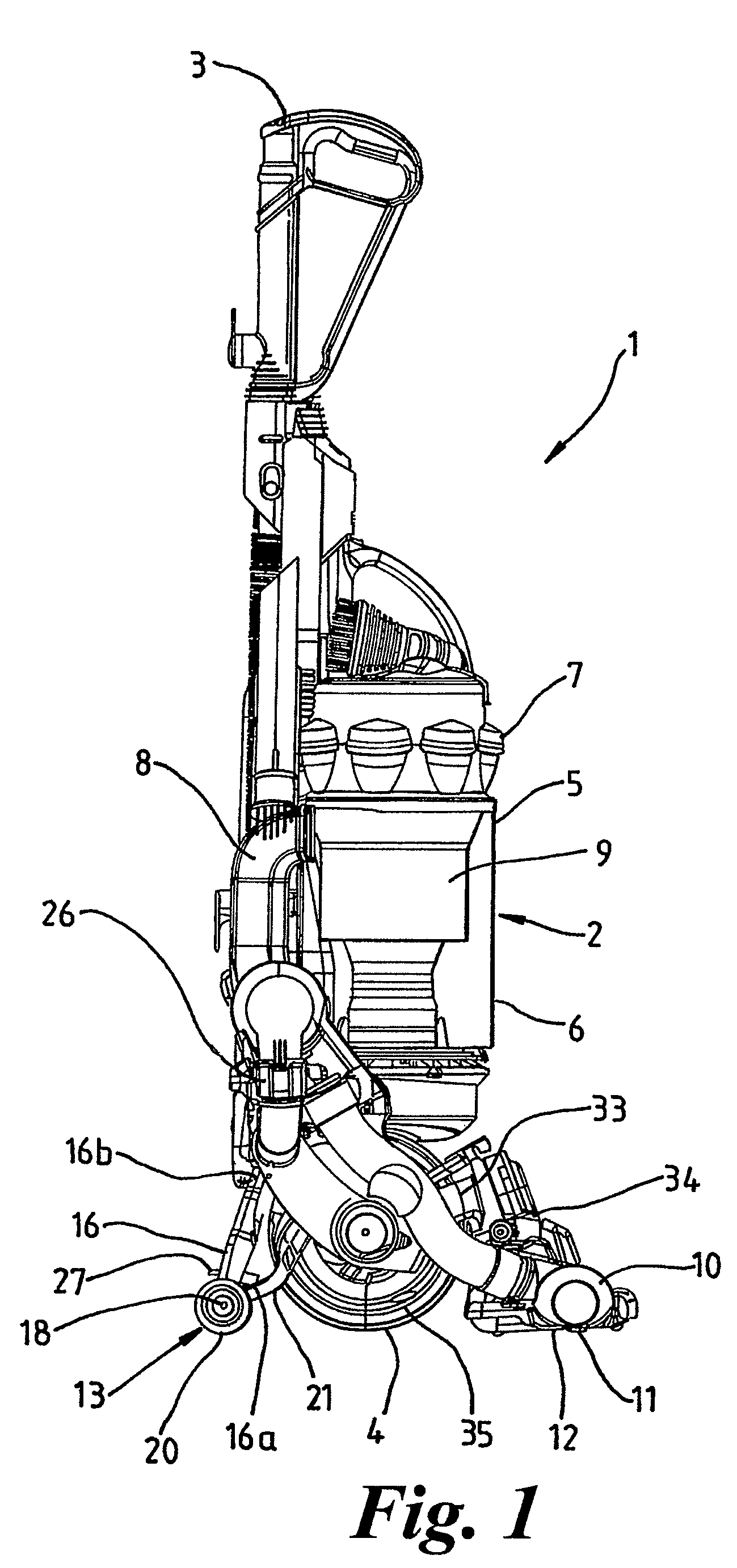

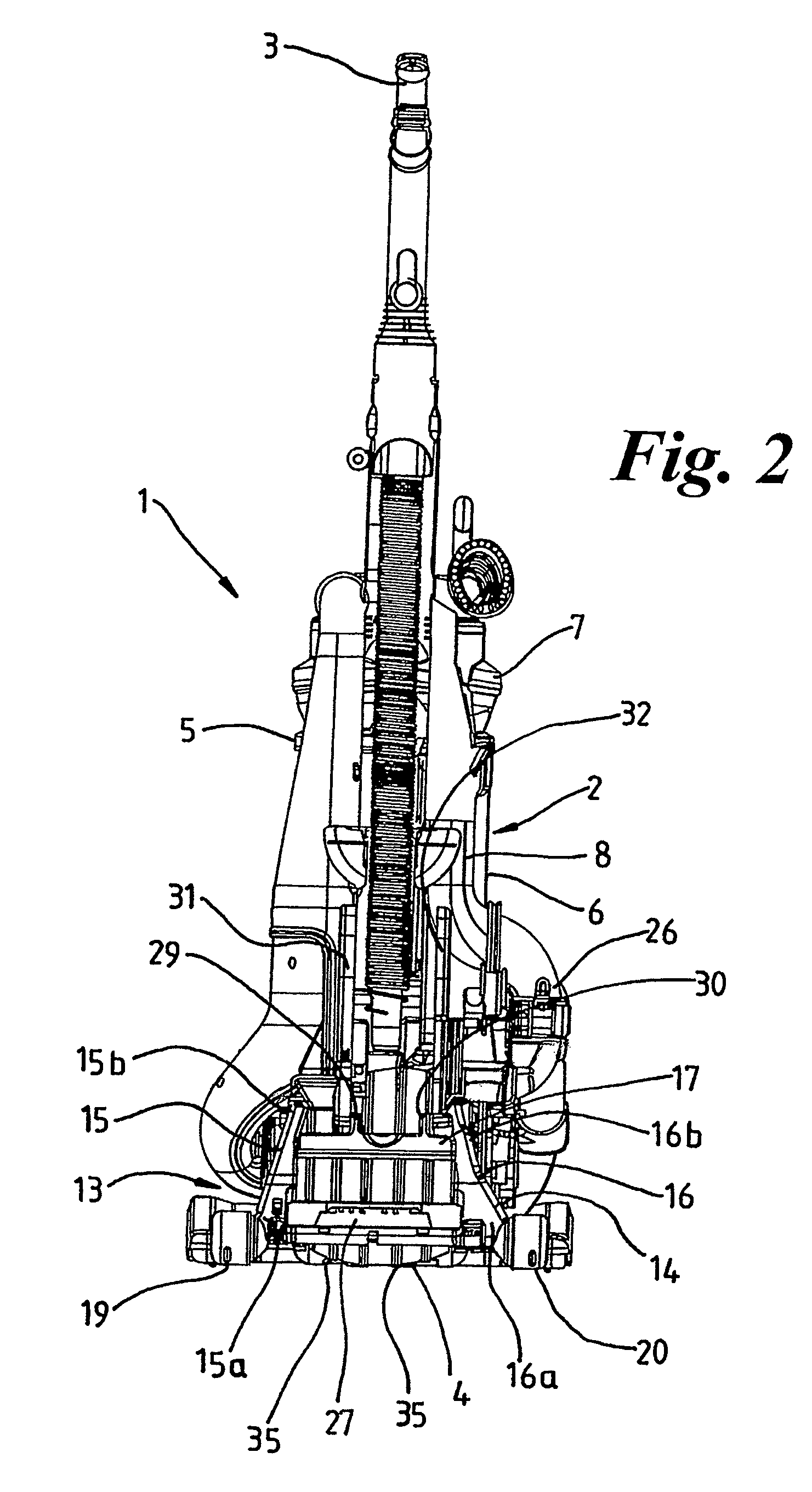

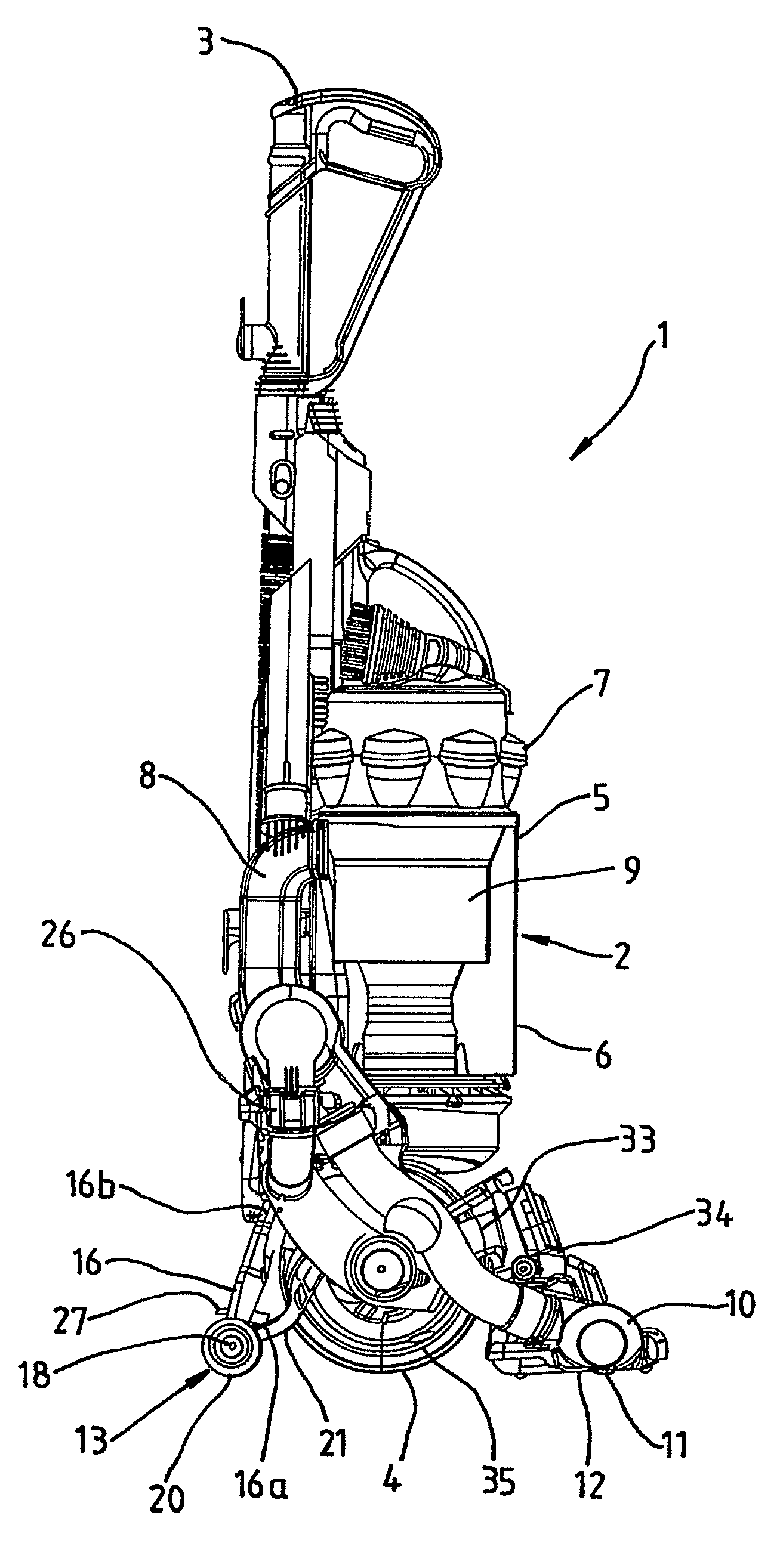

专利附图（8）
