信息库 / 清洁用具 / 用于涂抹睫毛膏或类似物的刷子
来源记录显示 Expired

用于涂抹睫毛膏或类似物的刷子

Brush for application of mascara or the like

US-7810509-B2

用于涂抹睫毛膏,环形刷毛可快速均匀上妆。

专利摘要

提供一种用于涂抹睫毛膏或类似物的刷子,包括刷芯和保持在刷芯上的刷毛,其中每个刷毛呈环形,如二维或三维平面或空间曲线的圆形或椭圆形,并且以这样的方式保持在刷芯上,即刷毛的面与刷芯的纵轴成0°至90°角。该刷子,例如睫毛膏刷,使得即使大量睫毛膏也能通过轻轻涂抹在睫毛上而快速、简单且美观地涂抹。

Original abstractThere is provided a brush for application of mascara or the like, comprising a brush core and bristles held on the brush core, wherein each of the bristles is in a shape of ring such as circle or ellipse of two-dimensional or three-dimensional planar or spatial curve and is held on the brush core in such a manner that a face of the bristle is at an angle of 0° to 90° with a longitudinal axis of the brush core. The brush, such as mascara brush makes it possible to apply quickly, simply and beautifully mascara even in a large amount onto the eyelashes by gently stroking onto the eyelashes.

专利附图(6)

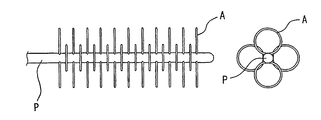

US-7810509-B2 figure 1
1

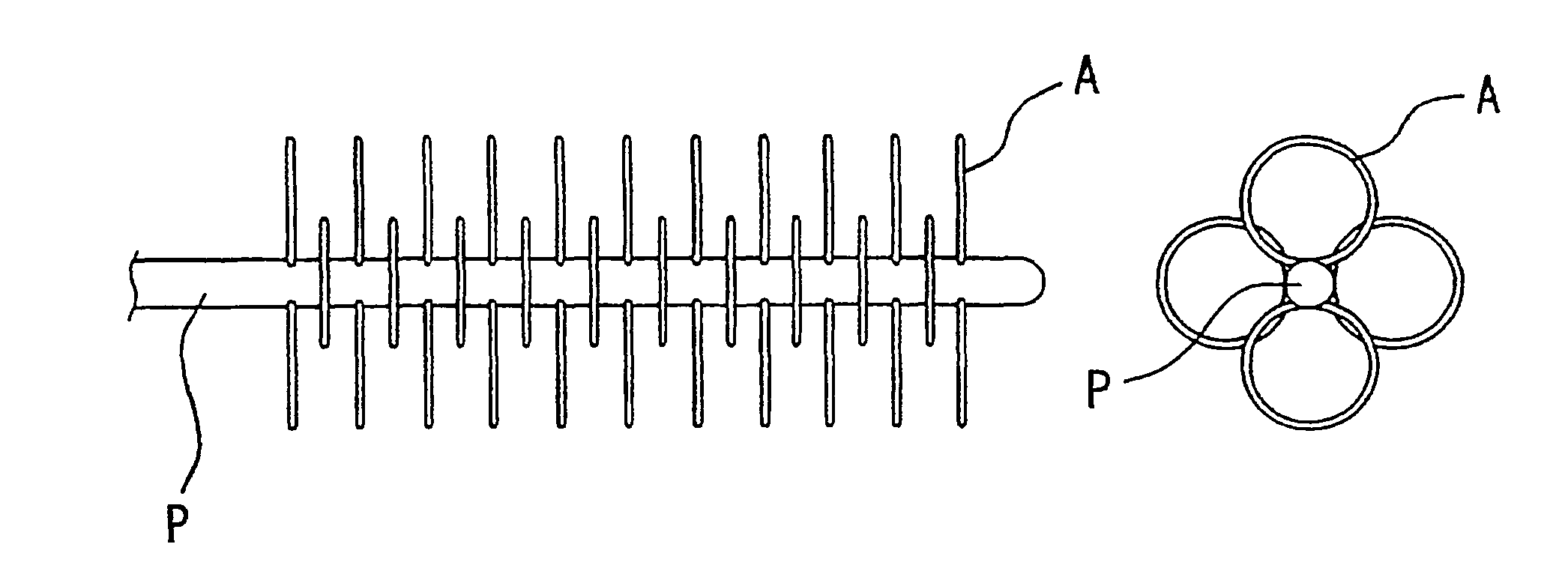

US-7810509-B2 figure 2
2
US-7810509-B2 figure 3
3

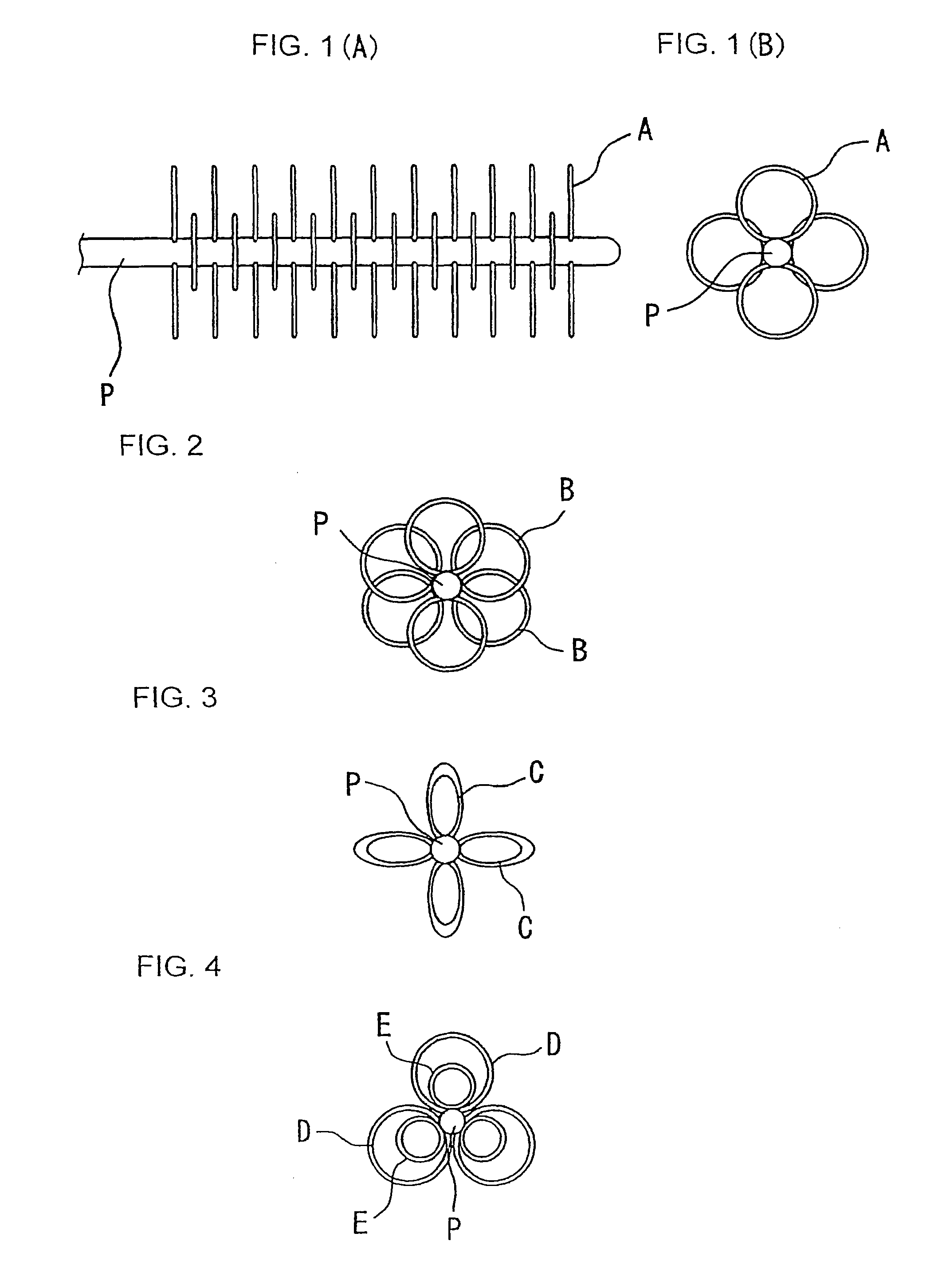

US-7810509-B2 figure 4
4
US-7810509-B2 figure 5
5

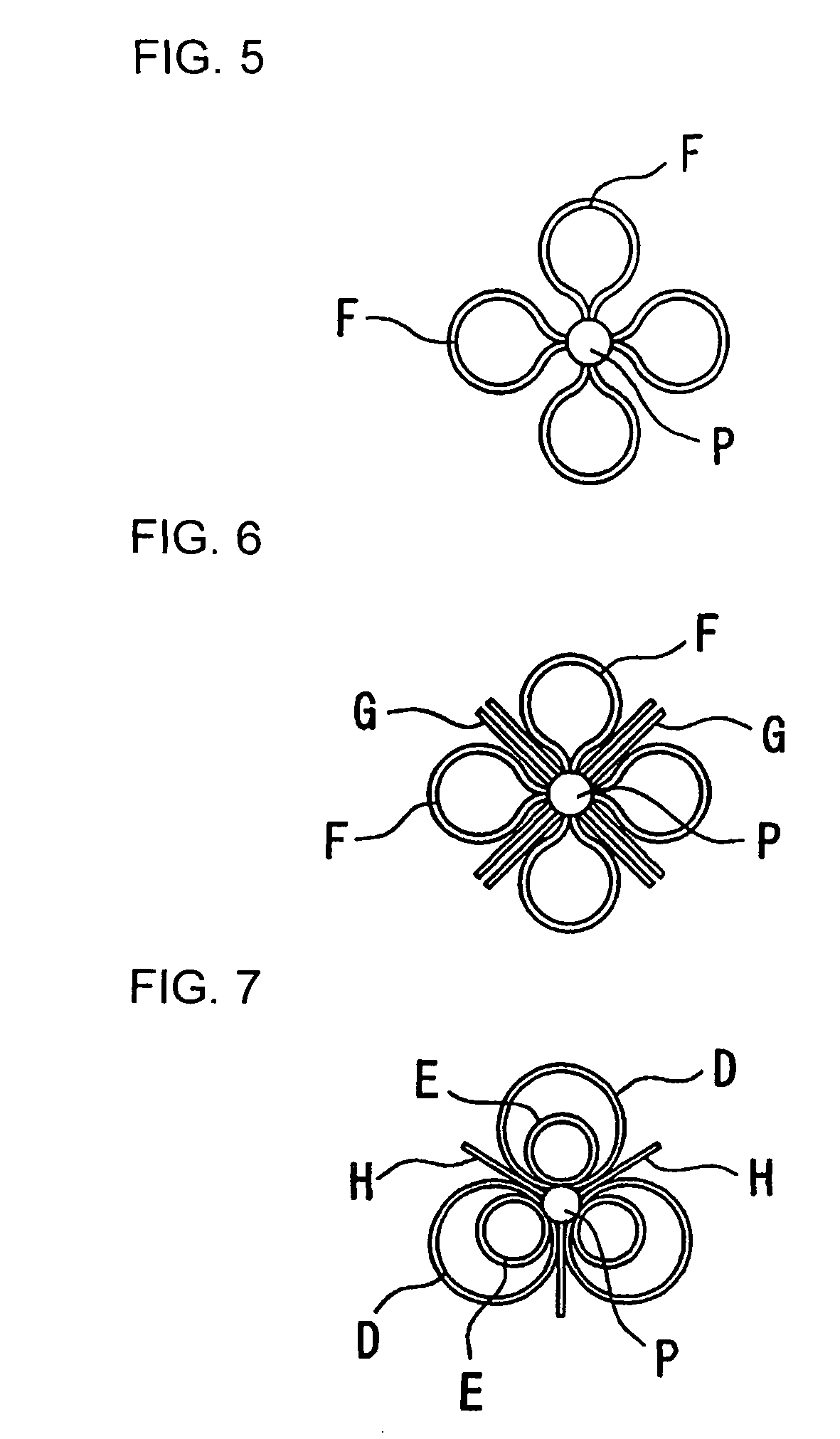

US-7810509-B2 figure 6
6
