提供可灵活转向的立式吸尘器。
专利摘要
一种可转向立式真空吸尘器，包括含有集尘部分的直立部分、直立部分安装在其上的套环以及套环附接到的底座部分。直立部分安装在套环上，使得直立部分相对于套环绕第一轴线枢转。底座部分附接到套环，使得套环相对于底座部分绕第二轴线枢转。第二轴线近似垂直于第一轴线。底座部分包括与集尘部分连通的吸嘴。
Original abstractA steerable upright vacuum cleaner includes an upright section including a dirt collecting portion, a collar on which the upright section is mounted and base section to which the collar is attached. The upright section is mounted on the collar such that the upright section pivots around a first axis with respect to the collar. The base section is attached to the collar such that the collar pivots around a second axis with respect to the base section. The second axis is approximately perpendicular to the first axis. The base section includes a nozzle that communicates with the dirt collecting portion.

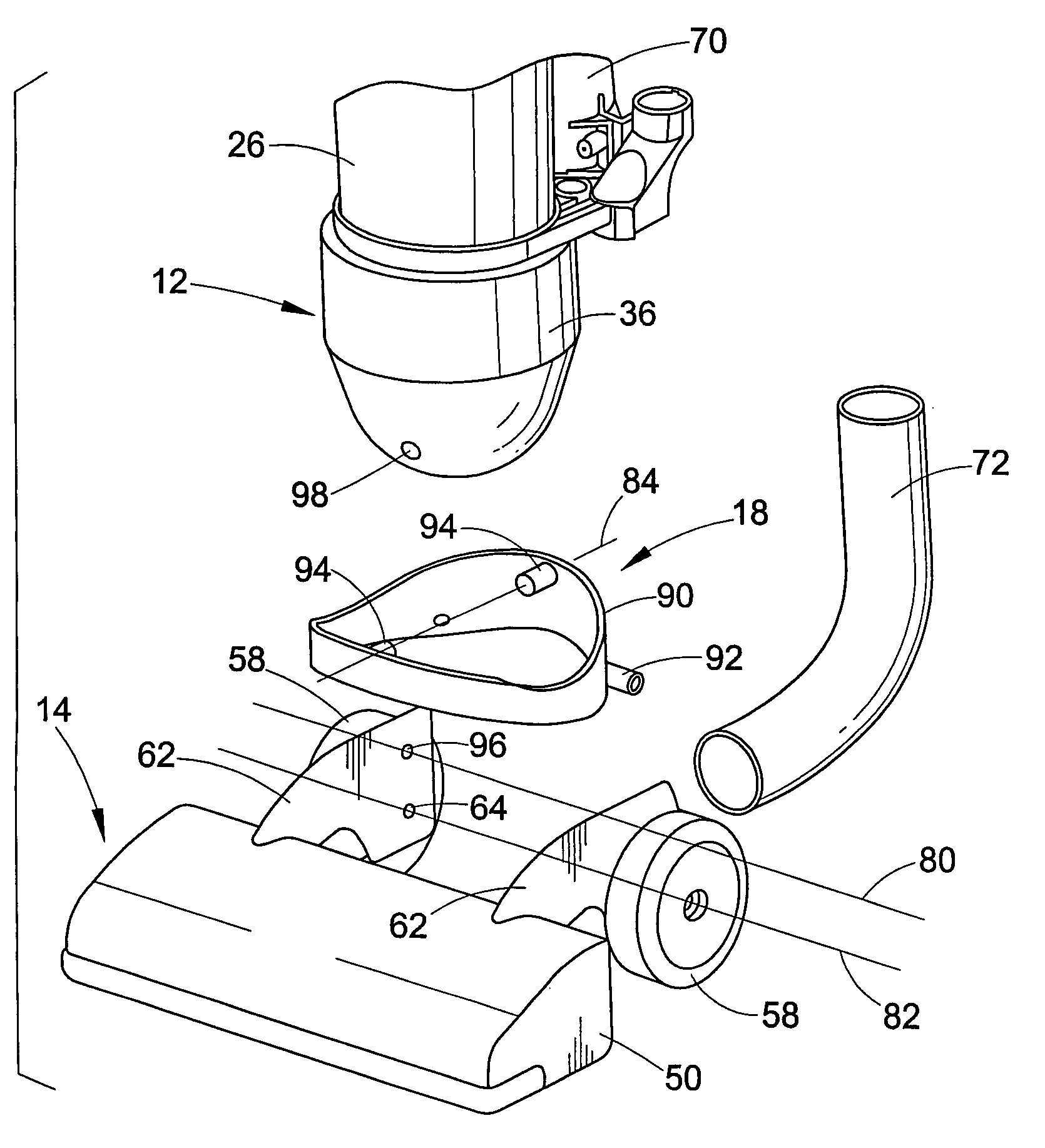

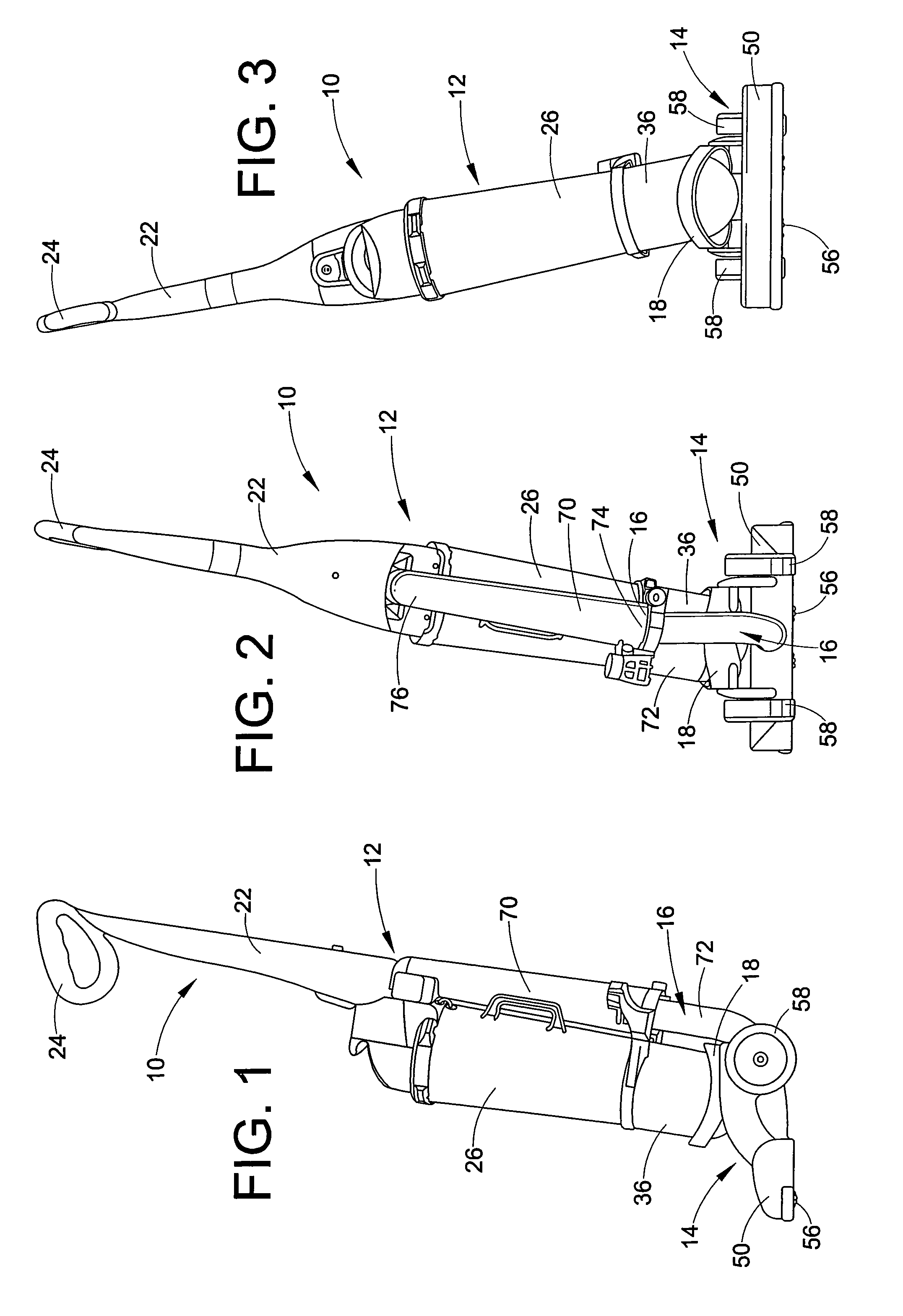

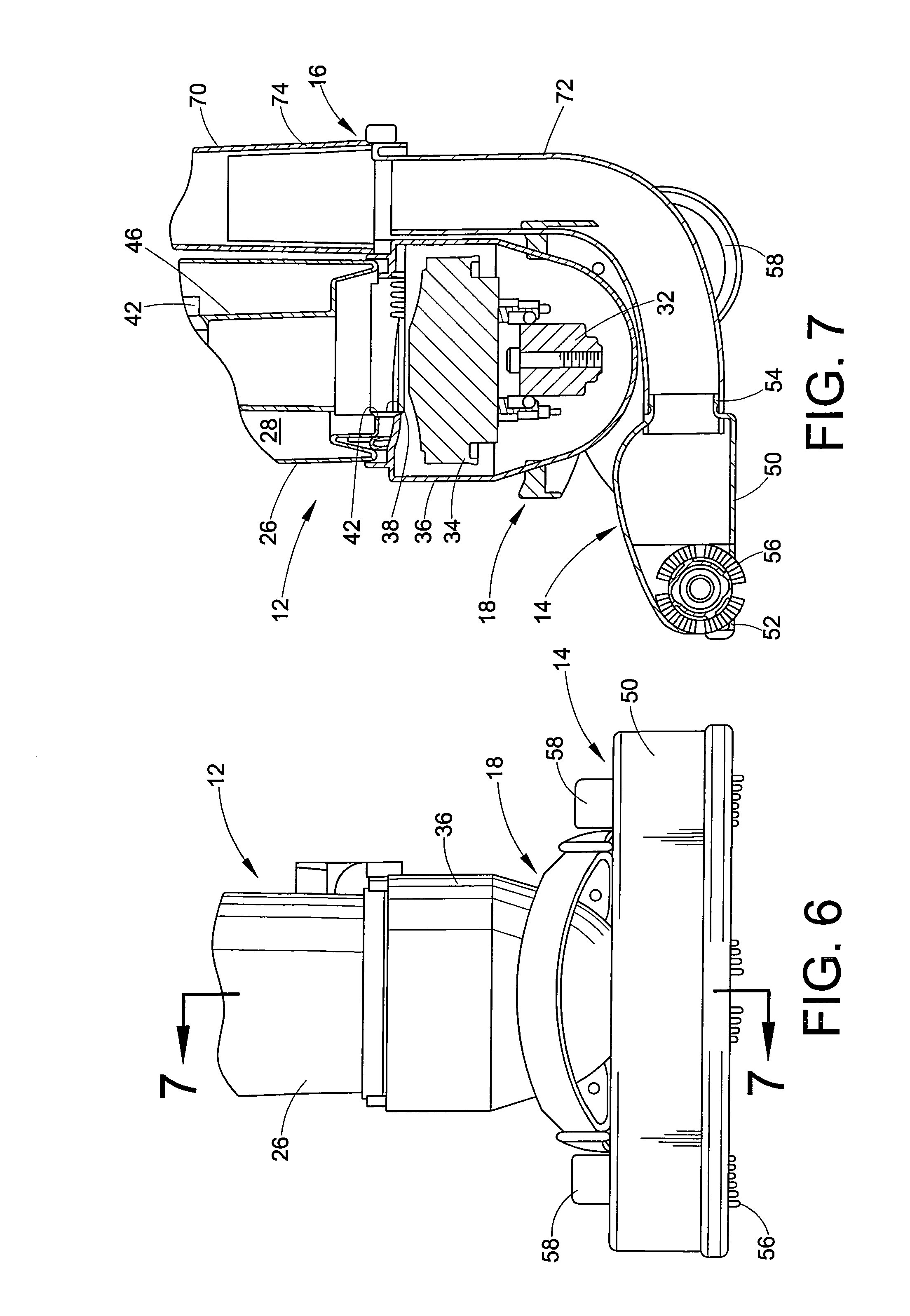

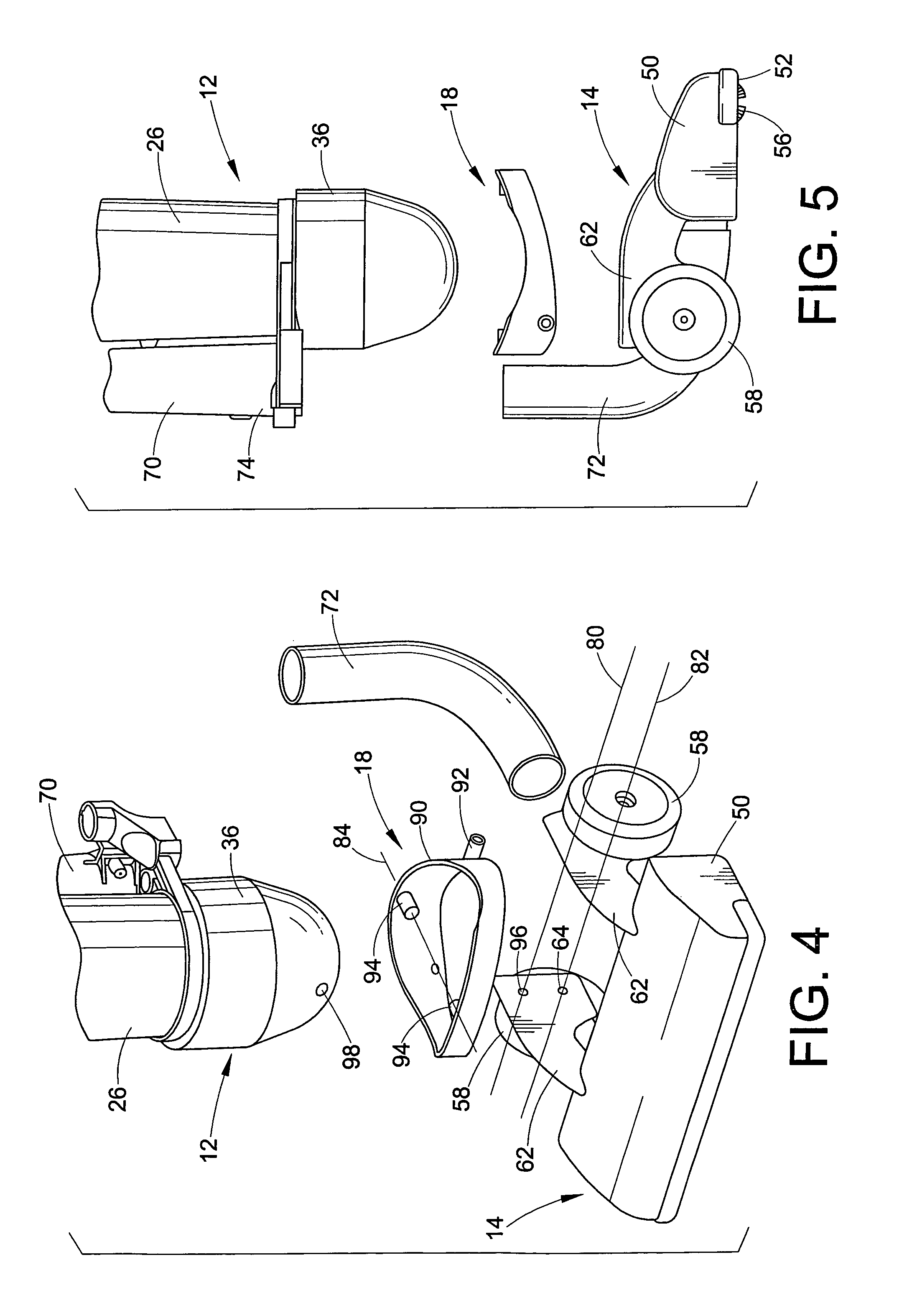

专利附图（8）
