用于真空吸尘器集尘。
专利摘要

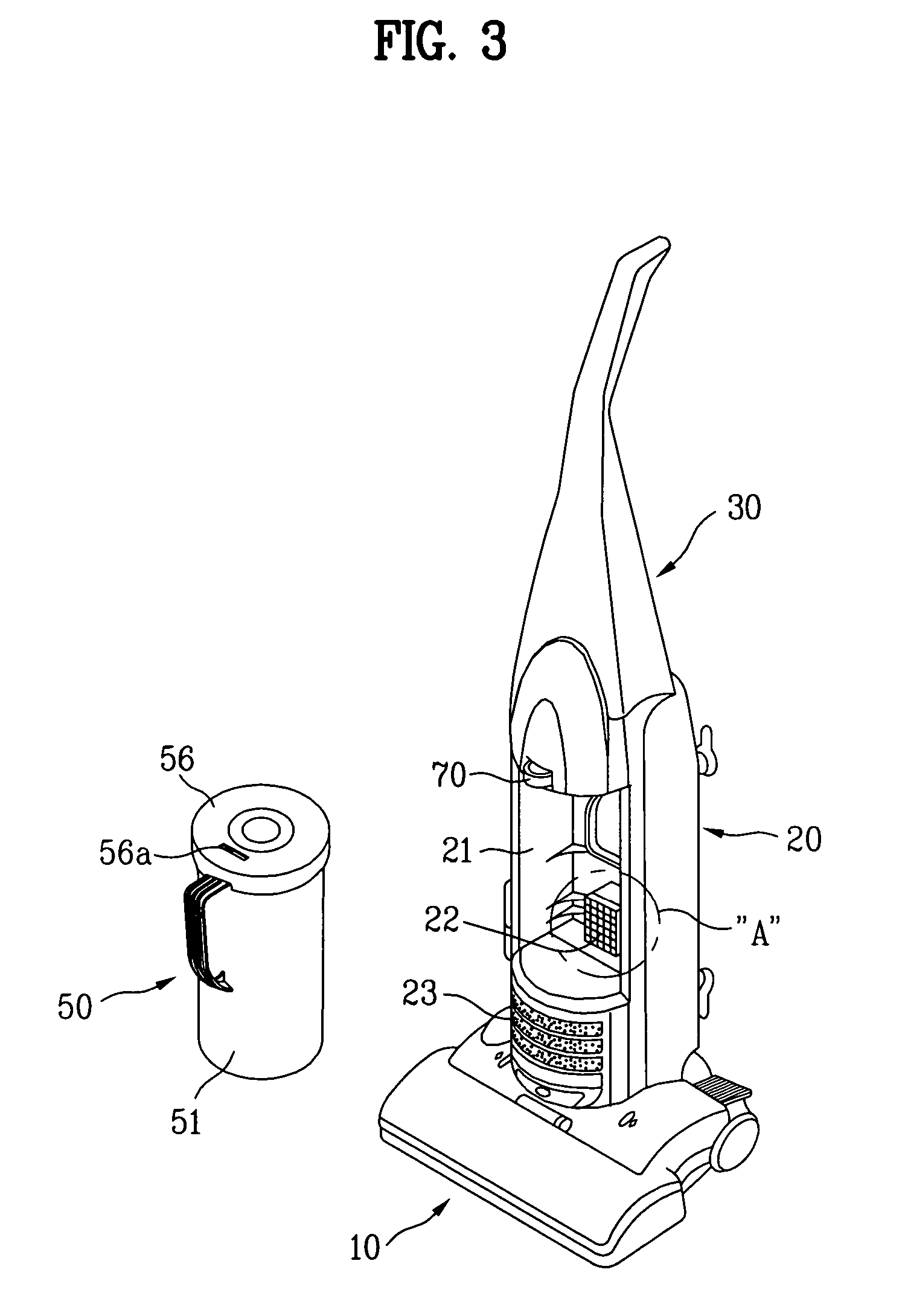

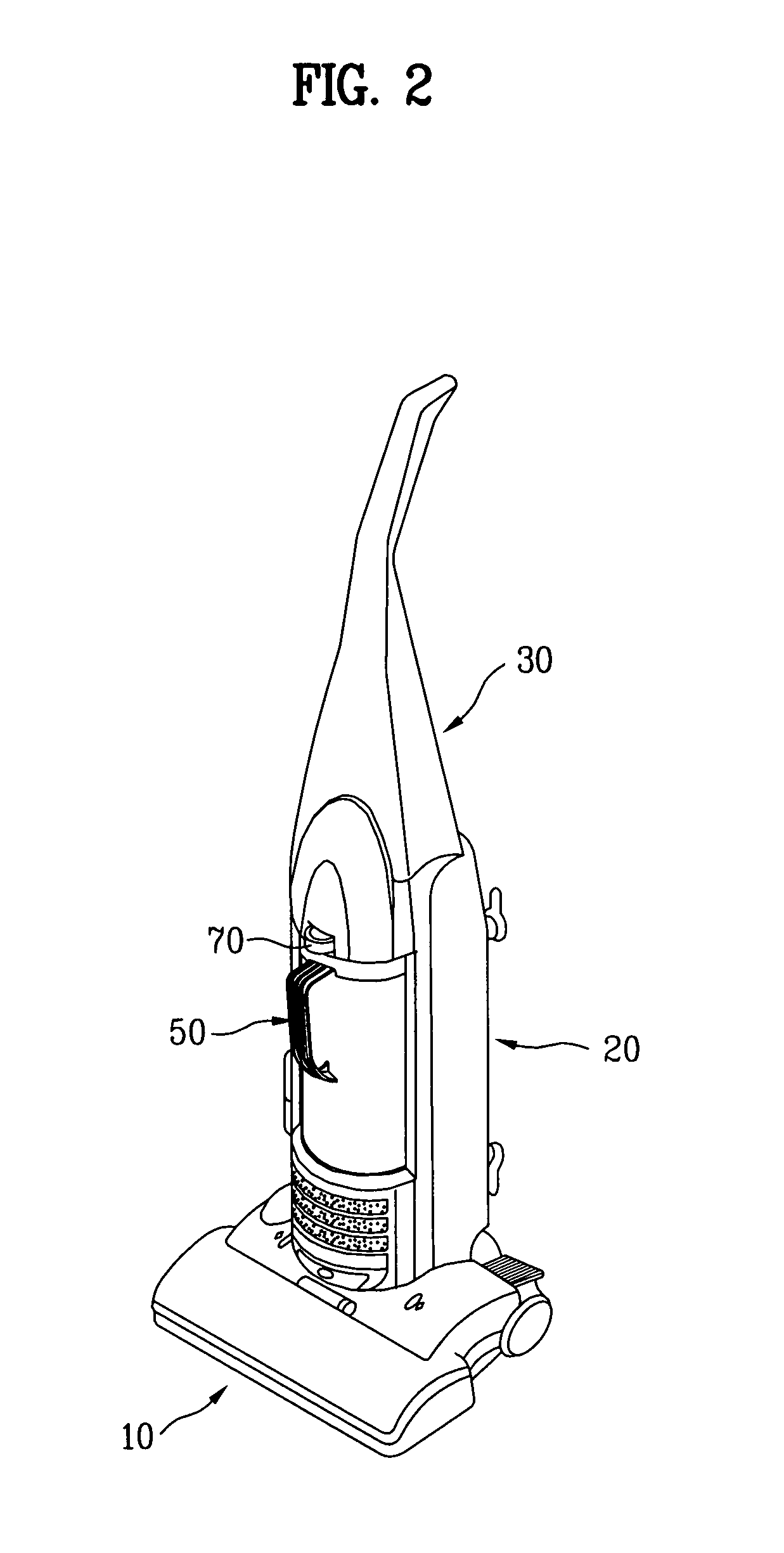

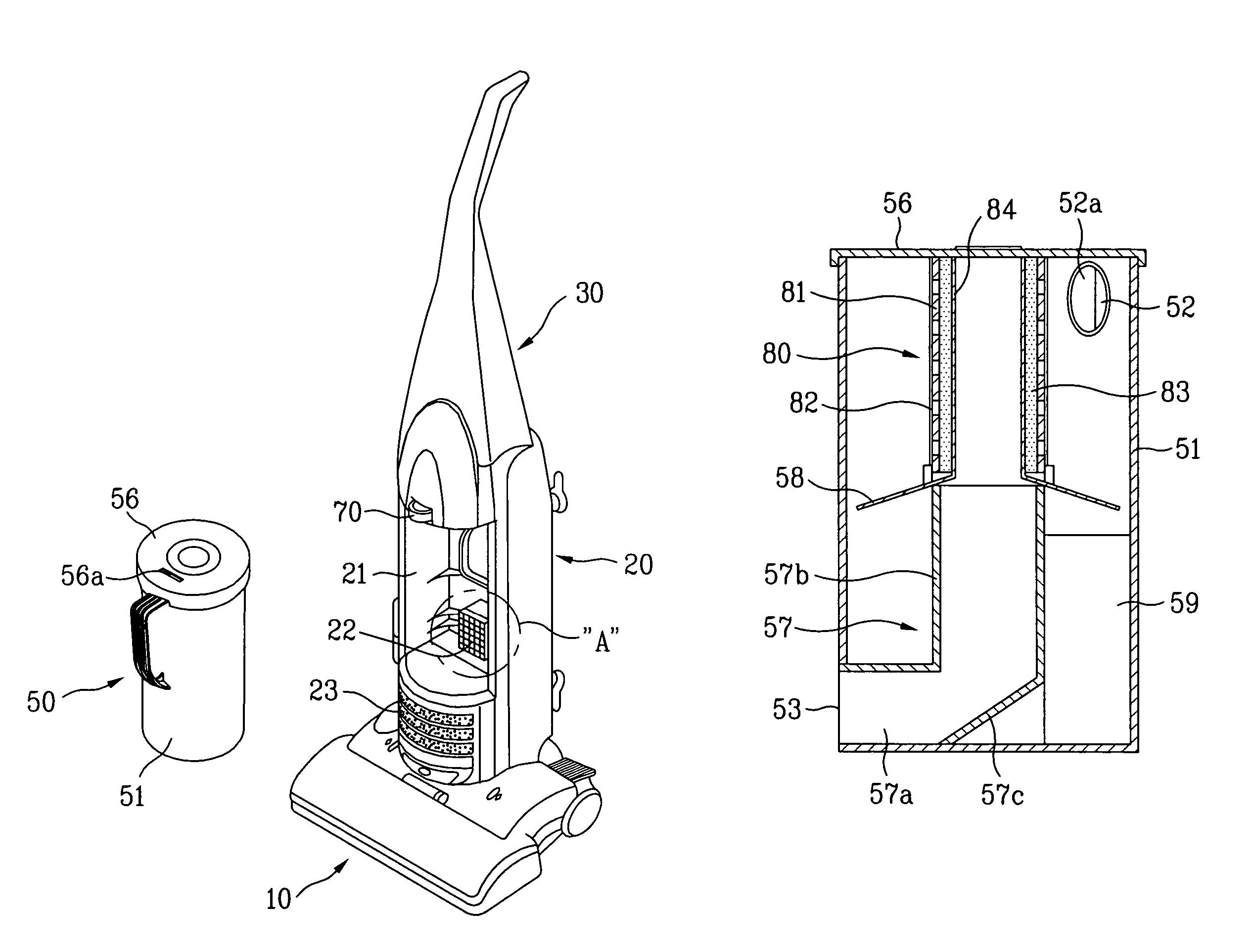

提供了一种真空吸尘器。该真空吸尘器包括主体、联接到主体以吸入含颗粒空气的吸嘴，以及可拆卸地联接到主体的集尘组件，该集尘组件包括其中形成有集尘空间的集尘容器。含颗粒空气通过污染空气入口被吸入，无颗粒空气通过集尘容器的清洁空气出口排出。主体包括接收集尘组件的集尘组件接收槽，并且清洁空气入口设置在集尘组件接收槽的内壁上，面向集尘组件。清洁空气入口与集尘组件的出口连通，无颗粒空气通过该出口从集尘组件排出。
Original abstractA vacuum cleaner is provided. The vacuum cleaner includes a main body, a suction nozzle coupled to the main body to draw in particle laden air, and a dust collecting assembly detachably coupled to the main body and including a dust collecting container that has a dust collecting space formed therein. Particle laden air is drawn in through a polluted air inlet, and particle free air is discharged through a clean air outlet of the dust collecting container. The main body includes a dust collecting assembly receiving groove that receives the dust collecting assembly, and a clean air inlet is provided on an inner wall of the dust collecting assembly receiving groove, facing the dust collecting assembly. The clean air inlet is in communication with an outlet of the dust collecting assembly through which particle free air is discharged from the dust collecting assembly.
专利附图（8）
