下降离心分离式吸尘器杯

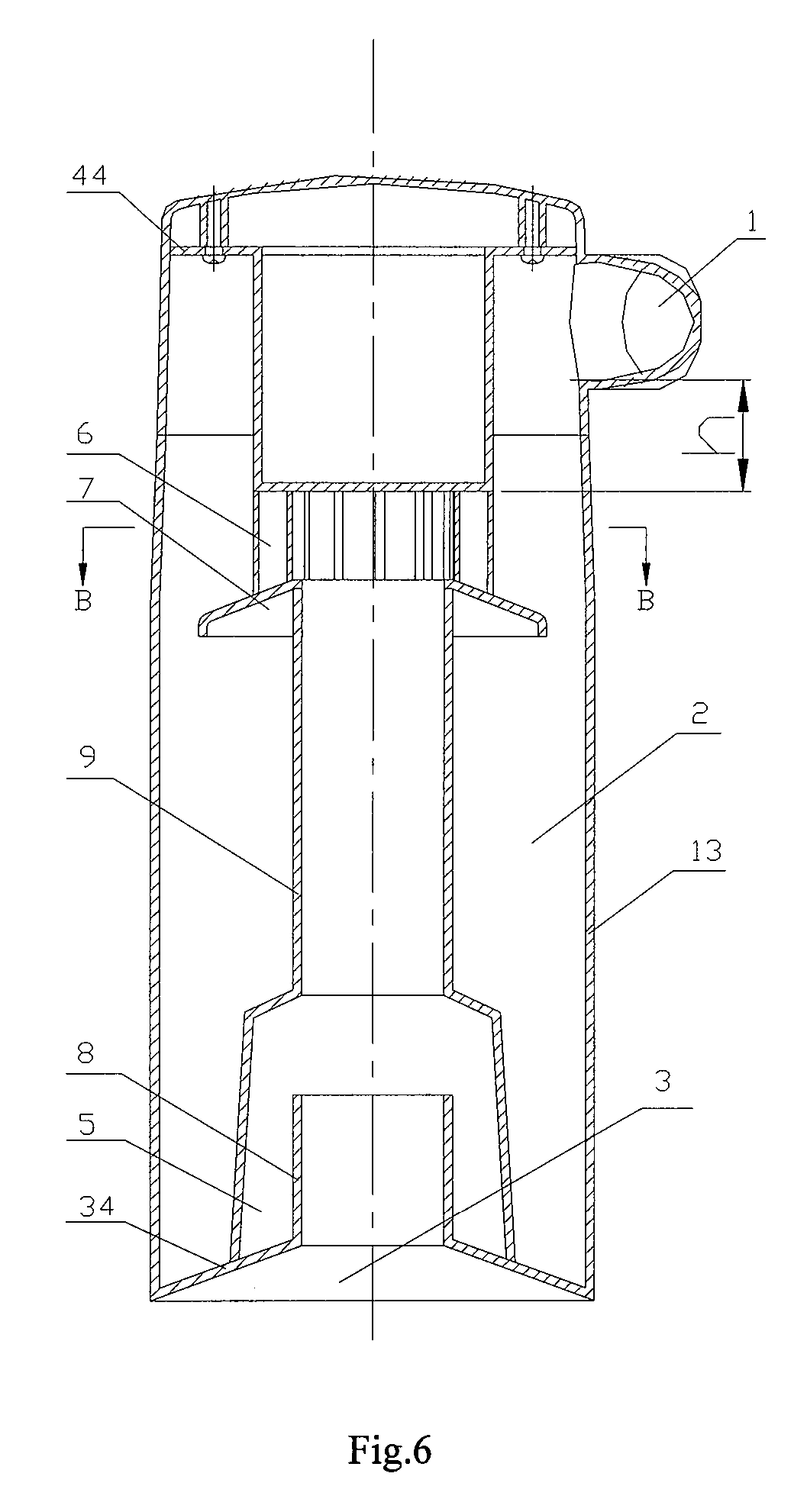

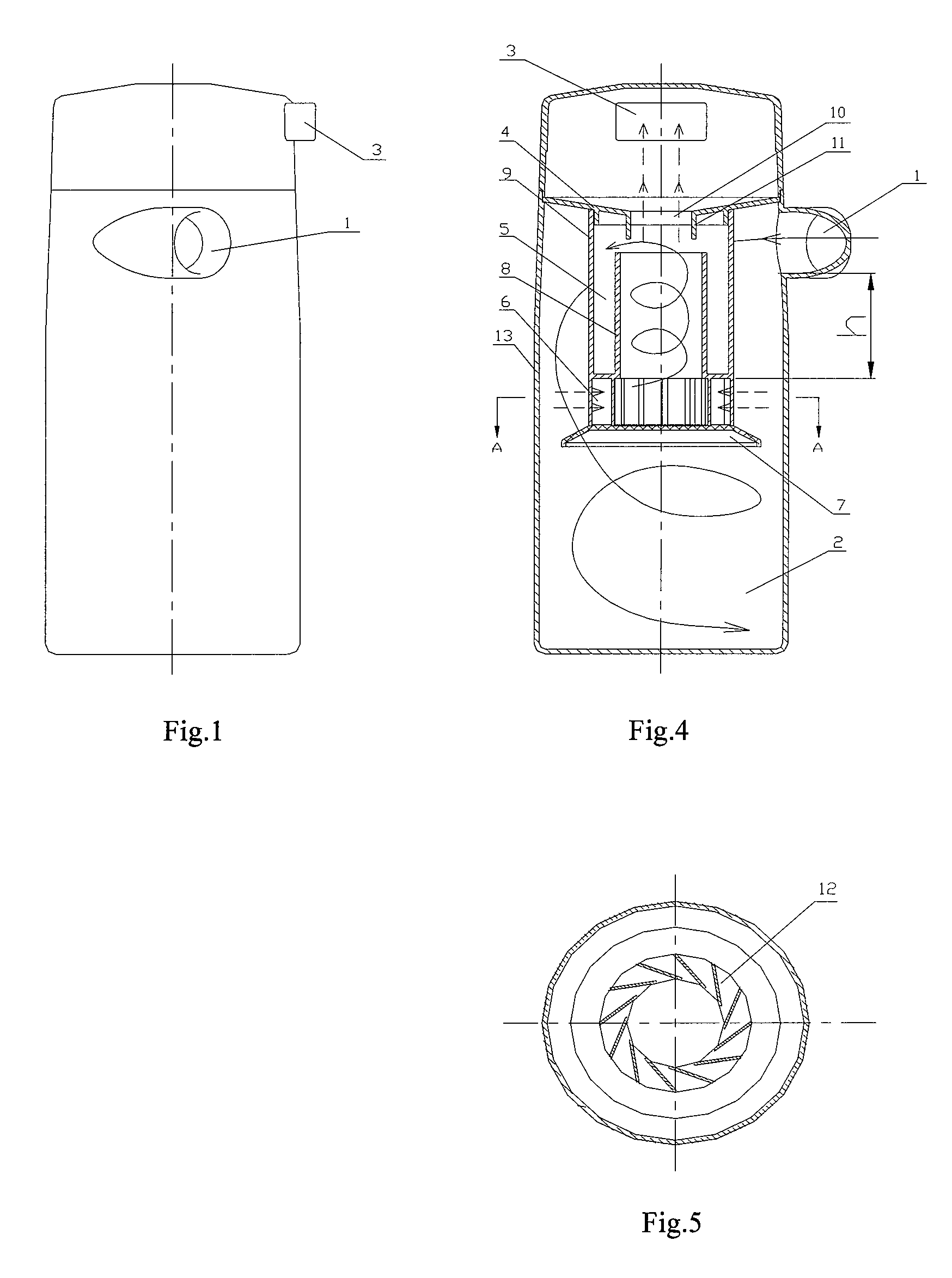

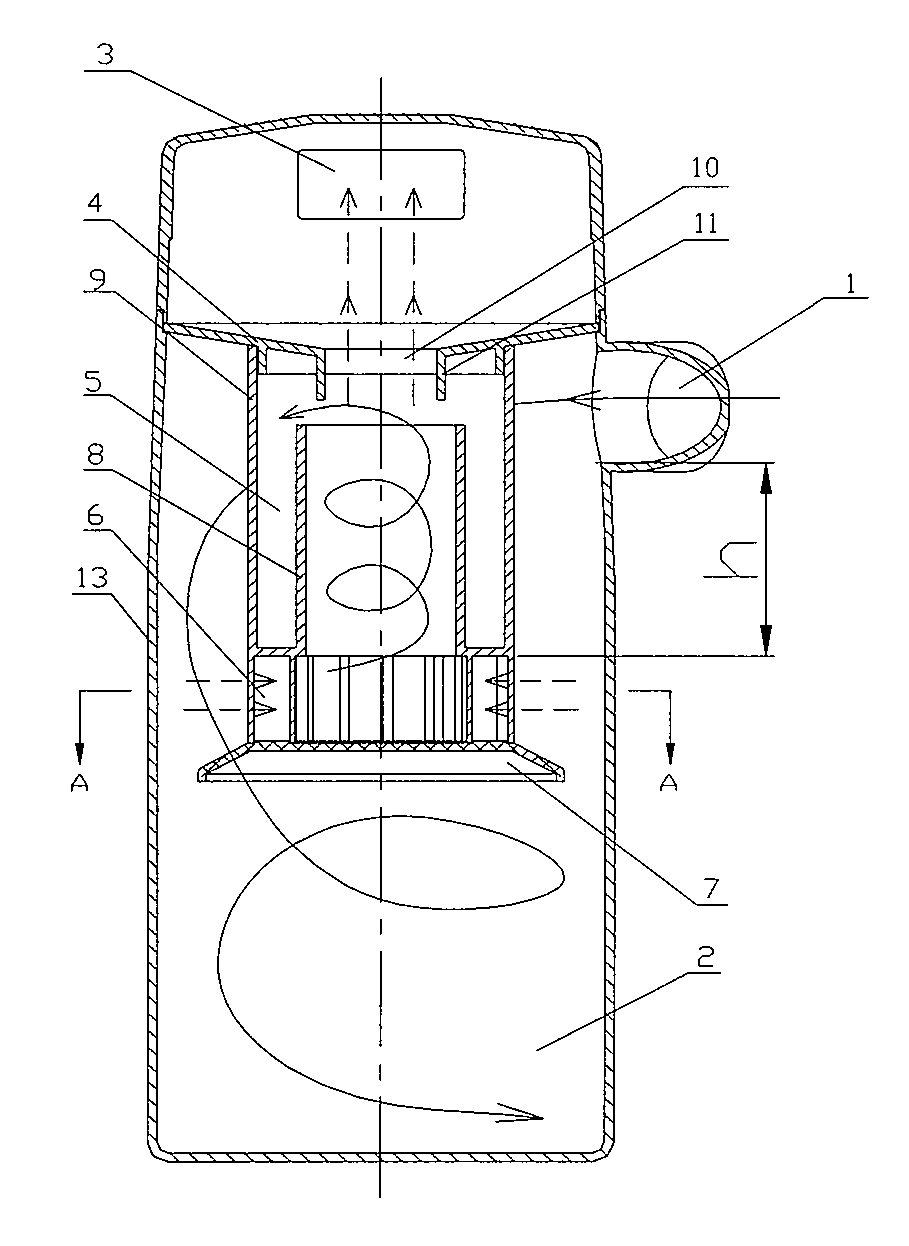

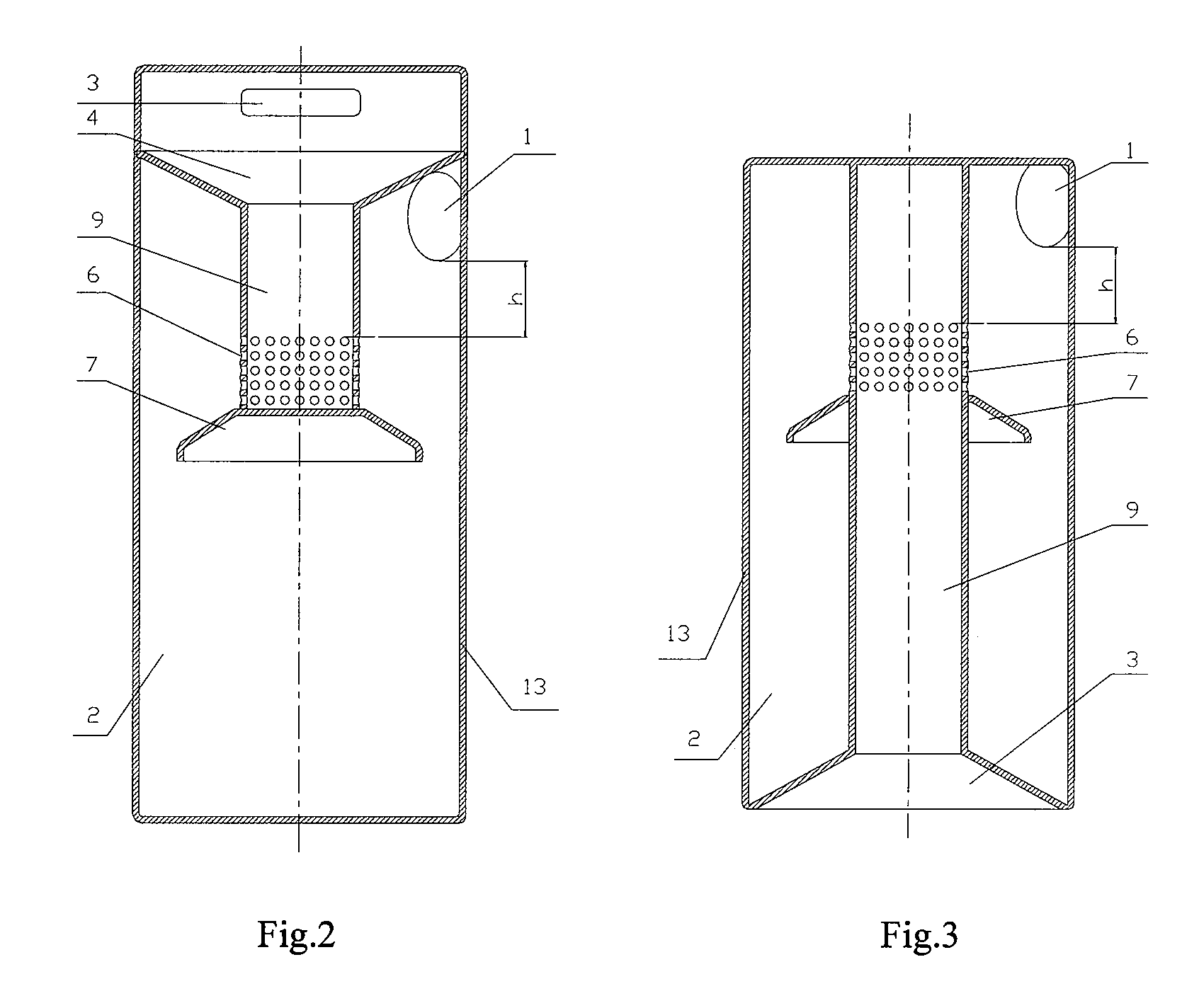

Original abstractA dust collector cup working in the principle of fall centrifugal separation, consists of cup body ( 13 ), outlet ( 3 ) on the cup body ( 13 ), inlet ( 1 ) tangential to the circumferential wall of the cup body ( 13 ), and a separator settled in the cup body ( 13 ). The separator is composed of outlet tube ( 9 ), inlet ( 6 ) on the wall of the outlet tube ( 9 ), and the isolating shield ( 7 ) under the inlet ( 6 ) of the outlet tube ( 9 ), with the outlet tube ( 9 ) linked to the outlet ( 3 ) of the cup body ( 13 ). The fall between the horizontal positions of the lower end of inlet of the cup body ( 13 ) and the upper end of the inlet ( 6 ) of the outlet tube ( 9 ) is 0-140 mm.
