用于吸尘清洁，集尘组件可拆卸。
专利摘要

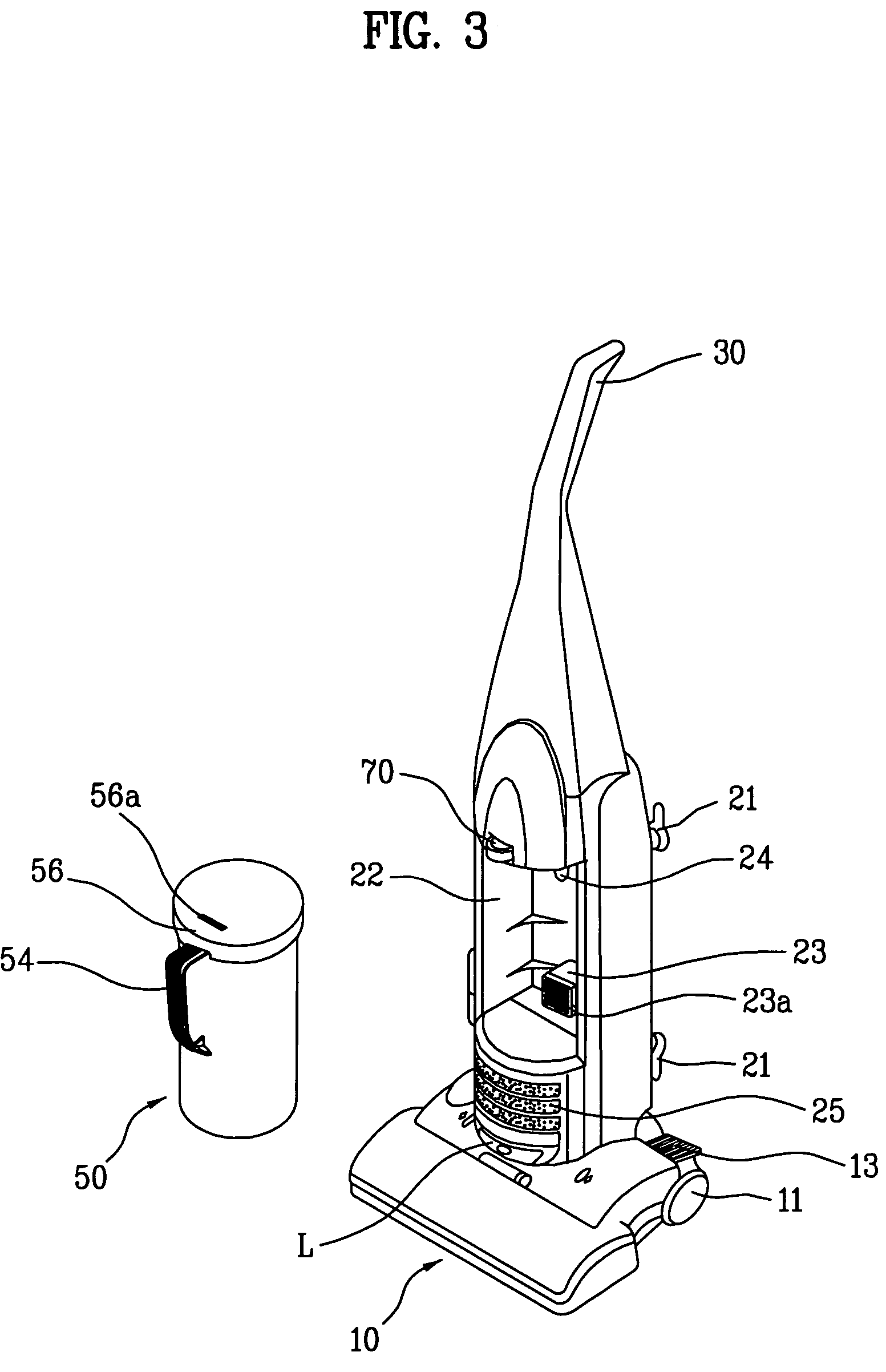

公开了一种真空吸尘器，包括吸嘴；集尘组件，包括具有开口顶面的集尘容器、用于打开和关闭集尘容器顶部的顶盖、入口、设置在集尘容器中的过滤装置、用于防止收集在集尘容器下部的杂质被气流扬起的分离板、以及用于排出清洁空气的出口；以及吸尘器主体，包括用于可拆卸地接收集尘组件的集尘组件接收凹槽、与集尘组件的入口耦合的污染空气出口、以及设置在集尘组件接收凹槽的内壁上以面向集尘组件安装方向的清洁空气入口，并与集尘组件的出口连通，以及其中设置有风扇并将清洁空气排放到真空吸尘器外部的清洁空气管道。
Original abstractDisclosed is a vacuum cleaner including a suction nozzle; a dust collecting assembly including a dust collecting container having an opened top surface, a top lid for opening and closing the top of the dust collecting container, an inlet, a filtering device provided in the dust collecting container, a separation plate for preventing the impurities collected in a lower part of the dust collecting container from being risen by air flow, and an outlet for discharging clean air; and a cleaner body including a dust collecting assembly receiving recess for detachably receiving the dust collecting assembly, a polluted air outlet coupled with the inlet of the dust collecting assembly, and a clean air inlet provided on an inner wall of the dust collecting assembly receiving recess, so as to face the direction of mounting the dust collecting assembly, and communicating with the outlet of the dust collecting assembly, and a clean air conduit having a fan provided therein and discharging the clean air to the outside of the vacuum cleaner.
专利附图（8）
