用于抽屉式洗碗机的柔性公用连接件

Flexible utility link for a drawer-type dishwasher

US-7775223-B2

用于抽屉式洗碗机的管线连接。

专利摘要

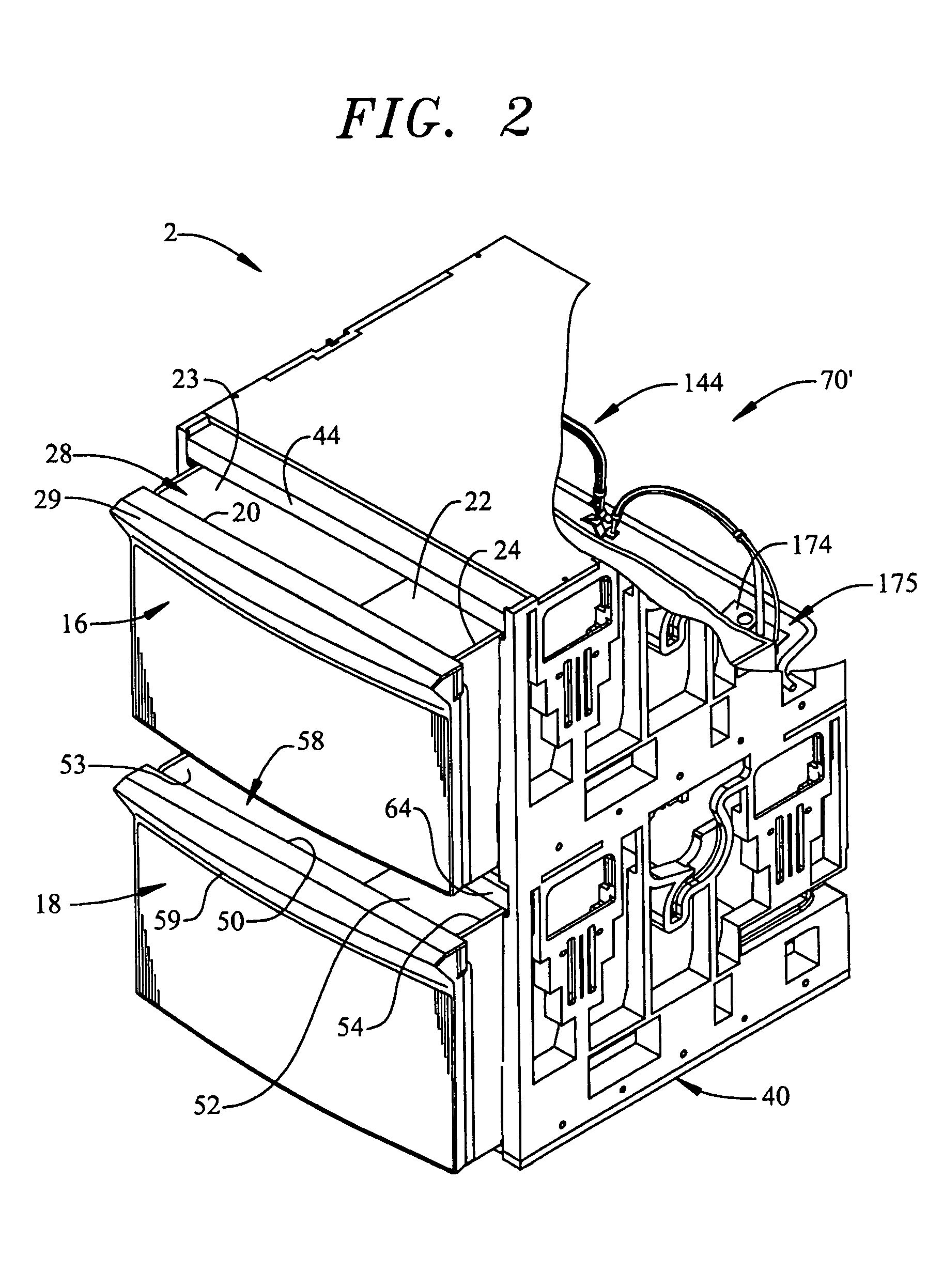

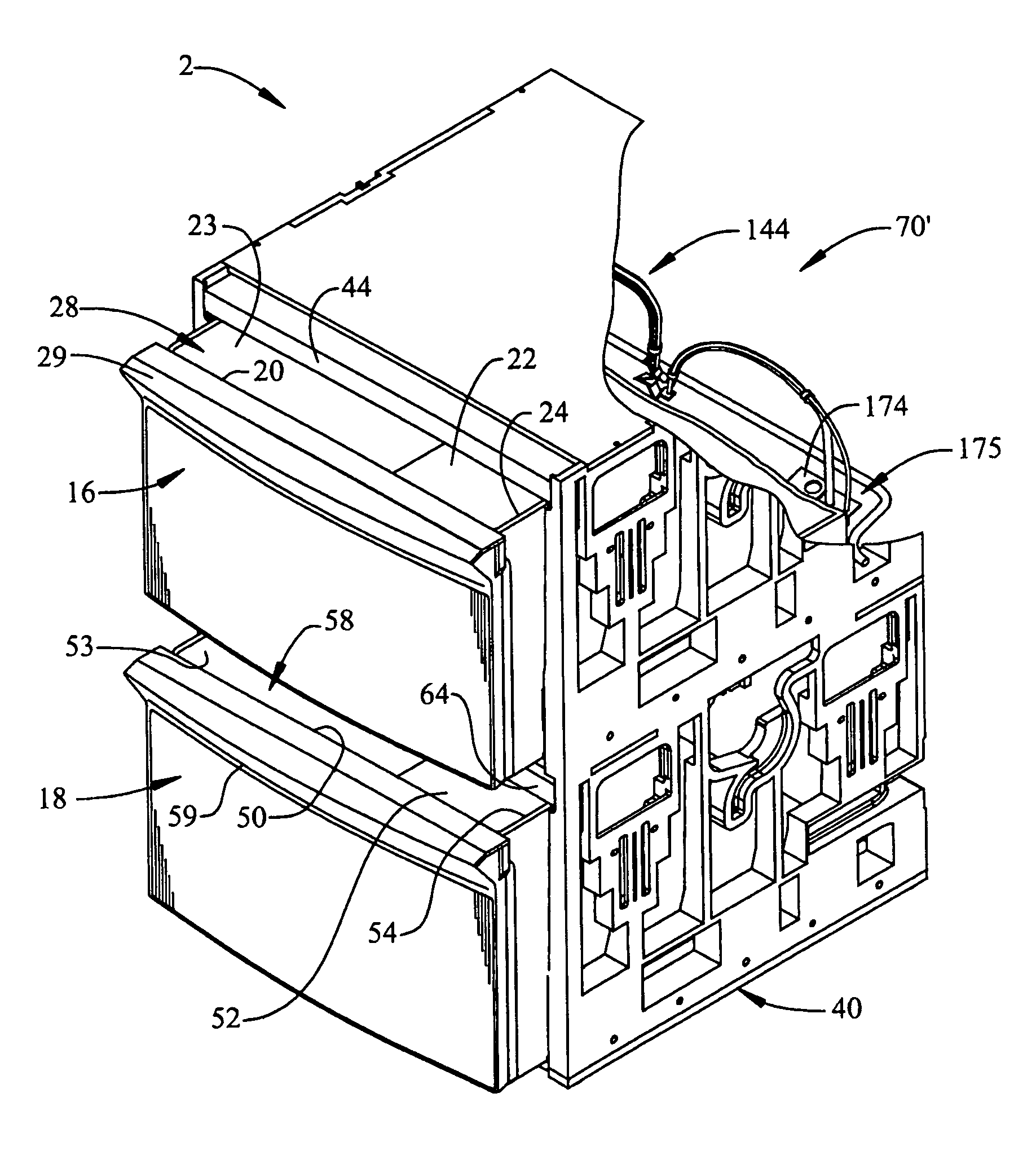

一种抽屉式洗碗机，包括外壳和可伸出的洗涤腔，洗涤腔在第一位置完全位于外壳内，在第二位置完全伸出外壳。洗涤腔通过公用连接件连接到外壳。为了允许洗涤腔的完整行程，公用连接件设有多个柔性环。该公用连接件可包括排水软管、电缆或两者的组合。无论如何，公用连接件通过载体支撑，该载体一端连接到外壳，另一端连接到洗涤腔。

Original abstractA drawer-type dishwasher includes a outer housing and an extensible wash chamber that in a first position resides completely within the outer housing and in a second position extends completely out from the outer housing. The wash chamber is connected to the outer housing through a utility link. In order to permit full travel of the wash chamber, the utility link is provided with multiple, flexible loops. The utility link can include a drain hose, an electrical cable or a combination of both. Regardless, the utility link is supported through a carrier that is connected at one end to the outer housing and at another end to the wash chamber.

专利附图（8）
