用于油漆涂抹，可多角度调节。
专利摘要
本发明涉及一种多可调油漆涂抹器组件，包括细长手柄，其具有第一调节组件，该第一调节组件提供上手柄部分相对于下手柄部分的角运动。底座通过第二调节组件可旋转地连接到手柄，该第二调节组件提供底座相对于手柄的旋转运动。底座还具有上部，其带有接收器，该接收器滑动接合从油漆涂抹器延伸的突出部。油漆涂抹器可以是具有涂抹器表面的油漆刷、滚筒或垫。第一和第二调节组件各自包括紧固件和一组配合构件，其与另一组配合构件相互啮合，其中紧固件在组之间提供张力以可释放地固定角度或旋转位置。
Original abstractThe invention is directed to a multi-adjustable paint applicator assembly including an elongated handle with a first adjustment assembly that provides angular movement of an upper handle portion with respect to a lower handle portion. A base is rotatably connected to the handle by a second adjustment assembly that provides rotational movement of the base with respect to the handle. The base also has an upper portion with a receiver that slidingly engages a projection extending from a paint applicator. The paint applicator may be a paint brush, roller or pad with an applicator surface. The first and second adjustment assemblies each include a fastener and an arrangement of mating members that intermesh with another arrangement of mating members, wherein the fastener provides tension between the arrangements to releasably secure the angular or rotational position.

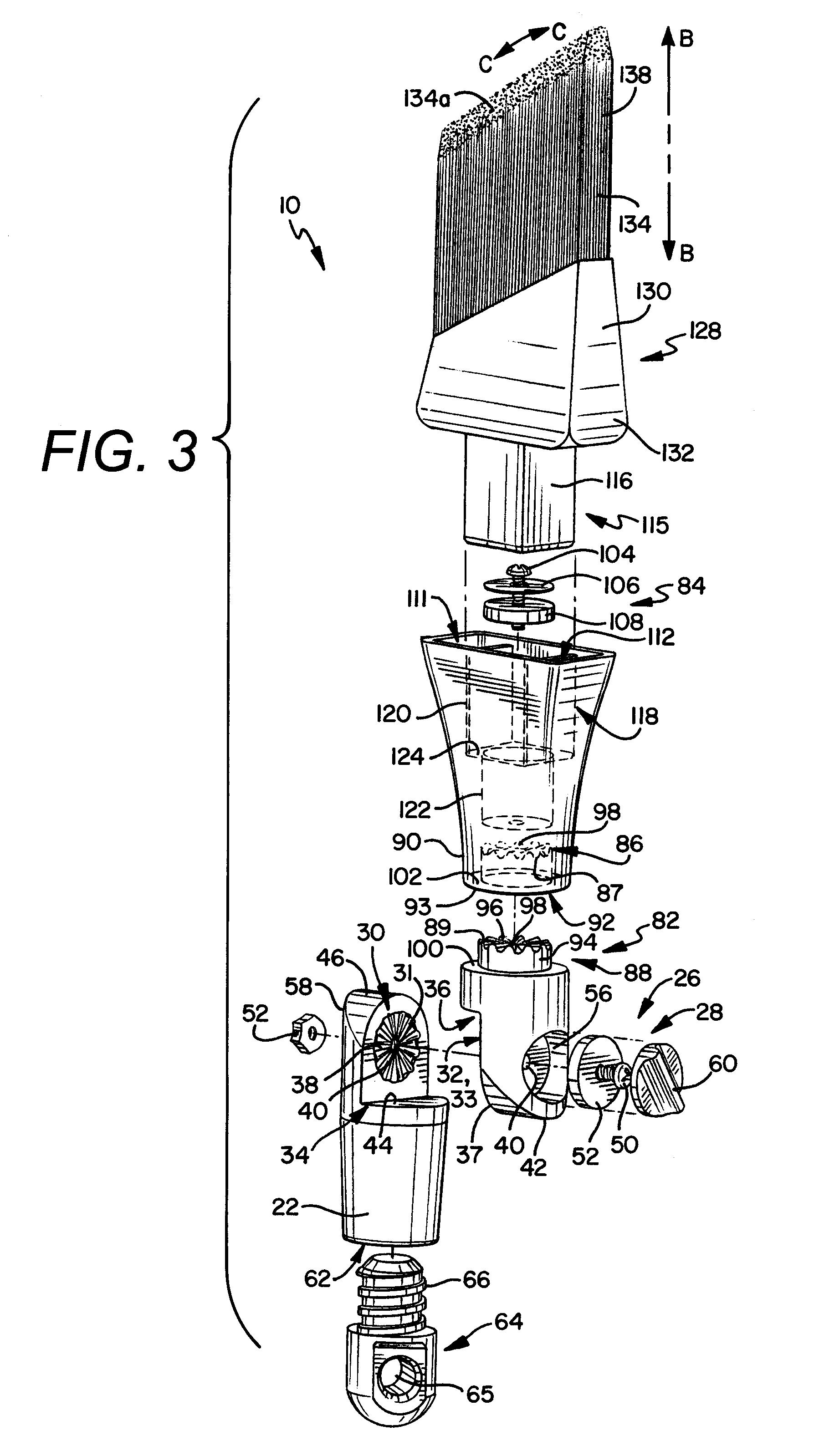

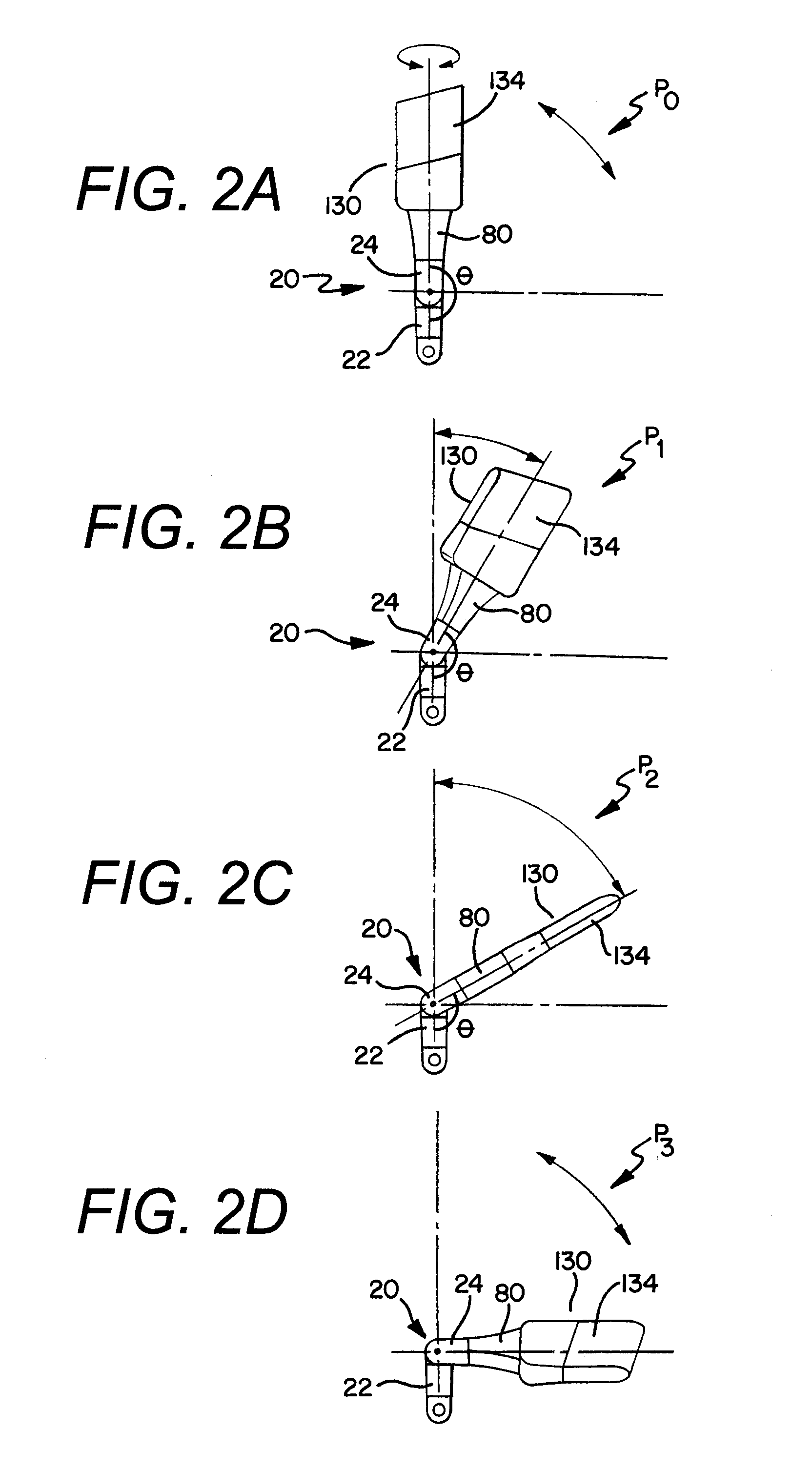

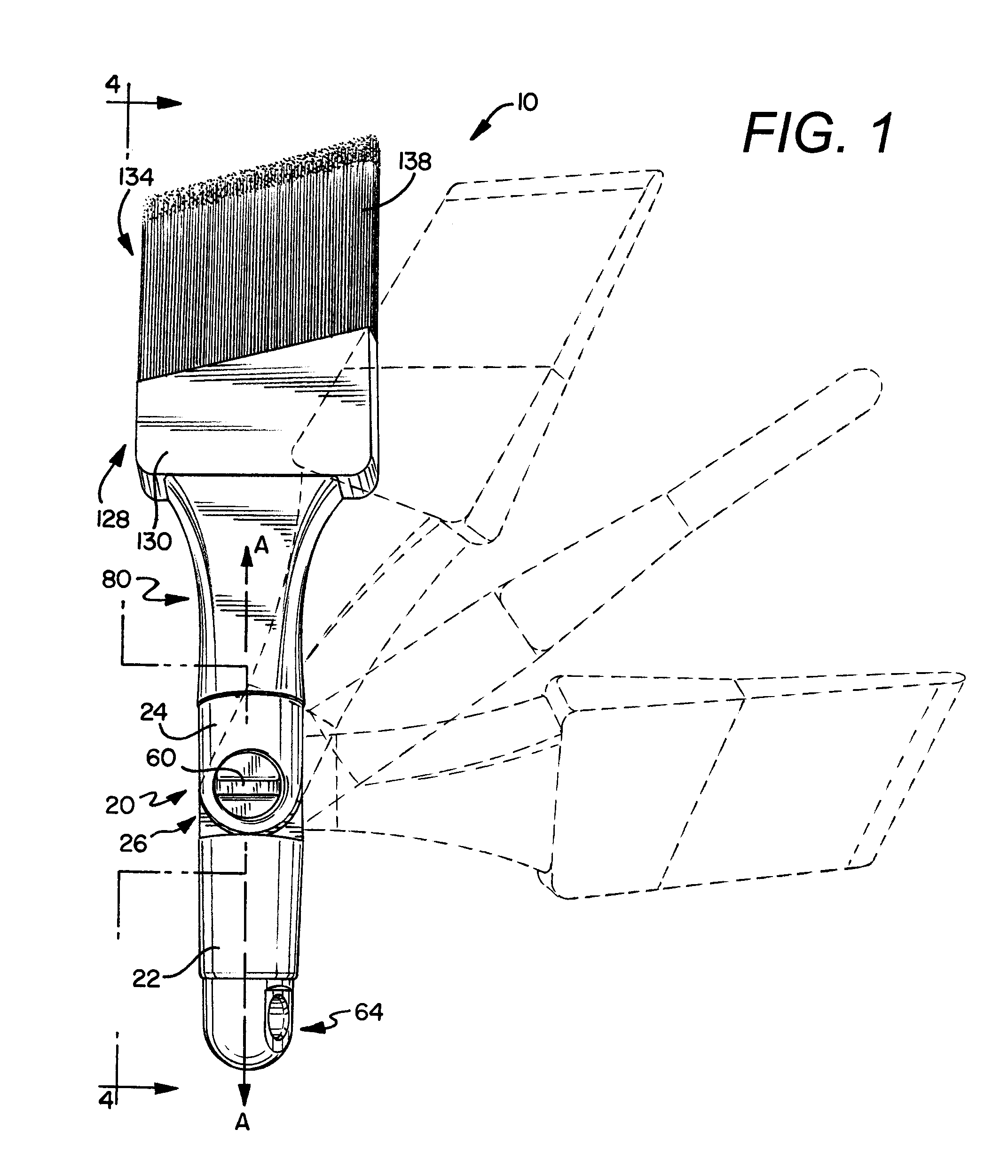

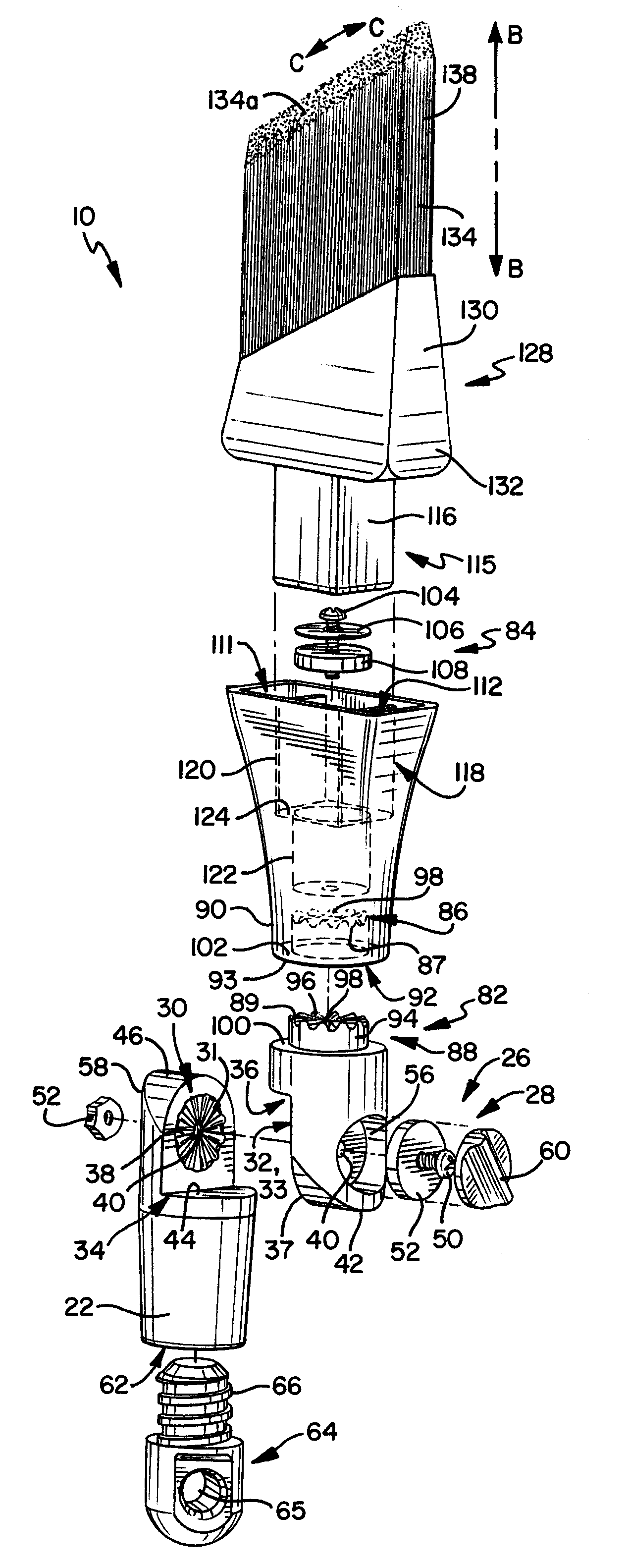

专利附图（8）
