水崩解性清洁工具

Water-disintegrable cleaning tool

US-7761950-B2

用于清洁,使用后可随水崩解处理。

专利摘要

一种清洁工具,通过捆扎多根水崩解性绳形成,具有保持部分和清洁部分,在保持部分中,绳通过缠绕在其周围并通过水溶性粘合剂粘合到其上的保持材料而彼此连接,在清洁部分中,绳彼此独立定位。每根绳通过捻搓水崩解性片材形成,例如通过水射流处理缠结的纸浆纤维、人造丝纤维等的纤维缠结非织造织物。

Original abstractA cleaning tool is formed by bundling a plurality of water-disintegrable cords to have a holding part in which the cords are joined to one another with a holding material wound therearound and bonded thereto by a water-soluble adhesive, and a cleaning part in which the cords are positioned independently from one another. Each cord is formed by twisting a water-disintegrable sheet such as a fiber entangled nonwoven fabric of pulp fibers, rayon fibers, and the like entangled by water-jet processing.

专利附图(8)

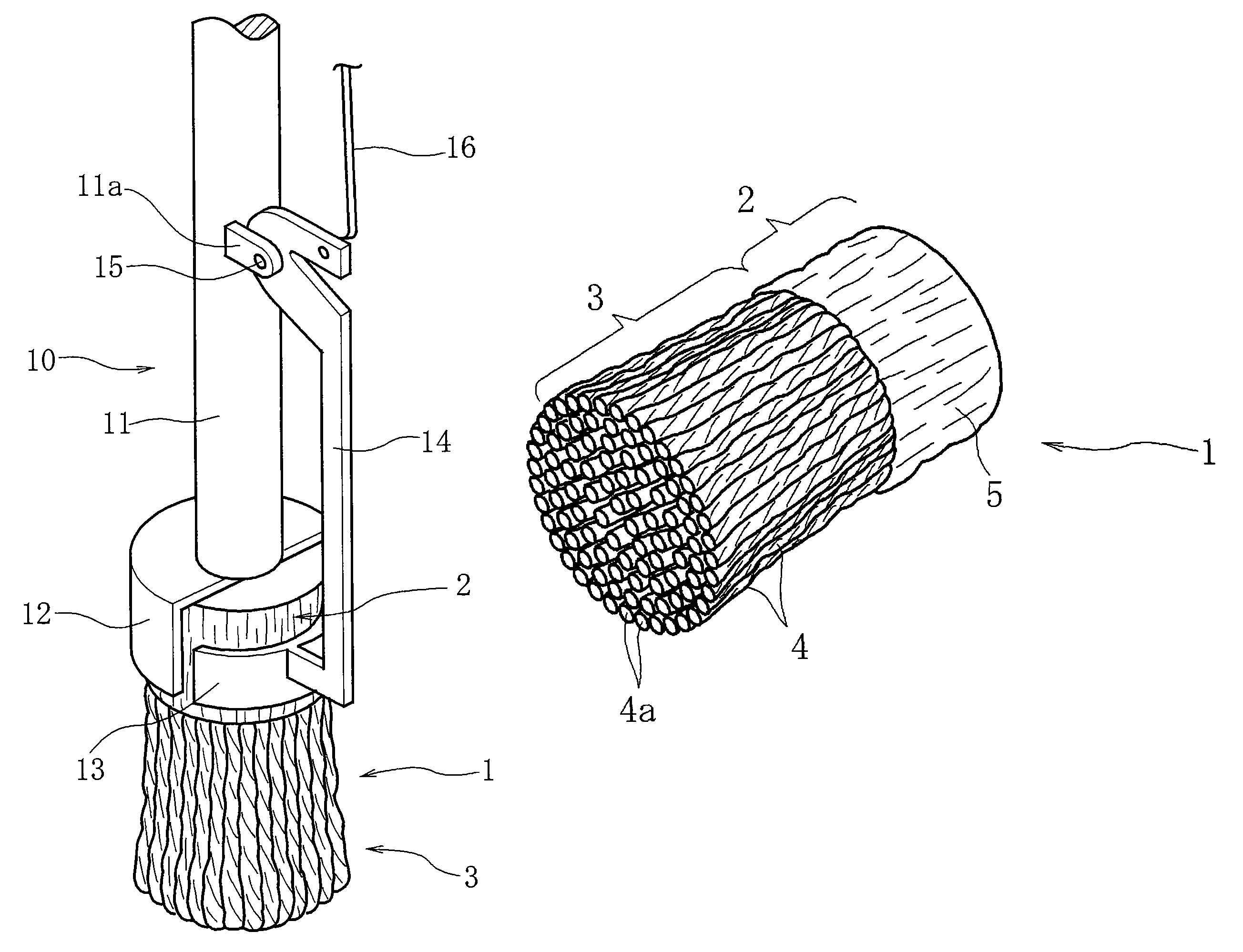

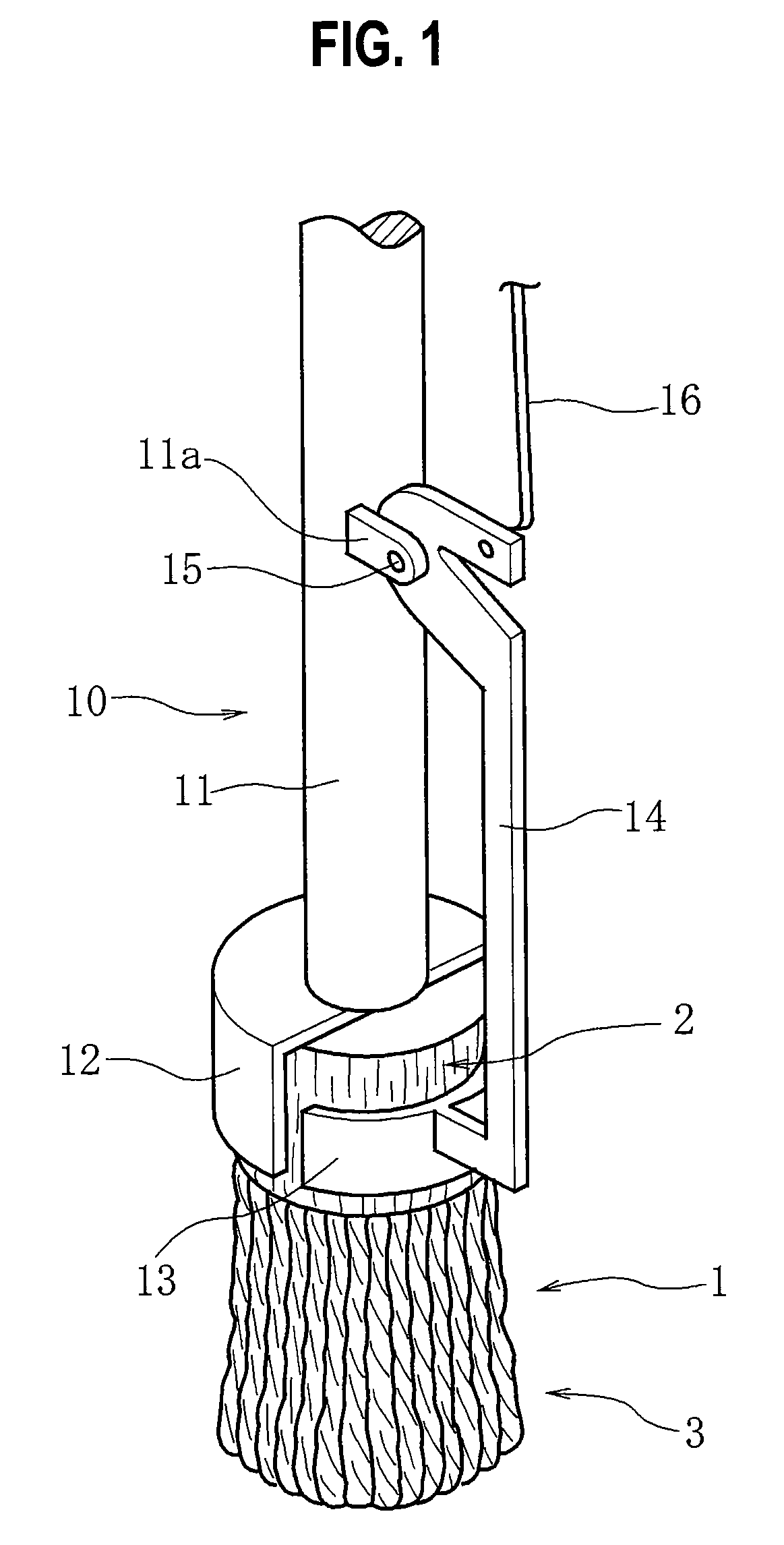

US-7761950-B2 figure 1
1

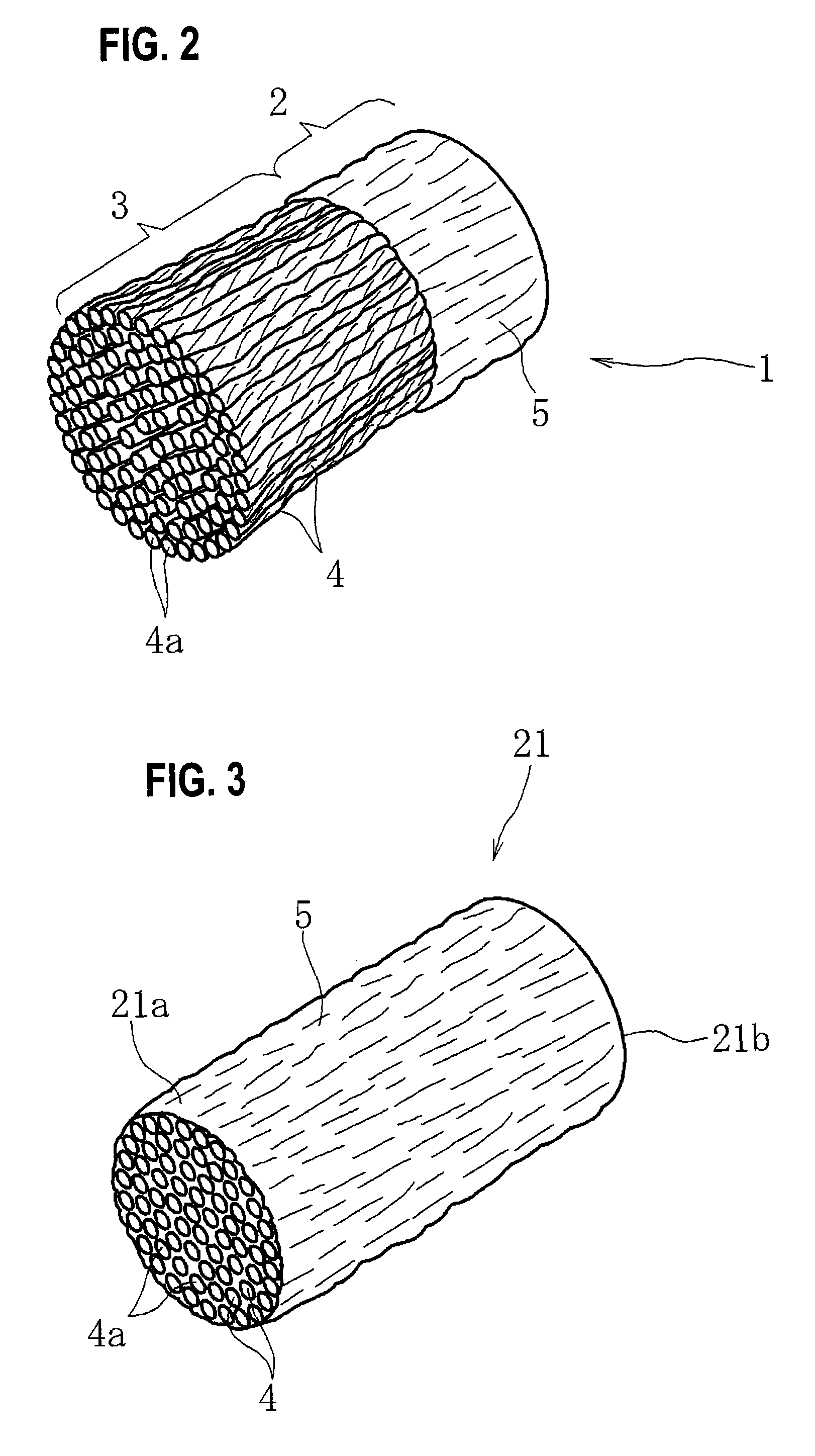

US-7761950-B2 figure 2
2
US-7761950-B2 figure 3
3

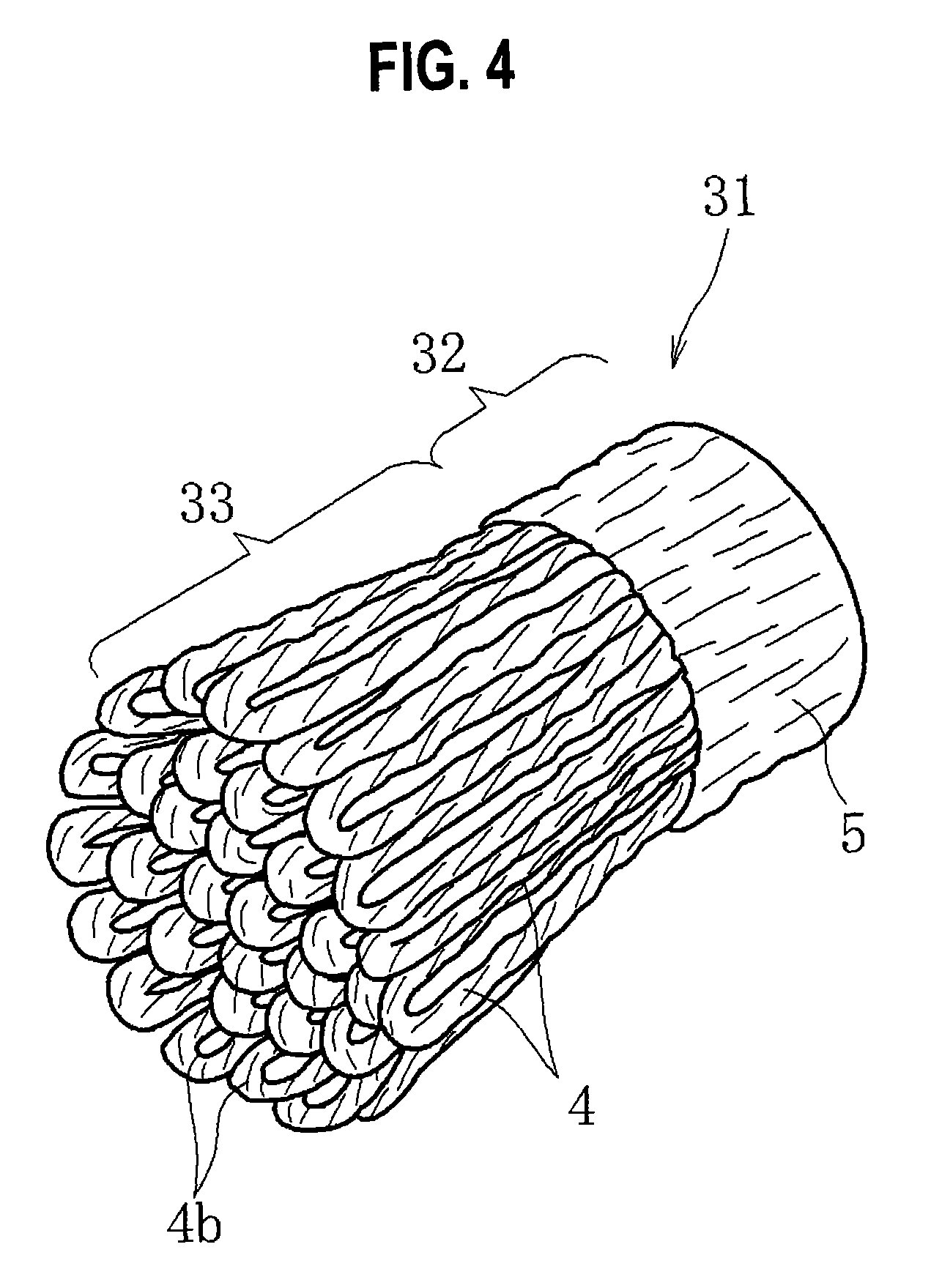

US-7761950-B2 figure 4
4
US-7761950-B2 figure 5
5
US-7761950-B2 figure 6
6
US-7761950-B2 figure 7
7
US-7761950-B2 figure 8
8
