用于立面、墙壁等的模块化绿化装置
Modular greening device for facades, walls or the like
US-7757436-B2一种模块化绿化系统，用于在墙壁或立面上种植植物。
专利摘要
一种用于立面或墙壁的绿化装置，主要由固定在待覆盖立面或墙壁上的支撑结构和至少两个具有平面结构和正方形或矩形轮廓的模块组成，模块包含栽培基质并包括在其一个大的表面上明显的植被元素，模块可拆卸地安装在支撑结构上，基本上遮盖支撑结构。支撑结构包括至少两个间隔开的竖直导轨，模块以竖直行安装在导轨上，位于远离立面或墙壁的位置，并且可单独拆卸，每个模块为箱形，具有大致平坦的平行六面体结构，其厚度与其横向尺寸相比很薄，箱体与底部相对的一侧用镂空壁封闭。竖直的相对侧壁具有卡扣元件，设计用于与安装导轨上的接收位置配合。
Original abstractA greening device for façades or walls, consisting mainly of a support structure fixed on the façade to be covered and by at least two modules with flat structure and square or rectangular profile, containing a cultivating substrate and including on one of its large surface apparent vegetation elements, the modules being removably mounted on the support structure substantially concealing the latter. The support structure includes at least two spaced apart vertical rails whereon the modules are mounted in vertical rows being located away from the façade or wall and being individually detachable, each module being in the form of a box with globally flat parallelepiped structure of slight thickness compared to its lateral dimensions, the open side of the box opposite the base being closed with an open-work wall. The vertical opposite side walls have catching elements designed to co-operate with reception sites on the mounting rails.

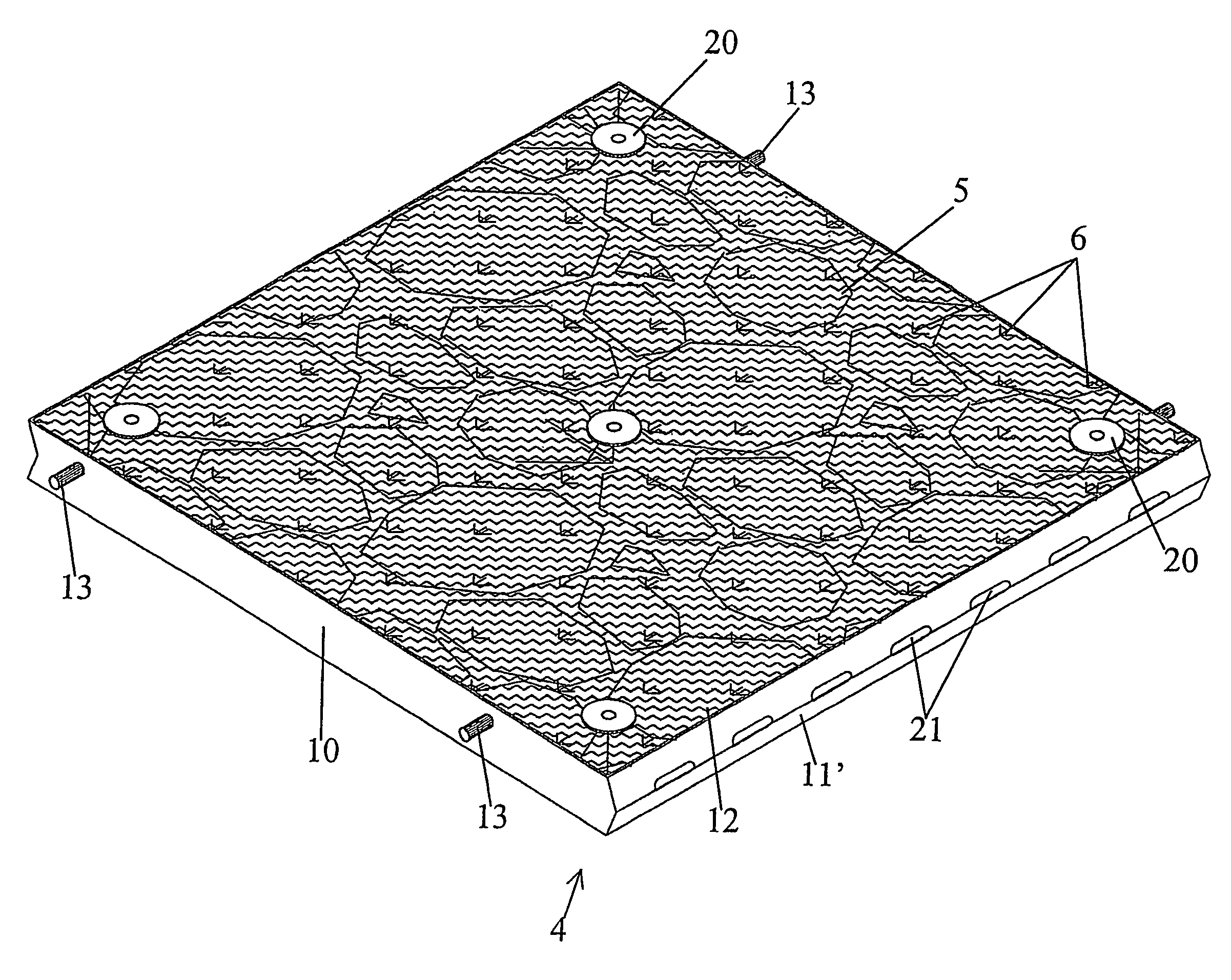

专利附图（8）
