具有可旋转动力头的便携式修剪器

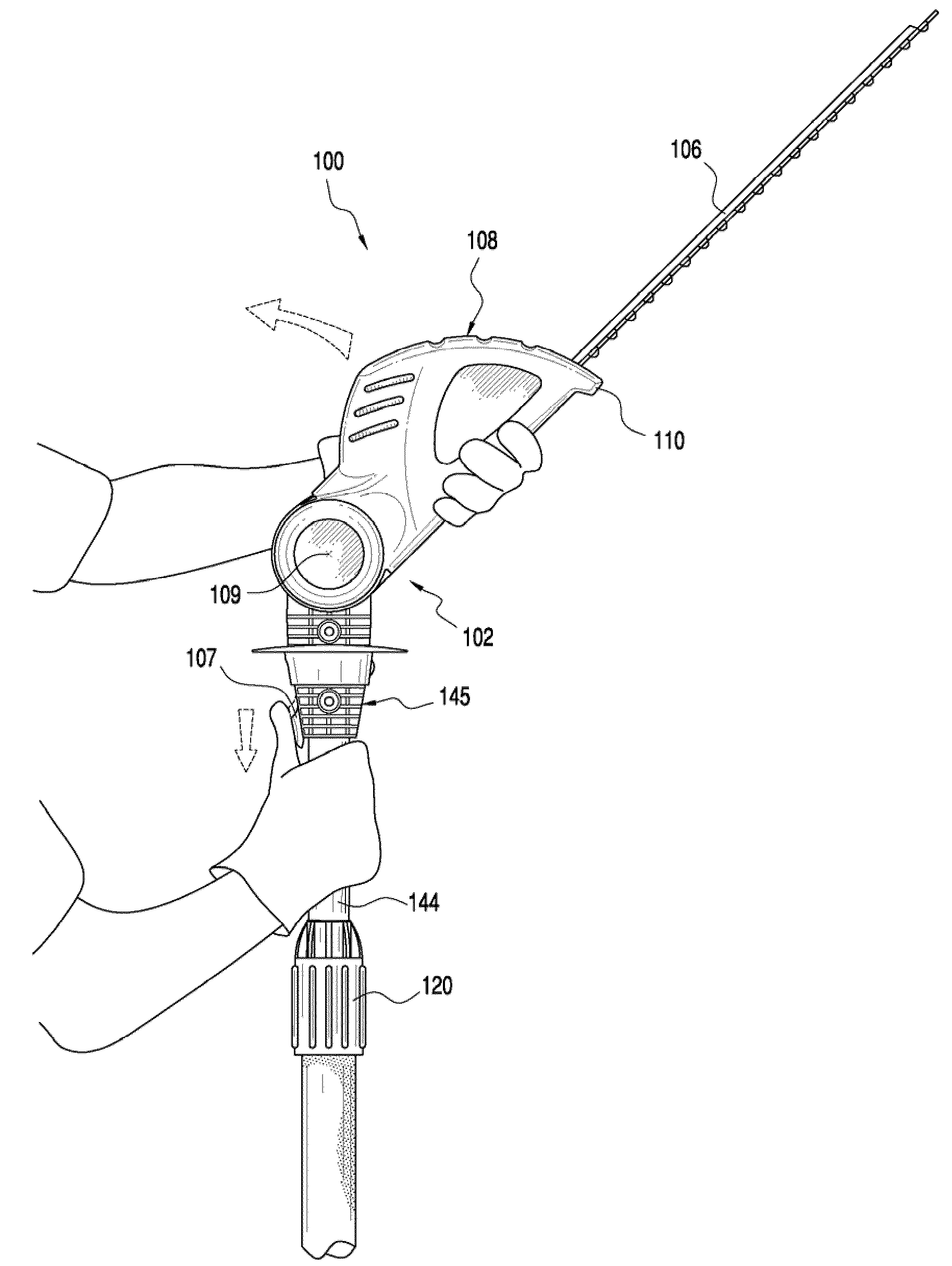

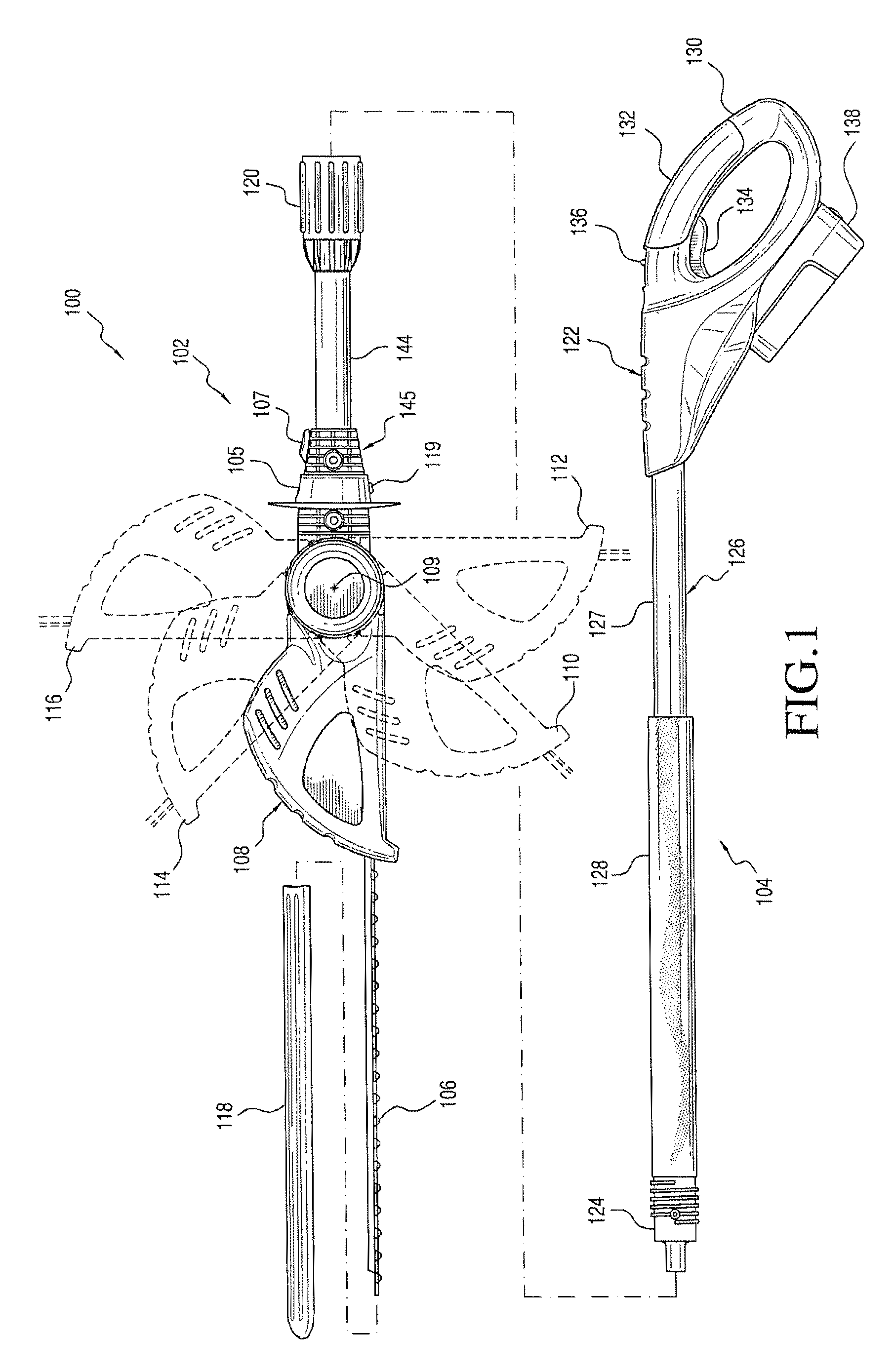

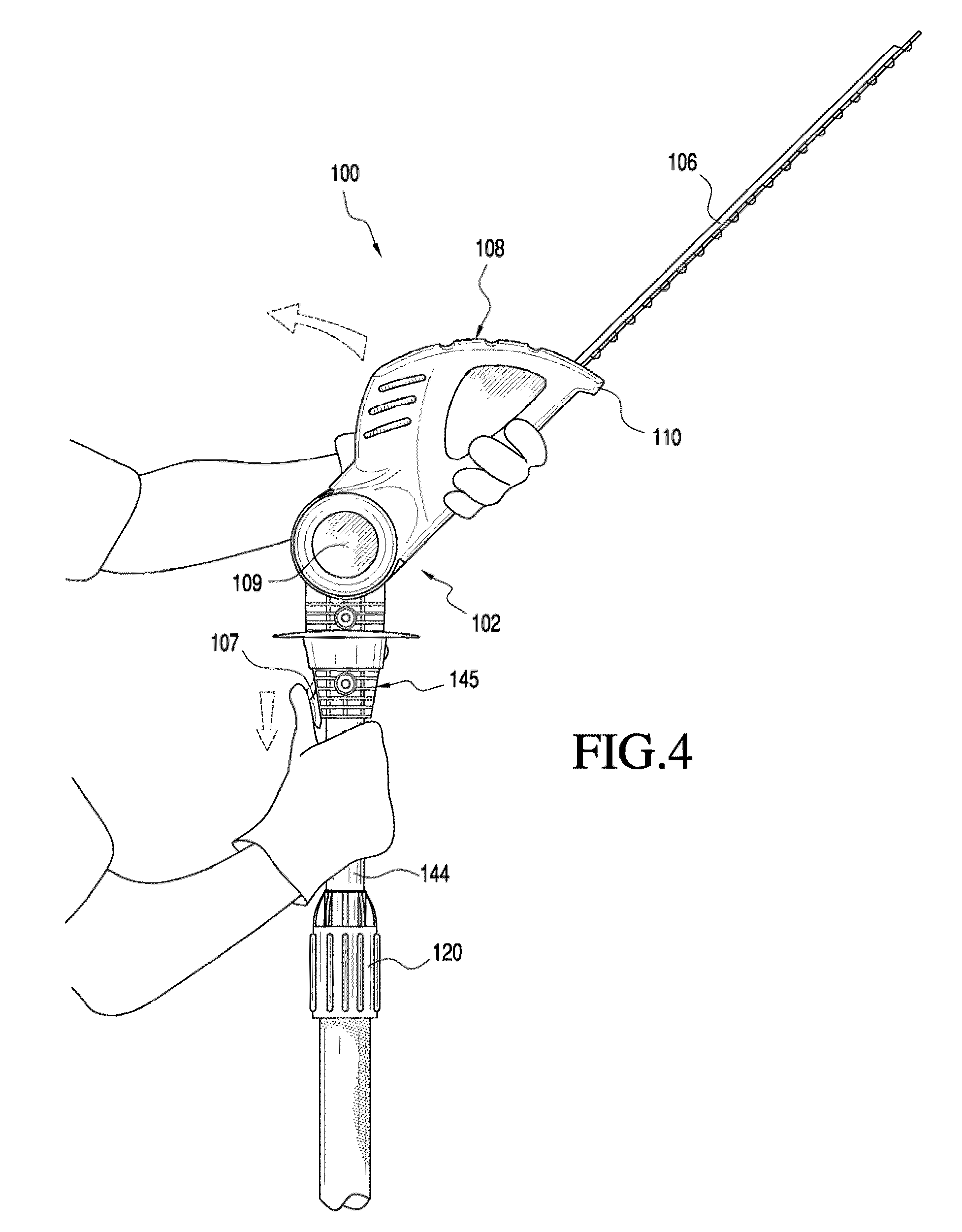

Original abstractA portable, hand-operated trimmer has a head module that is removably connected to a power control module. The head module has a power head enclosing an electric motor that is operatively connected to a trimming blade. The power head is selectably settable in a plurality of angular positions with respect to a head support, including a neutral position representing 0 degree rotation, 45 degree flexion and dorsiflexion positions, and 90 degree flexion and dorsiflexion positions. The power head also encloses a stator cartridge that is connected to the housing of the power head by a plurality of fastening members. The head support rotates about the stator cartridge and is engaged by way of a movable engagement pin that is received within a selected recess defined in the stator cartridge. The power head housing and stator cartridge further define molded sockets to receive corresponding pivot arms of the head support. An O-ring is disposed about one of the pivot arms to dampen free rotation. The power control module provides power to the power head through a removable rechargeable battery or through direct connection to conventional household power.
