从种子生产幼苗的装置
Device for production of seedlings from seeds
US-7748165-B2用于种子育苗，自动浸水干燥。
专利摘要
一种用于从种子生产幼苗的装置（1）包括鼓（3），其具有带孔的壁，可绕鼓轴线（4）旋转，鼓轴线（4）基本水平设置，容纳在壳体（2）中。在该鼓（3）中能够填充种子，种子能够与鼓（3）一起浸入水浴（5）中。为此，鼓（3）旋转，由此种子和从中发芽的幼苗被最佳地翻转和分散。鼓（3）安装在支撑件上，支撑件沿固定到壳体的导向装置可通过驱动装置降低到水浴（5）中并再次提升出来。因此，鼓（3）在下部位置部分浸没在水浴（5）中，而在升高位置完全从水浴（5）中提升出来。从而依次获得种子的最佳润湿和随后的干燥。

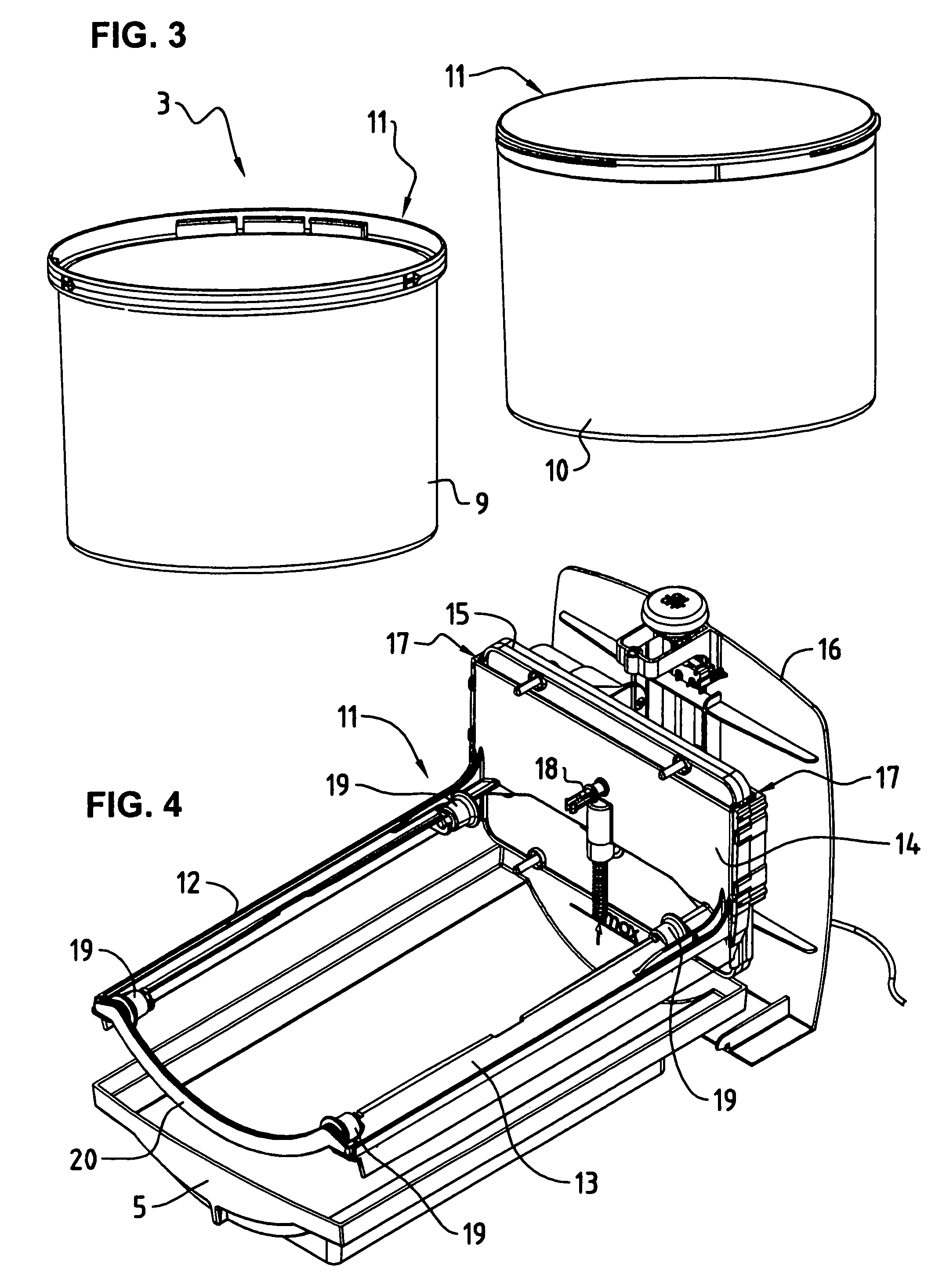

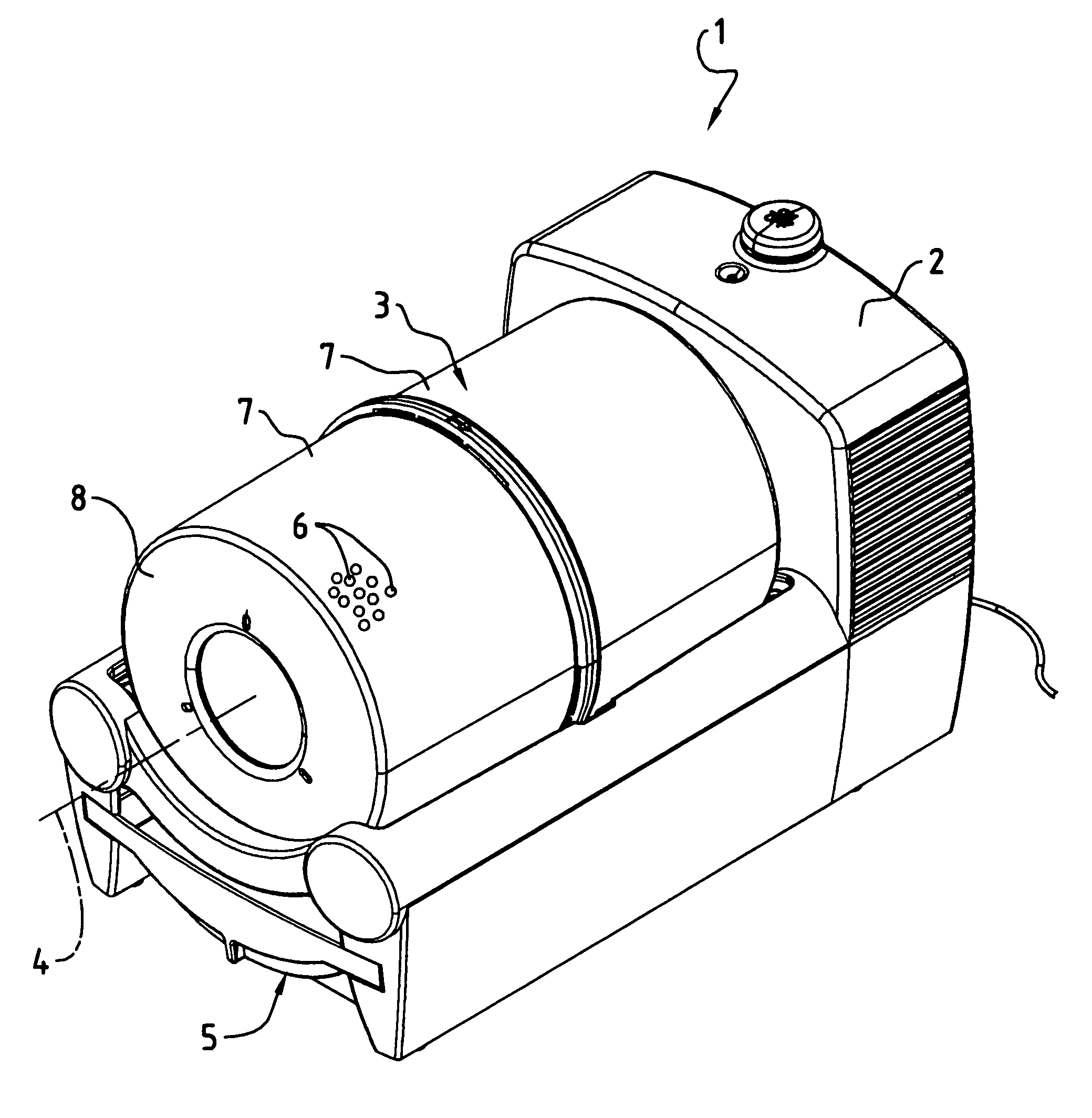

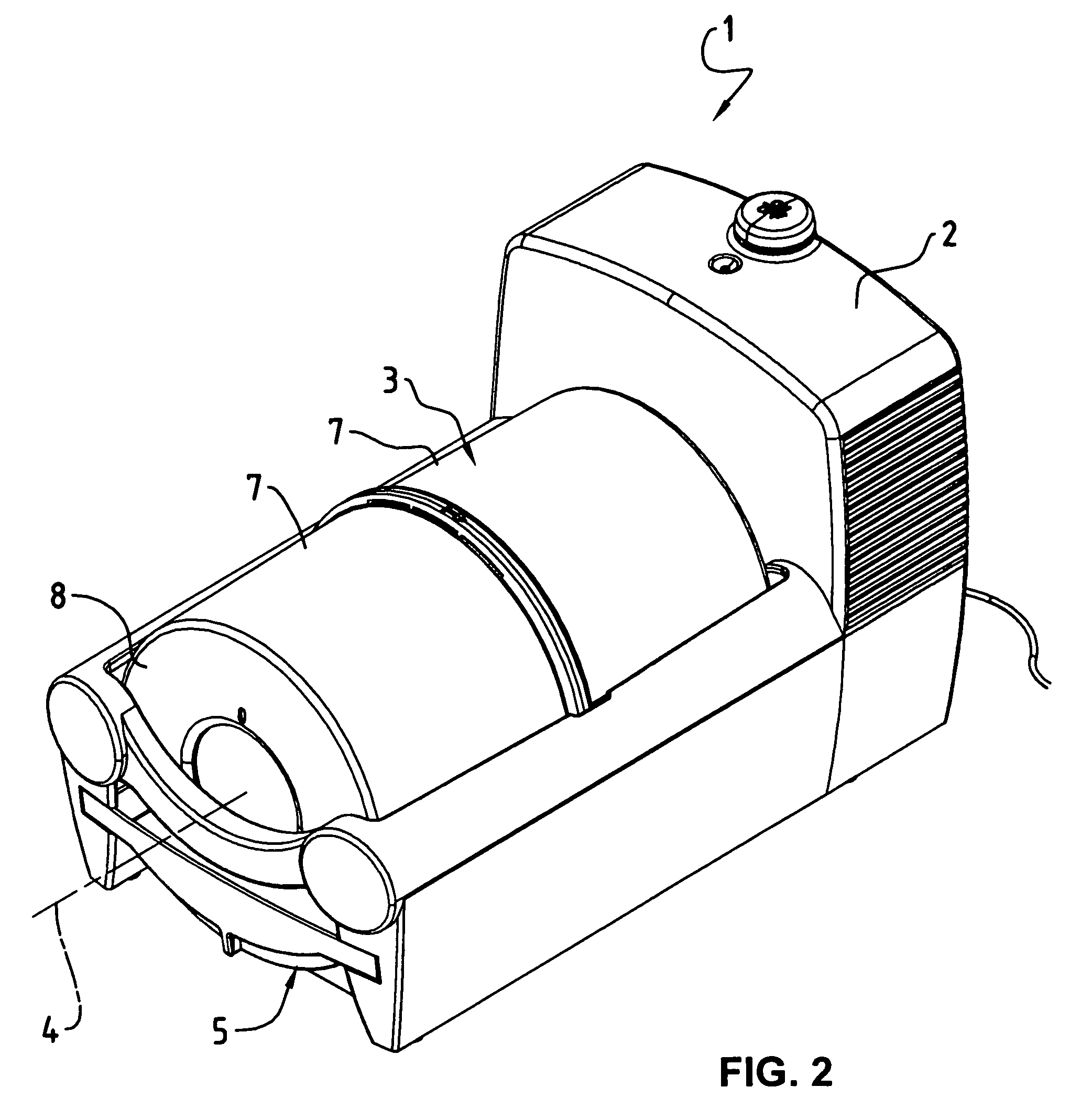

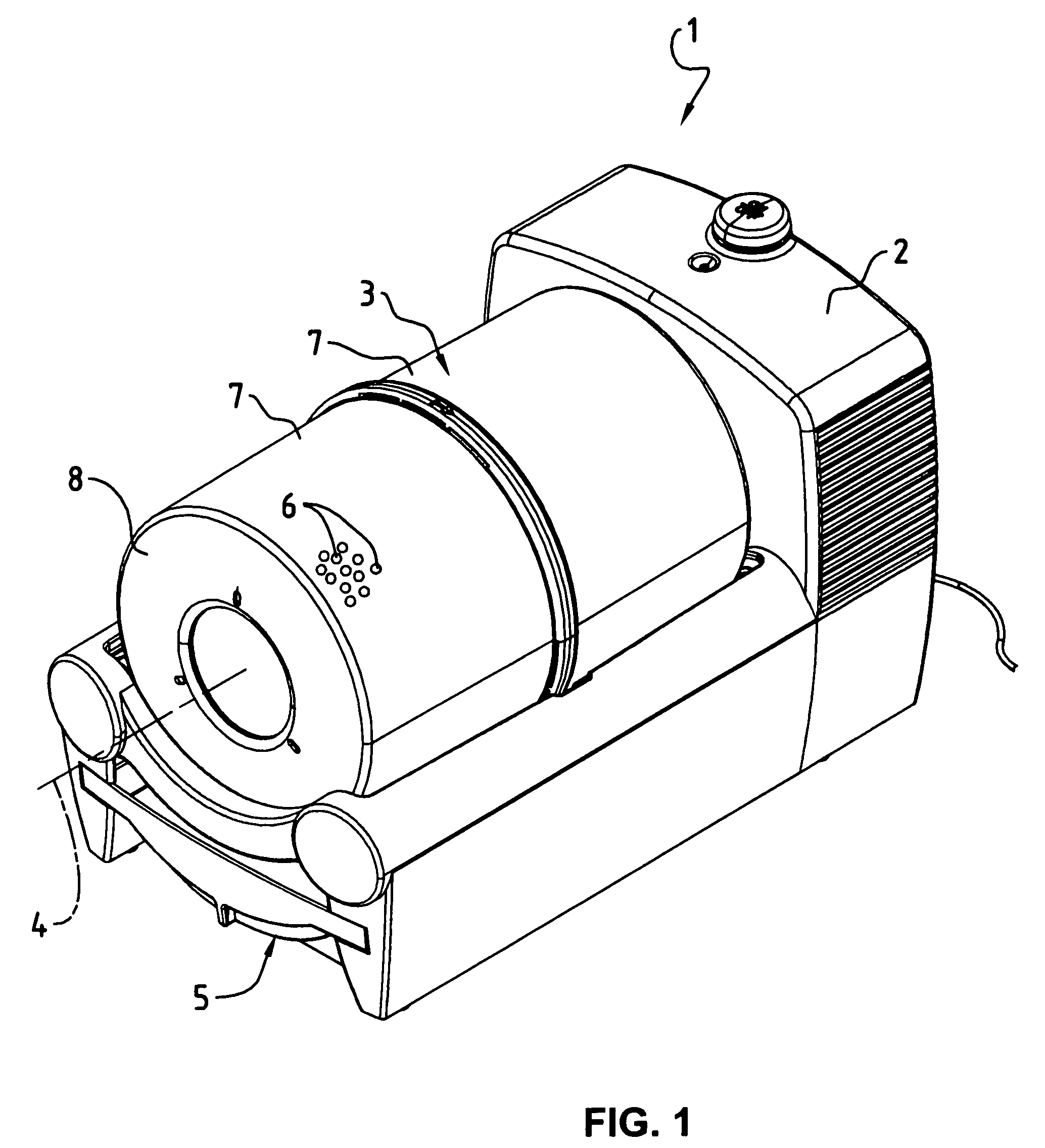

Original abstractA device ( 1 ) for production of seedlings from seeds comprises a drum ( 3 ), with perforated walling, rotatable about the drum axis ( 4 ), disposed substantially horizontally, borne in a housing ( 2 ). In this drum ( 3 ) seeds are able to be filled, which seeds are able to be immersed in a water bath ( 5 ) together with the drum ( 3 ). For this purpose, the drum ( 3 ) rotates, whereupon the seeds and the seedlings sprouting therefrom are optimally turned and dispersed. The drum ( 3 ) is mounted on a support, which, along guide means fixed to the housing, is lowerable into the water bath ( 5 ) and liftable out of the same again by drive means. The drum ( 3 ) is thereby partly submerged in the water bath ( 5 ) in the lower position, whereas it is completely lifted out of the water bath ( 5 ) in the raised position. An optimal wetting and subsequent drying of the seeds is thus obtained in turn.
专利附图（8）
