来源记录显示 Expired
用于收割和拾取草皮的方法和设备
Method and apparatus for harvesting and picking up sod
US-7721814-B2用于收割草皮并自动堆叠到托盘上。
专利摘要
一种草皮收割机切割多条并排的草皮条，优选总宽度等于托盘宽度，并将草皮条引导到依次排列的三组输送机上。第一组输送机以接近地面速度运行；第二组输送机以约两倍地面速度运行；第三组输送机以约三倍地面速度运行。这在第三输送机上的一组草皮条的尾缘与第二输送机上其后的下一组草皮条的前缘之间产生空间和时间间隙。该时间间隙足以停止第三输送机上的草皮条，然后拾取它们并将它们堆叠在托盘上。
Original abstractA sod harvester cuts several side-by-side strips of sod, preferably of total width equal to the width of a pallet, and directs the strips up three sets of conveyors arranged in sequence. The first conveyor set runs at or near ground speed; the second conveyor set runs at about double ground speed, and the third conveyor set runs at about triple ground speed. This creates a spatial and time gap between the trailing edges of a set of sod strips on the third conveyor and the leading edges of the next set of sod strips behind them on the second conveyor. The time gap is sufficient to stop the sod strips on the third conveyor and then pick them up and stack them on a pallet.

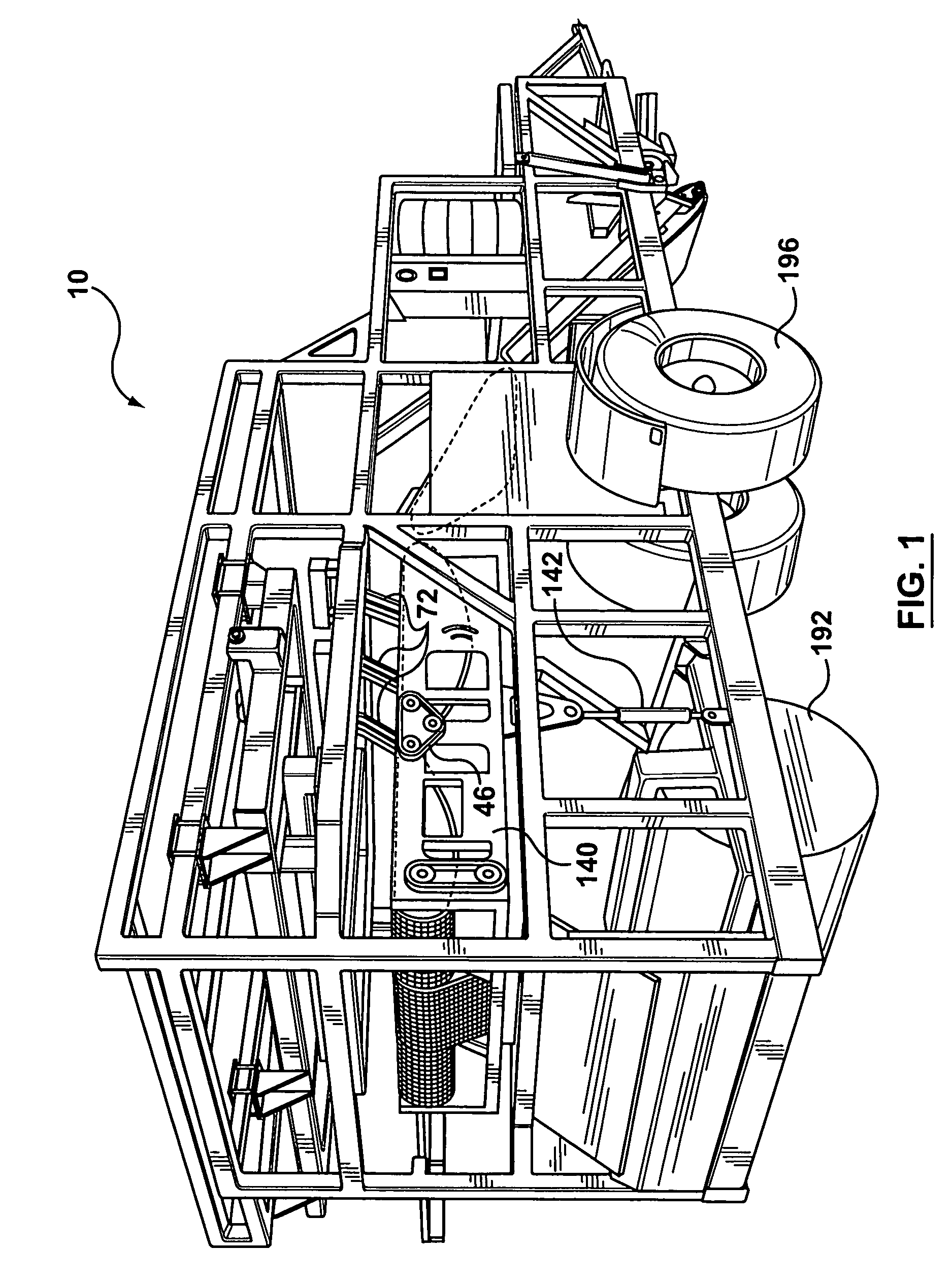

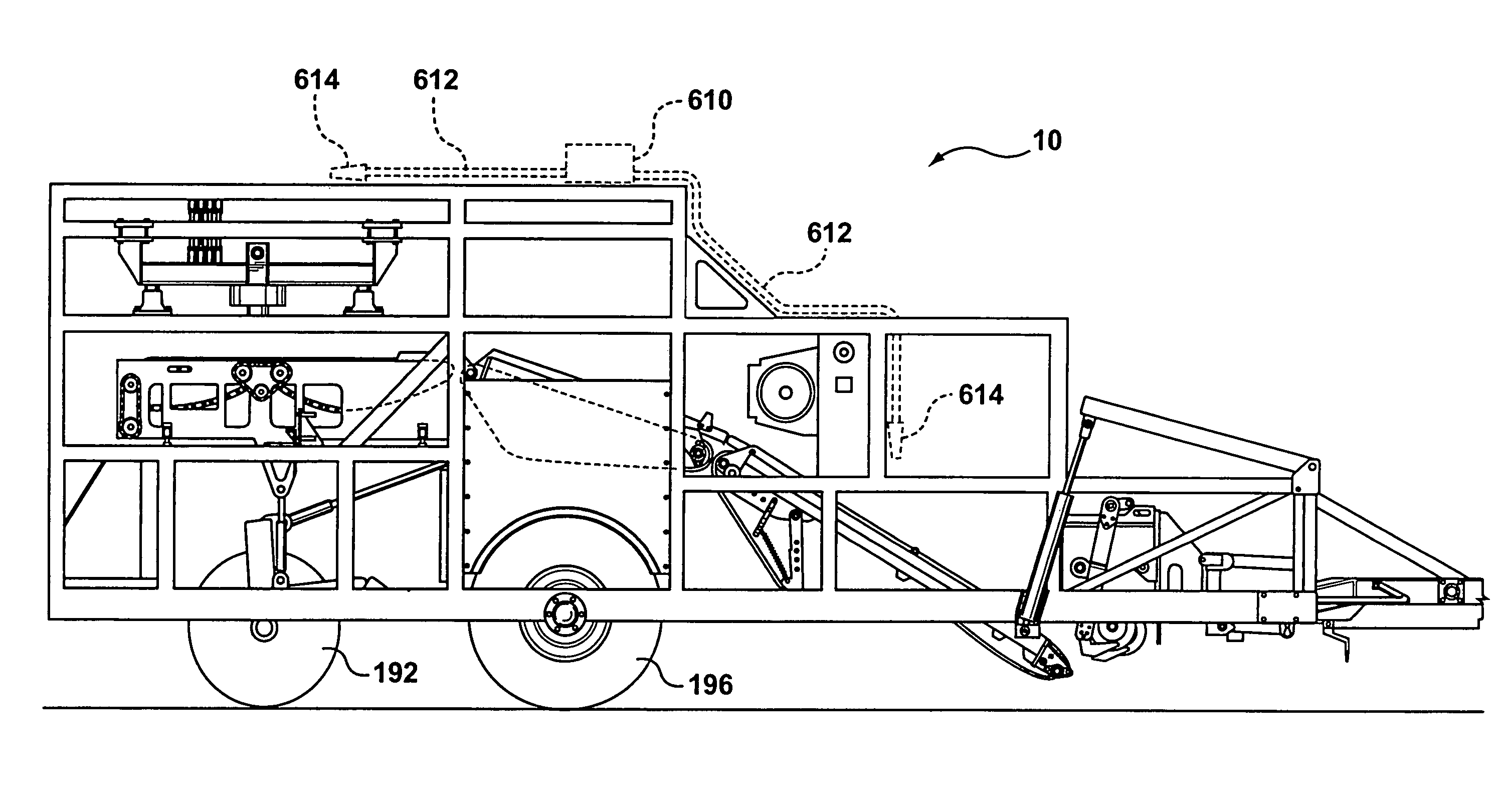

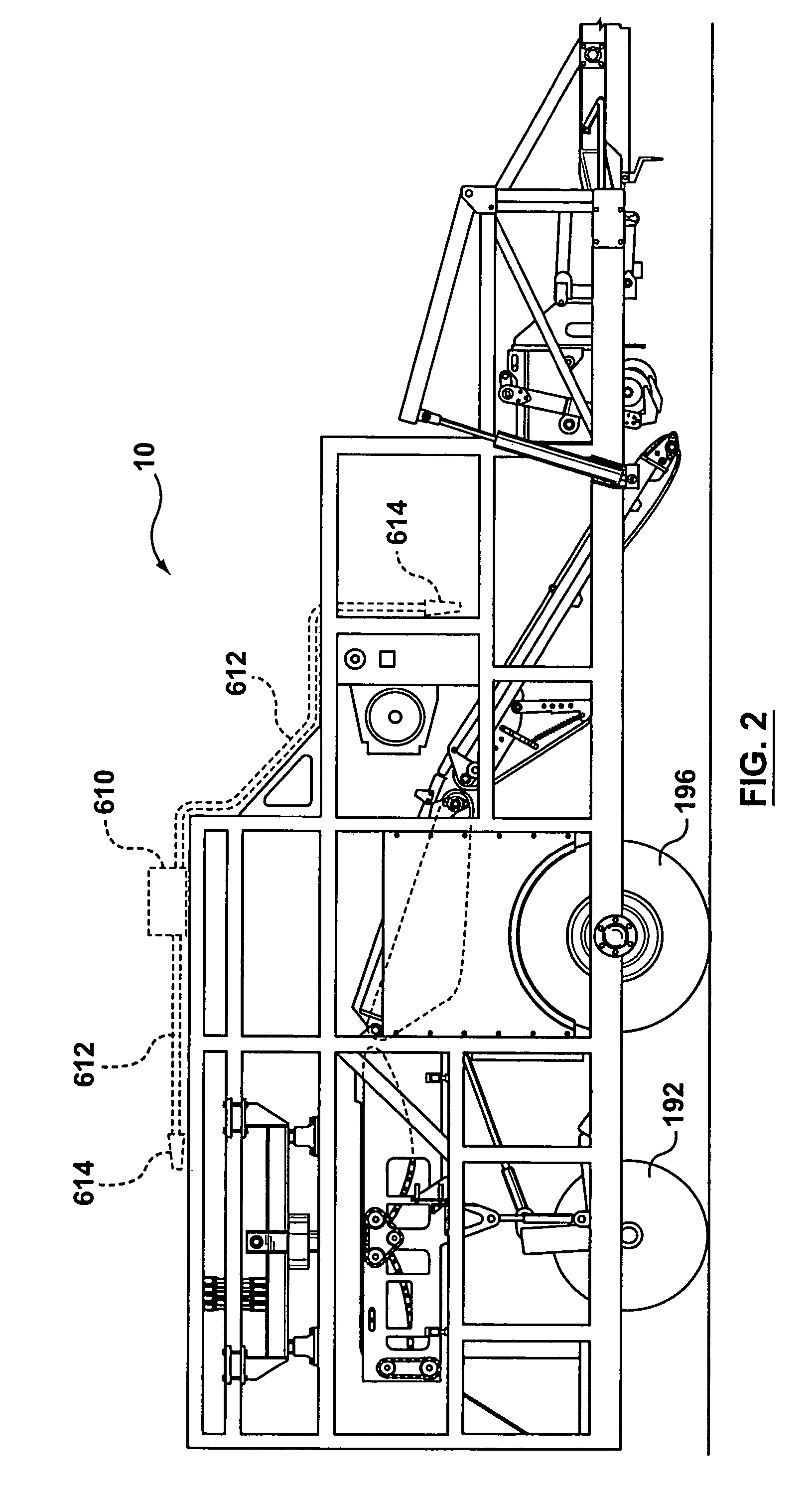

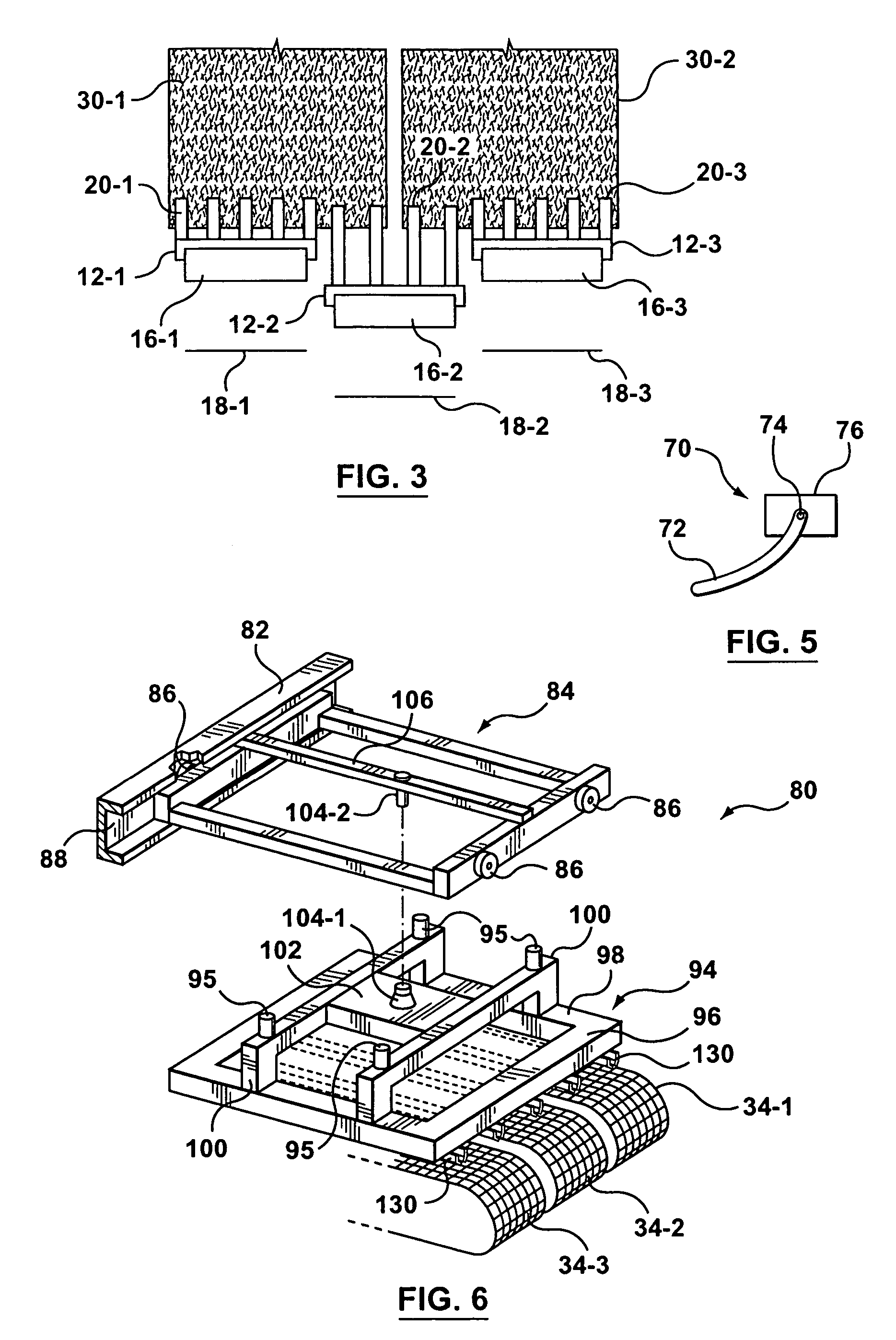

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
