可折叠花盆

Compactable garden planter

US-7712254-B2

可折叠花盆,便于收纳和运输。

专利摘要

本发明的至少一个实施例涉及一种可折叠花盆装置,包括:(1) 具有一个或多个排水孔的底板部分;(2) 铰接至底板部分第一边缘的第一侧壁;以及(3) 铰接至底板部分与第一边缘相对的第二边缘的第二侧壁。第三侧壁可拆卸地连接在第一和第二侧壁之间,沿底板部分的第三边缘。第四侧壁也可拆卸地连接在第一和第二侧壁之间,沿底板部分与第三边缘相对的第四边缘。

Original abstractAt least one embodiment of the invention pertains to a collapsible planter apparatus is provided comprising (1) a floor section having one or more drainage holes, (2) a first side wall hingeably coupled to a first edge of the floor section, and (3) and a second side wall hingeably coupled to a second edge of the floor section opposite the first edge of the floor section. A third side wall may be removably coupled between the first and second side walls along a third edge of the floor section. A fourth side wall may also be removably coupled between the first and second side walls along a fourth edge of the floor section opposite the third edge of the floor section.

专利附图(8)

US-7712254-B2 figure 1
1

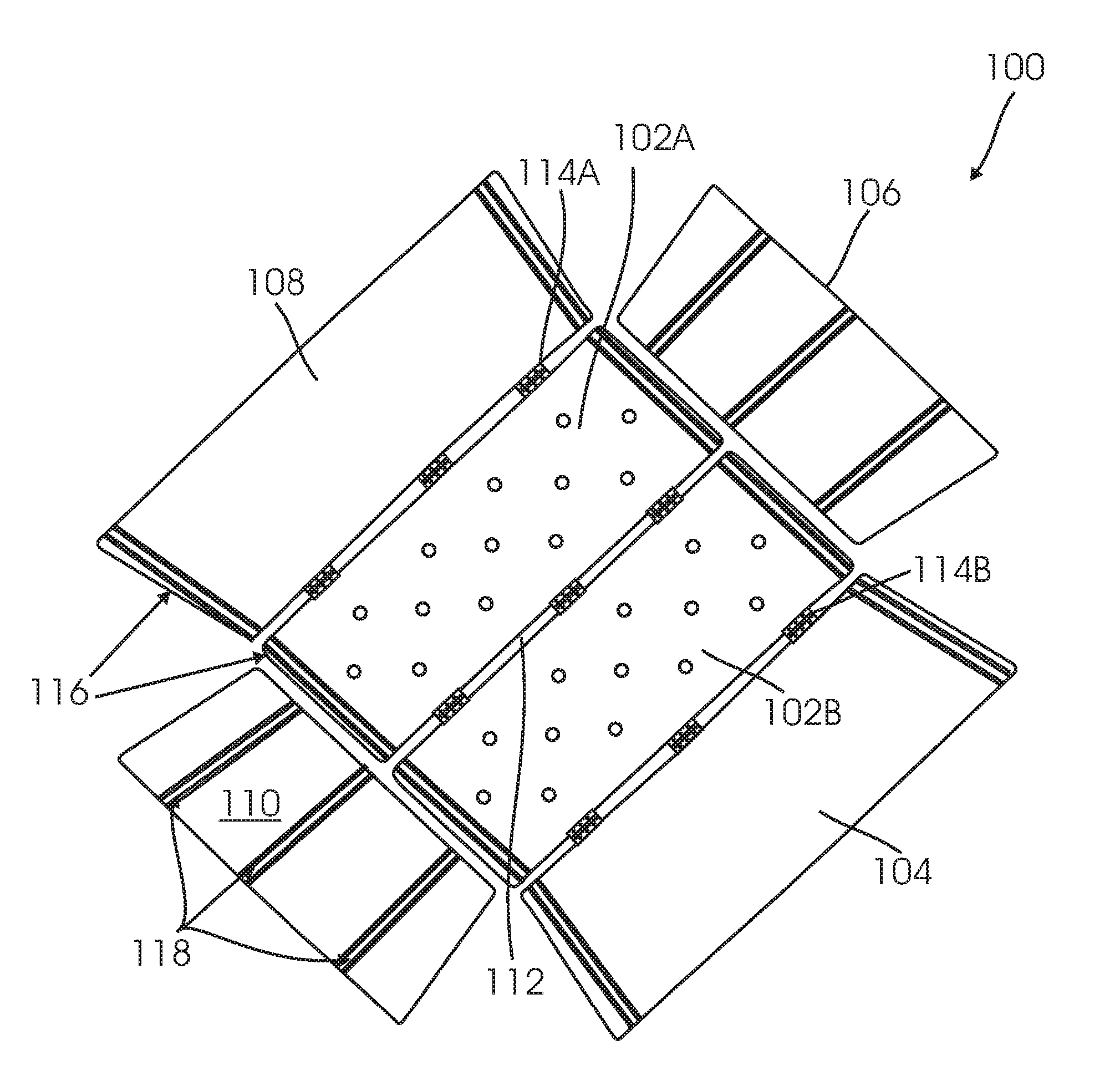

US-7712254-B2 figure 2
2
US-7712254-B2 figure 3
3
US-7712254-B2 figure 4
4
US-7712254-B2 figure 5
5
US-7712254-B2 figure 6
6
US-7712254-B2 figure 7
7
US-7712254-B2 figure 8
8
