用于向地下土壤供水的灌溉装置。
专利摘要
提供了一种用于向地下层面供水的浇水装置。该浇水装置包括一个主体部分，用于从其径向和沿其长度分配水。该浇水装置包括一个灌溉组件，用于从水源喷水，灌溉组件在浇水装置内喷水，然后水通过主体部分分配到周围土壤中。灌溉组件可由主体部分支撑。灌溉组件可包括一个气泡器，并可包括一个止回阀。该装置可包括一个顶盖，其包括保持结构，用于为灌溉组件提供大致垂直或其他期望的取向。该装置还可包括一个底盖，其大致限制水从装置底部流出，并与主体部分配合以将水从装置径向引导。
Original abstractA watering device for providing water to a sub-surface level is provided. The watering device includes a body portion for distributing water radially therefrom and along its length. The watering device includes an irrigation assembly for emitting water from a water source, the irrigation assembly emitting the water within the watering device, and the water then being distributed through the body portion to surrounding soil. The irrigation assembly may be supported by the body portion. The irrigation assembly may include a bubbler, and may include a check valve. The device may include a top cap including retaining structure for providing a generally vertical or other desired orientation to the irrigation assembly. The device may further include a bottom cap that generally restricts the flow of water out of the bottom of the device and cooperates with body portion to direct water radially from the device.

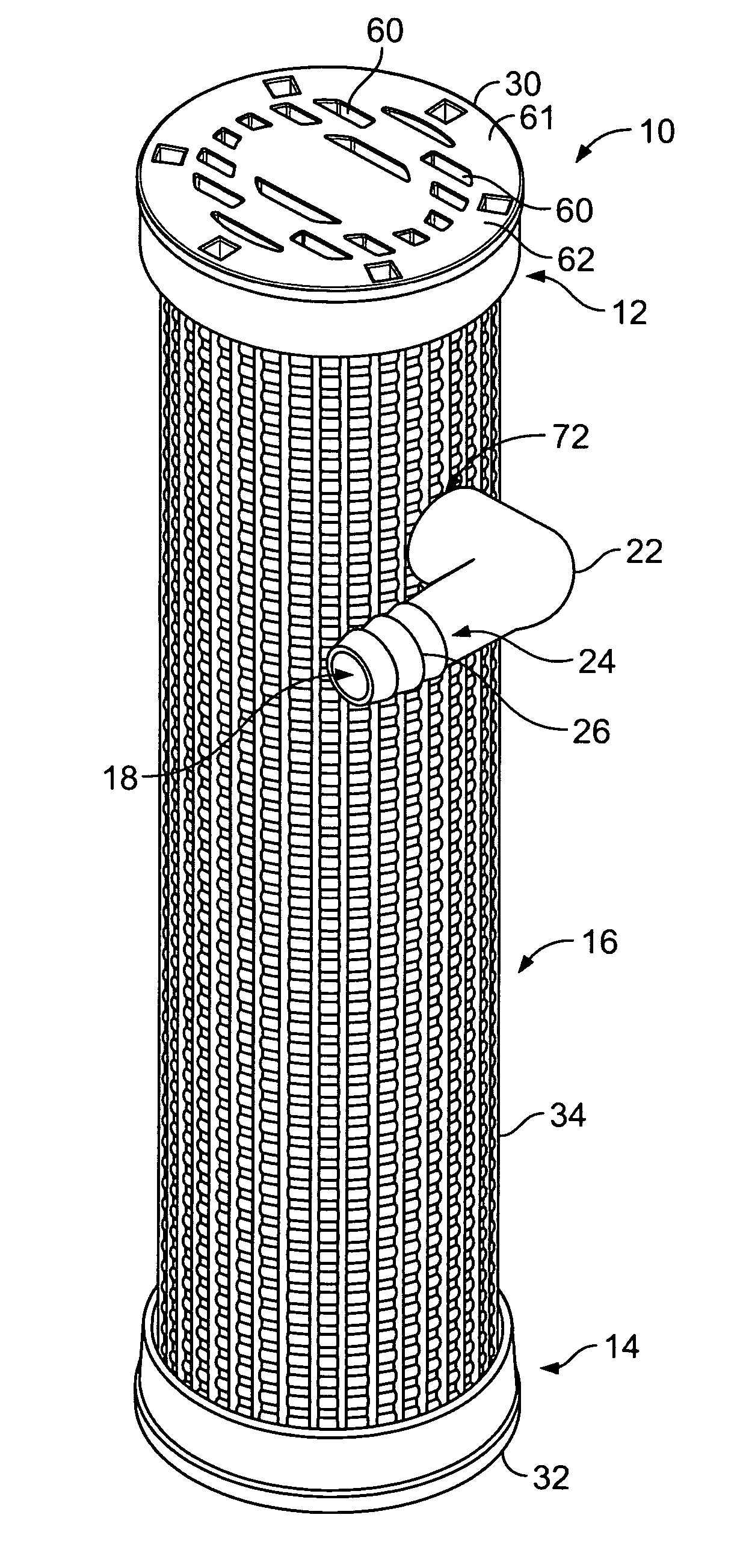

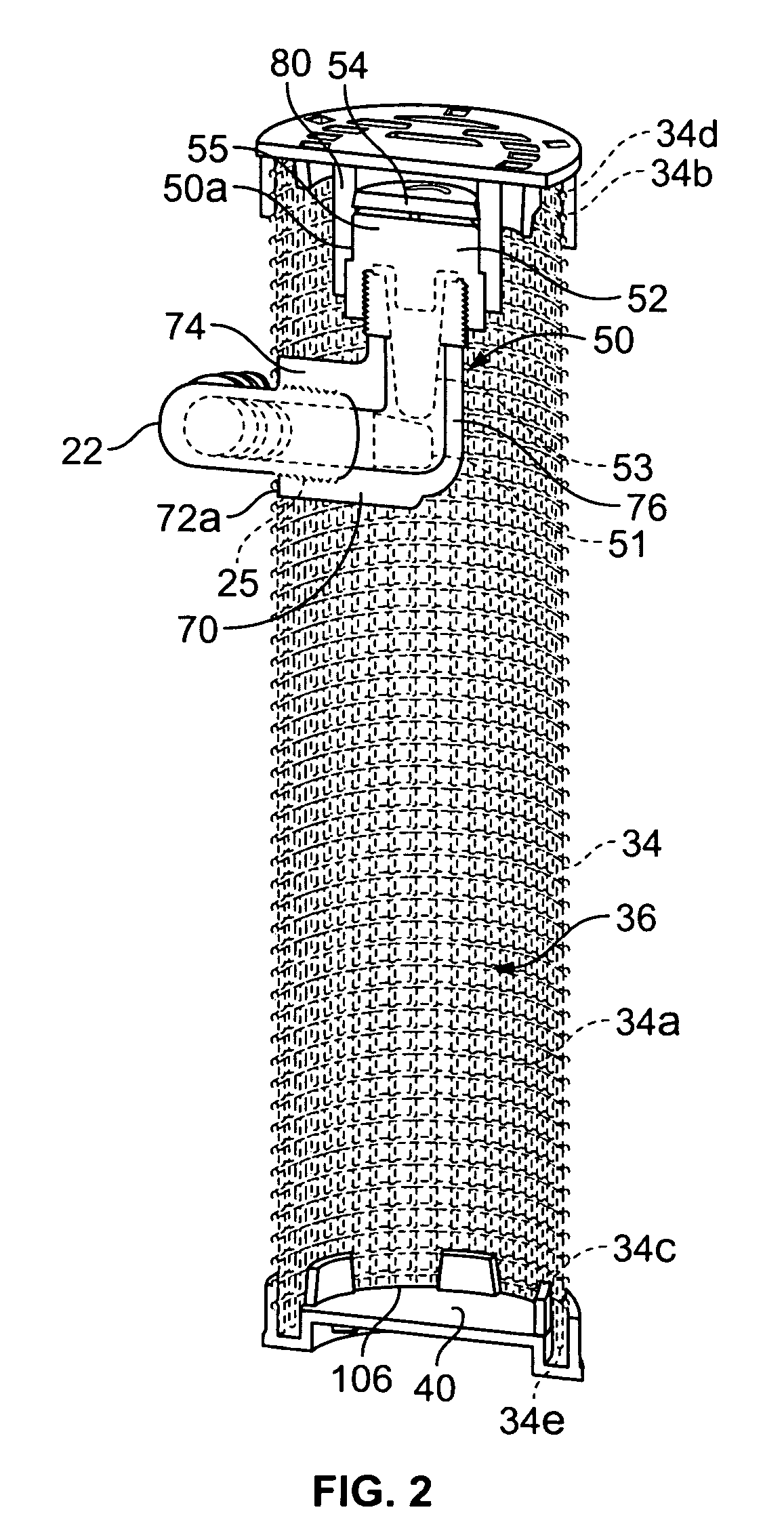

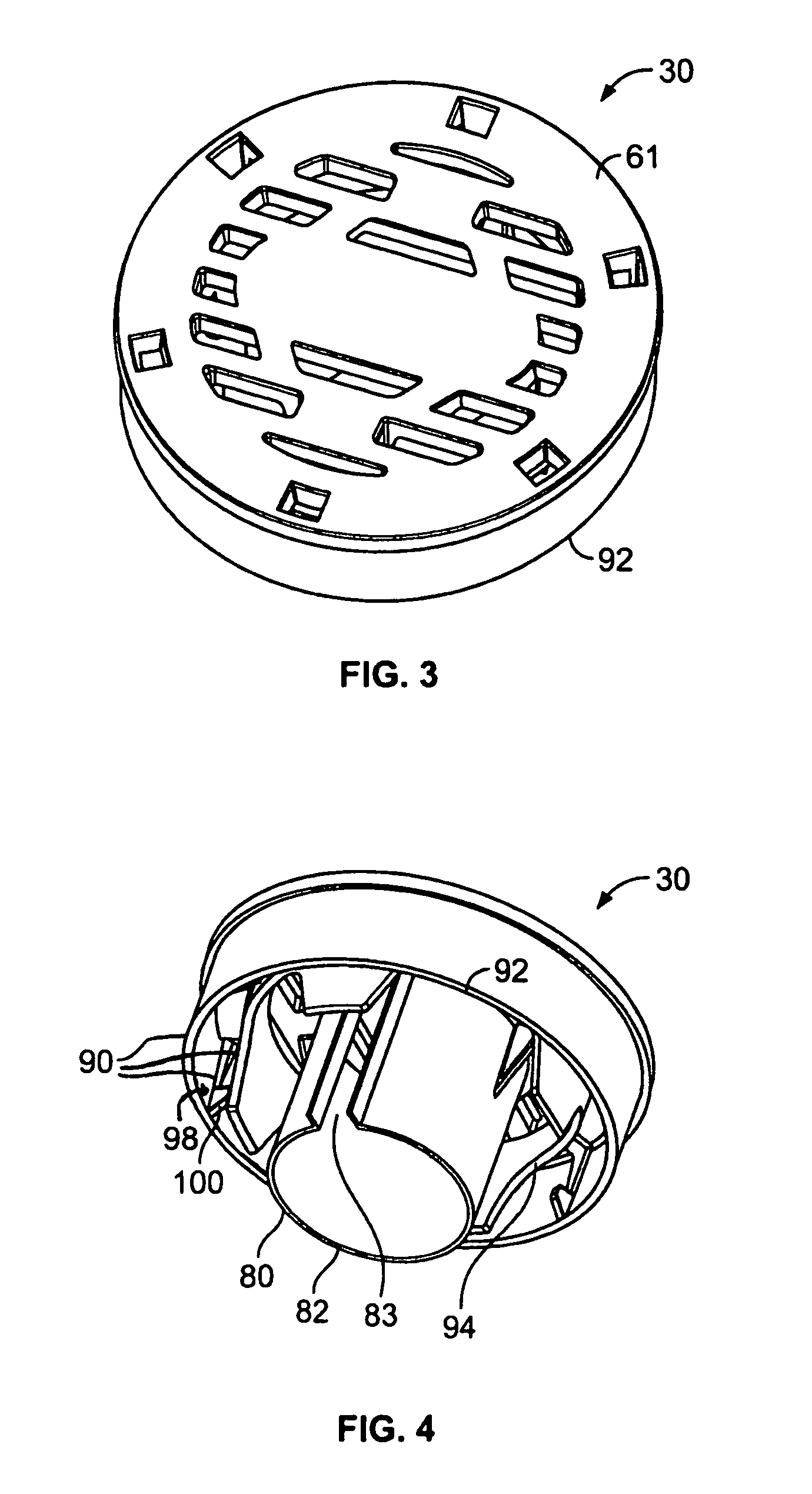

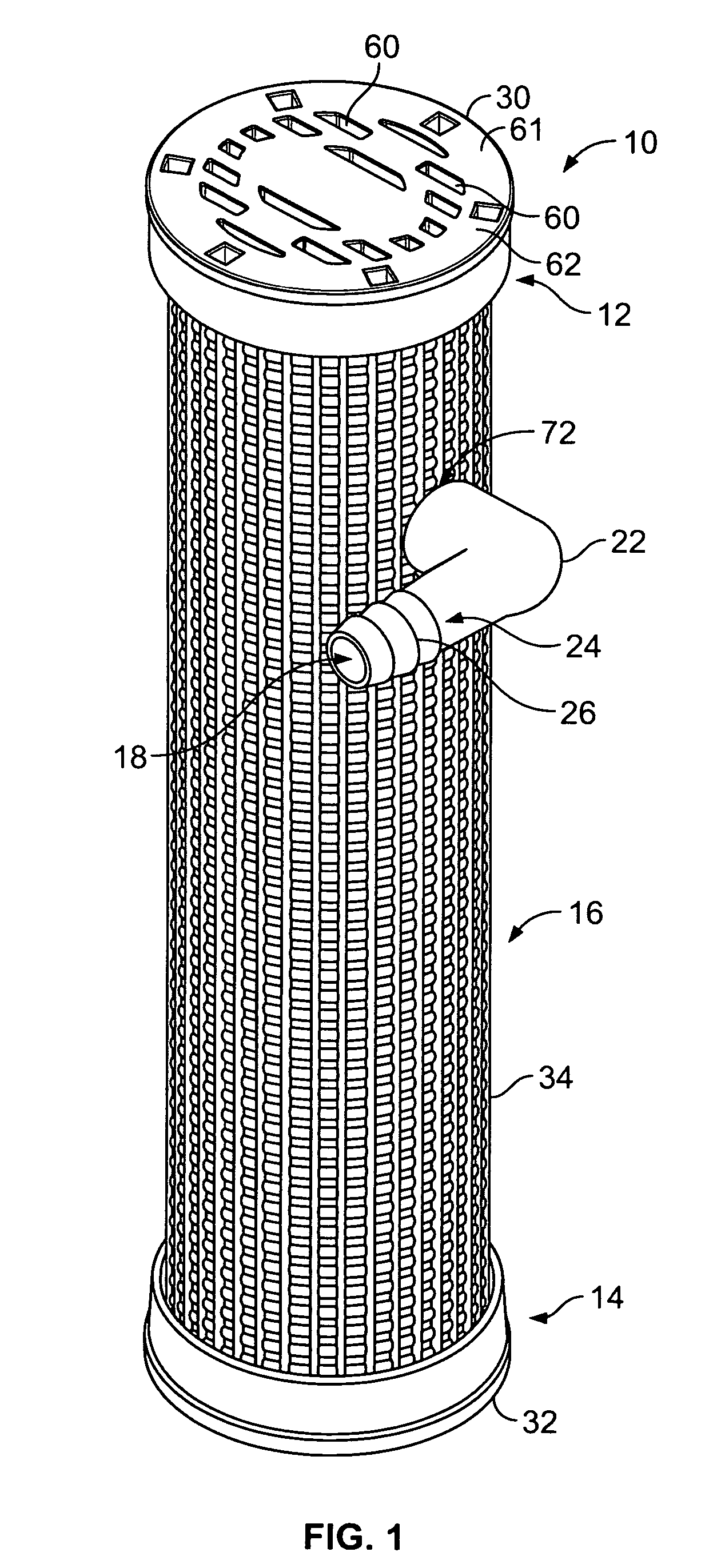

专利附图（8）
