信息库园艺可变高效空间利用型栽培方法
来源记录显示 Expired

可变高效空间利用型栽培方法

Variable and efficient space utilization type cultivation method

US-7694458-B2

空间高效利用的悬挂式栽培方法。

专利摘要

使用具有大量可渗透培养液和空气的孔的生态盆来放置育苗盆或种植幼苗,并将其悬挂在室内空间中;在每个盆下方放置一个收集培养液滴的桶以收集残余溶液,从而防止病原体感染;使用通过环扣从室内架子杆上可移动悬挂的钩子垂直悬挂的平衡玩具式吊架、生态盆挂链、主瓜茎吸引绳、瓜果挂绳等,使生态盆在挂链上可全方位改变方向,从而为园艺植物的根区提供充足的氧气,并使植物容易接受阳光照射。

Original abstractEcopots having a large number of holes permeable to the culture solution and air are used for disposing seeding and seedling pots or for planting seedlings and are hung in the space in a house, a bucket for collecting the drips of the culture solution is placed below each pot for collecting the residual solution to thereby prevent the infection by pathogens, and a balancing toy-like hanger hung vertically from a hook hung movably from a shelf pole in the house via a loop clutch, an ecopot hanging chain, a main melon stem attracting cord, a melon fruit hanging cord and so forth are used to render the ecopot hung from the ecopot hanging chain orientation-variable in all directions so that oxygen may be fed abundantly to the rooting zone of the horticultural plant and the plant may receive the sunshine with ease.

专利附图(6)

US-7694458-B2 figure 1
1

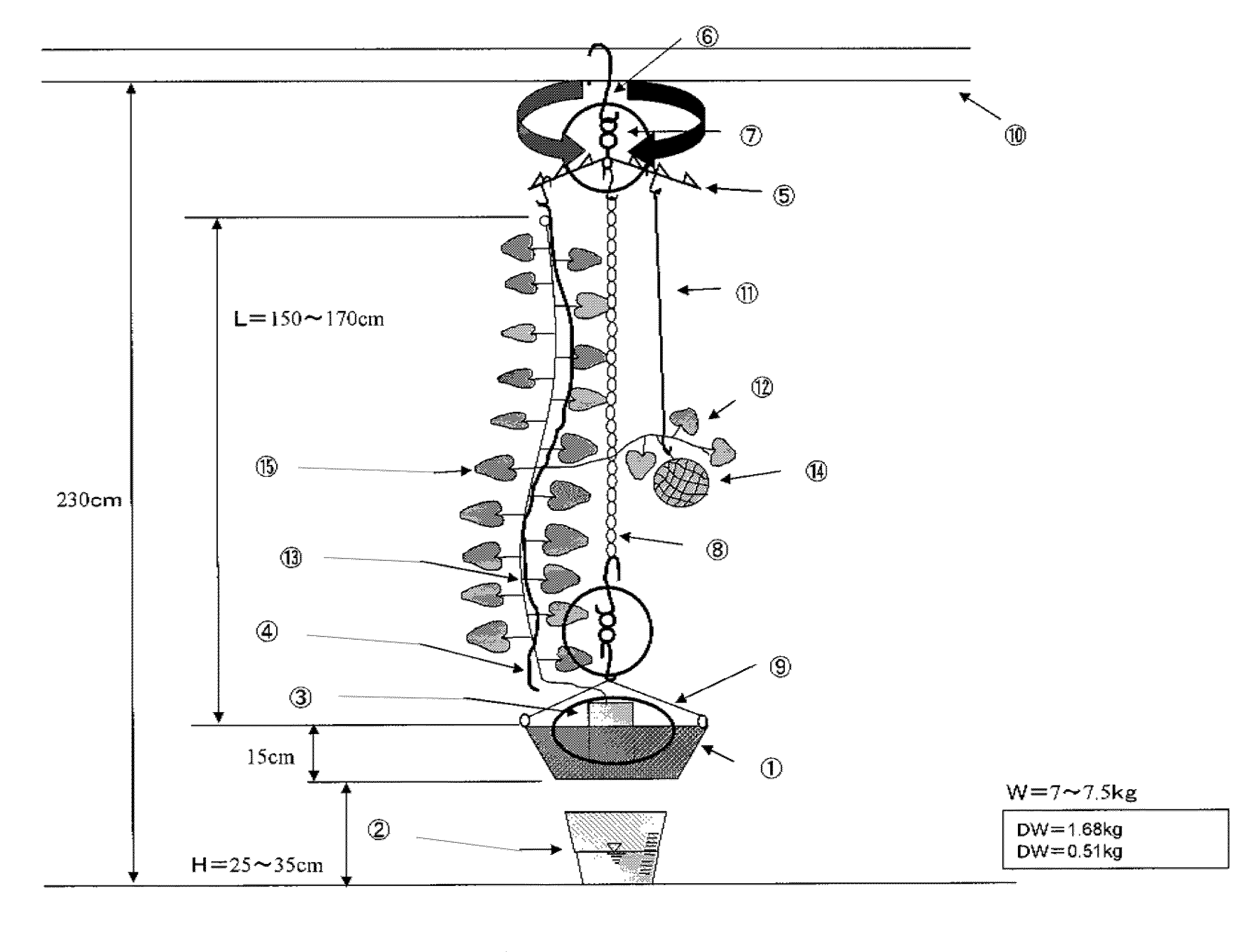

US-7694458-B2 figure 2
2
US-7694458-B2 figure 3
3
US-7694458-B2 figure 4
4
US-7694458-B2 figure 5
5
US-7694458-B2 figure 6
6
