来源记录显示 Expired
吸湿导水自浇灌可堆叠植物容器
Moisture absorbing and water transferring self watering structured stackable plant containers
US-7690151-B2自浇灌花盆，可堆叠节省空间。
专利摘要
一种吸湿导水自浇灌结构化花盆，包括多个锥形花盆，能够交错堆叠，以提供一系列堆叠花盆；底部花盆的形状设计为可放置在栏杆上，或可放置在托盘内，甚至带有脚轮的托盘，以便在庭院、露台或其他地板上自由移动。每个可堆叠容器和底部花盆内包含一个升高的底座，底座上有孔，以及一系列向下延伸的带槽井，土壤可放入其中，浸入每个容器或底部花盆底部的水库中的水中，以实现水分向上迁移到土壤中，用于灌溉和保湿所种植植物的根系。
Original abstractA moisture absorbing and water transferring self watering structured planters, including a plurality of a tapering plant pots, capable of mounting one upon another in a staggered fashion, to provide a series of stacked planters, a bottom planter shaped to provide for its accommodations upon a deck rail, or the bottom planter may locate within a tray, even one that contains casters, to provide freedom for movement upon a patio, deck, or other floor. Contained within each of the stackable containers, and also within the bottom planter, is an elevated base, containing perforations, and a series of downwardly depending slotted wells, the latter into which potting soil may locate, for submerging into any water contained within water reservoirs provided within the bottom of each container, or bottom planter, to achieve migration of water upwardly into the potting soil, for irrigation and moisturization of the root system of any planted vegetation.

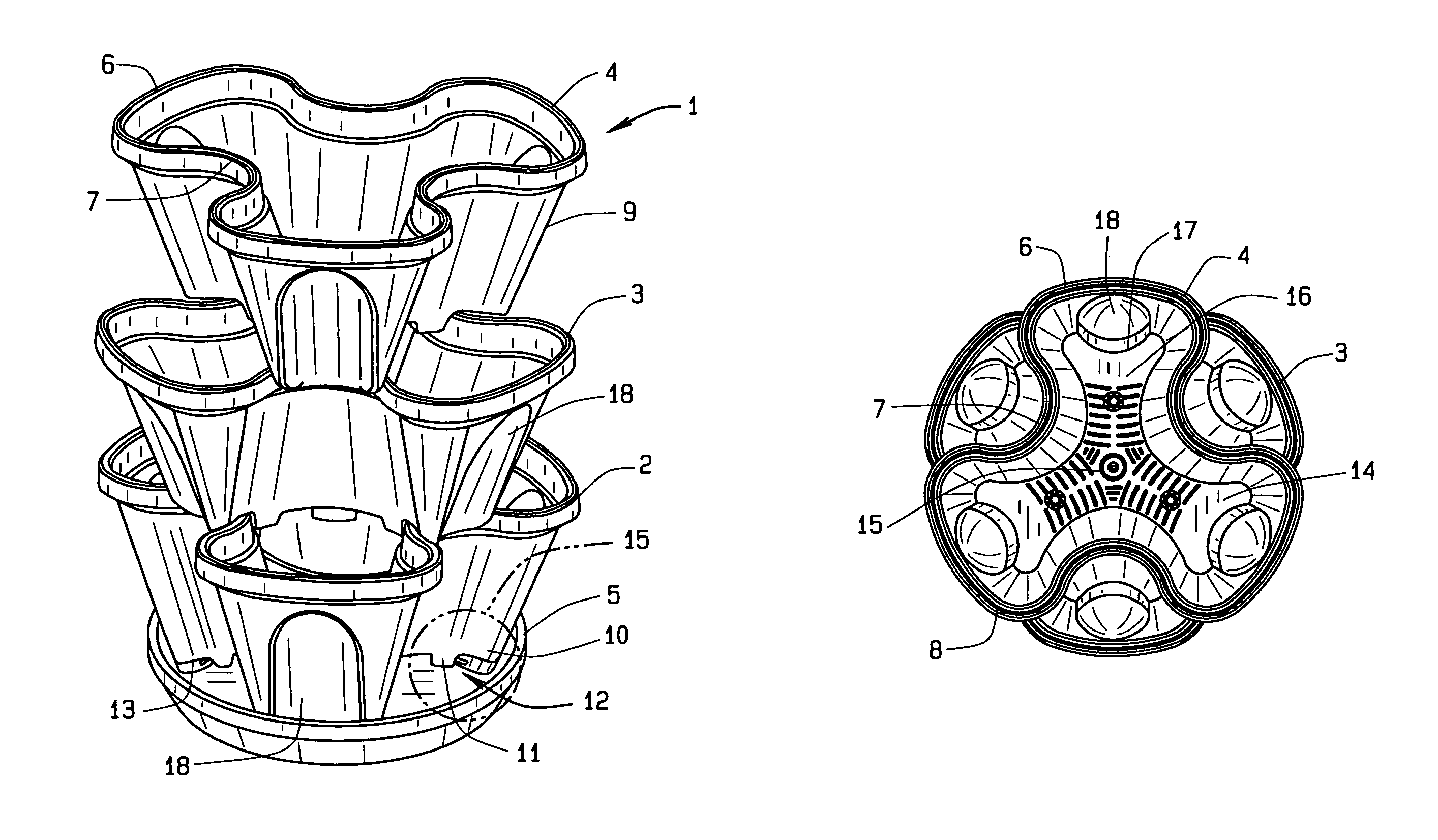

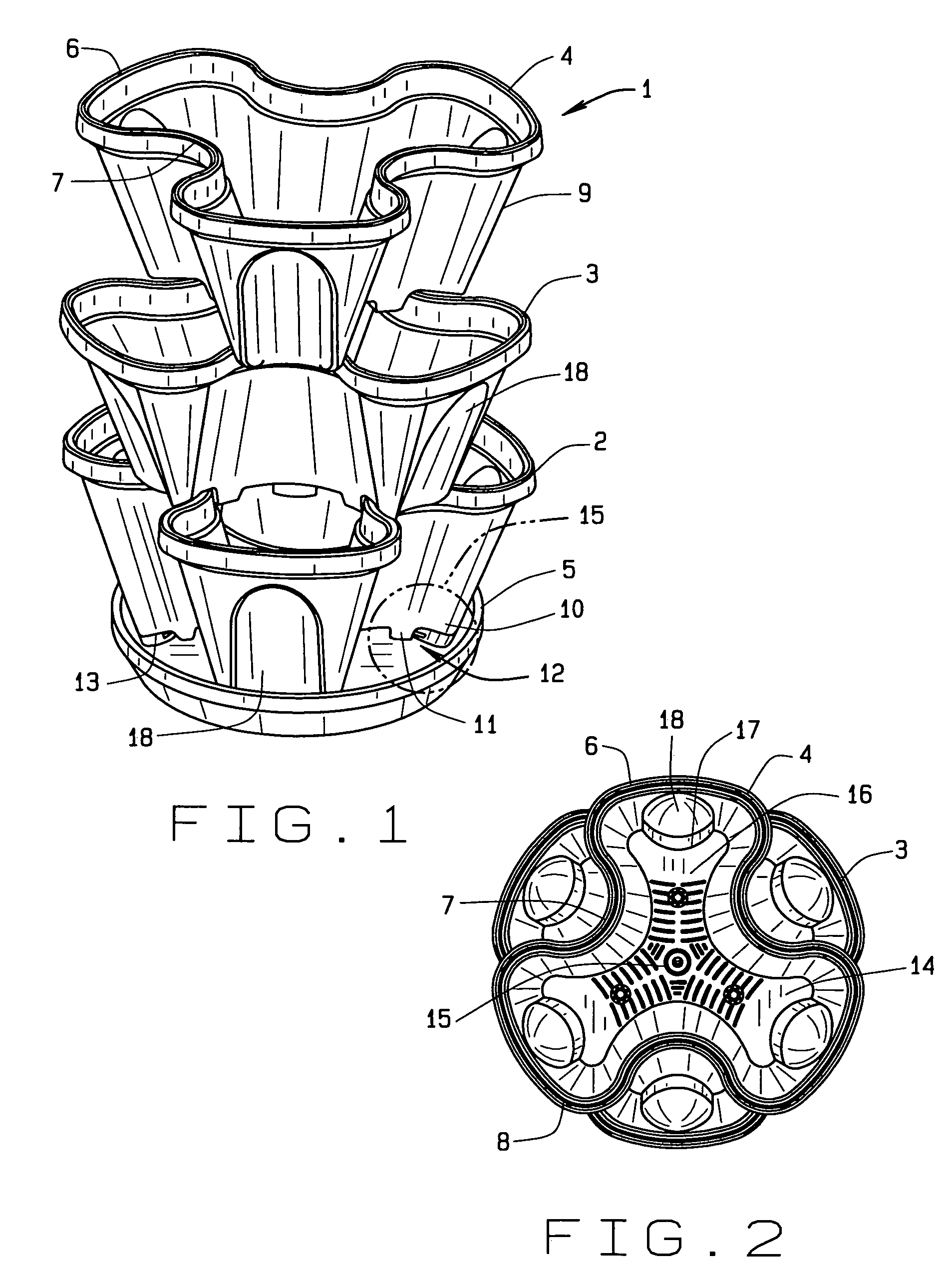

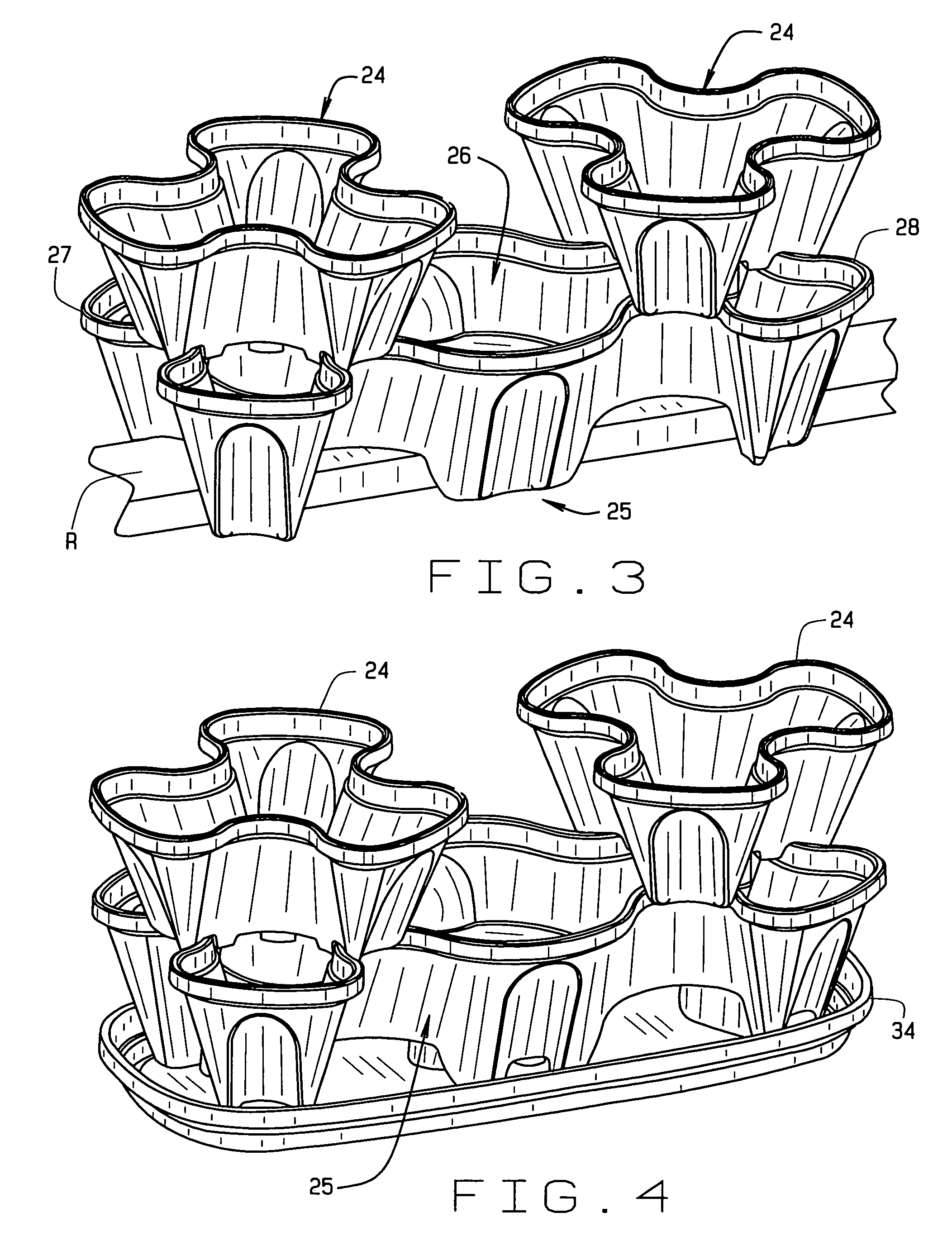

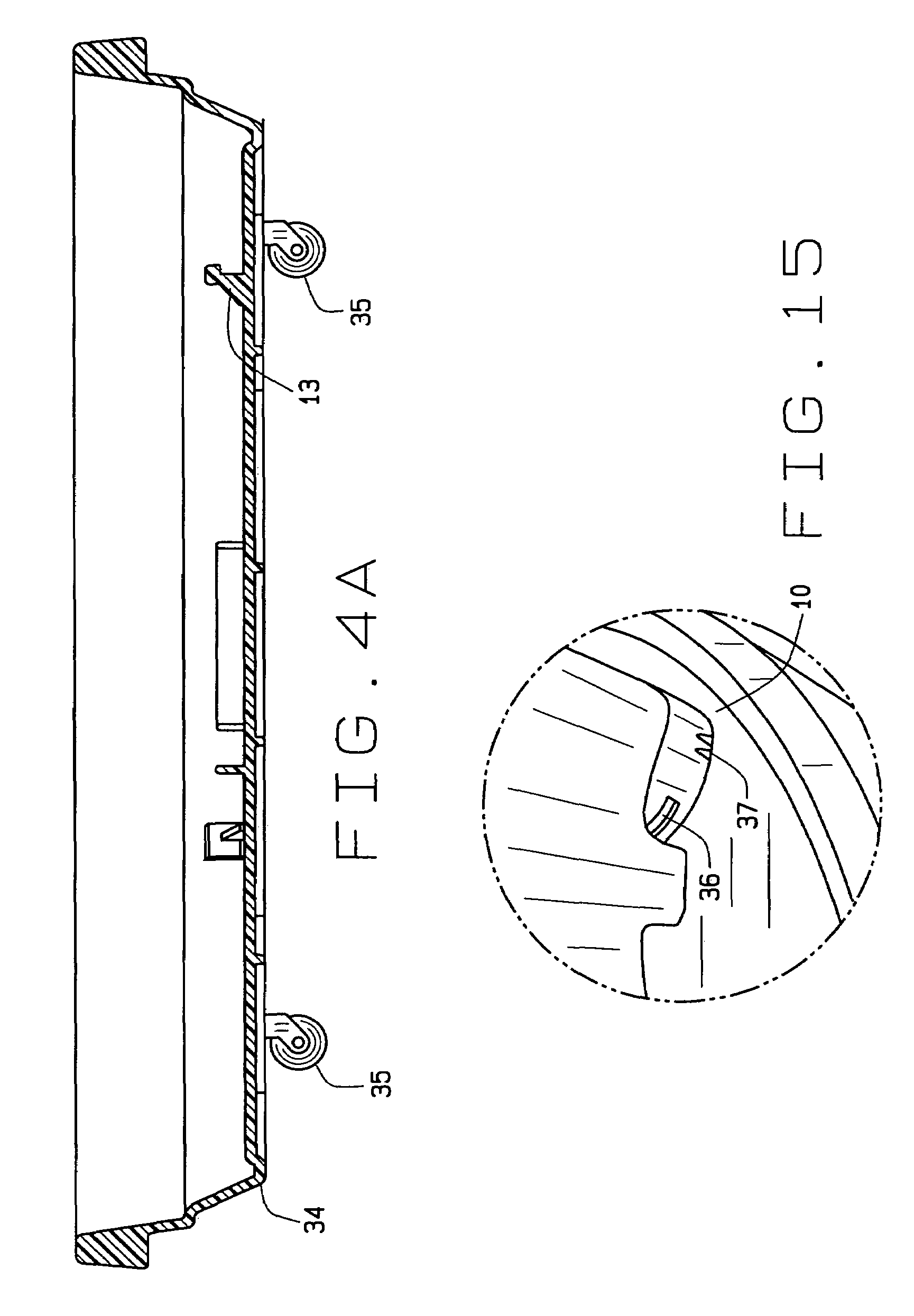

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
