具有地下施水功能的移动灌溉机
Mobile irrigation machine with underground water application
US-7686234-B2一种移动灌溉机，可将水直接输送到地下，减少蒸发。
专利摘要

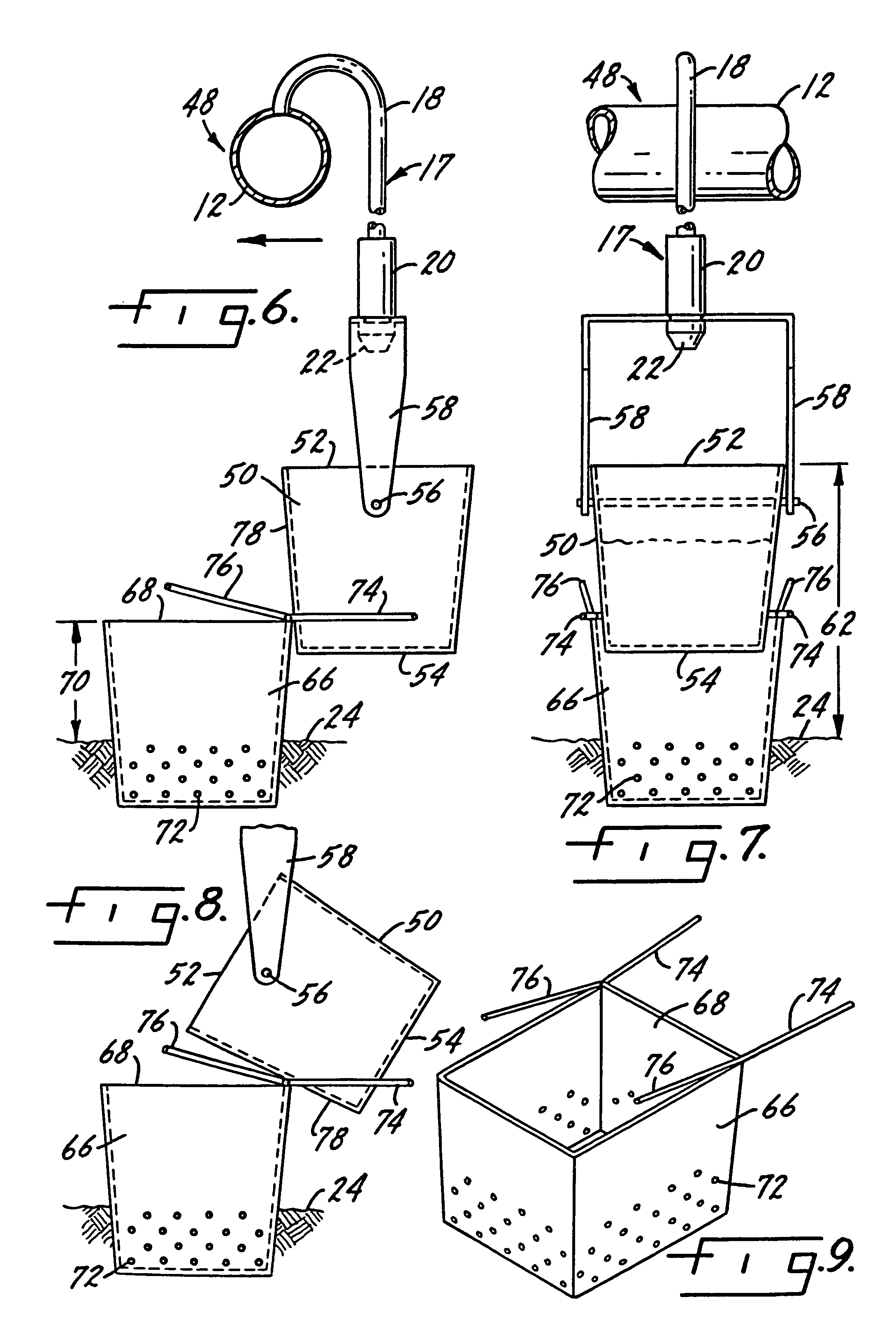

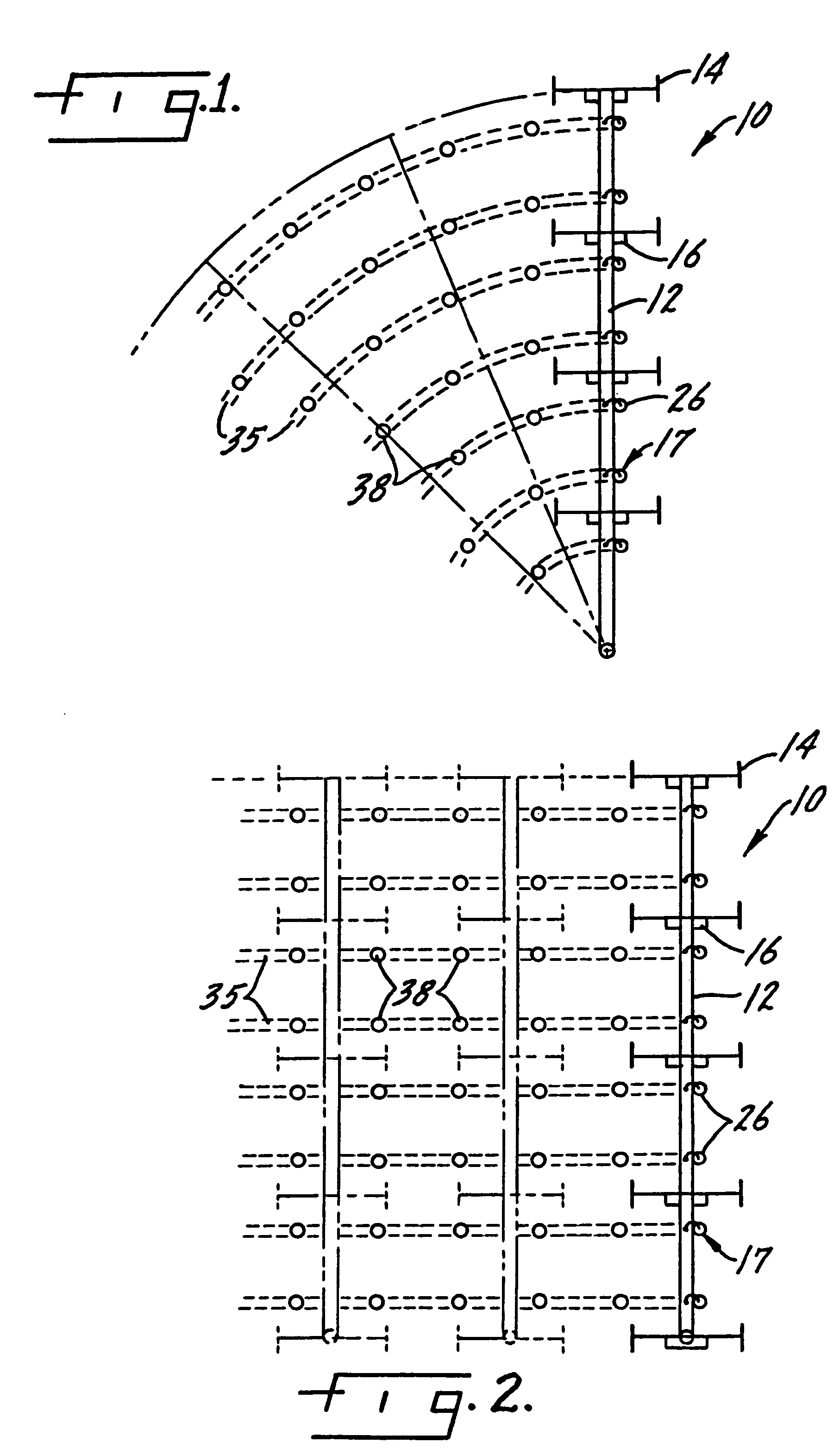

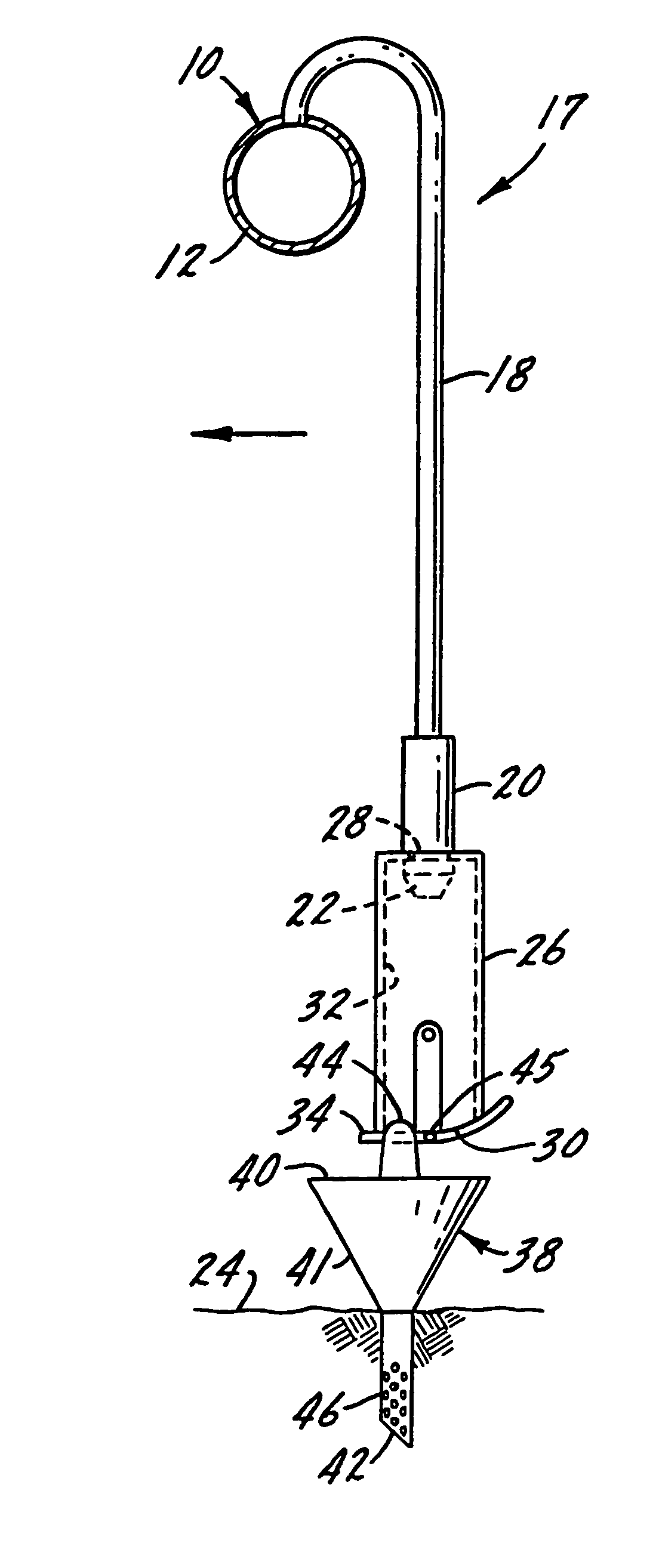

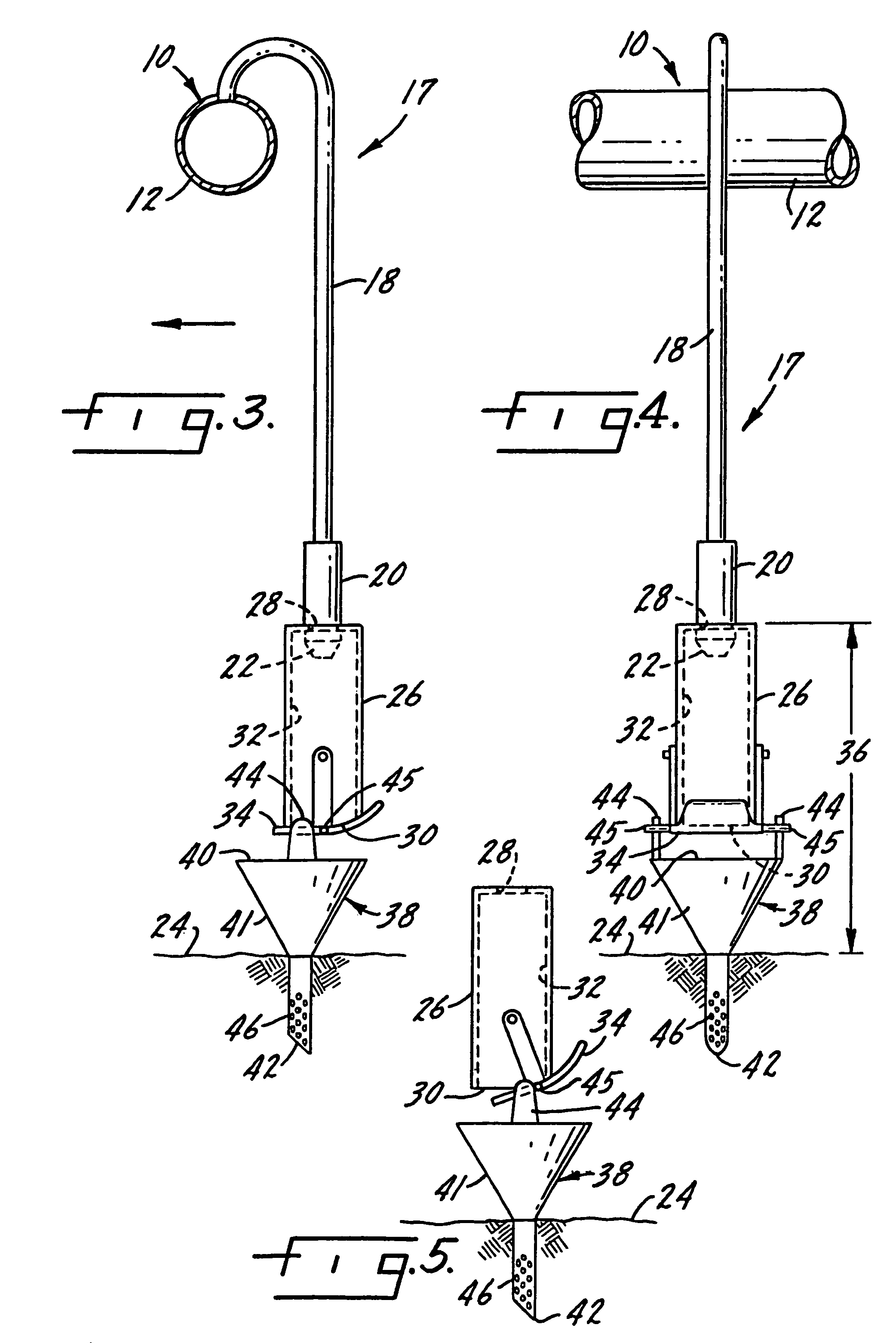

一种灌溉组件具有由移动塔架间隔支撑的主管道，沿管道间隔设置的多个落水管组件，以及定位成接收来自落水管组件的水的收集器。多个目标物定位在地面上，处于由收集器移动限定的运动路径中。目标物可以是盘子。每个盘子优选具有穿透地面下方的带孔排水管。收集器和目标物之间的相互作用导致存储在收集器内的水被释放到目标物中。灌溉组件可以在没有收集器的情况下提供地下灌溉，其中盘子或槽接收来自落水管组件的水，地下排水管允许水分散到地下。
Original abstractAn irrigation assembly has a main pipeline supported at intervals by mobile towers, a plurality of drop tube assemblies at spaced intervals along the pipeline and a collector positioned to receive water from the drop tube assembly. A plurality of targets are positioned on the ground in the paths of motion defined by the movement of the collectors. The targets may be dishes. Each dish preferably has a perforated drain that penetrates beneath the surface of the ground. Interaction between the collector and the target causes the water stored within the collector to be released into the target. The irrigation assembly may provide for underground irrigation without a collector where a dish or trough receives water from the drop tube assembly and underground drains allow for water to be dispersed below the ground.
