用于路面绿化，可承受踩踏并储水。
专利摘要

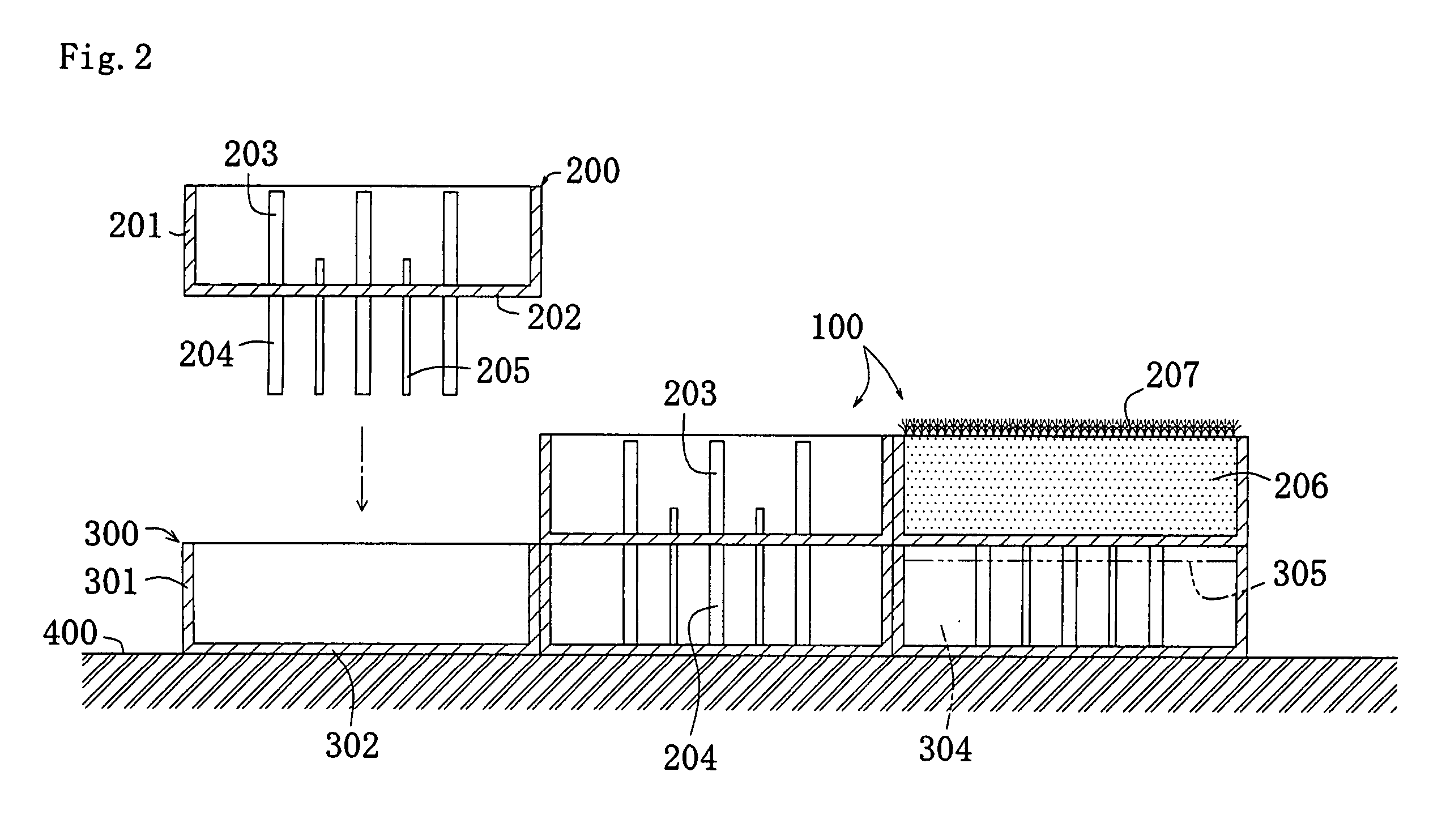

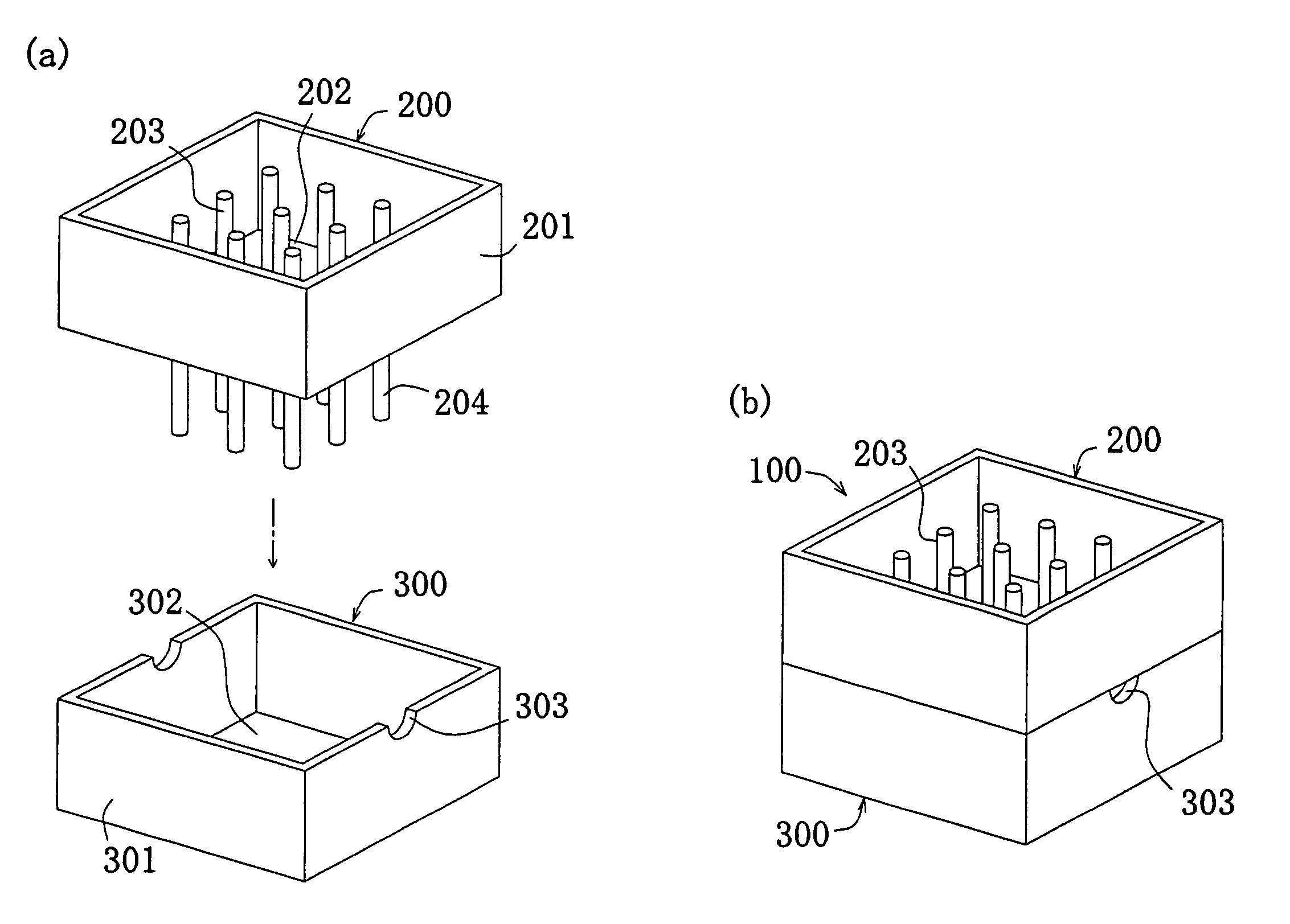

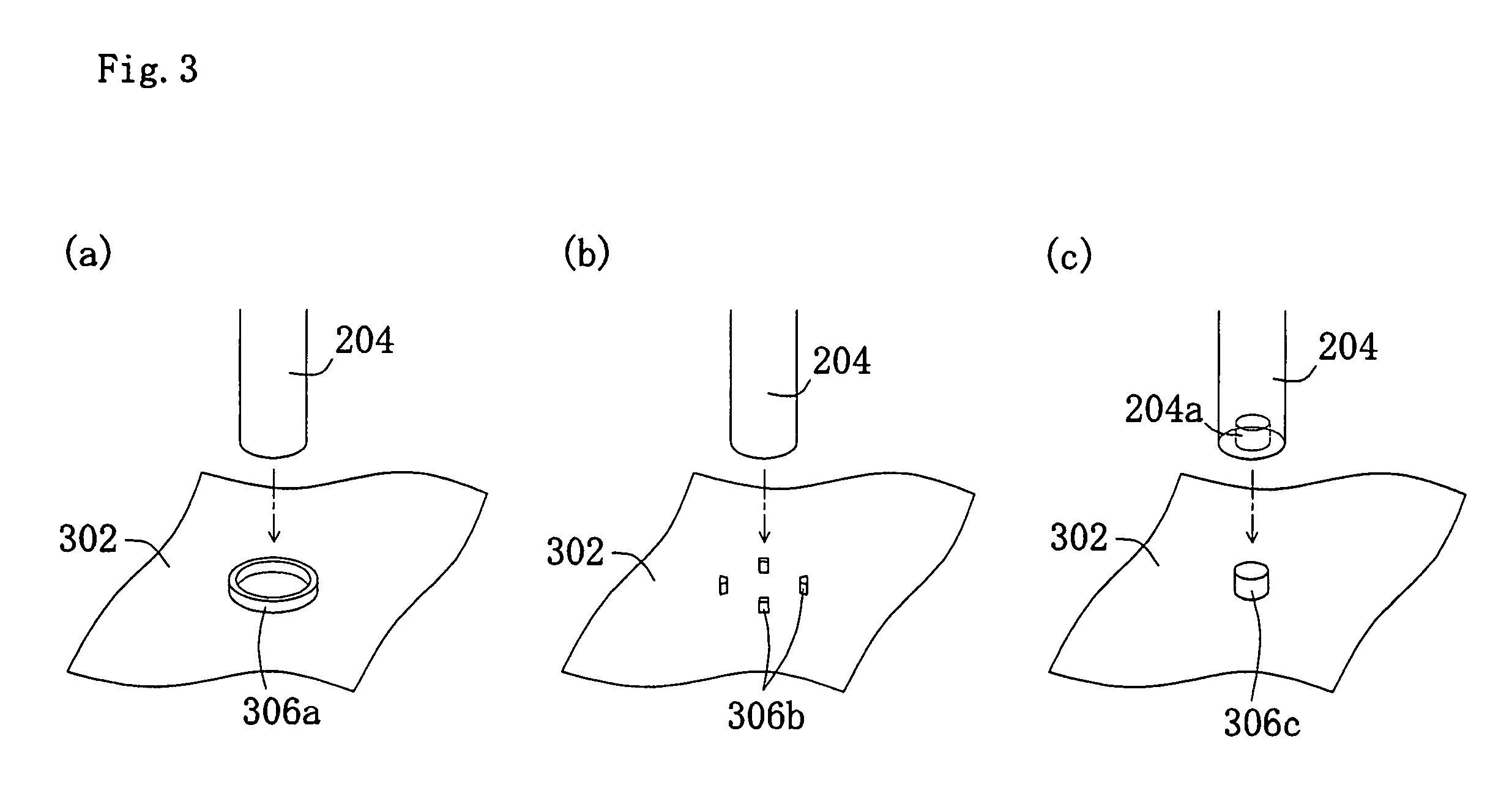

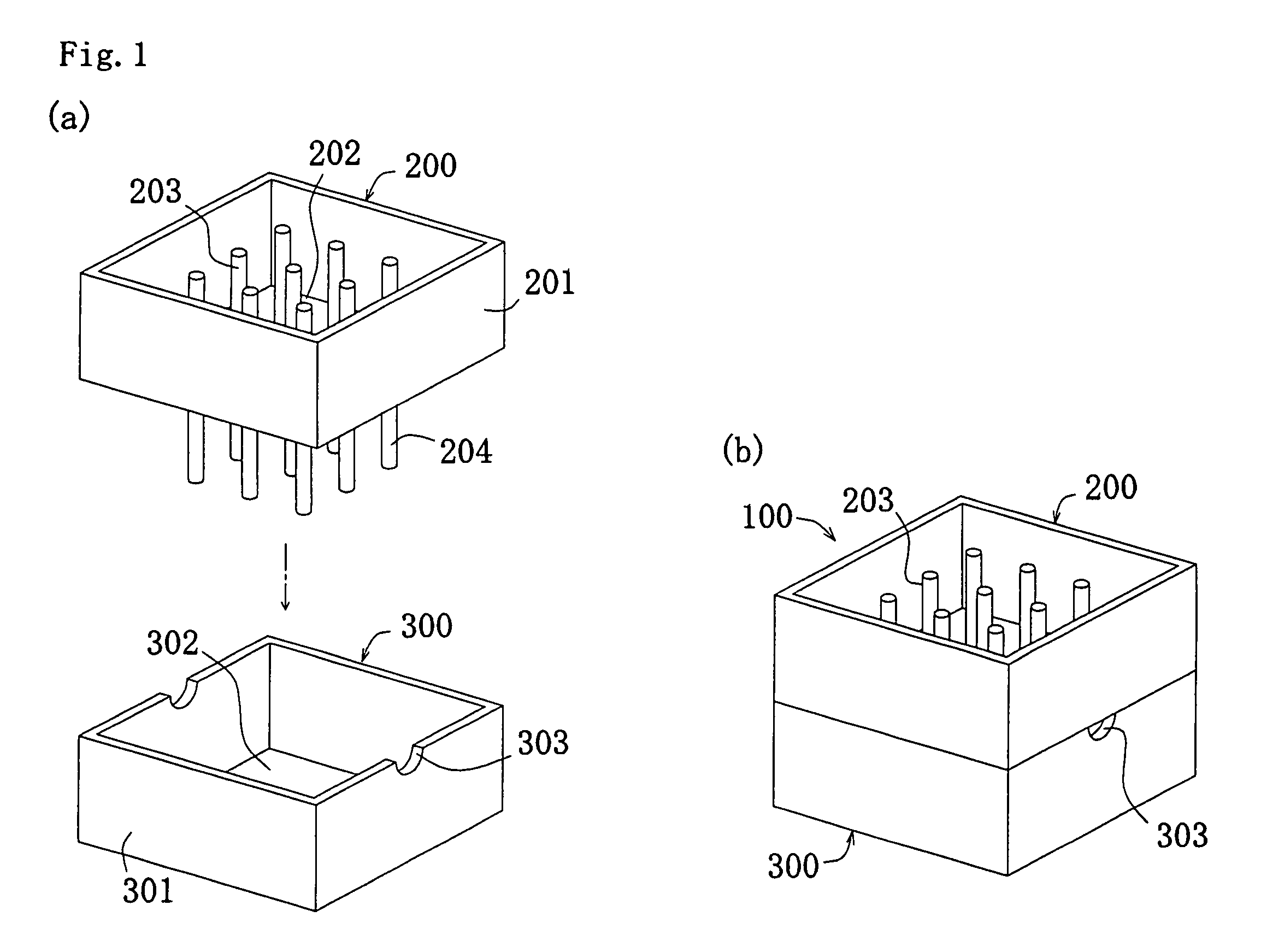

一种绿化结构，包括在储水部分上的可栽培植物的种植部分，并铺设在路面上以形成绿化区域。绿化结构还包括柱状构件，从直接承受种植部分上外力的部分基本连续地设置到储水部分的底部或路面，使得种植部分上承受的外力通过柱状构件传递到路面。该绿化结构在支撑强度和稳定性方面优异，提供令人满意的踩踏感。基本连续的柱状构件包括：从种植部分底部向上设置的第一柱状构件；以及从种植部分底部向下设置的第二柱状构件。
Original abstractA greening structure comprising a plant-cultivatable planting portion on a water-reserving portion and laid on a pavement for forming a greening area. The greening structure further comprises post-shaped members provided substantially consecutively from a portion where an external force loaded on the planting portion is directly received, to the bottom of the water-reserving portion or to the pavement, so that the external force loaded on the planting portion is received on the pavement through the post-shaped members. The greening structure is excellent in the supporting strength and the stability to provide a satisfactory treading feel. The substantially consecutive post-shaped members include: first post-shaped members disposed upward from the bottom of the planting portion; and second post-shaped members disposed downward from the bottom of the planting portion.
专利附图（8）
