用于分离莲座状植物的方法

Method for separating rosette plants

US-7614182-B2

用于分离莲座状植物块,便于移植或繁殖。

专利摘要

一种用于分离莲座状植物块状部分的方法。该方法包括以下步骤:抓取莲座状植物并将其平行于细长保持器的纵向轴线定位,该保持器至少沿纵向轴线具有纵向开口;通过所述纵向开口将莲座状植物块状部分的一部分引入保持器;沿平行于纵向轴线的切割平面切下块状部分,同时关闭纵向开口,使得所引入的块状部分被封闭在保持器中;以及从保持器中移除封闭的切下的块状部分。该方法还包括沿第二切割平面切下封闭在保持器中的莲座状植物的一部分的步骤。

Original abstractA method for separating a lump piece of rosette plants. The method includes the steps of gripping a rosette plant and positioning it parallel to a longitudinal axis of an elongated holder which has a longitudinal opening at least along the longitudinal axis; introducing a part of the lump piece of the rosette plant into the holder via the mentioned longitudinal opening; cutting off the lump piece along a cutting plane parallel to the longitudinal axis, while closing the longitudinal opening, such that the introduced part of the lump piece is enclosed in the holder; and removing the enclosed cut-off part of the lump piece from the holder. The method includes the further step of cutting off a part of the rosette plant enclosed in the holder along a second cutting plane.

专利附图(8)

US-7614182-B2 figure 1
1

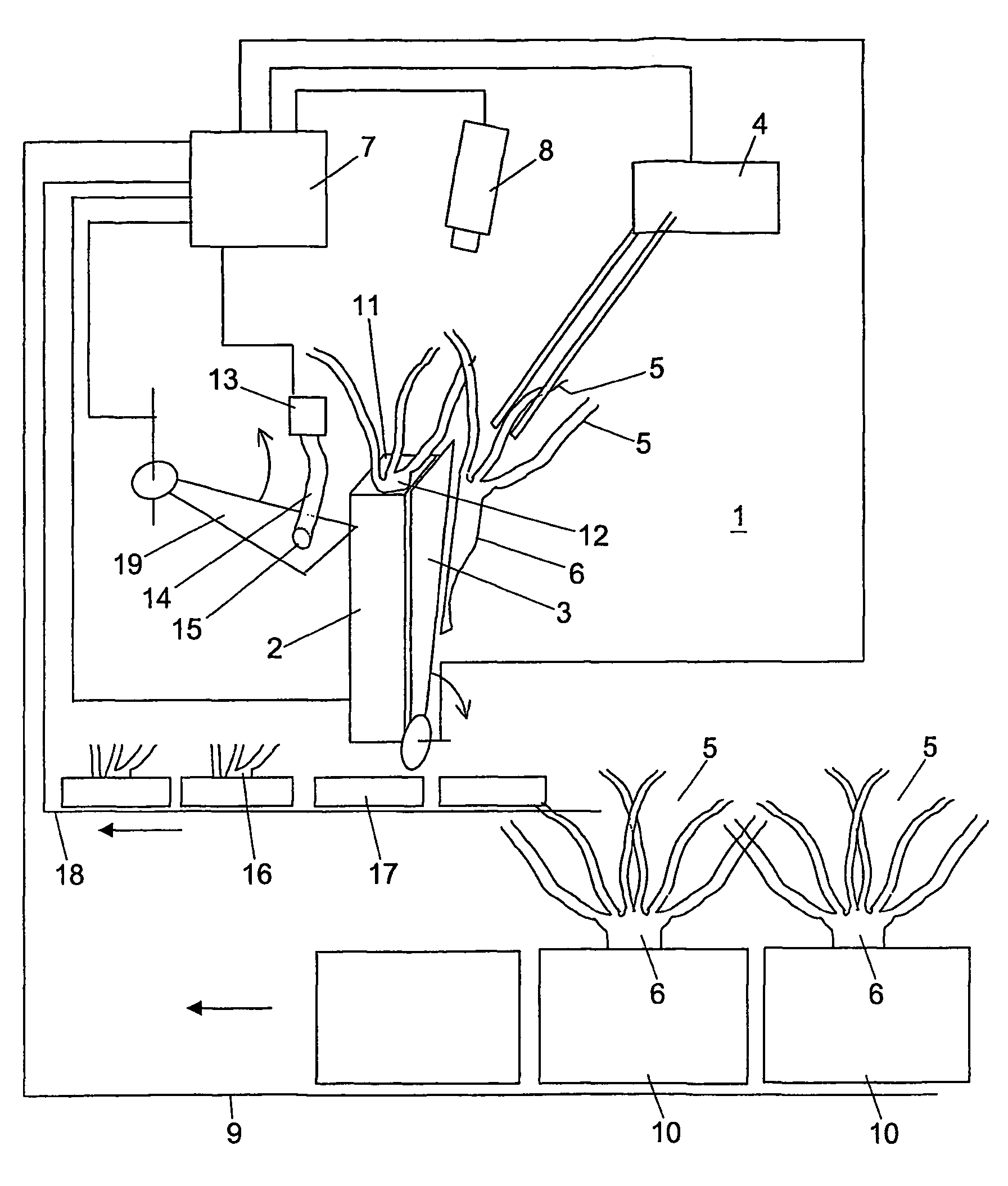

US-7614182-B2 figure 2
2
US-7614182-B2 figure 3
3

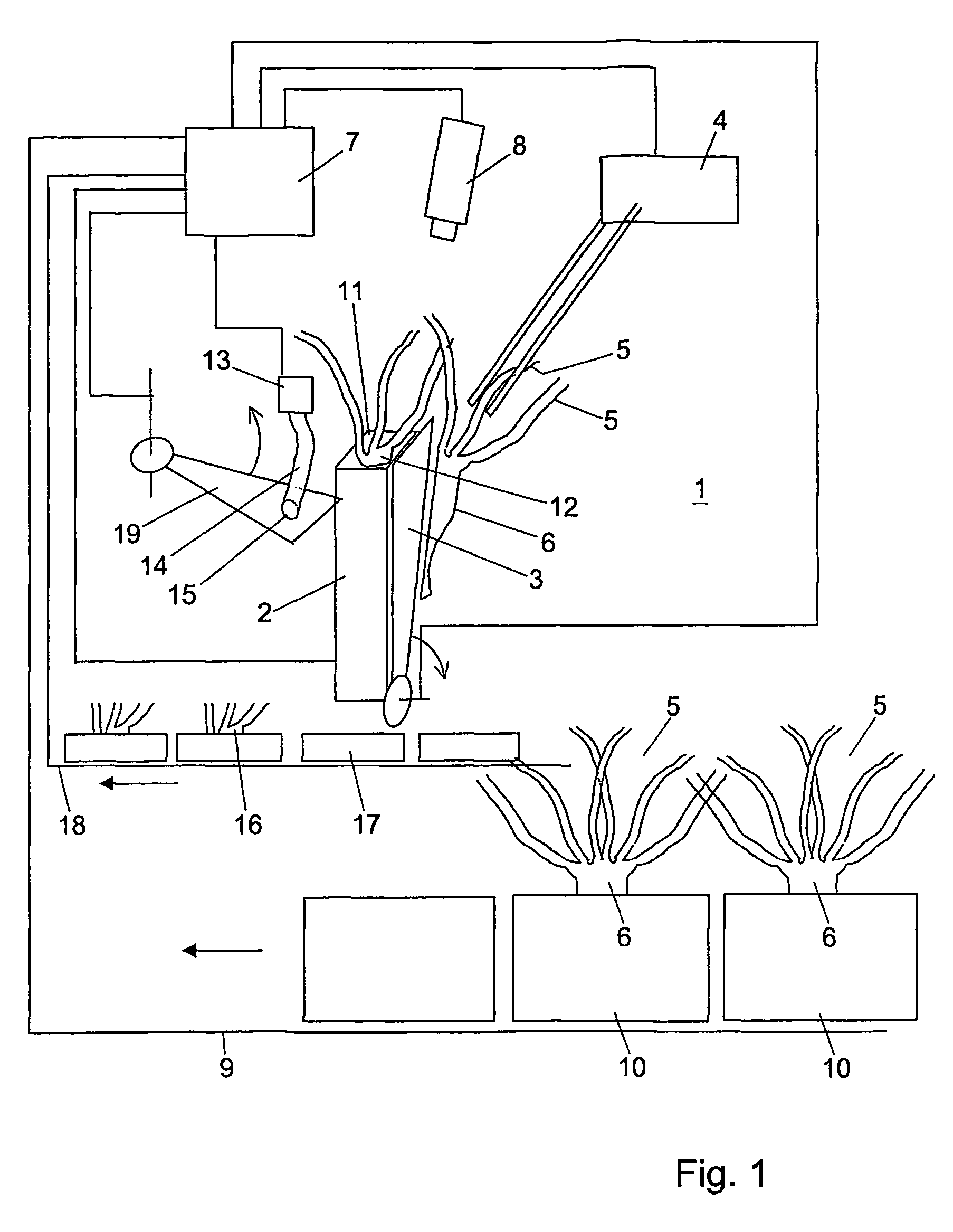

US-7614182-B2 figure 4
4
US-7614182-B2 figure 5
5

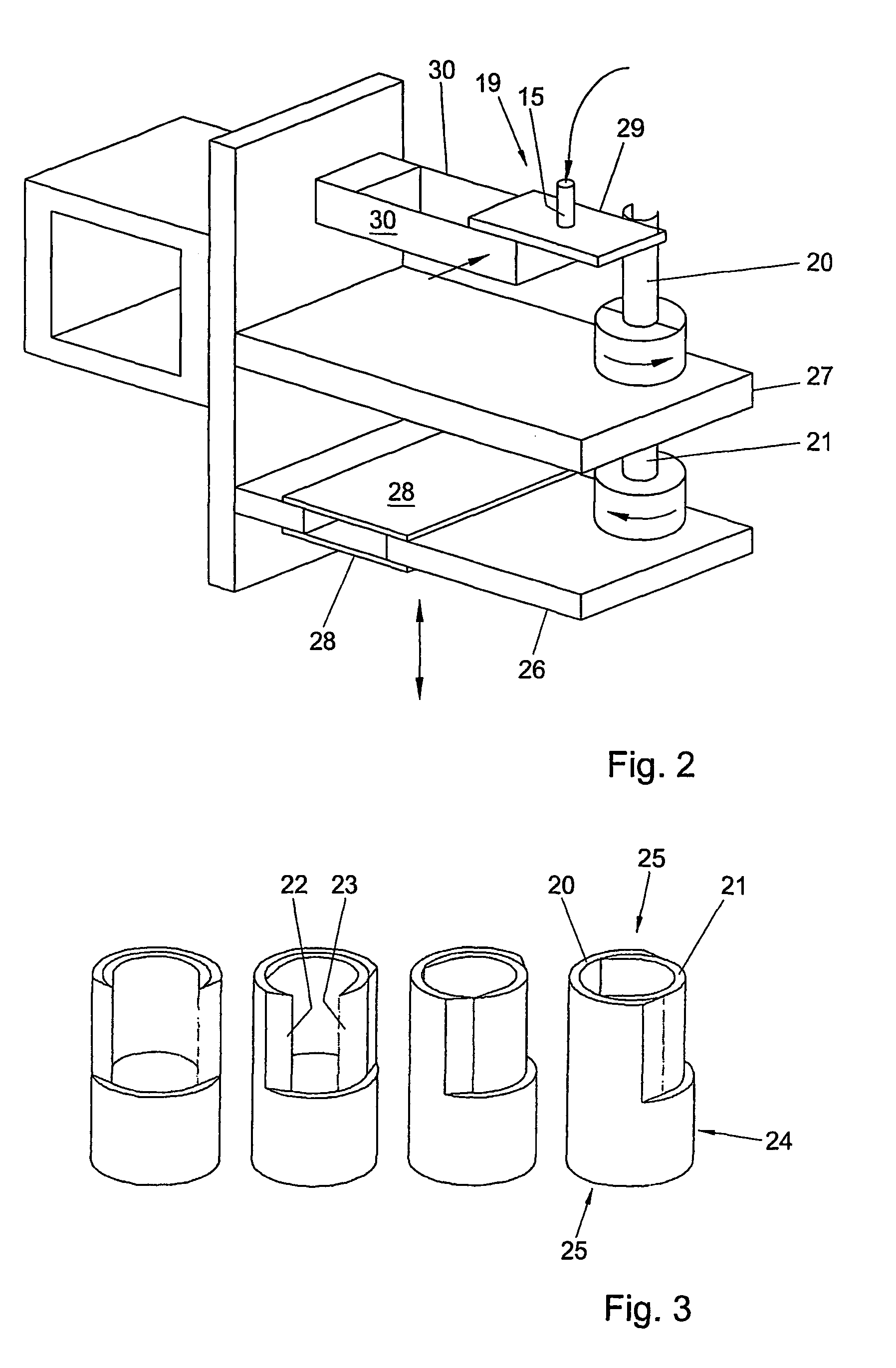

US-7614182-B2 figure 6
6
US-7614182-B2 figure 7
7

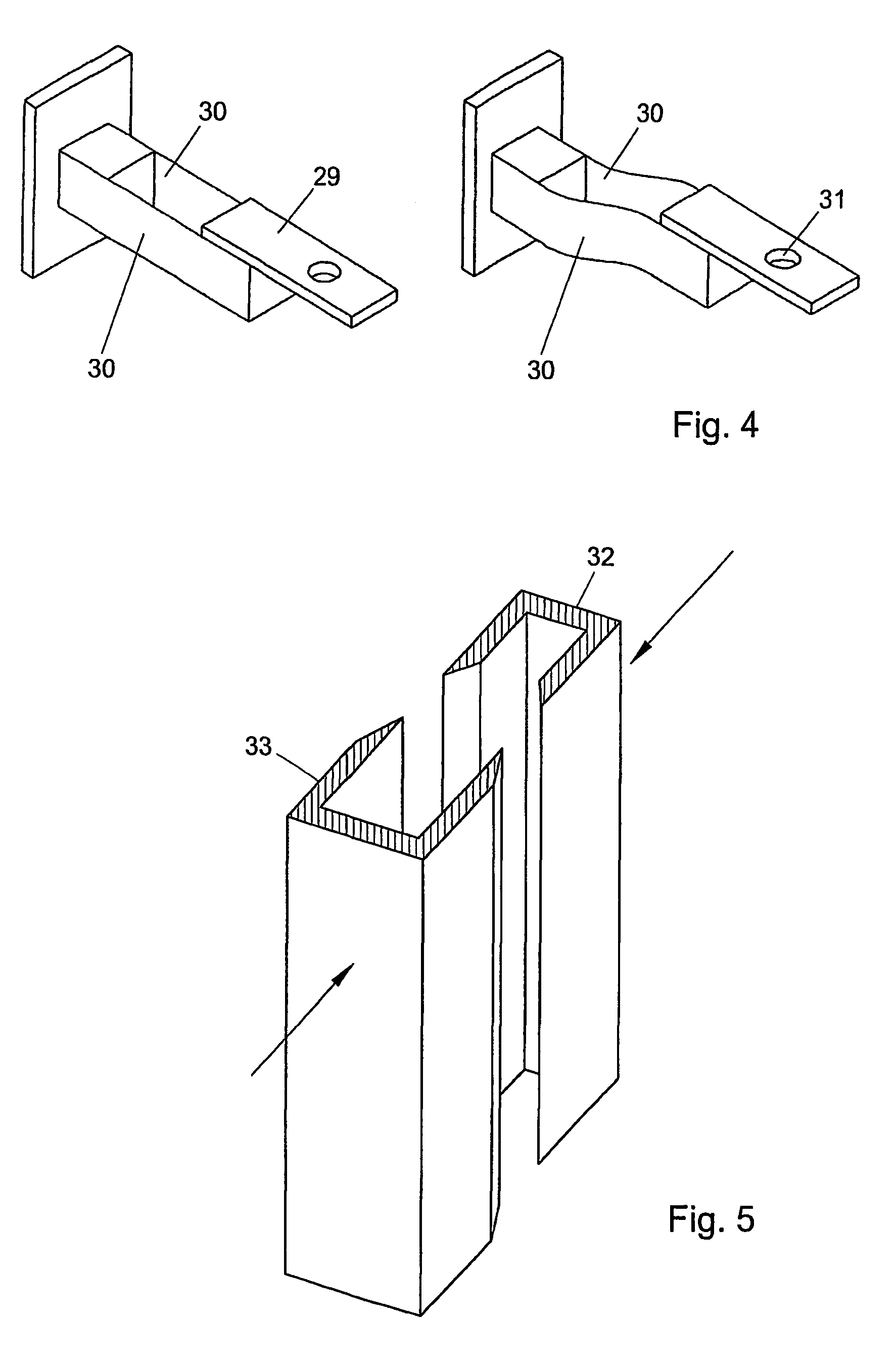

US-7614182-B2 figure 8
8
