来源记录显示 Expired
用于在海水中培养大型生物的支持装置
Support device for the cultivation of macro organisms in marine waters
US-7587991-B2用于海水养殖，固定培养生物。
专利摘要
一种用于在海水中培养大型生物的支持装置，由第一和第二共面环组成，它们通过多个径向支撑线相互连接，并在它们之间设置有多个培养线，这些培养线布置成基本同轴的环并连接到支撑线。第一和第二环中的外环通过从其上方和下方连接到环的乌鸦脚布置的绳索保持在预定方向。每个乌鸦脚布置设有一个与第一和第二环同轴的环，并通过支撑绳连接到另一个。一个乌鸦脚环连接到浮力装置，另一个连接到锚定装置，使得作用在浮力或锚定装置上的力被限制在支撑绳上。
Original abstractA support device for cultivating macro organisms in marine waters consisting of first and second coplanar rings connected to each other by a plurality of radial support lines and provided between them with a plurality of cultivating lines arranged in substantially coaxial rings and connected to the support lines. The outer one of the first and second rings is held in a predetermined orientation by ropes of crow's foot arrangements connected to it from above and below the rings. Each crow's foot arrangement is provided with a ring coaxial with respect to the first and second rings and connected to the other by a support rope. One of the crow's foot rings is connected to a buoyancy means and the other one is connected to an anchoring device so that forces acting on the buoyancy or anchoring means are restricted to the support rope.

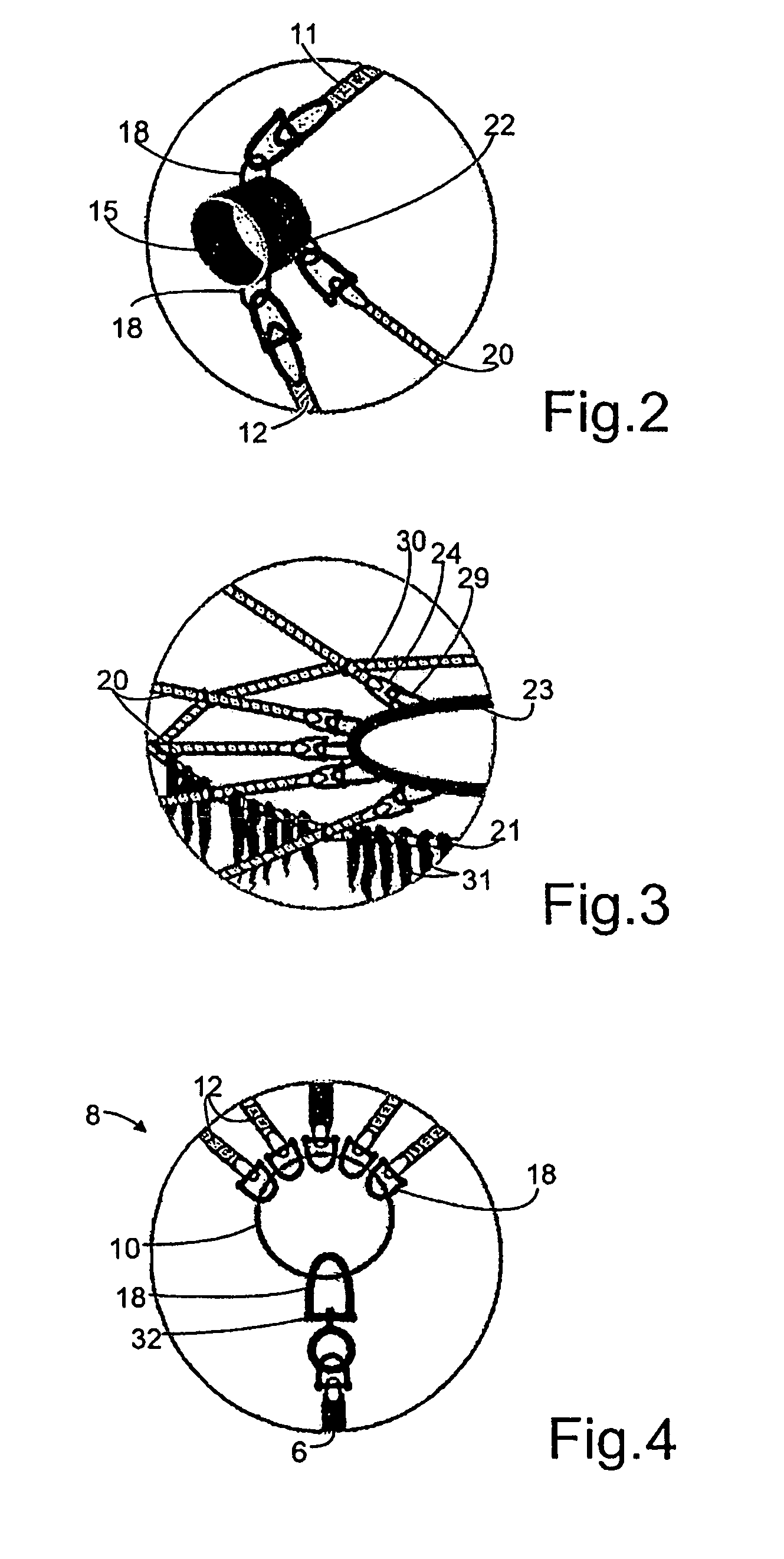

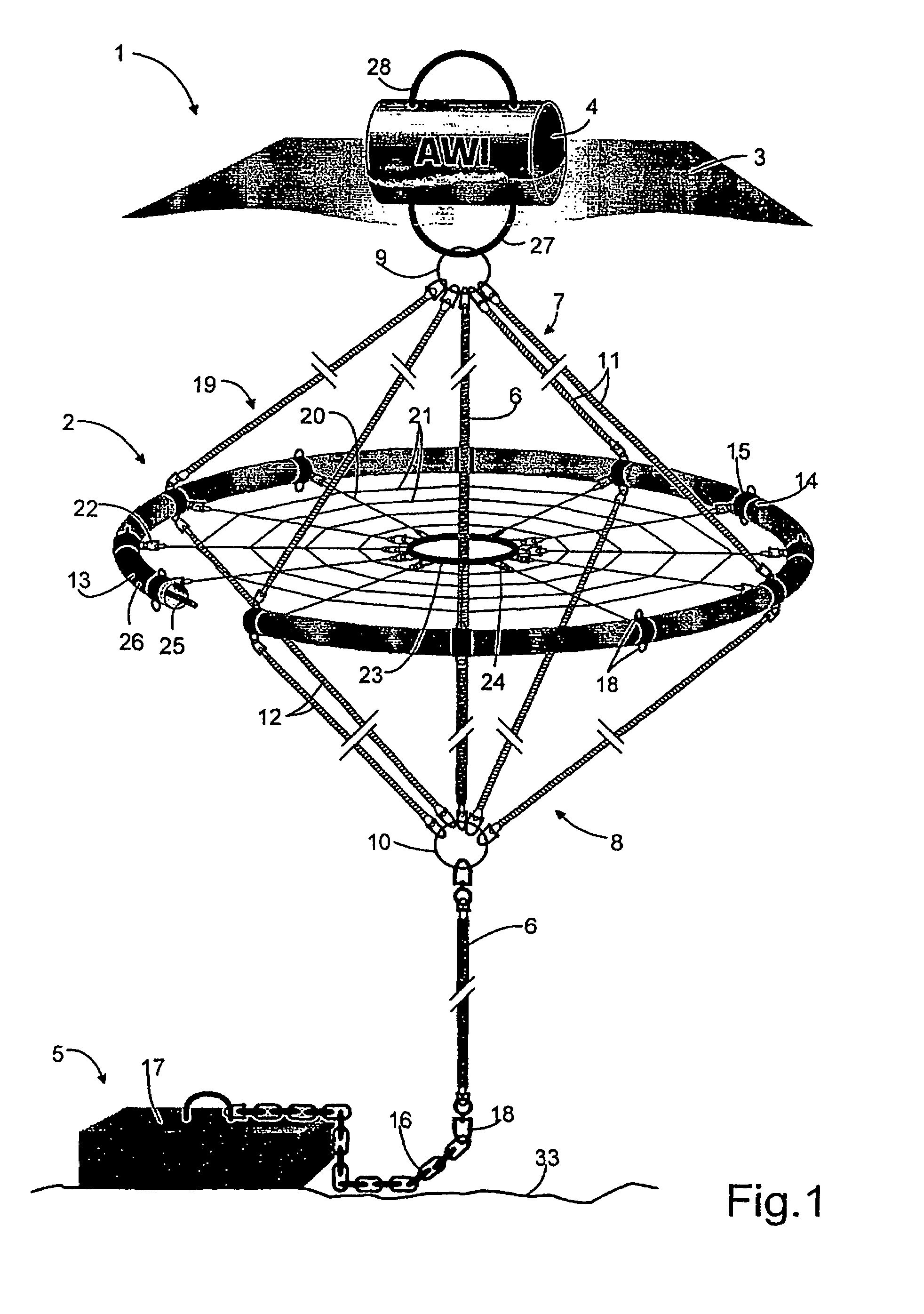

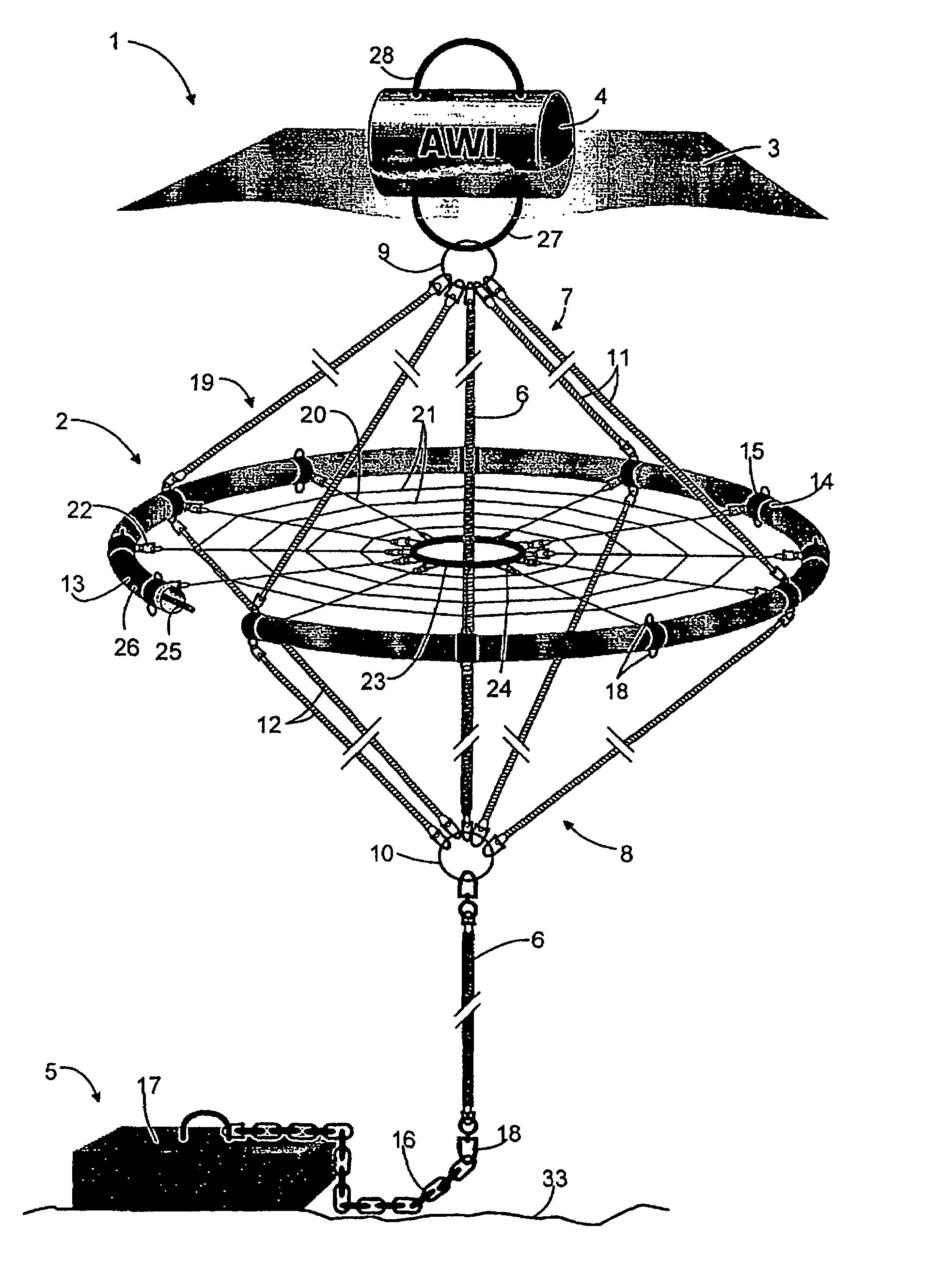

专利附图（6）
