用于保护盆栽植物土壤的盖子。
专利摘要

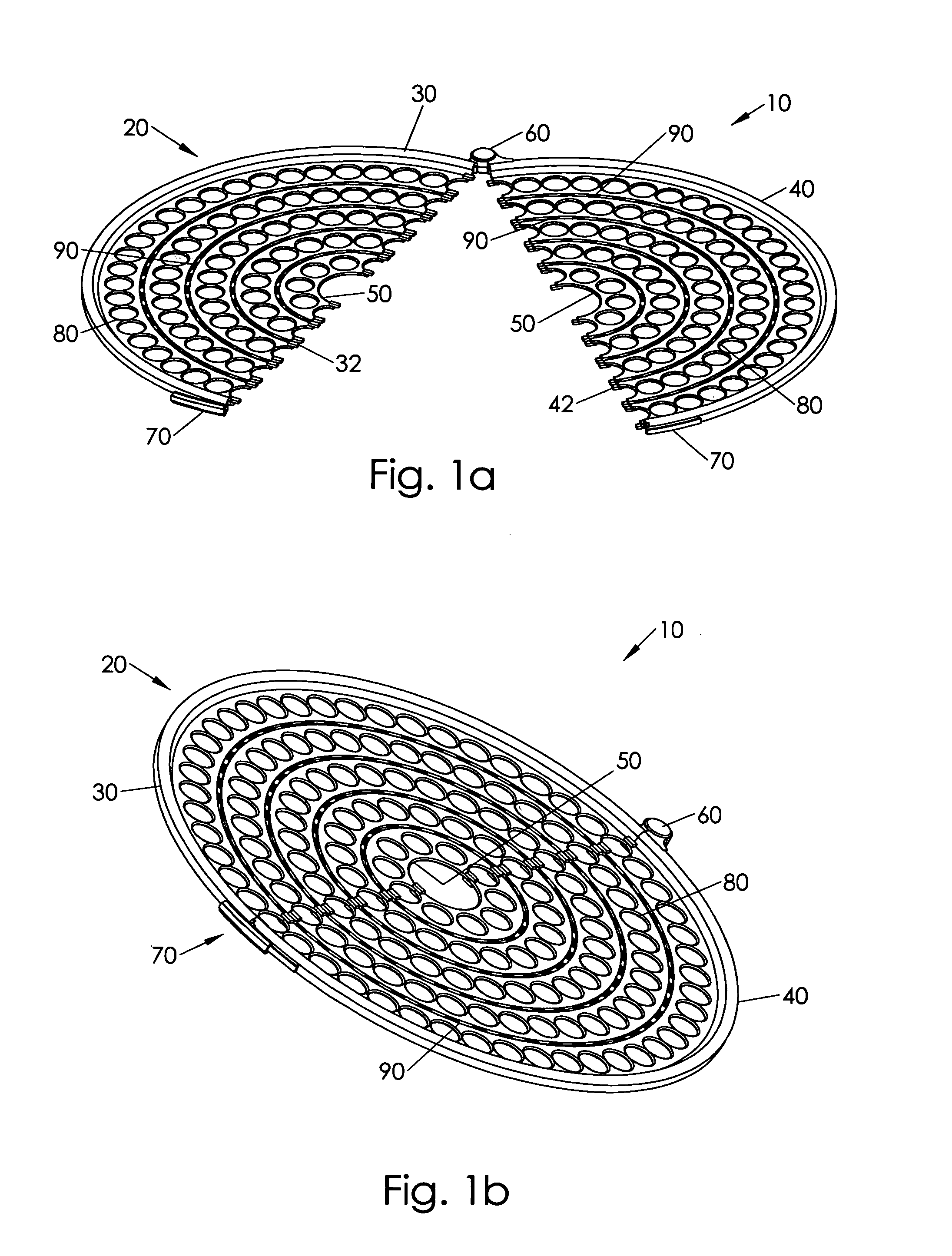

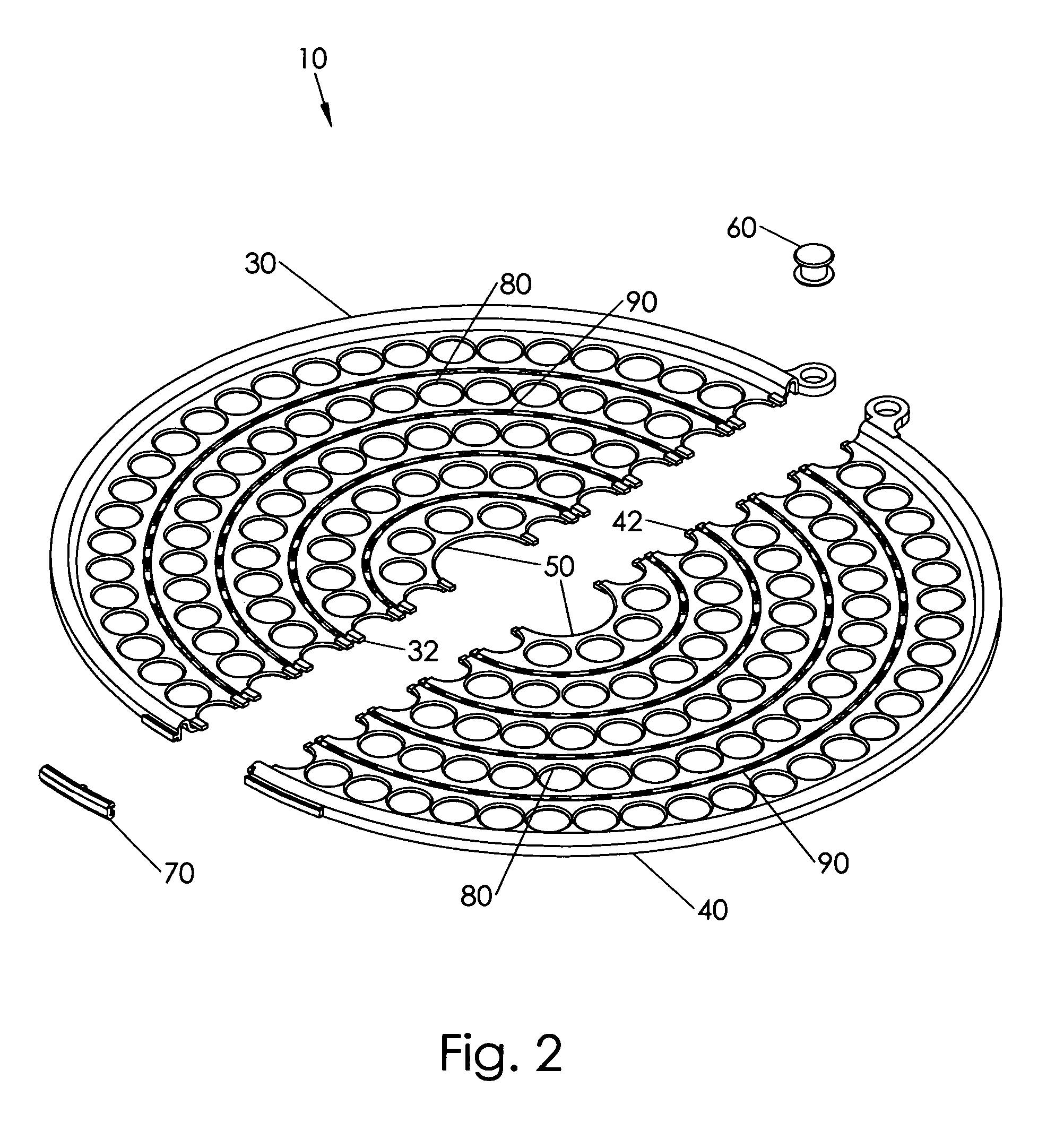

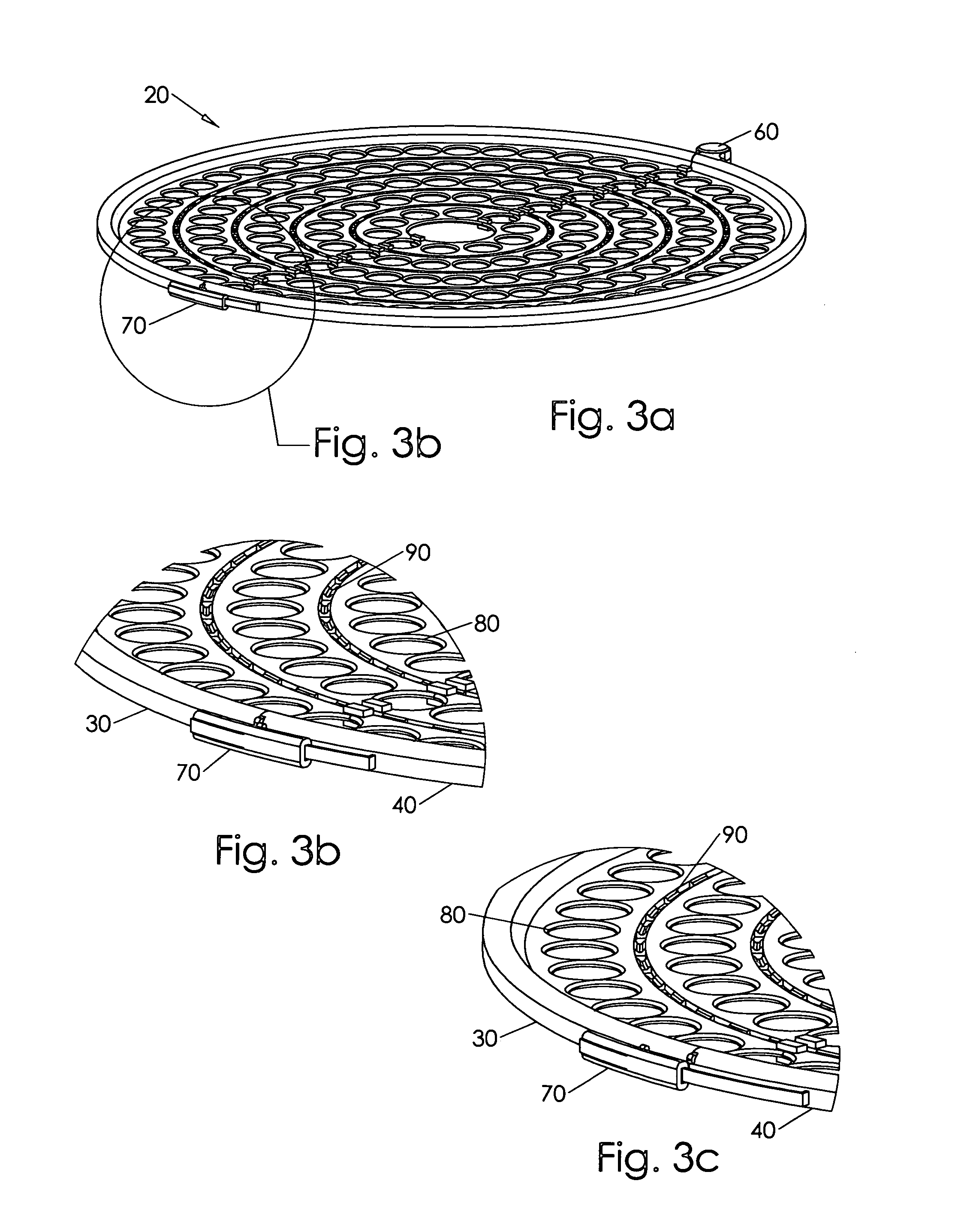

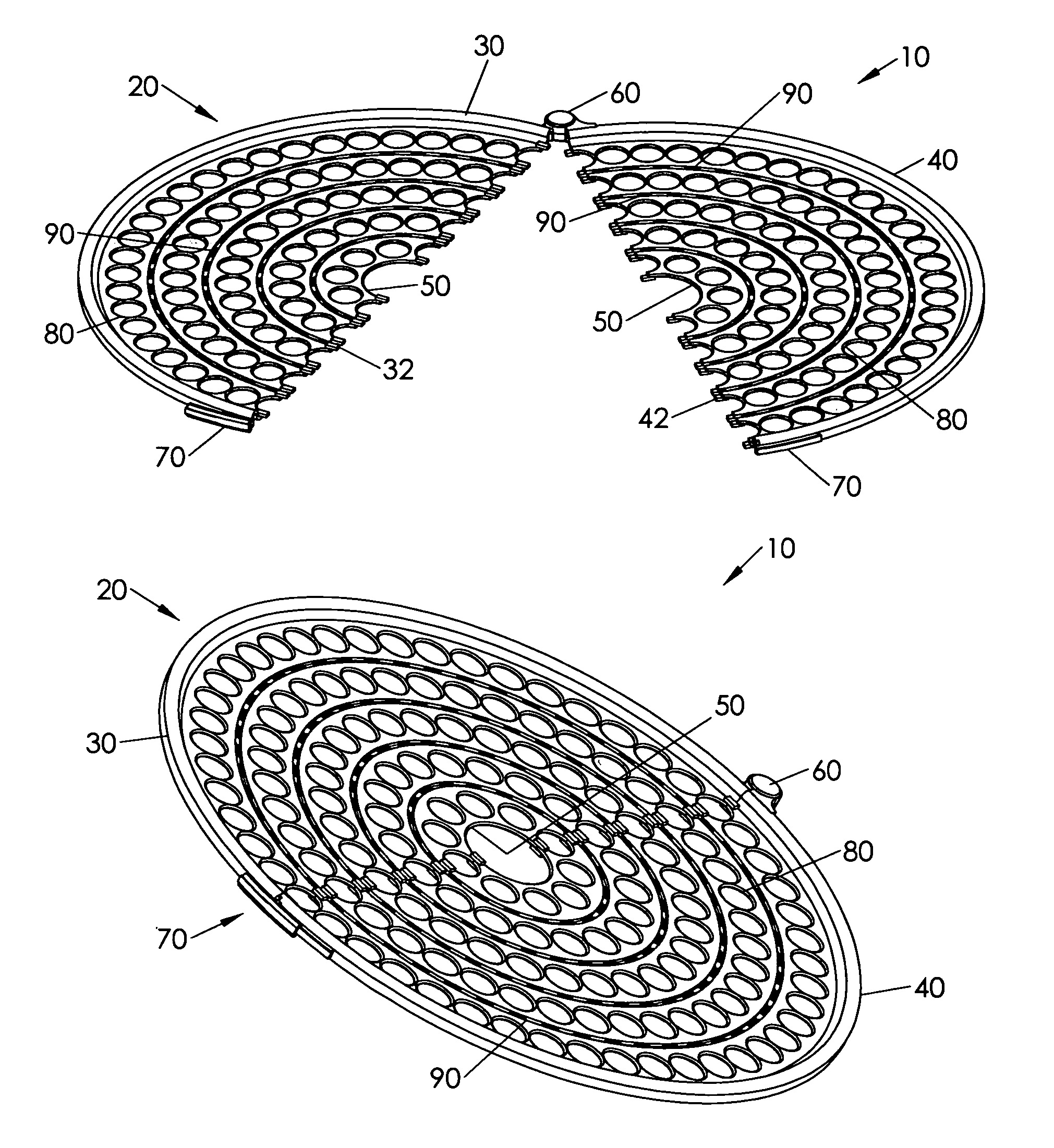

现在将参考附图的图1a至图4详细描述一种用于阻止接触盆栽植物茎部周围土壤的土壤保护装置。根据当前优选实施例，土壤保护装置10包括盖构件20，其具有大致盘形构造，用于平放在盆栽植物周围的土壤上。虽然盖构件20可以是一体结构，但当前优选实施例包括枢转连接到第二部分的第二部分40，用于在打开构型（图1a）和关闭构型（图1a）之间相对移动。每个部分包括大致半球形构造，使得当各部分处于关闭构型时，盖构件20呈现盘形构造。当然，根据与其一起使用的植物容器的几何形状，其他构型也是合适的，例如方形或矩形构型。
Original abstractA soil protection device for inhibiting access to soil surrounding a stem of a potted plant will now be described in detail with reference to FIGS. 1 a to 4 of the accompanying drawings. According to the now preferred embodiment, a soil protection device 10 includes a cover member 20 having a generally disk-shaped configuration for lying flat upon soil surrounding a potted plant. While the cover member 20 may include a one-piece construction, the now preferred embodiment includes having first portion 30 pivotally connected to a second portion 40 for relative movement between an open configuration (FIG. 1 a ) and a closed configuration (FIG. 1 a ). Each portion includes a generally hemispherical configuration such that the cover member 20 presents a disk-shaped configuration when the portions are at the closed configuration. Of course, other configurations would also be suitable depending on the geometry of plant receptacle with which it is being used, e.g. a square or rectangular configuration.
专利附图（8）
