用于建造可充气的覆盖结构，如温室或庇护所。
专利摘要
用于建筑物的模块化充气覆盖物，包括通过可张紧连接件固定在一起的独立同轴导管，并通过同轴充气管流体连接。管牢固地包围滑块，滑块又紧密但自由地包围导管。滑块由弹簧推动以保持管张紧。管上的弹性束带和弹簧与充气装置张紧地配合，以可靠地控制组件中相邻模块之间的开口。导管通过联接器牢固地扭转到地面锚固件。端盖和滑块被提供以补偿和促进管在充气时的长度收缩。本发明提供了一种具有整体支撑的可变覆盖物，其独特地能够利用峡谷和其他地面凹陷进行前所未有的规模的环境控制。应用包括温室、百叶窗、隔热和庇护所。
Original abstractModular inflatable cover for buildings, comprising separate coaxial conduits ( 30 ) secured together by tensionable link ( 50 ) and fluid-connected by coaxial inflatable tube ( 24 ). Tube ( 24 ) securely embraces sliders ( 32 ) that in turn closely but freely embrace conduits ( 30 ). Sliders ( 32 ) are urged by springs ( 34 ) to keep tube ( 24 ) taught. Elastic cinctures ( 26 ) on tube ( 24 ) and springs ( 34 ) tensionably cooperate against inflation means to provide reliable control of openings between adjacent modules in an assembly. Conduits ( 30 ) are securely torqued to ground anchors ( 40 ) by coupling ( 42 ). End covers ( 44 ) and sliders ( 32 ) are provided to compensate for and facilitate length shrinkage of tube ( 24 ), upon inflation. The present invention provides a variable cover with integral support that is uniquely capable of exploiting canyons and other ground depressions for an unprecedented scale of environment control. Applications include greenhouses, shutters, insulation and shelters.

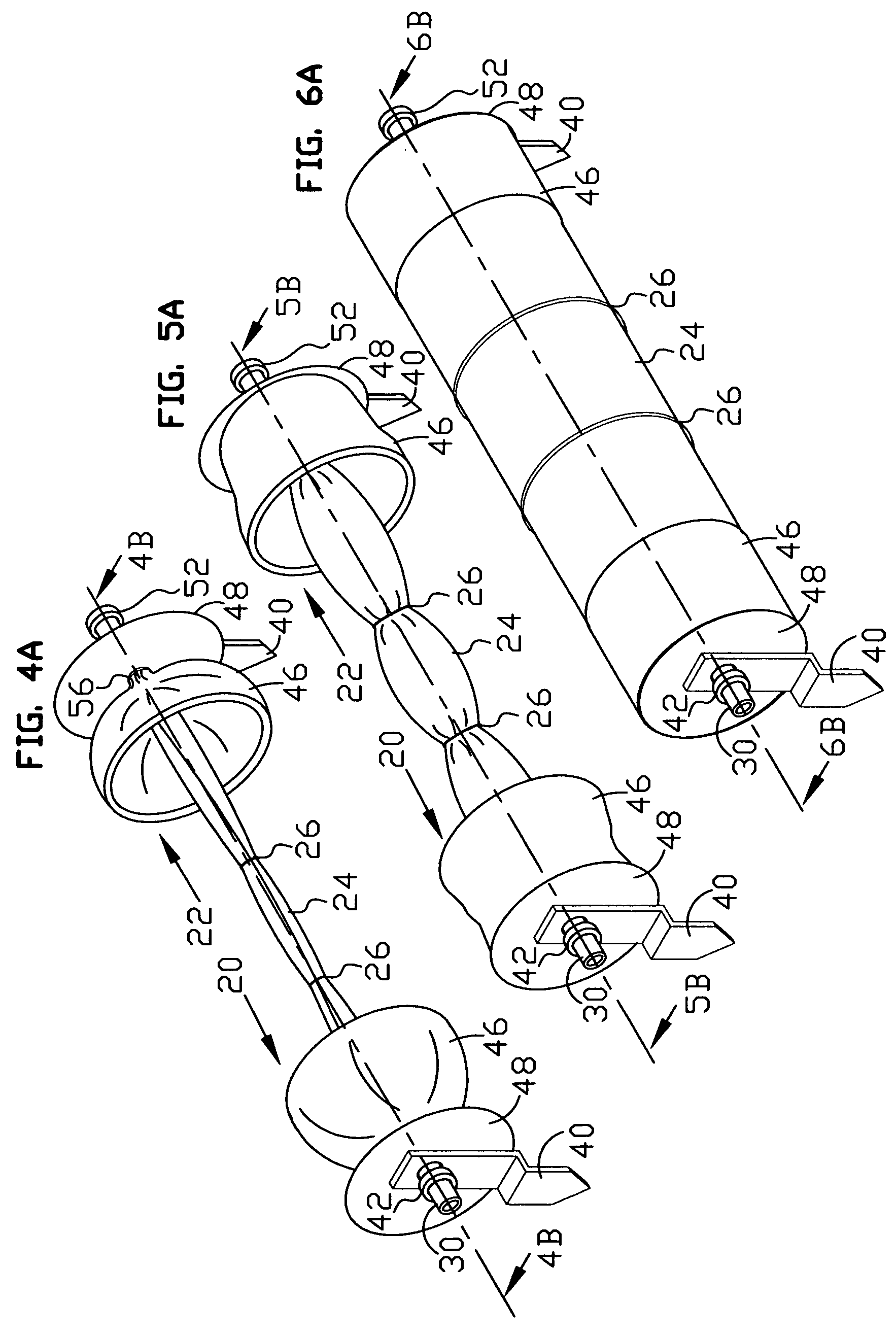

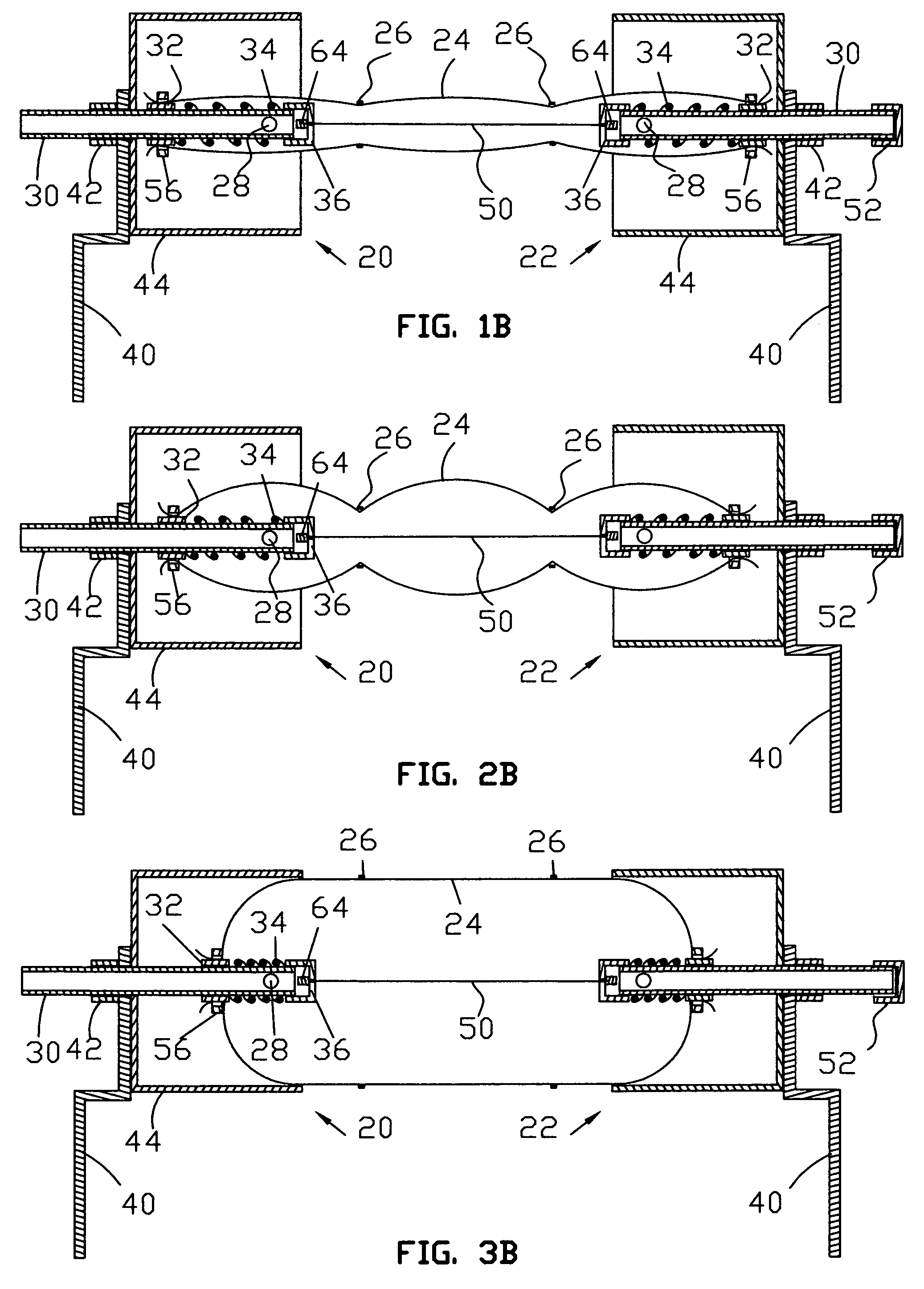

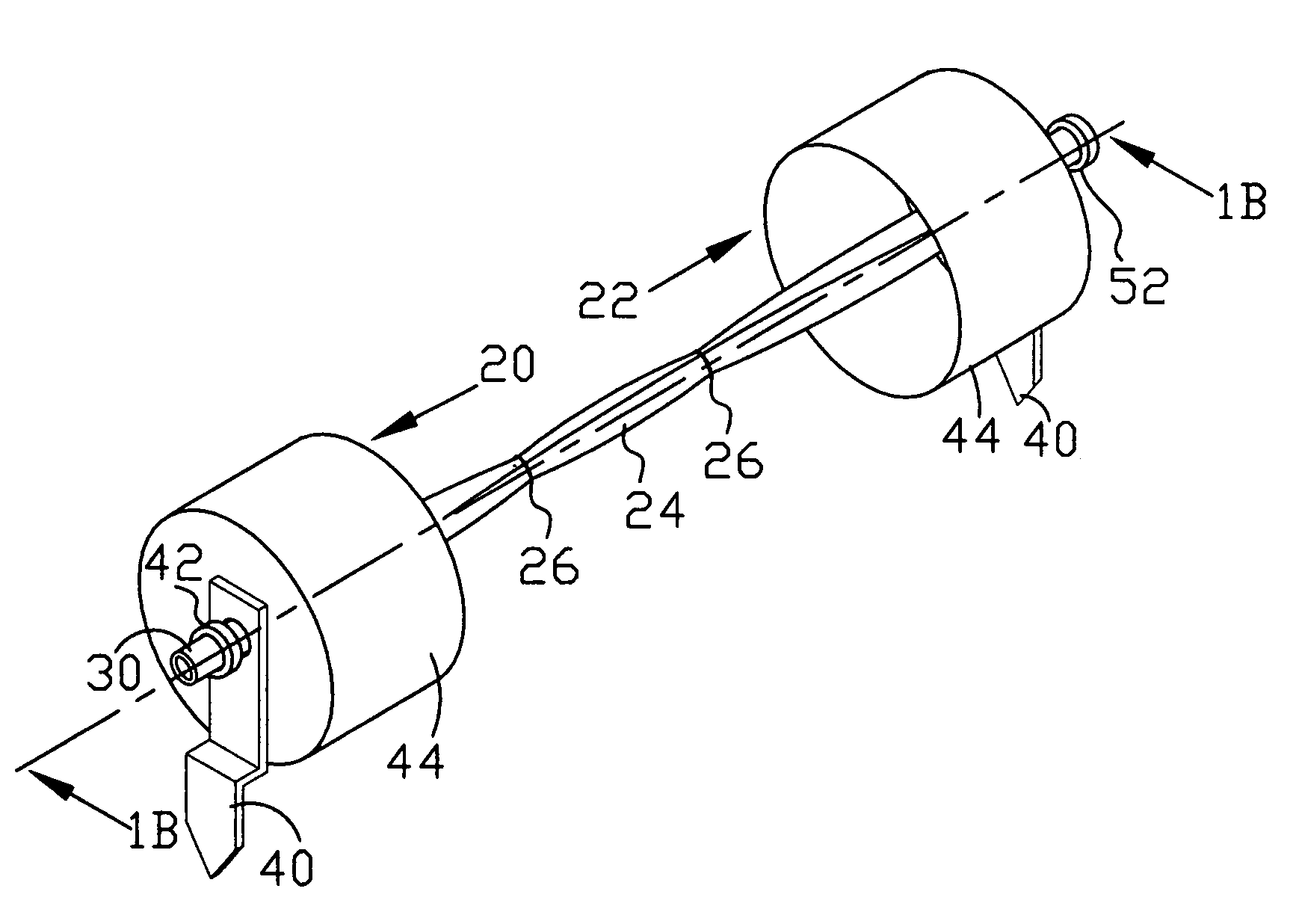

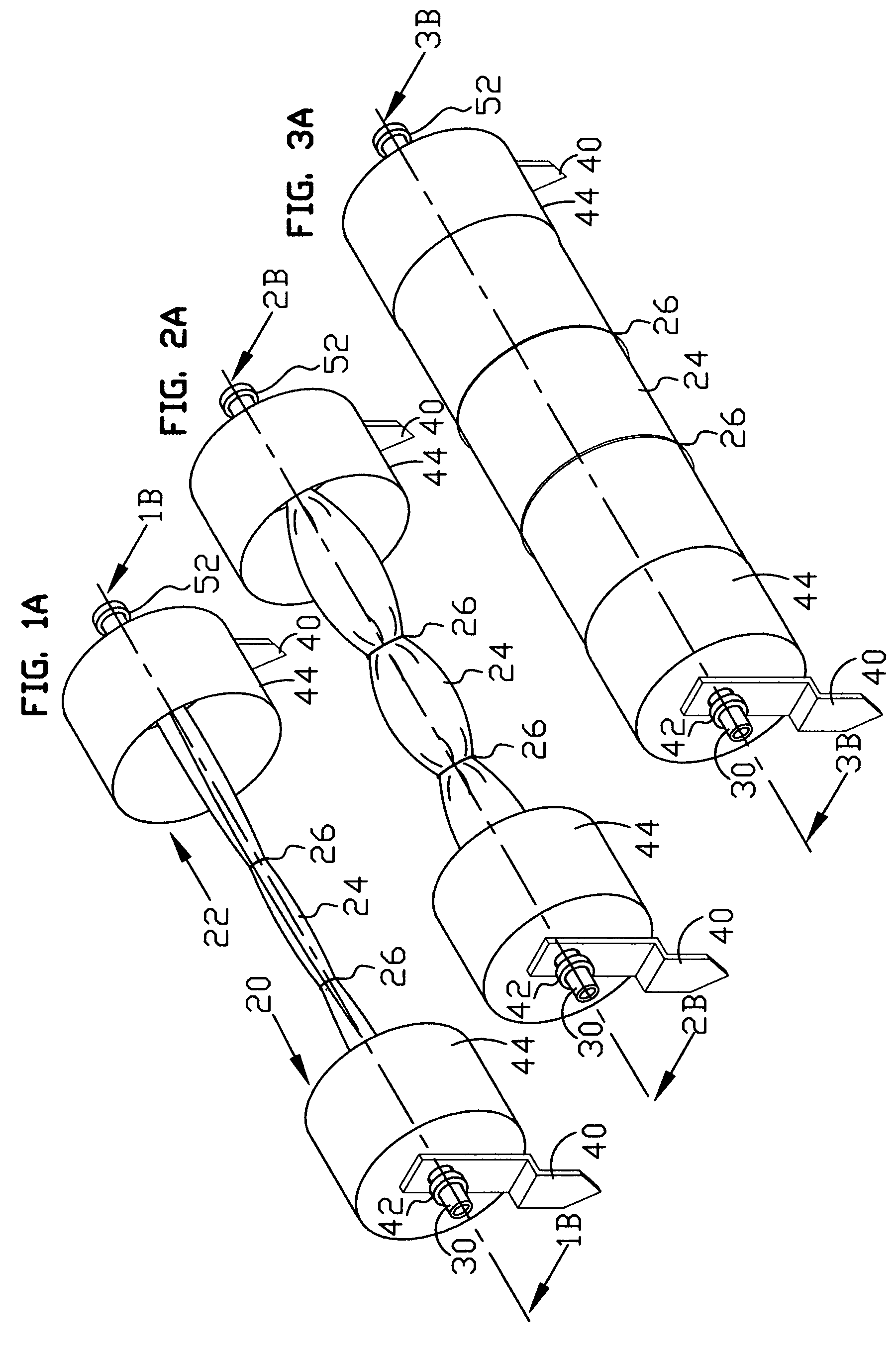

专利附图（8）
