用于攀爬动物的限制围栏结构及其建造和安装方法

Confinement fence structure for climbing animals and its associated methods of construction and installation

US-7562453-B1

用于围栏防止攀爬动物逃逸。

专利摘要

一种用于限制攀爬动物的围栏系统。围栏系统使用多个沿围栏线设置的立柱。提供了连接到立柱的拱形支撑支架。每个拱形支撑支架具有上升到顶点部分的上升段和从顶点部分下降的下降段。柔性塑料网悬挂在由立柱和拱形支撑支架形成的刚性支撑之间。柔性塑料网由立柱垂直支撑。在立柱上方,柔性塑料网由拱形支撑支架的每个上升段以上升角度支撑到顶点部分。从顶点部分,柔性塑料网以下降角度支撑到拱形支撑支架的自由端。

Original abstractA fencing system for confining climbing animals. The fencing system uses a plurality of vertical posts that are set in place along a fence line. Arch support brackets are provided that attach to the vertical posts. Each arch support bracket has an ascending section that climbs to an apex point and a descending section that descends from that apex point. Flexible plastic netting is suspended between the rigid supports that are created by the vertical posts and the arch support brackets. Flexible plastic netting is supported vertically by the vertical posts. Above the vertical posts, the flexible plastic netting is supported in an ascending angle to an apex point by each ascending section of the arch support brackets. From the apex point, the flexible plastic netting is supported in a descending angle to the free end of the arch support bracket.

专利附图(8)

US-7562453-B1 figure 1
1

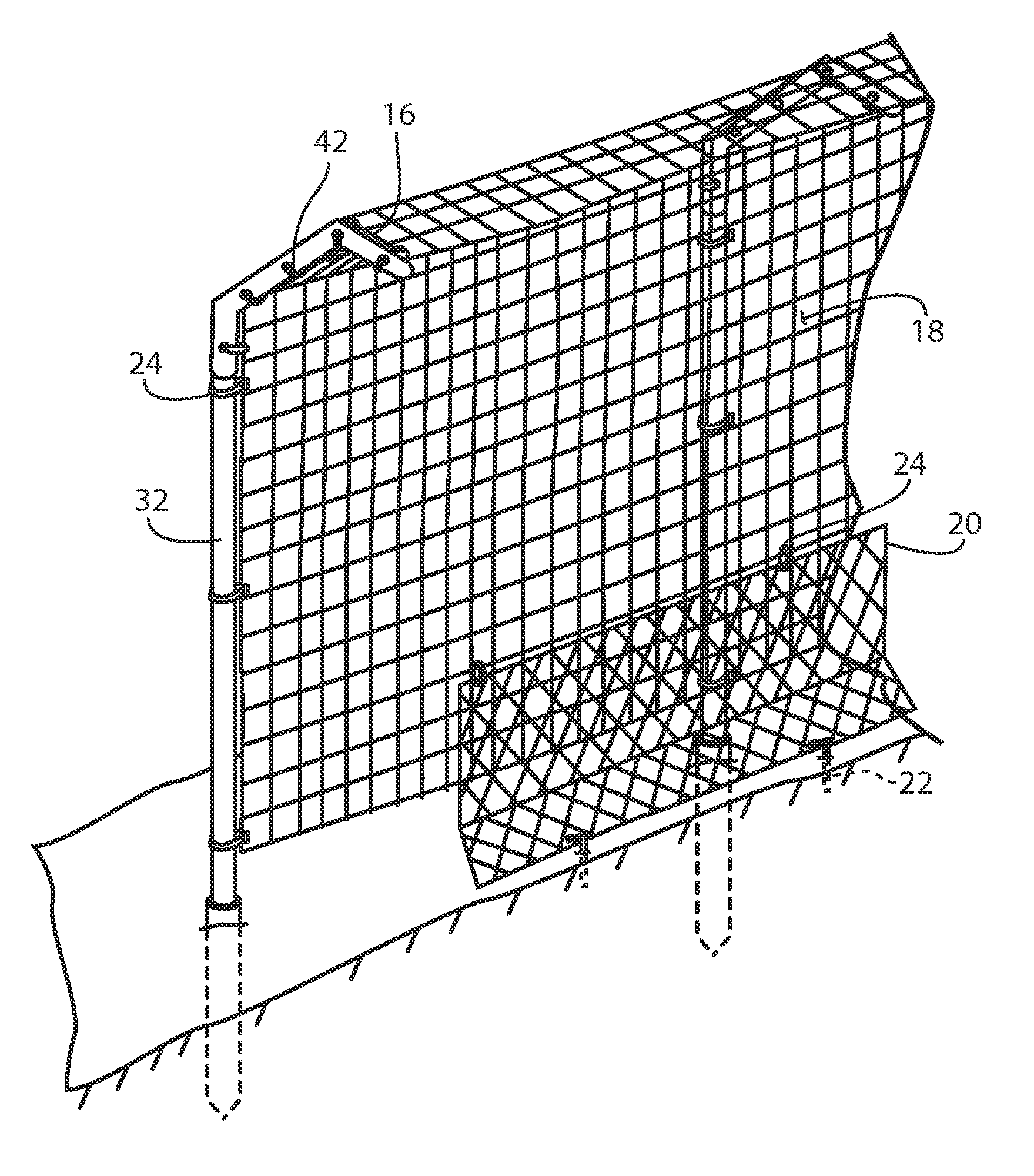

US-7562453-B1 figure 2
2
US-7562453-B1 figure 3
3

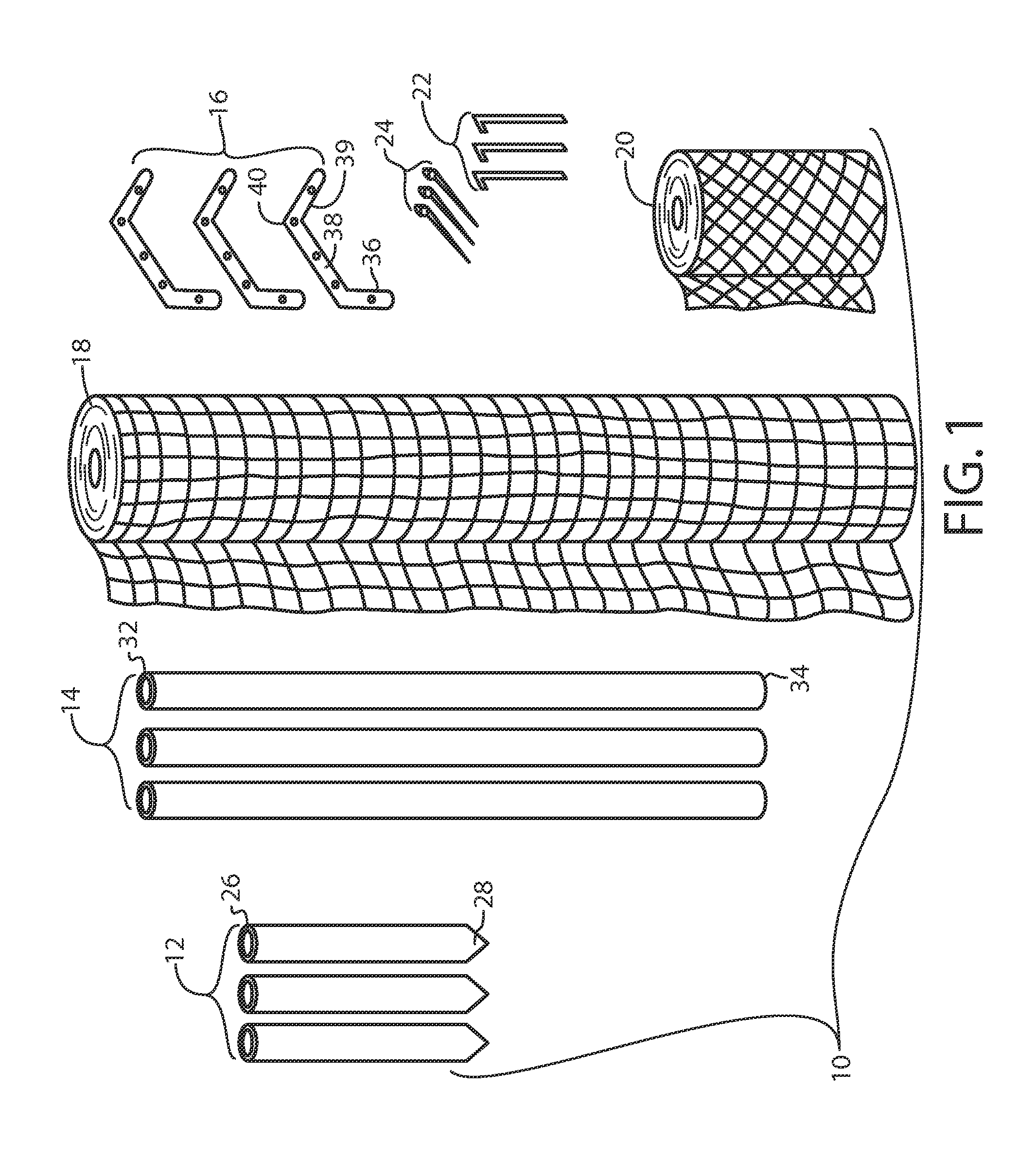

US-7562453-B1 figure 4
4
US-7562453-B1 figure 5
5

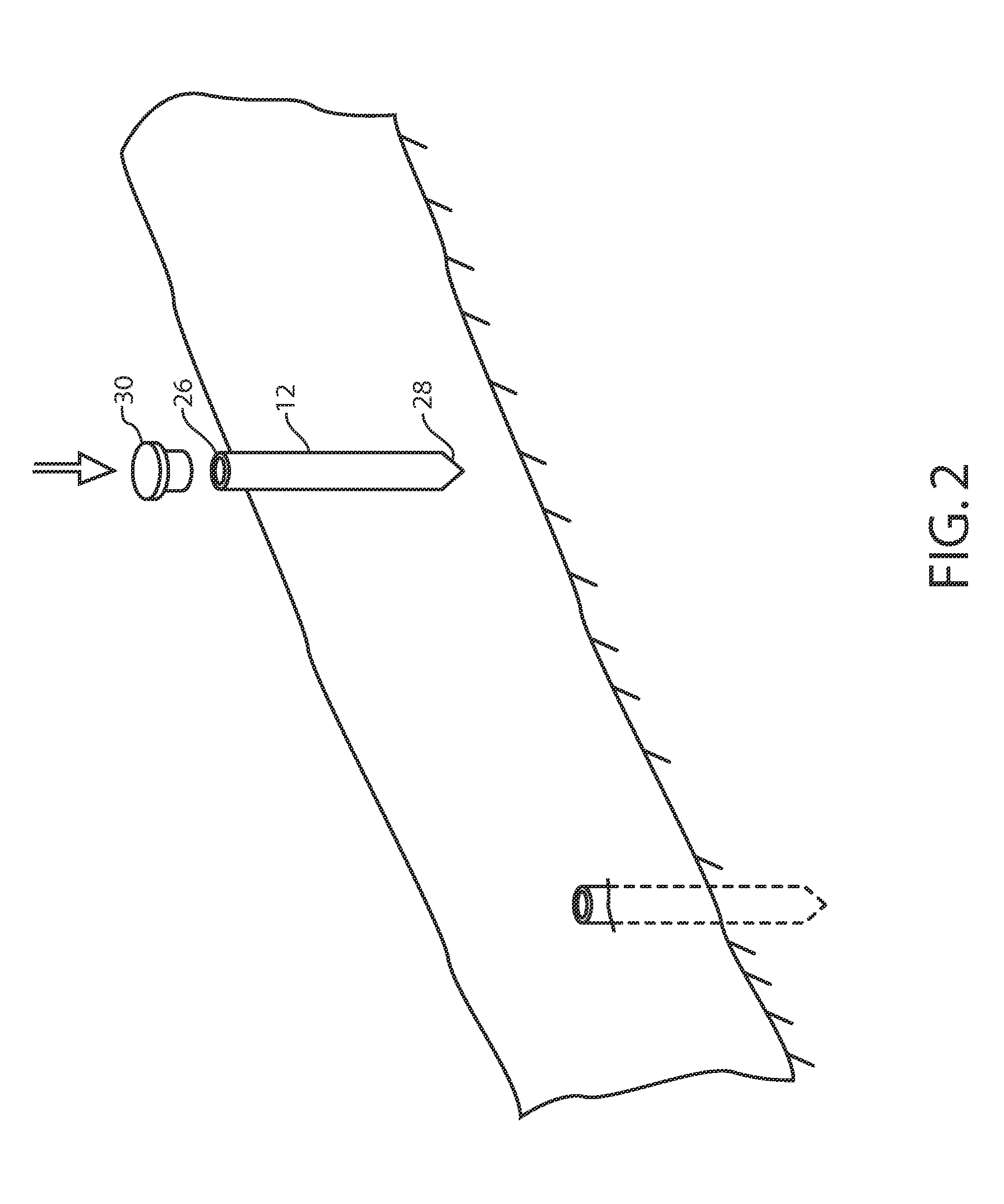

US-7562453-B1 figure 6
6
US-7562453-B1 figure 7
7

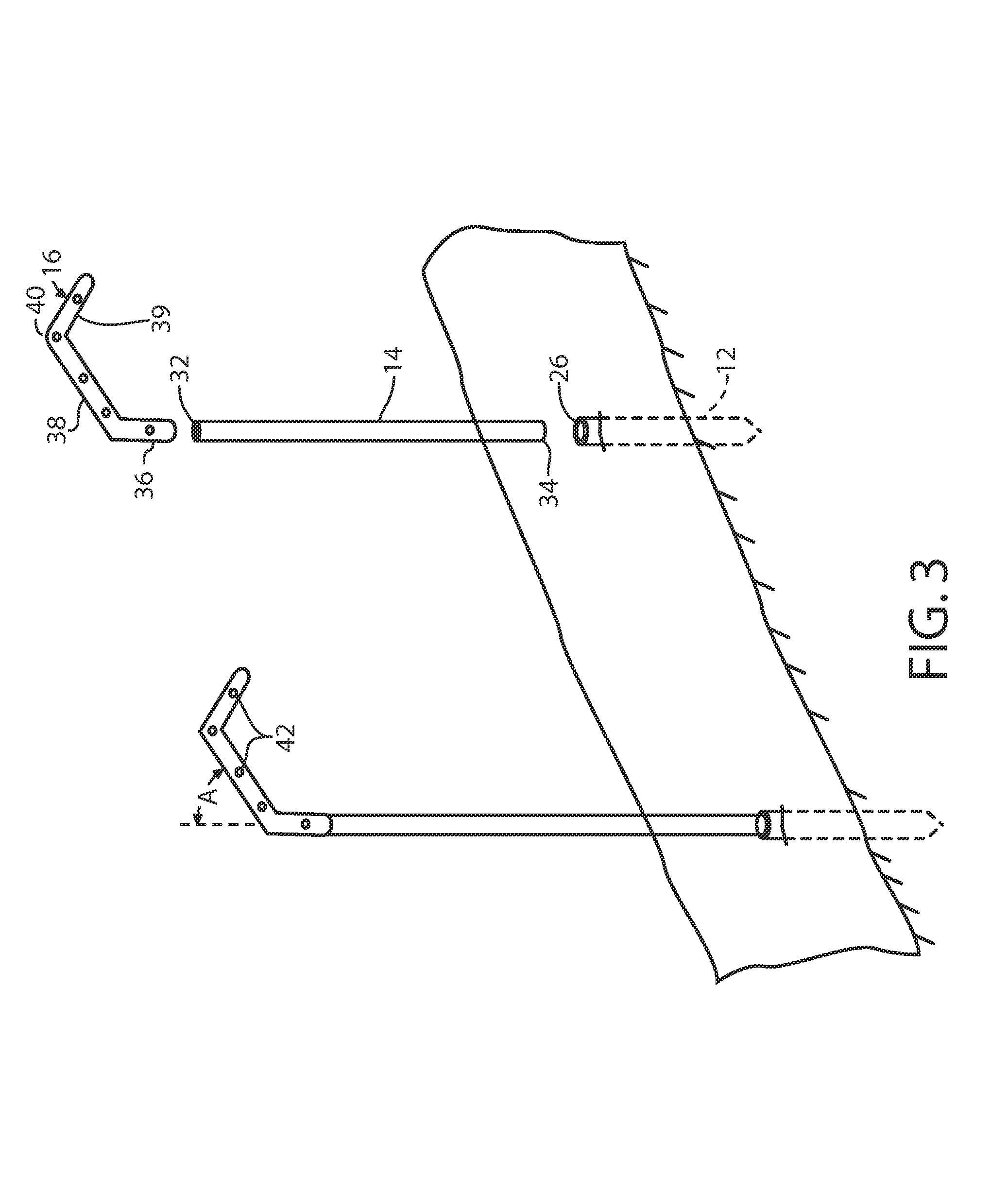

US-7562453-B1 figure 8
8
