用于儿童书桌收纳物品，可挂于储物箱边缘。
专利摘要

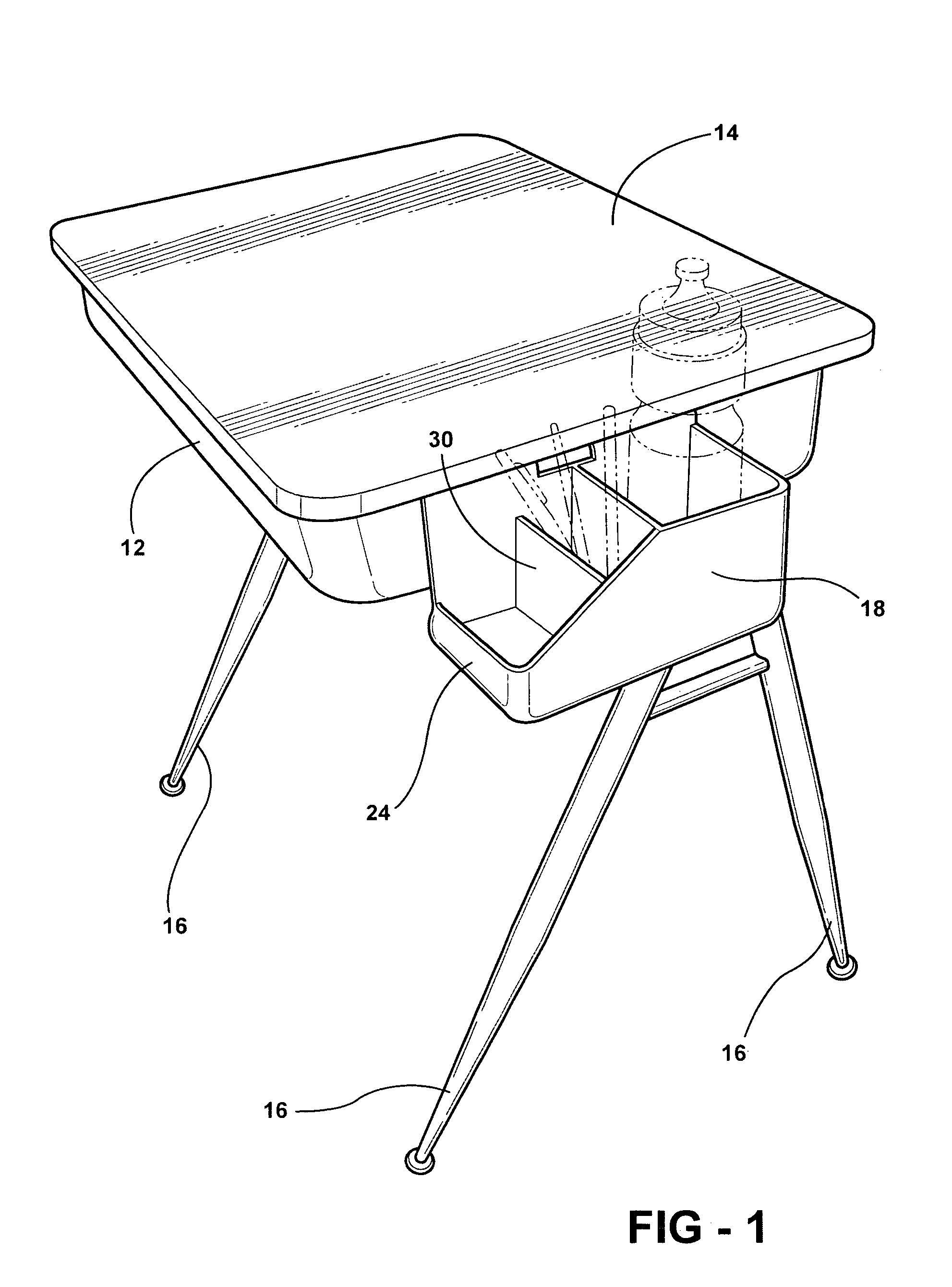

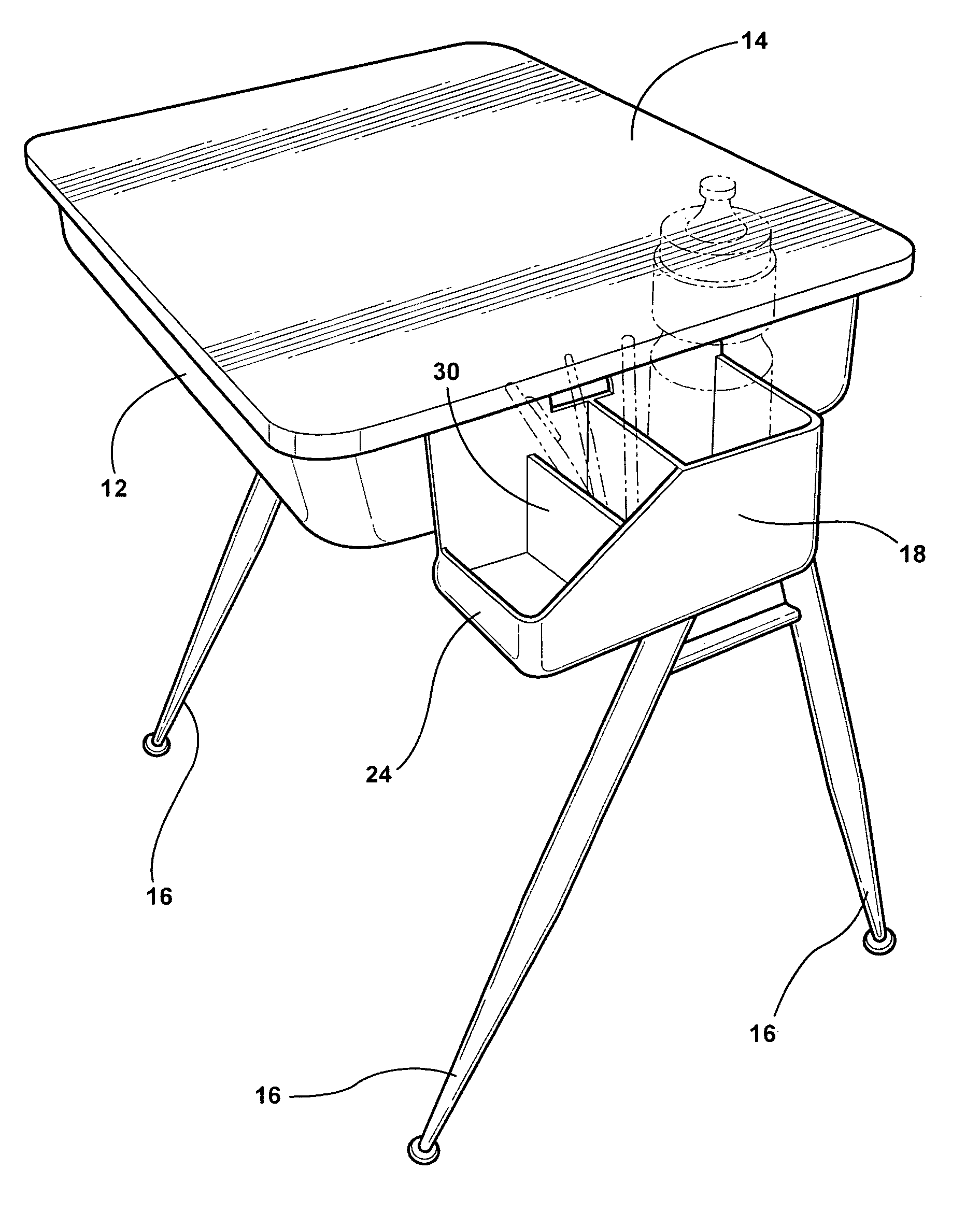

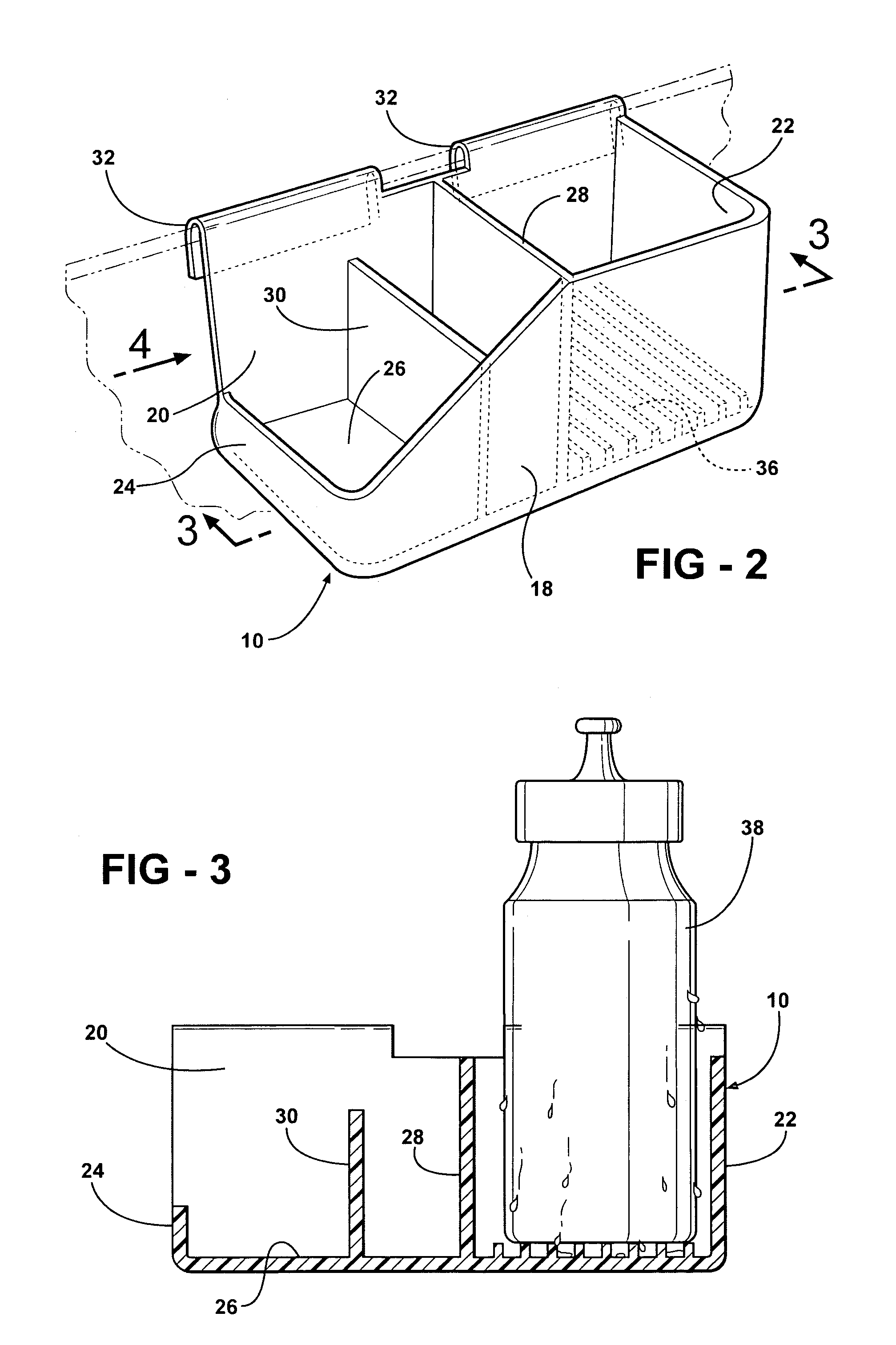

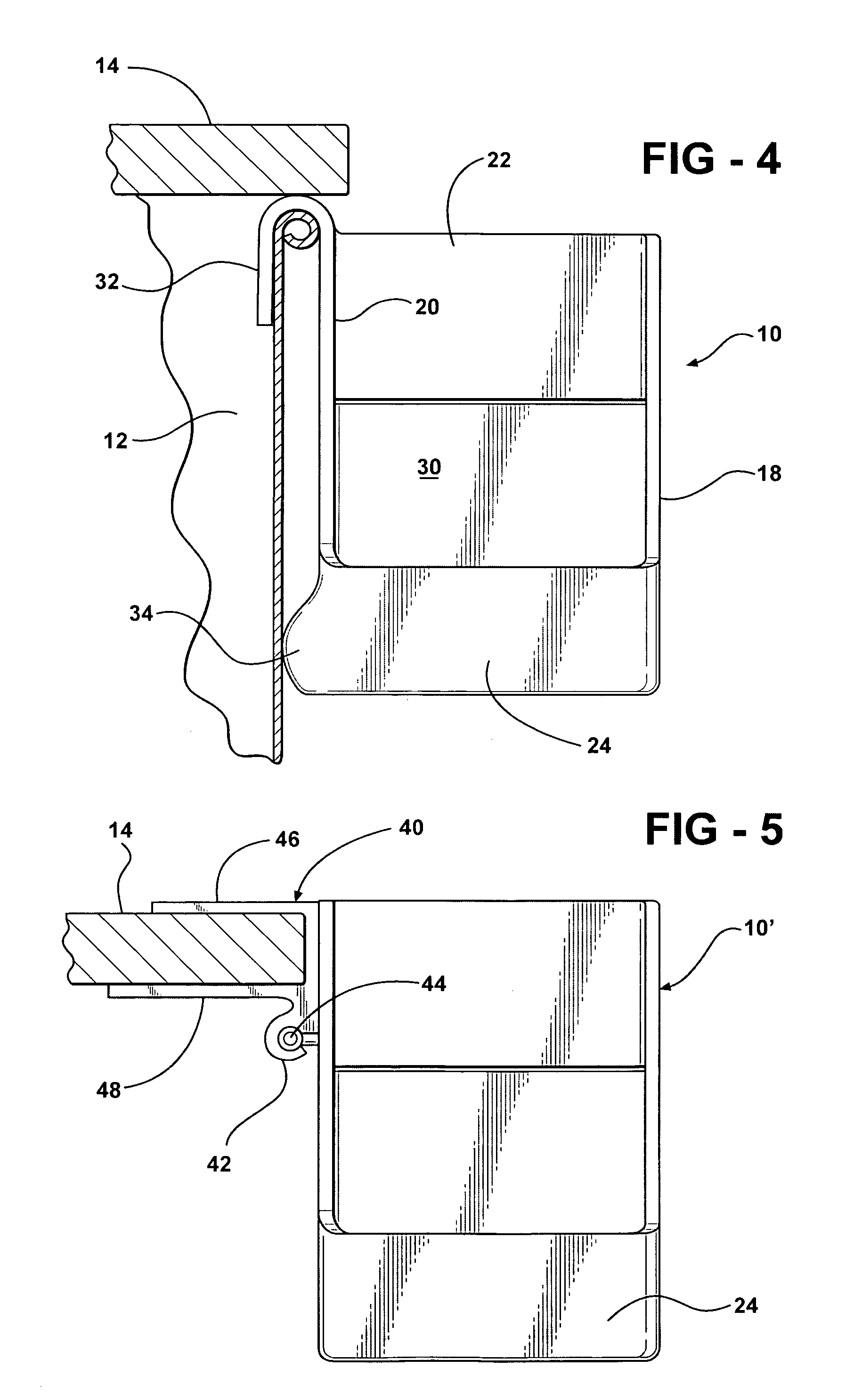

一种书桌收纳架，旨在供坐在带有储物箱的书桌前的学龄儿童使用。该收纳架包括具有一体式前壁、后壁、相对侧壁以及一个或两个内分隔板的箱体。其中一个分隔板与前壁、后壁和一个侧壁限定水杯隔室，隔室底部具有凸起的棱，使瓶子离开隔室底部。至少一个挂钩与后壁一体形成，使得箱体可以挂在储物箱的边缘上。或者，提供用于将收纳架滑到桌面边缘的装置。该单元优选由注塑塑料制成。
Original abstractA desk caddy intended for grade school children sitting at a desk having a storage bin. The caddy includes a box with integral front, back and opposite side walls and one or two internal dividers. One of the dividers, along with the front back and a side wall defines a water bottle compartment having raised ribs in the floor so that the bottle sits up off of the floor of the compartment. At least one hanger hook is integrated with the back wall so that the box may be hung on the edge of the storage bin. Alternatively, means are provided to slide the caddy onto the edge of a desk top. The unit is preferably made of injection molded plastic.
专利附图（8）
