用于快速清除树木和树桩的附件。
专利摘要
一种适用于滑移装载机或类似车辆的树木和树桩清除器，具有与标准铲斗安装座配合的联接器。从联接器向前且大致居中突出的是带有齿、锯齿或钩的刀。在替代实施例中，齿、锯齿或钩可相对于彼此移动，或固定安装。刀支撑板延伸装置的宽度，并设置用于与树基部接合。在一个优选实施例中，附加的较小尖刺邻近刀并与其间隔延伸，进一步便于切割根并在一次运动中推倒树。使用优选装置清除树木和树桩的过程包括：从至少第一侧切割从树桩或树延伸出的根，提升或推倒剩余的根团，并摇动或刺穿根团以释放其中保留的泥土。
Original abstractA tree and stump remover, suitable for use on skid-steer or similar vehicles, has a coupling operative with standard bucket mounts. Forward and generally centrally protruding from the coupling is a knife with teeth, serrations, or hooks. In alternative embodiments, the teeth, serrations, or hooks may move relative to each other, or be fixedly mounted. Knife support plates extend the width of the apparatus, and are provided for engagement with the base of a tree. In one preferred embodiment, additional smaller spikes extend adjacent to and spaced from the knife, which further facilitate cutting roots and toppling a tree in a single movement. A process of removing trees and stumps using the preferred apparatus includes cutting the roots extending away from the stump or tree from at least a first side, lifting or toppling the remaining root bundle, and shaking or piercing the root bundle to release dirt retained therein.

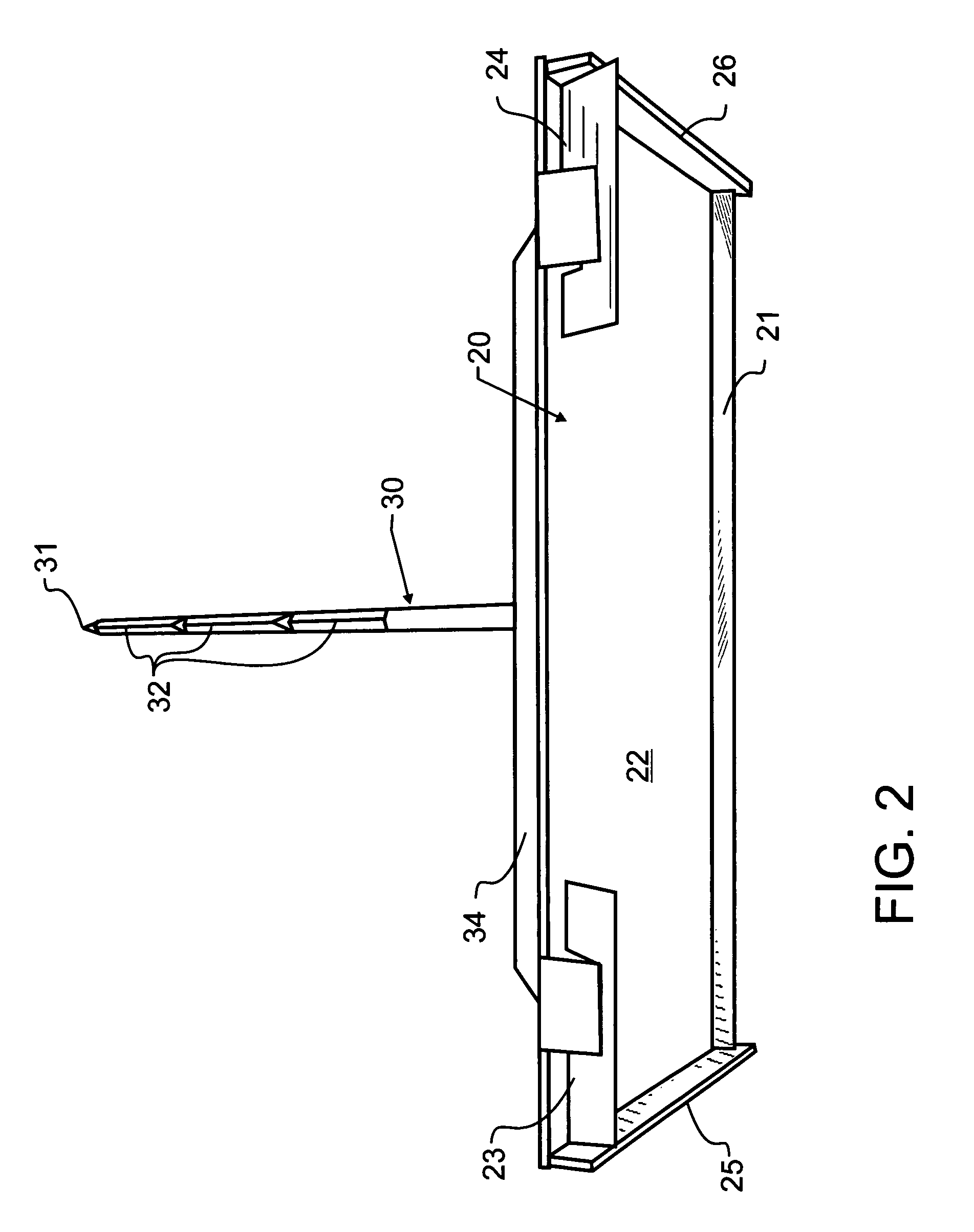

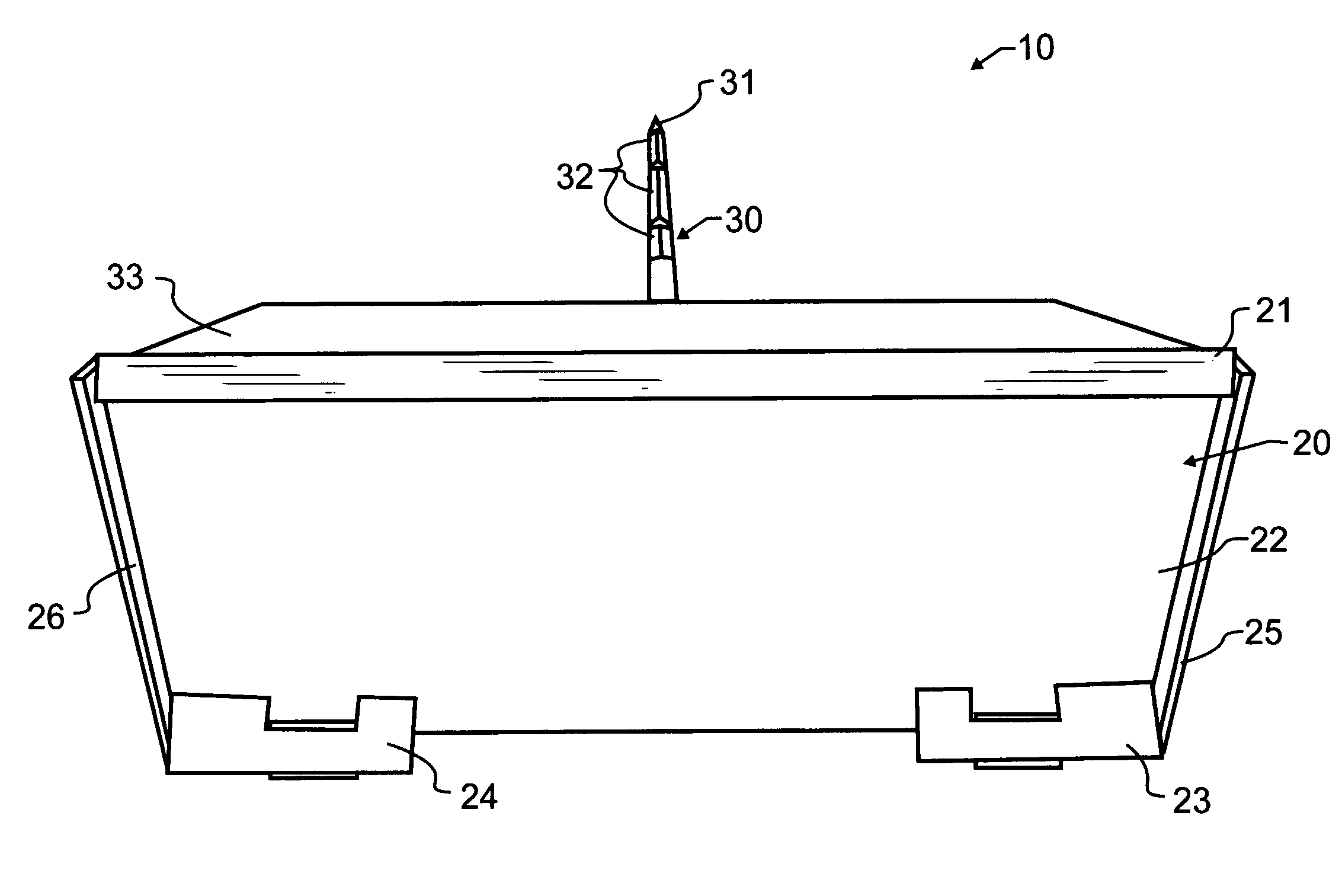

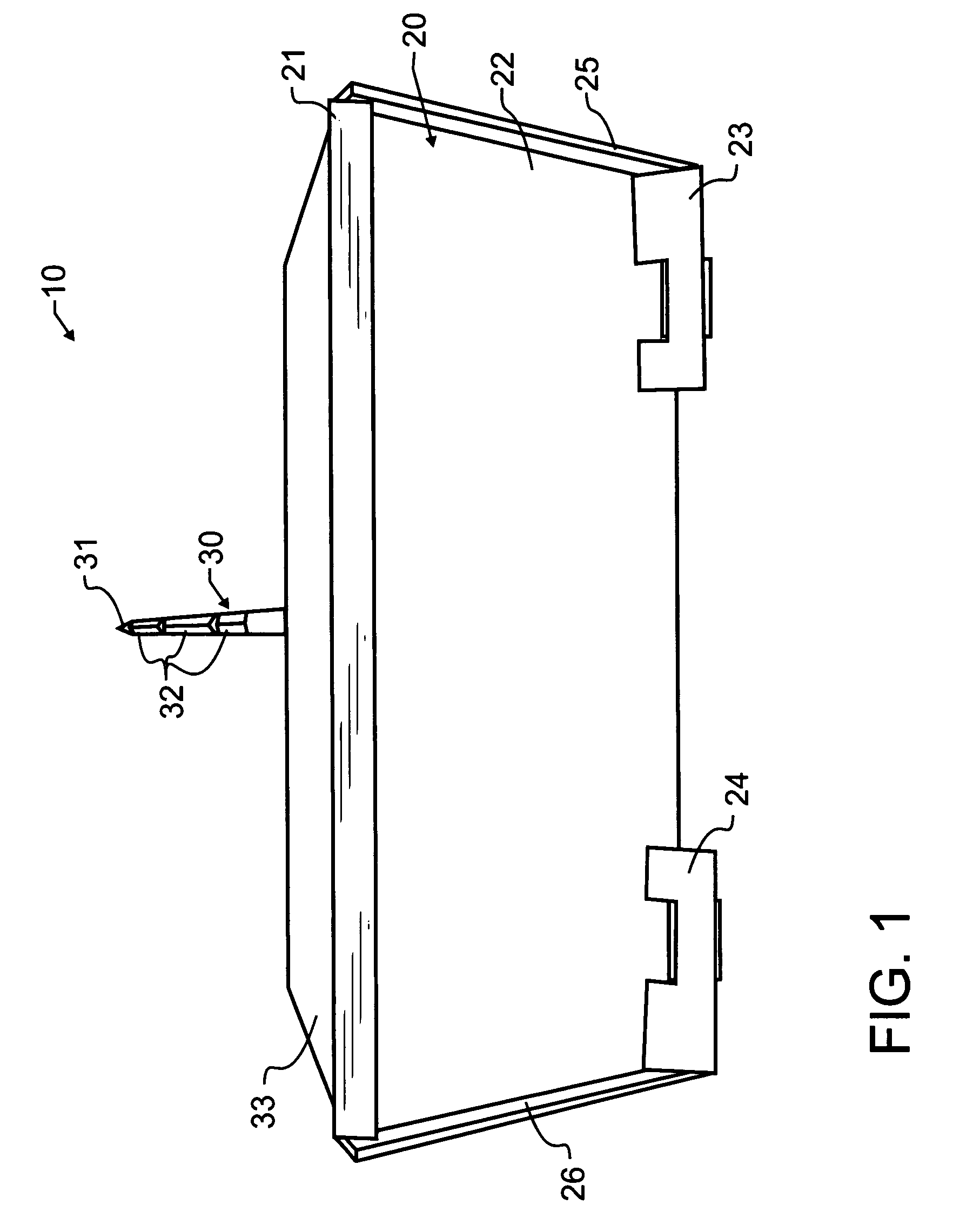

专利附图（8）
