用于农业种植的温室结构。
专利摘要

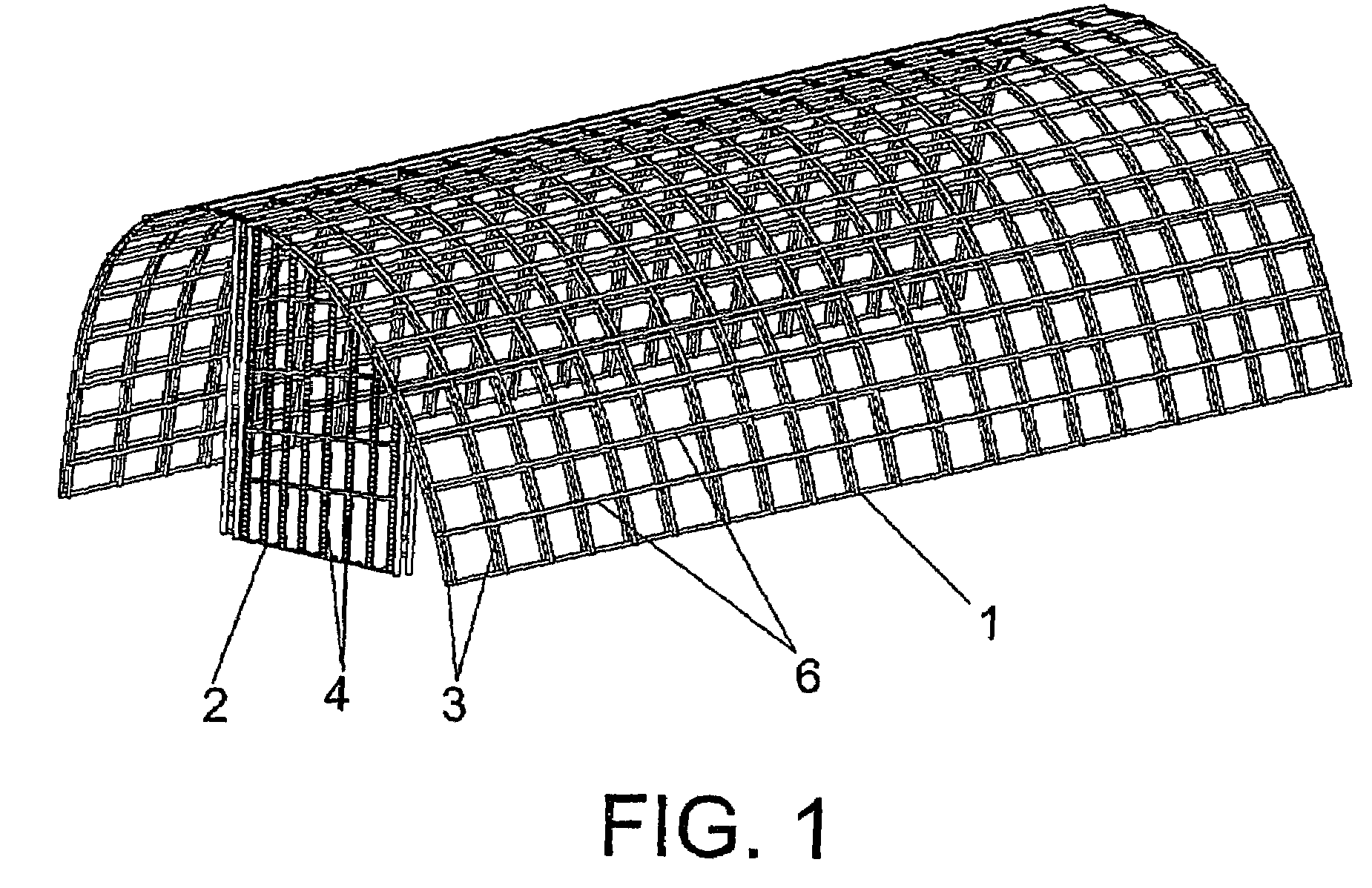

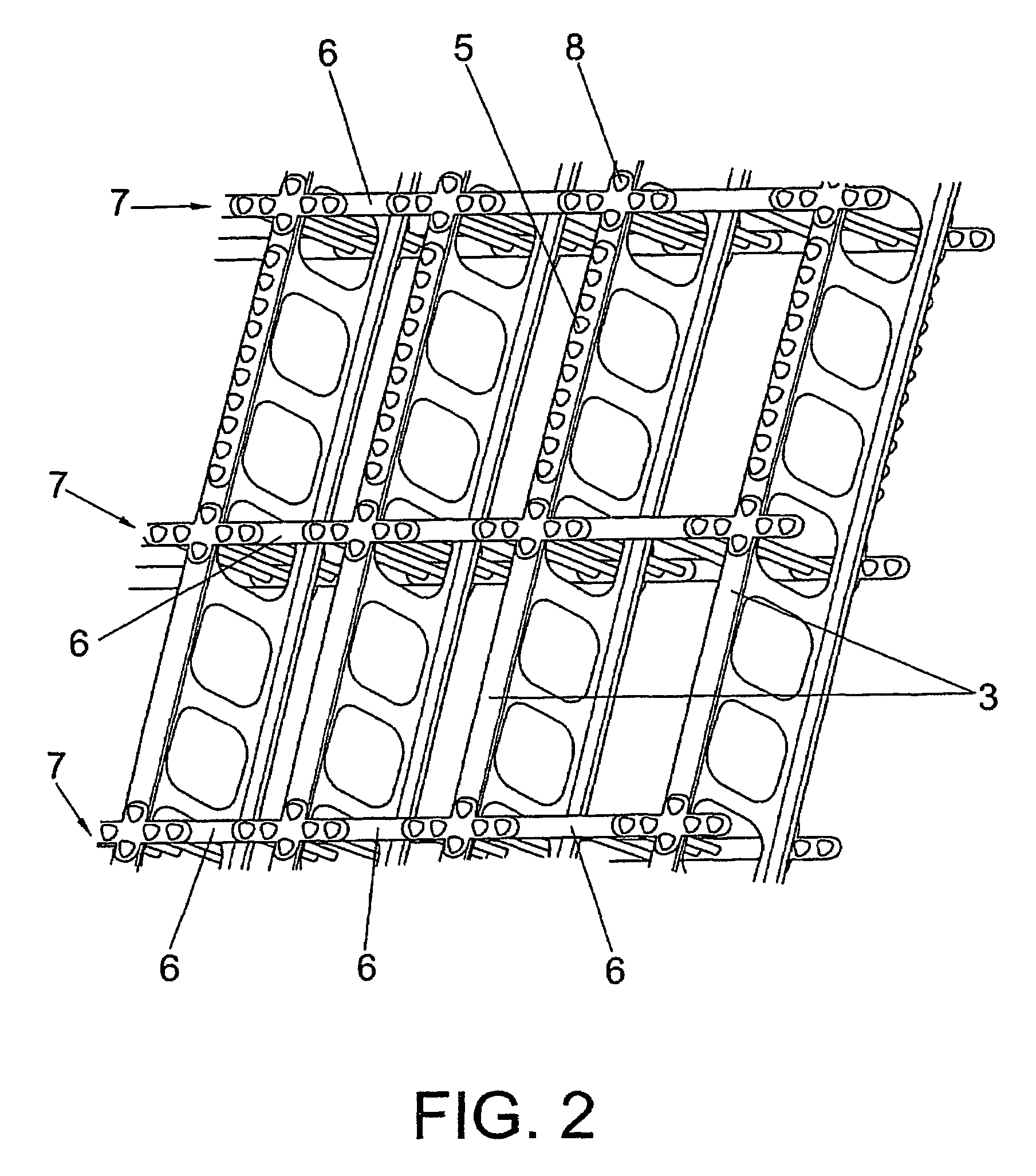

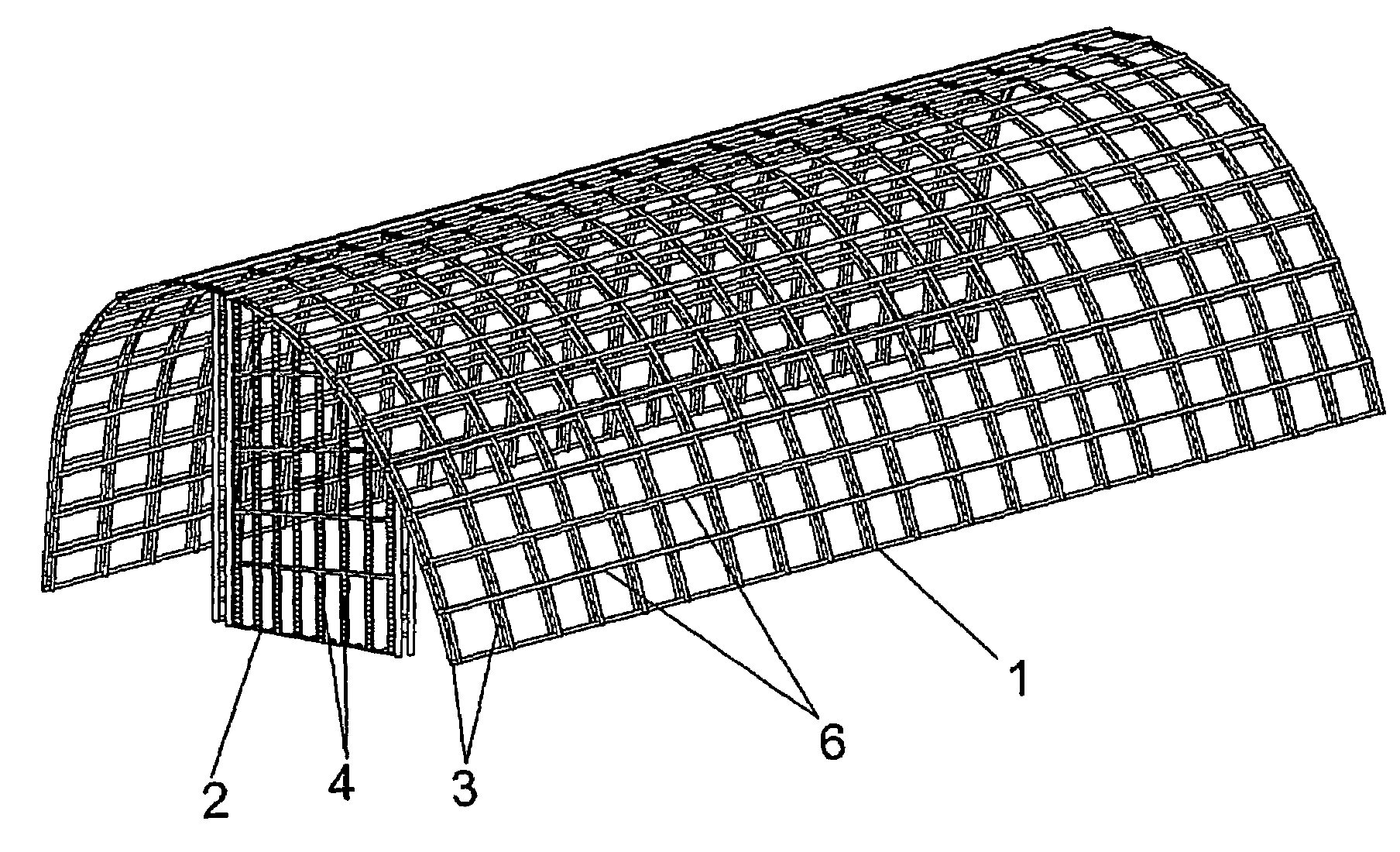

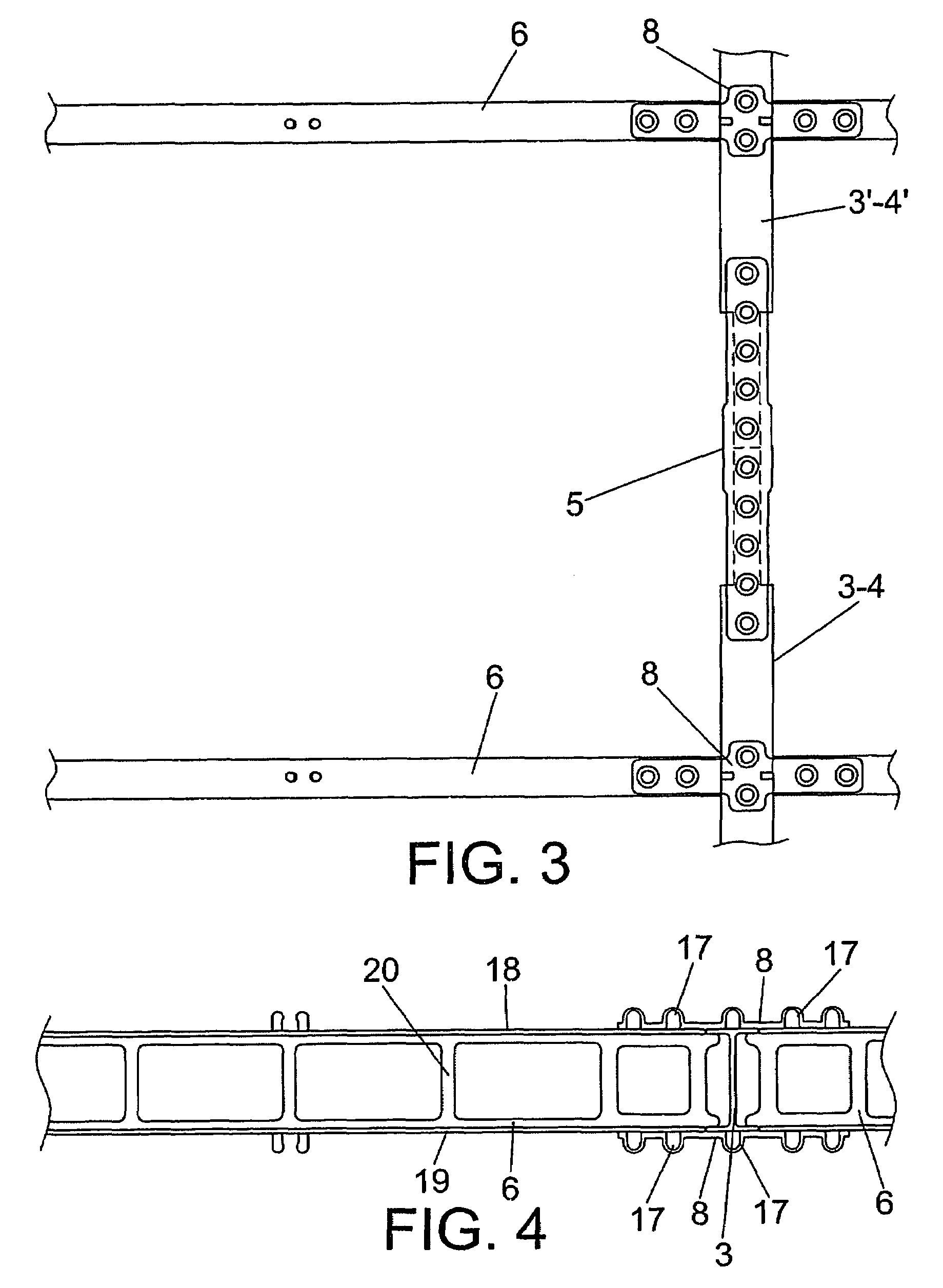

它由完全由再生塑料件制成的框架组成，框架基本上包括承重件（1-2），沿温室整个长度分布在几个区段中，并由通过线性连接器（5）相互装配的区段（3-4）组成，线性连接器（5）接合在凸耳（12-16）上，并又通过交叉连接器（8）连接，交叉连接器（8）接合在水平区段（6）上提供的凸耳（17）上，水平区段（6）构成水平横梁（7），其支撑框架形成温室的屋顶、侧壁、前壁和后壁。它包括内部间隔夹（23）和中间间隔夹（30），其接合在杆（27-27'-27''）上，固定内部塑料层压层（28-28'-28''），在它们之间形成空气室，用作温室的热绝缘。
Original abstractIt is composed of a framework made up entirely of pieces of recycled plastic that basically comprises bearers ( 1 - 2 ), distributed in several sectors along the whole length of the greenhouse and made up of sections ( 3 - 4 ) that are fitted to one another by means of linear connectors ( 5 ) which engage on lugs ( 12 - 16 ) and which are in turn joined by means of cross connectors ( 8 ) that engage on lugs ( 17 ) provided on horizontal sections ( 6 ) making up horizontal cross members ( 7 ) which brace the framework forming the roof, side walls, front wall and rear wall of the greenhouse. It includes inner spacer clips ( 23 ) and intermediate spacer clips ( 30 ) that engage on rods ( 27 - 27 ′- 27 ″) securing inner plastic laminar layers ( 28 - 28 ′- 28 ″), between which air chambers are formed that act as thermal insulation for the greenhouse.
专利附图（8）
