用于种子发芽测试或精确播种的装置。
专利摘要
提供了一种用于在种子类型的平盘内进行发芽测试或种植的种植板系统。该种植板系统包括：壳体；下板，设置在壳体中，所述下板具有以预定间隔关系设置在下板内的多个孔；以及上板，设置在壳体中，上板至少部分地重叠下板并可在壳体内相对于下板在第一位置和第二位置之间移动。上板具有多个孔，当上板处于第二位置时，这些孔与下板中的多个孔中的相应孔重合，其中上板中的多个孔中的每个孔的尺寸允许该种子类型的种子一次仅一个配合到多个孔中的任何一个孔中，并且其中上板具有种子储器，其保持用于发芽测试或在平盘内种植的种子。
Original abstractA planting board system is provided for use in performing germination testing or planting within the flat of a seed type. The planting board system includes a housing, a lower panel disposed in the housing, said lower panel having a plurality of apertures disposed within the lower panel in a predetermined, spaced apart relationship and an upper panel disposed within the housing, the upper panel at least partially overlapping the lower panel and being moveable within the housing relative to the lower panel between first and second positions. The upper panel has a plurality of apertures that coincide with respective apertures of the plurality of apertures in the lower panel when the upper panel is in the second position, wherein each aperture of the plurality of apertures in the upper panel has a size that allows only one seed at a time of the seed type to fit into any one aperture of the plurality of apertures and wherein the upper panel has a seed reservoir that holds seed for the germination testing or the planting within the flat.

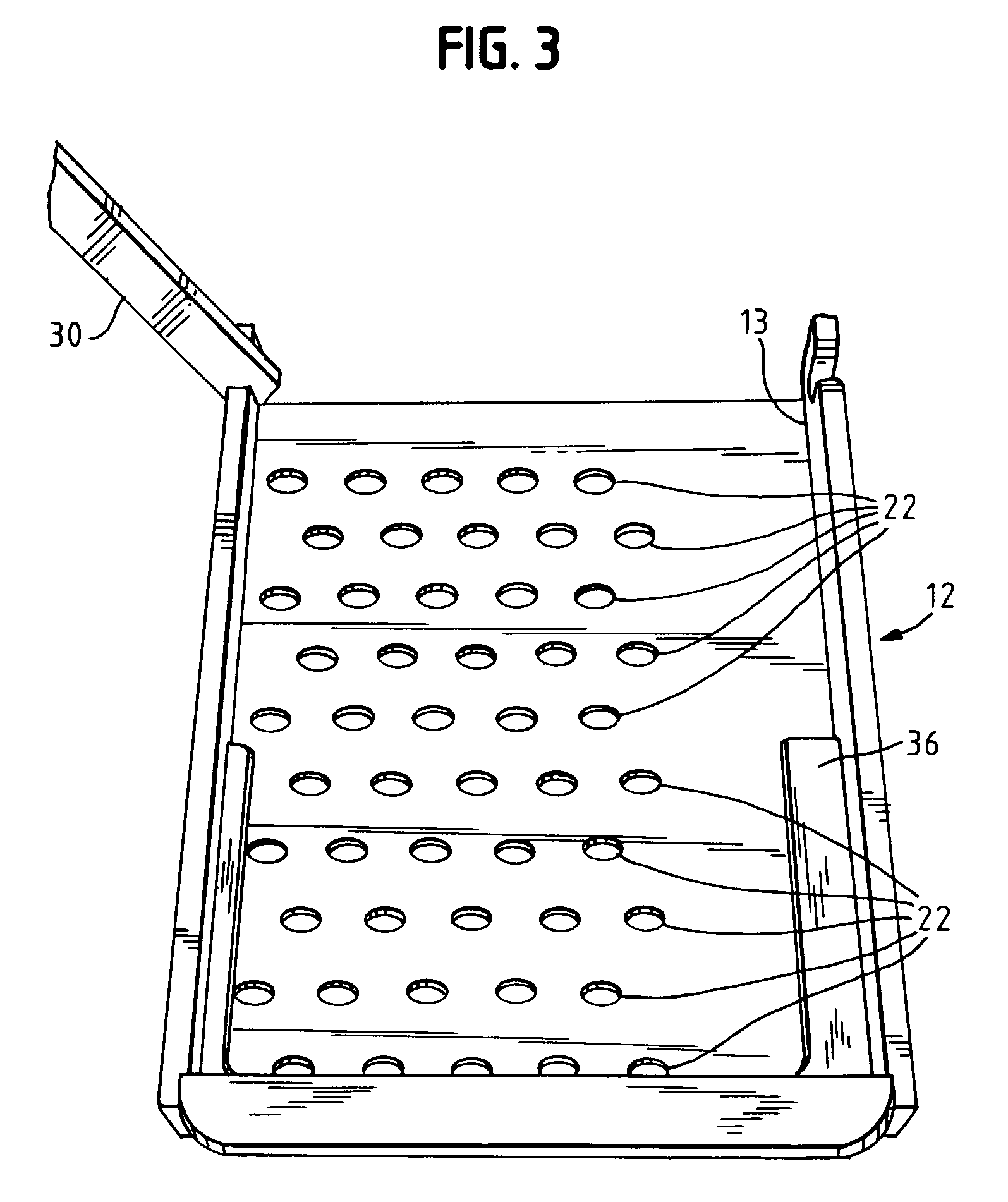

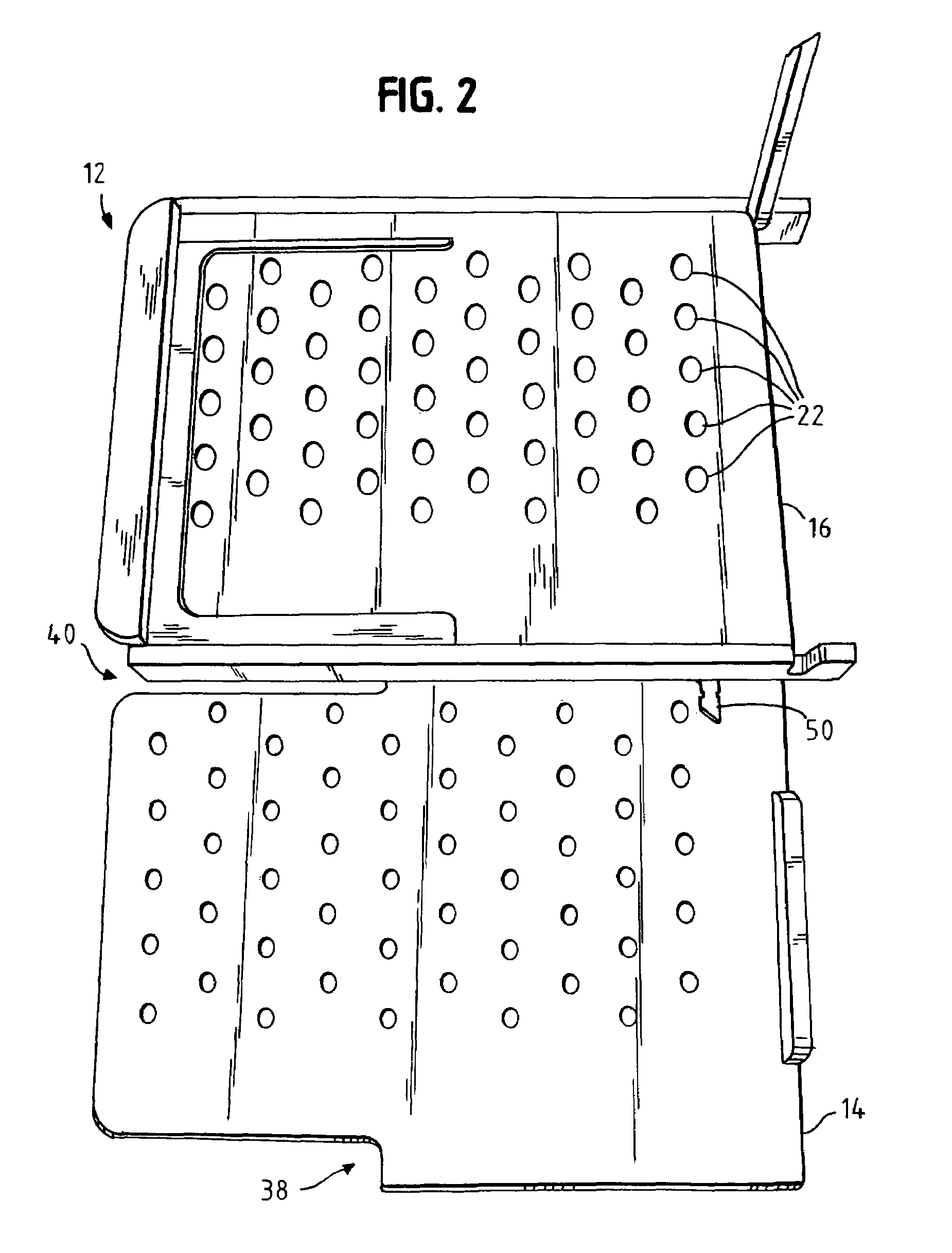

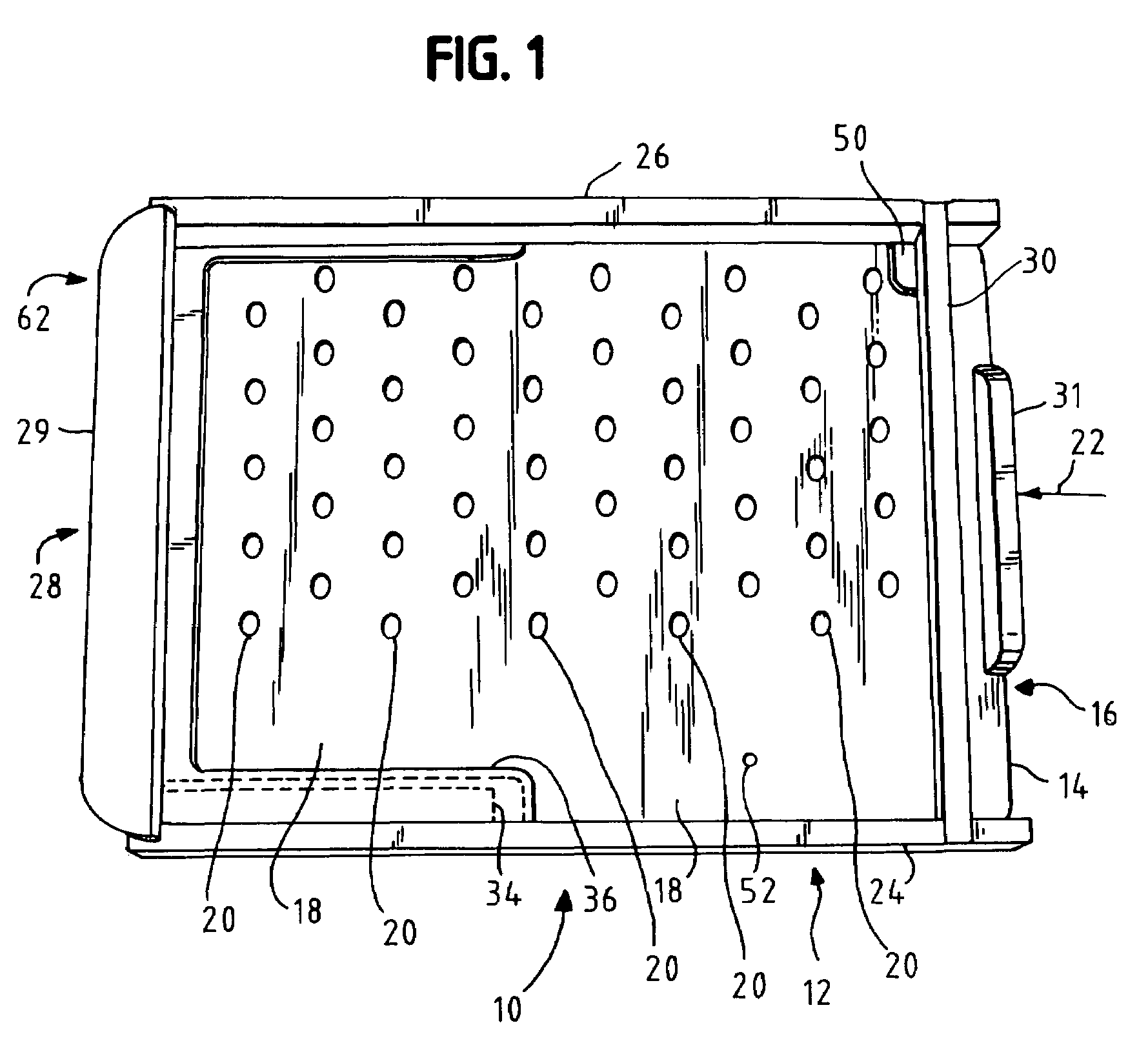

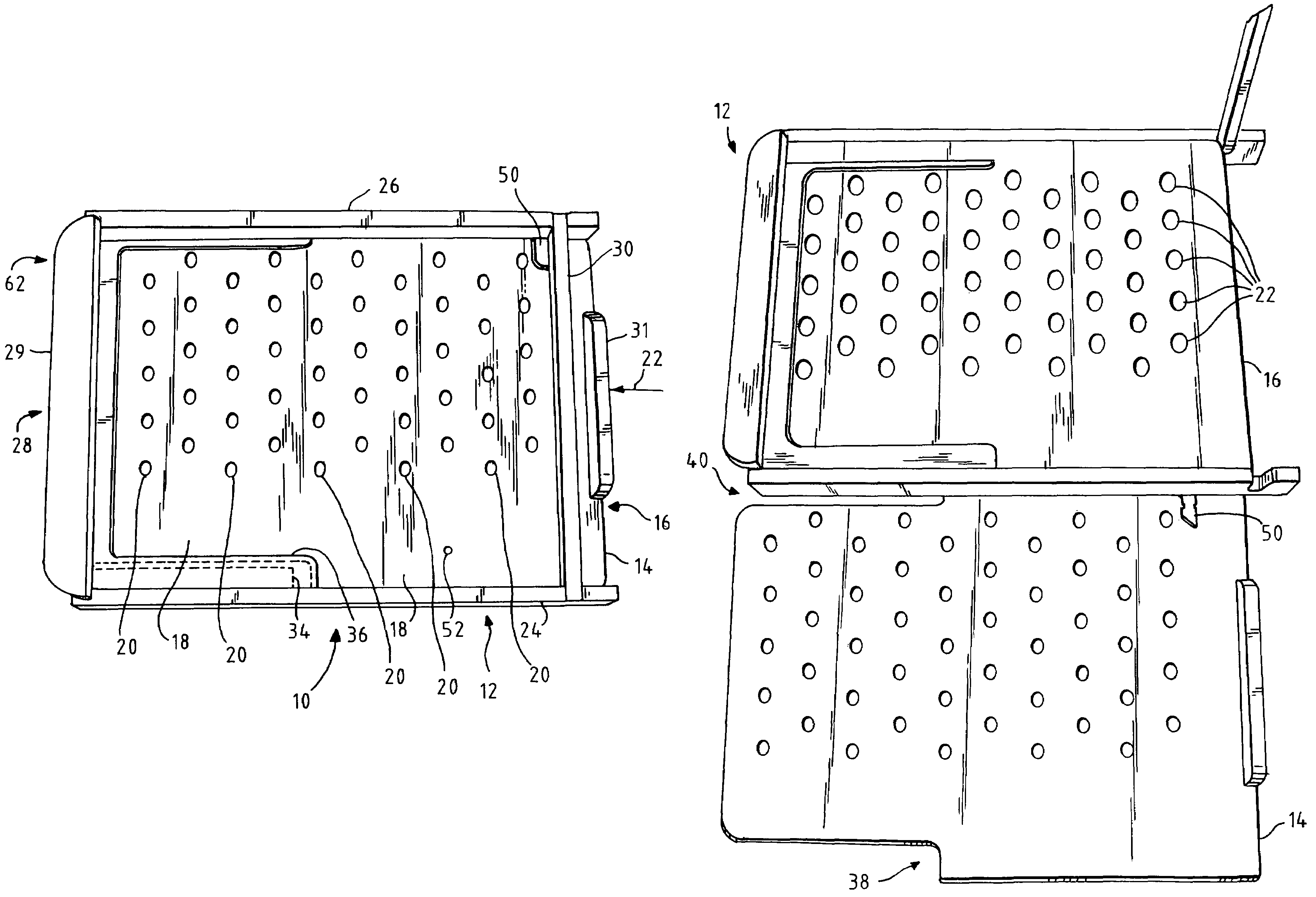

专利附图（8）
