用于保护植物并可折叠存放。
专利摘要

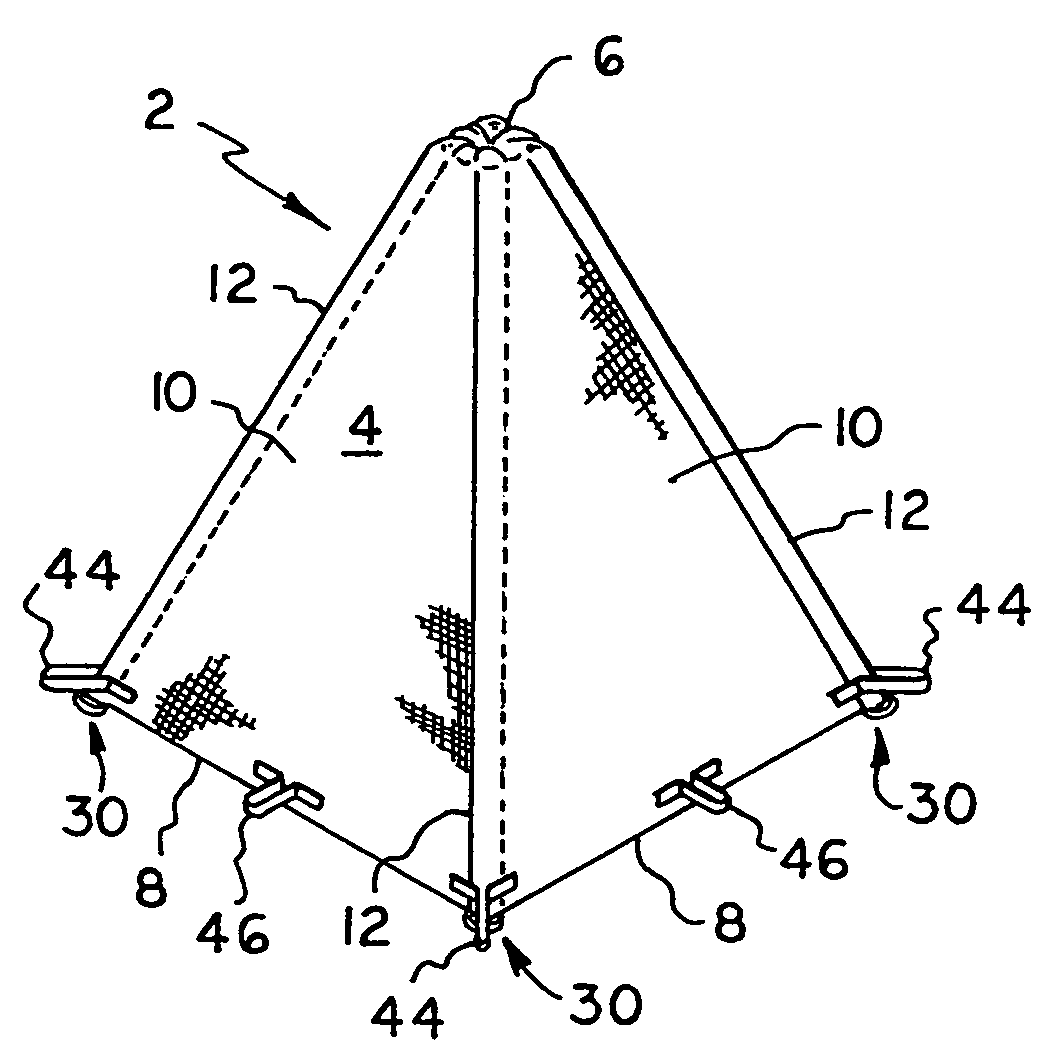

一种植物保护罩，包括柔性罩，其具有顶点、底部、多个侧面和限定相邻侧面之间交点的多个顶点，以及多个细长框架构件，每个分别附接到罩的一个顶点处。框架构件各自具有靠近罩顶点的第一端和靠近罩底部的第二端。框架构件的第一端相互互连以在罩顶点处或下方枢转。枢转互连可由铰链连接硬件提供，但更优选地由罩本身作为活动铰链提供。框架构件可从打开位置枢转到折叠位置，在打开位置中框架构件相对于彼此成角度，在折叠位置中框架构件基本上彼此平行。植物保护罩具有展开配置，其中框架构件处于打开位置，罩底部基本上打开以限定植物接收内部区域。植物保护罩还具有存放配置，其中框架构件处于折叠位置，罩底部和植物接收内部区域基本上闭合。提供多个连接器用于将植物保护罩固定到表面。
Original abstractA plant protector includes a flexible cover having an apex, a base, plural sides and plural vertices defining intersections between adjacent sides, together with plural elongated frame members each respectively attached to the cover at one of the vertices. The frame members each have a first end proximate to the cover apex and a second end proximate to the cover base. The frame member first ends are mutually interconnected for pivoting at or below the cover apex. The pivotal interconnection may be provided by hinge connector hardware, but is more preferably provided by the cover itself functioning as a living hinge. The frame members are pivotable from an open position wherein the frame members are angled relative to each other to a collapsed position wherein the frame members are substantially parallel to each other. The plant protector has a deployment configuration wherein the frame members are in the open position members and the cover base is substantially open to define a plant-receiving interior region. The plant protector also has a stowage configuration wherein the frame members are in the collapsed position and the cover base and the plant-receiving interior region are substantially closed. Plural connectors are provided for securing the plant protector to a surface.
专利附图（8）
