来源记录显示 Expired
具有可伸缩手柄的园艺剪
Gardening shears having retractable handles
US-7497016-B1提供可调节长度且握持舒适的园艺剪。
专利摘要
一种园艺剪，包括主体、两个柄脚、两个定位块、两个手柄和两个手柄套。因此，两个手柄中的每一个可向内缩回到主体上并从主体完全向外展开，以调节主体与两个手柄中的每一个之间的距离，从而便于用户以省力的方式操作园艺剪。此外，两个手柄中的每一个基本上为弧形并向外弯曲，以向用户提供舒适感，从而便于用户握持园艺剪。此外，两个手柄中的每一个通过锁定构件精确地锁定在主体上而不会滑动，从而便于用户握持和操作园艺剪。
Original abstractA pair of gardening shears include a main body, two shanks, two positioning blocks, two handles, and two handle jackets. Thus, each of the two handles is retracted inwardly onto and fully expanded outwardly from the main body to adjust the distance between the main body and each of the two handles, thereby facilitating the user operating the gardening shears in an energy-saving manner. In addition, each of the two handles is substantially arc-shaped and is bent outwardly to provide a comfortable sensation to the user, thereby facilitating the user holding the gardening shears. Further, each of the two handles is exactly locked onto the main body by the locking member without incurring slip, thereby facilitating the user holding and operating the gardening shears.

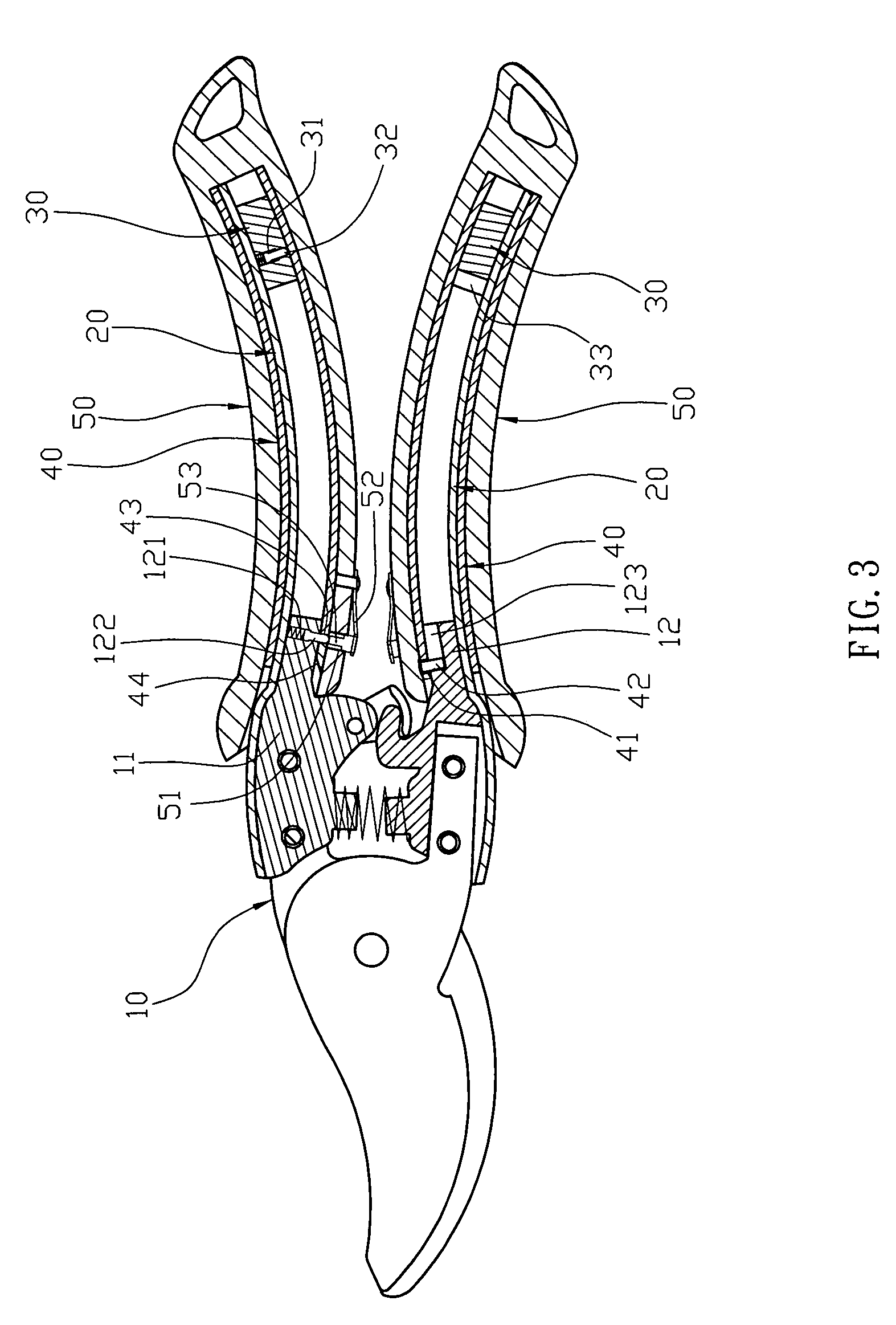

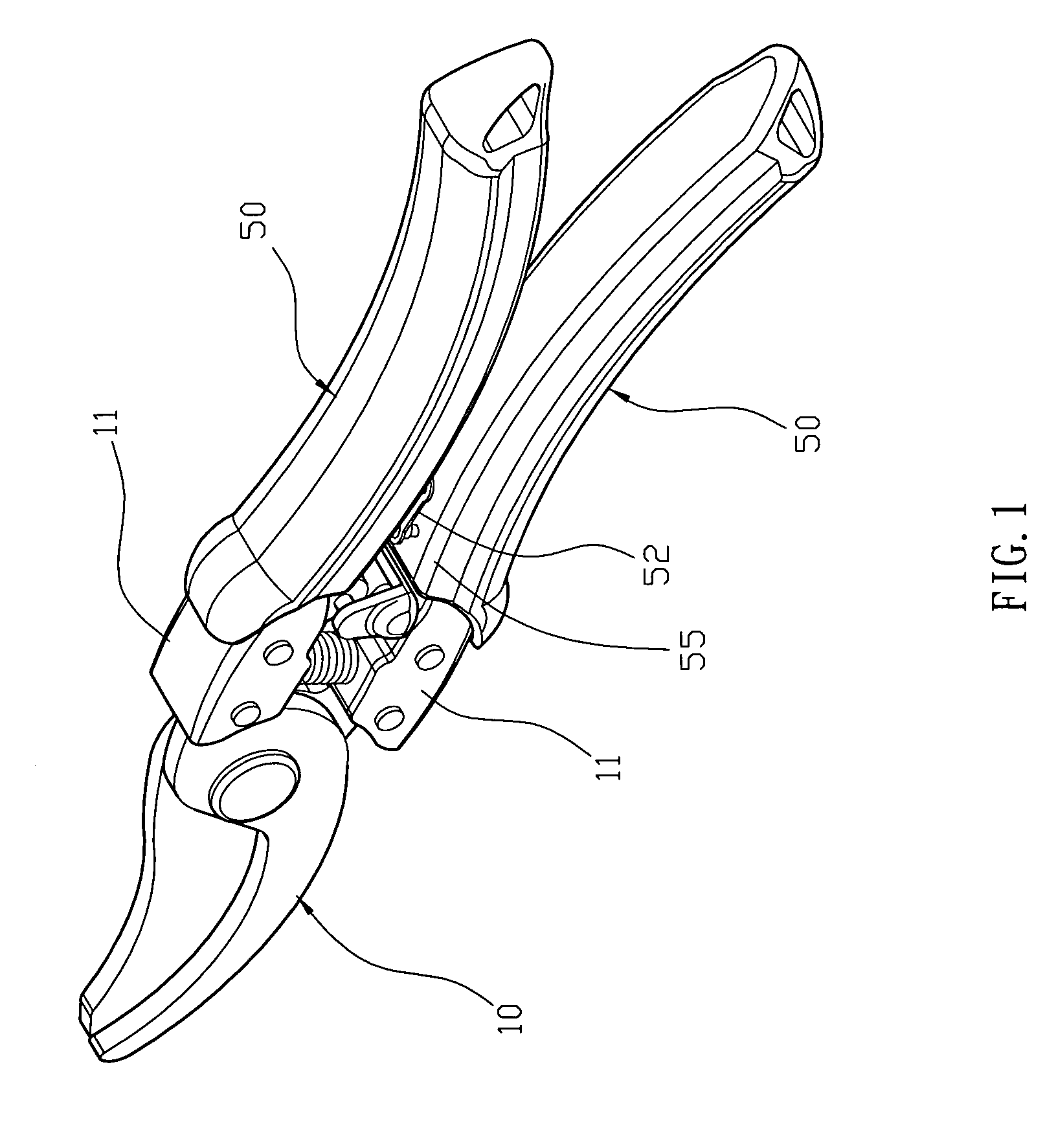

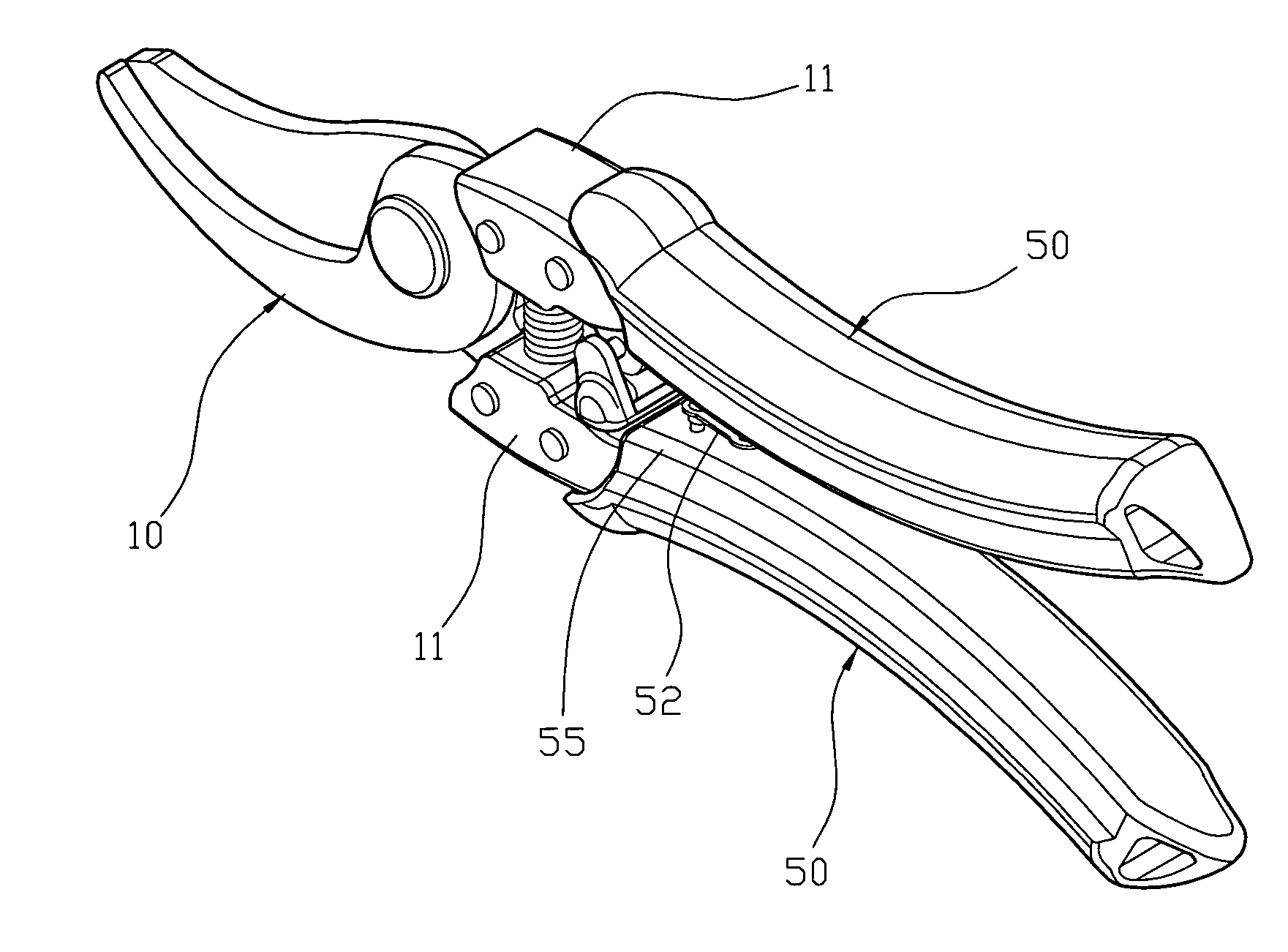

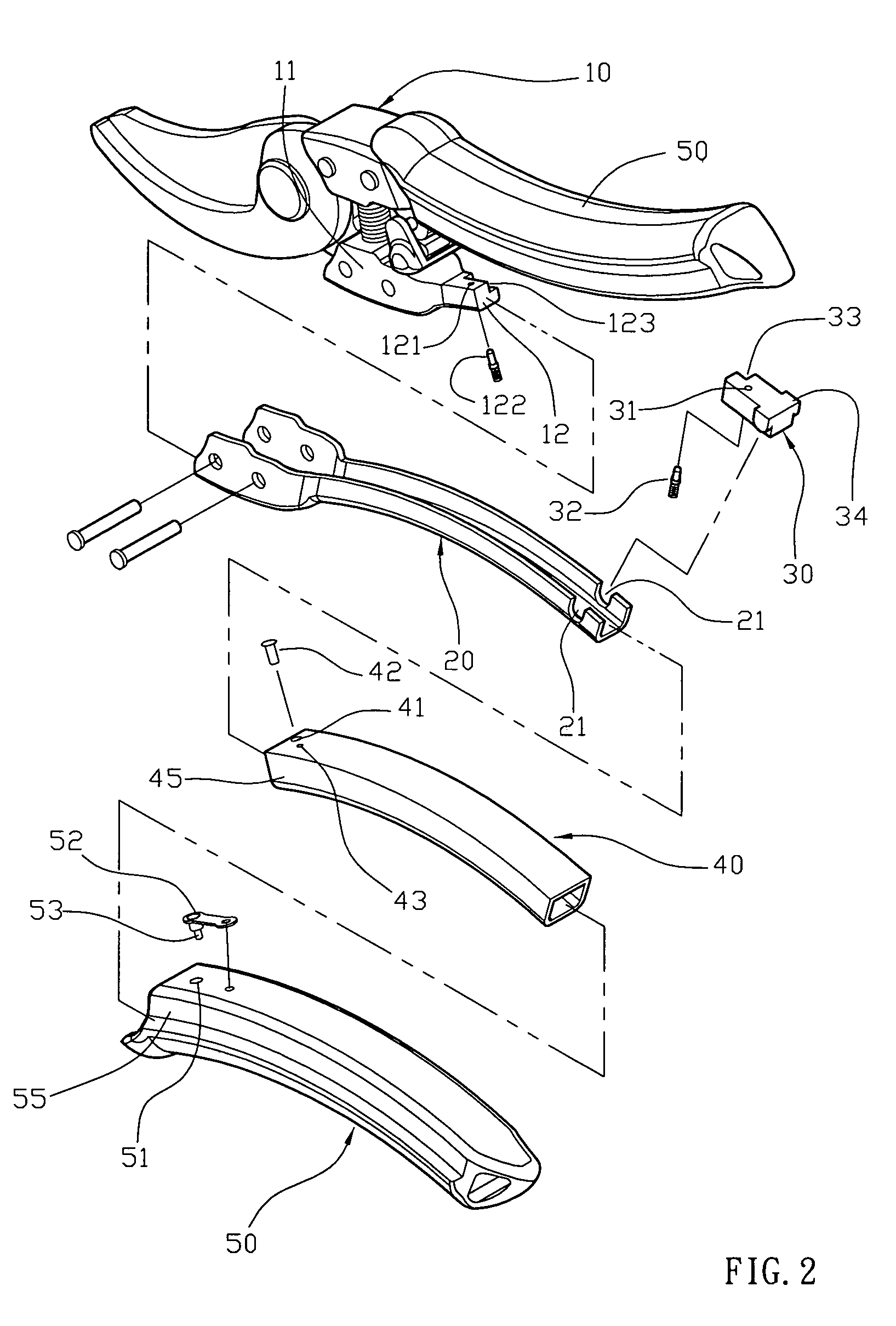

专利附图（8）
