来源记录显示 Expired
包括用于监测和维护植被的传感器的管道
Conduit including sensors for monitoring and maintenance of vegetation
US-7487925-B2用于自动化监测和灌溉作物，精确控制水肥和农药。
专利摘要
一种用于自动化种植作物（如葡萄藤）的系统。来自葡萄园本地传感器以及可选远程站和传感器的数据组合与控制系统的数据相结合，以精确控制水和化学品（如杀虫剂、防病杀菌剂和肥料）的分配。材料通过多通道管道分配，该管道允许冲突或不兼容类型的材料通过公共组件运输。传感器附接到管道，使得传感器的放置可以与管道的铺设同时进行。这种方法还确保了传感器相对于待监测和处理的每株植物或植物区域的正确放置和间距。
Original abstractA system for automating the growing of crops, such as grapevines. Combinations of data from sensors local to a vineyard, and from optional remote stations and sensors, is combined with a control system to accurately control the dispensing of water and chemicals such as insecticides, disease prevention fungicides and fertilizers. The materials are dispensed through a multiple channel conduit which allows conflicting, or incompatible, types of materials to be transported through a common assembly. Sensors are attached to the conduit so that the placement of sensors can occur simultaneously with the laying of the conduit. This approach also ensures correct placement and spacing of the sensors with respect to each plant, or plant area, to be monitored and treated.

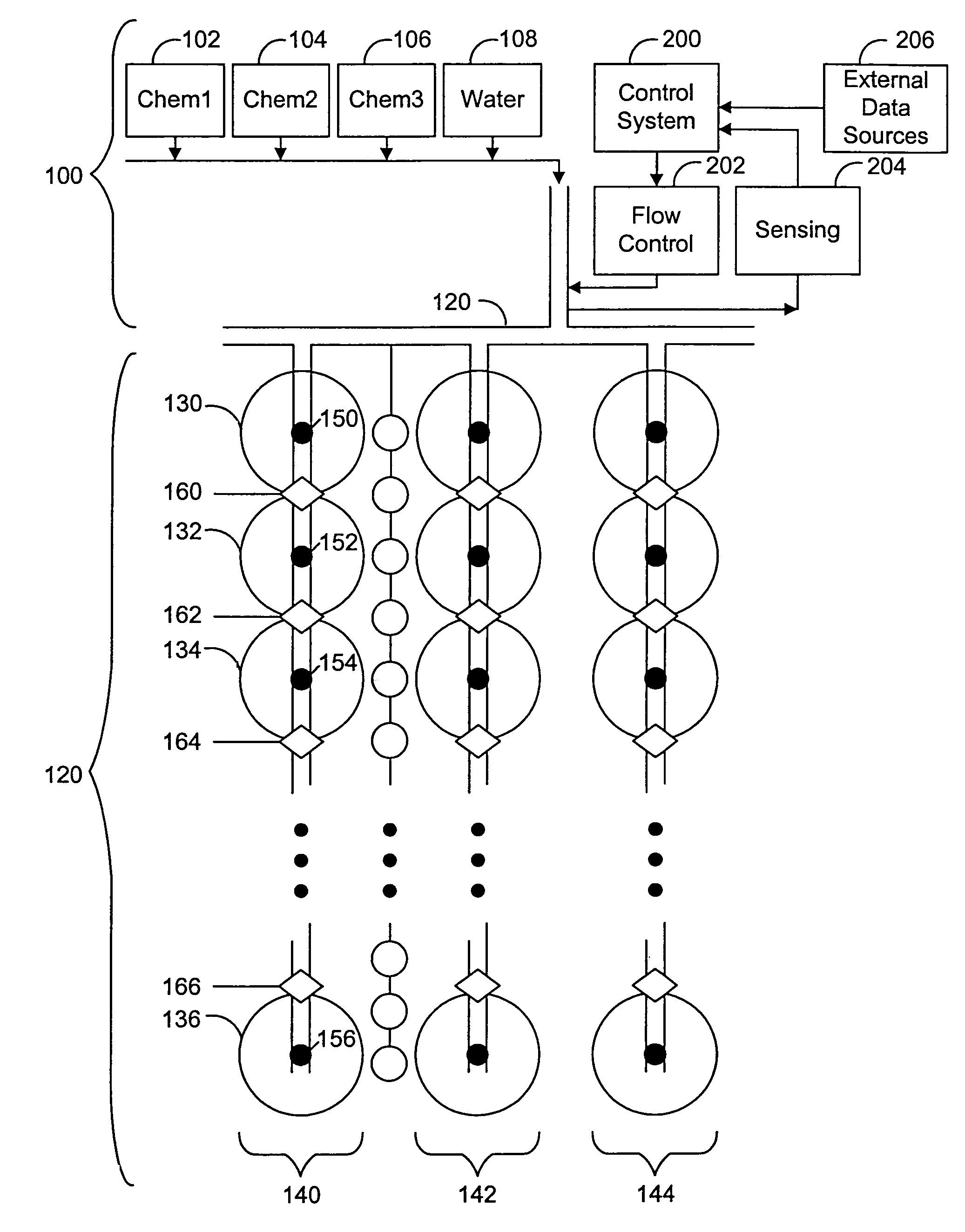

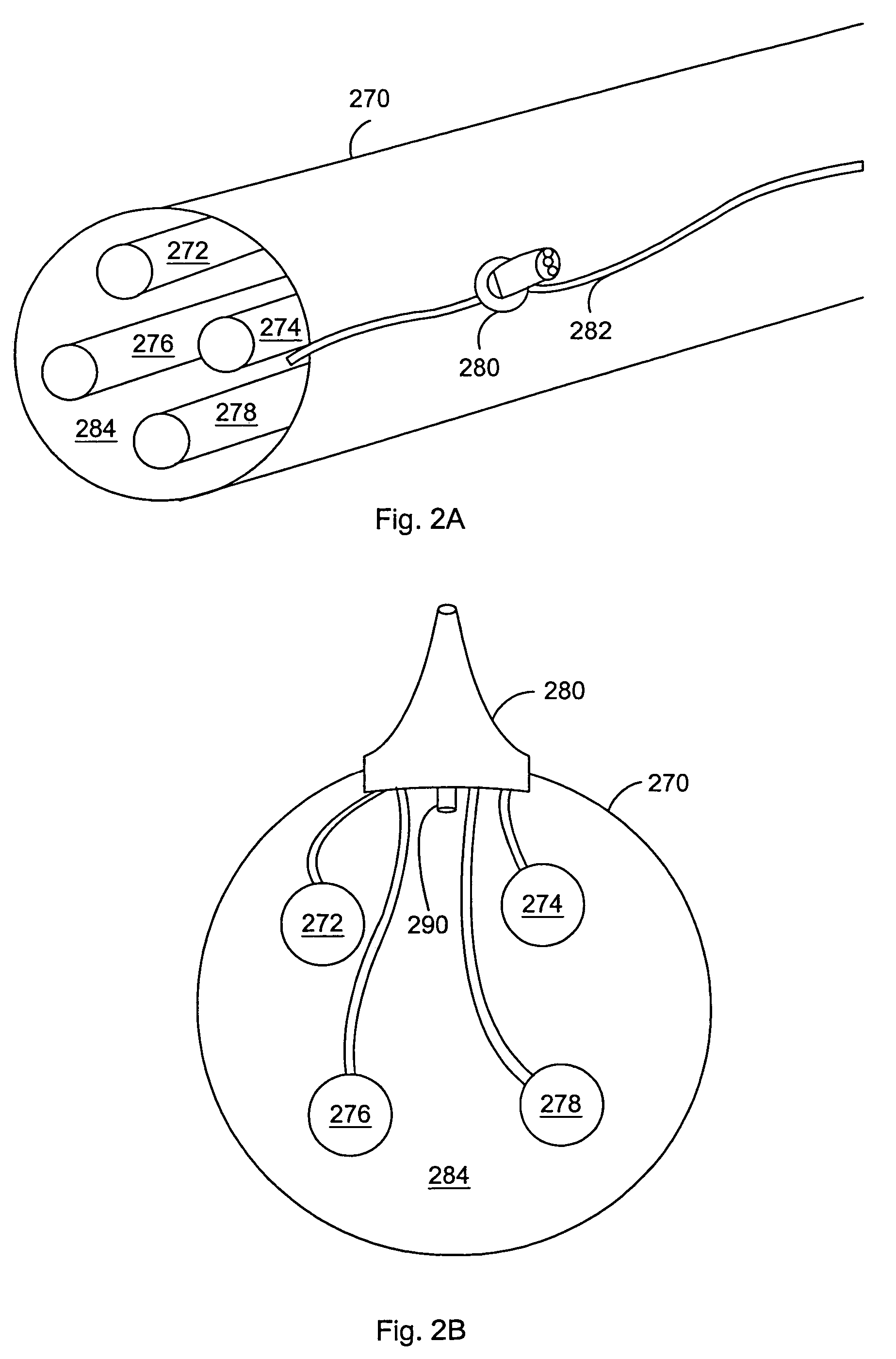

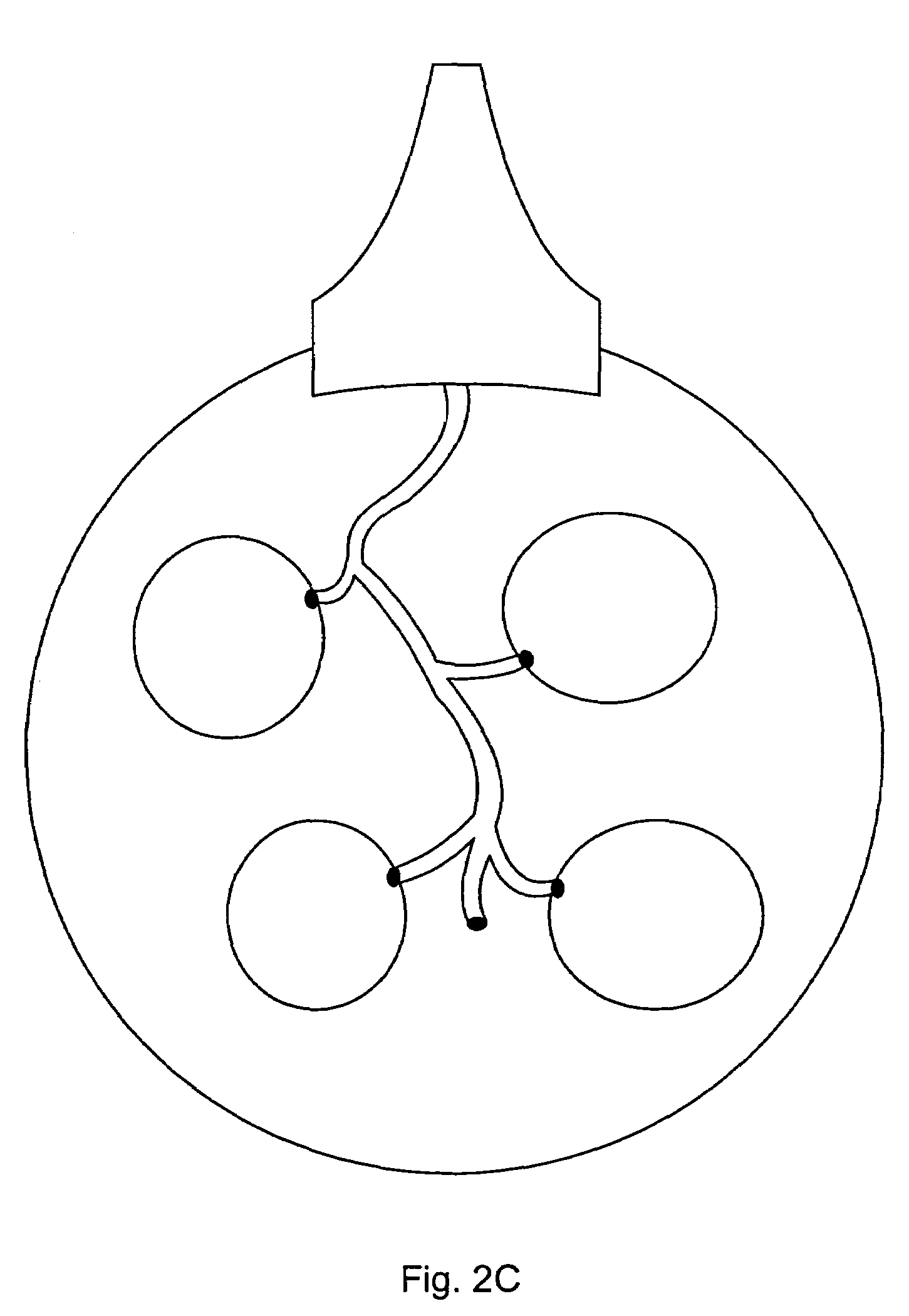

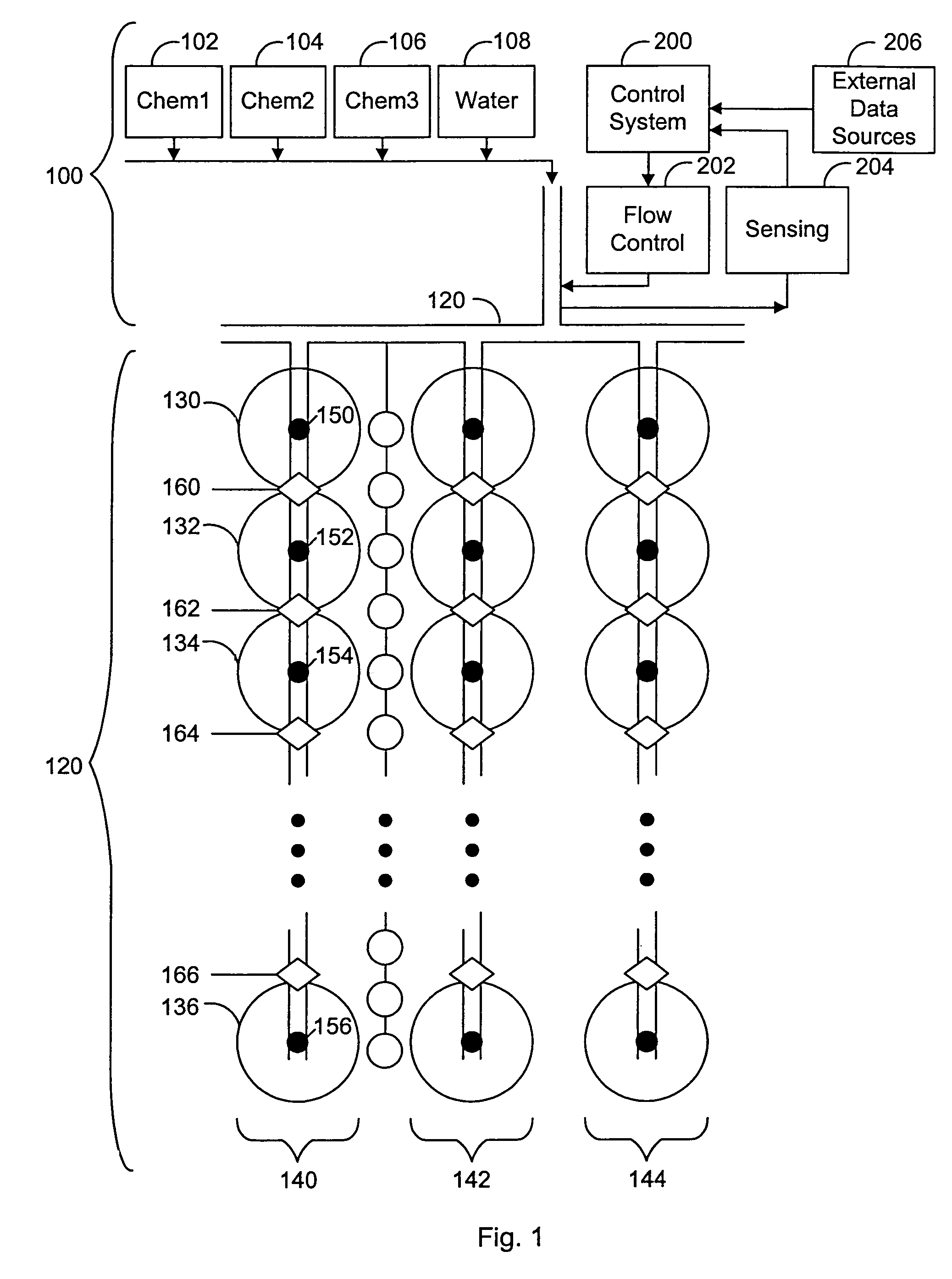

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
相关专利（同品类）
