来源记录显示 Expired
具有自定向配置的种植盆和多隔间托盘
Planting pots and multi-compartment tray having self-orienting configuration
US-7454864-B2用于种植植物，使盆在托盘中自动对齐并便于插入标签。
专利摘要

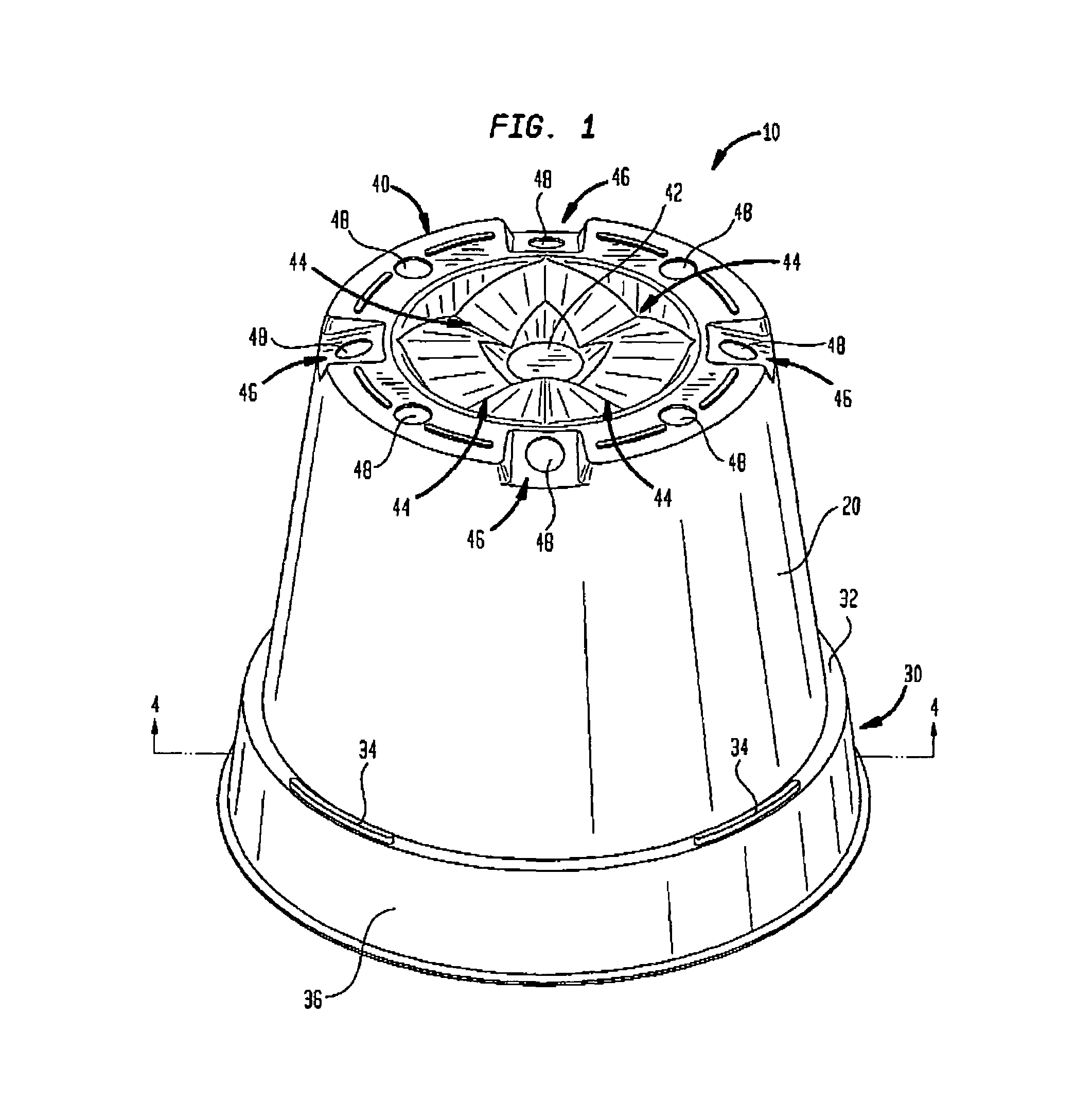

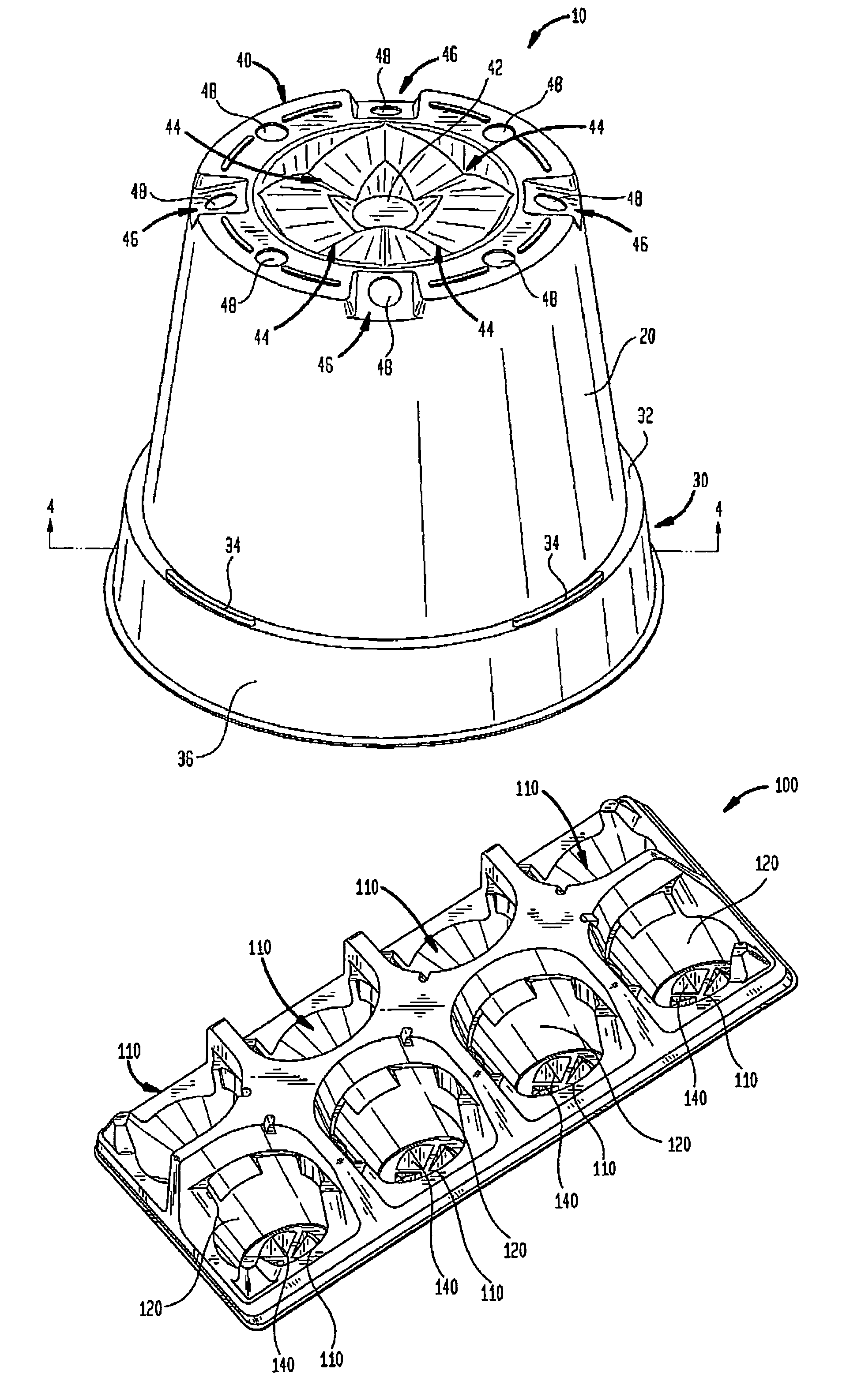

提供了种植盆和多隔间托盘，盆和托盘具有自定向配置，用于当盆放置在托盘的隔间内时促使盆正确对齐。盆包括围绕盆底部径向设置的倾斜凹槽。托盘的隔间包括围绕隔间底部径向设置的倾斜凸起。当盆放置在隔间中时，盆的倾斜凹槽与隔间的倾斜凸起接合，促使盆正确对齐。每个盆的上部沿其包括多个狭槽，用于允许可选识别标签插入其中。识别标签，除了标志、图案或其他标记（如果包括的话）之外，通过盆和托盘的自定向配置定位成面向期望方向。
Original abstractPlanting pots and a multi-compartment tray are provided, the pots and tray having a self-orienting configuration for urging the pots into proper alignment when same are placed within compartments of the tray. The pots include angled recesses disposed radially about the bottom portion of the pots. The compartments of the tray include angled protrusions disposed radially about the bottom portion of the compartment. The angled recesses of the pot engage with the angled protrusions of the compartment when the pot is placed in the compartment to urge the pot into proper alignment. A plurality of slots are included along an upper portion of each pot for allowing optional identification tags to be inserted thereinto. The identification tags, in addition to logos, artwork, or other indicia, if included, are positioned by the self-orienting configuration of the pots and tray to face in a desired direction.
专利附图（8）
