修枝剪或相应的切割工具

Pruning shears or corresponding cutters

US-7441337-B2

用于园艺修剪,可单手操作。

专利摘要

修枝剪或相应的切割工具,包括:第一细长手柄部分、布置为第一手柄部分的延伸部的第一刀片部分、从第一枢轴点枢转到第一刀片部分的第二刀片部分、以及在其第一端从第二枢轴点枢转到第二刀片部分的第二细长手柄部分。第二细长手柄部分通过至少一个轴连接到第一细长手柄部分,所述轴可枢转地连接到第一和第二细长手柄部分两者。第一和第二细长手柄部分在剪刀的打开位置中布置为沿其整个长度彼此保持一定距离,使得能够沿手柄部分的整个长度用一只手使用剪刀。

Original abstractPruning shears or corresponding cutters comprising a first elongated handle part, a first blade part arranged as an extension of the first handle part, a second blade part pivoted to the first blade part from a first pivot point, and a second elongated handle part pivoted at its first end to the second blade part from a second pivot point. The second elongated handle part is connected to the first elongated handle part with at least one shaft pivotally connected to both the first and second elongated handle parts. The first and second elongated handle parts are arranged in the open position of the shears in remain along their entire length at a distance from each other enabling the use of the shears with one hand along the entire length of the handle parts.

专利附图(4)

US-7441337-B2 figure 1
1

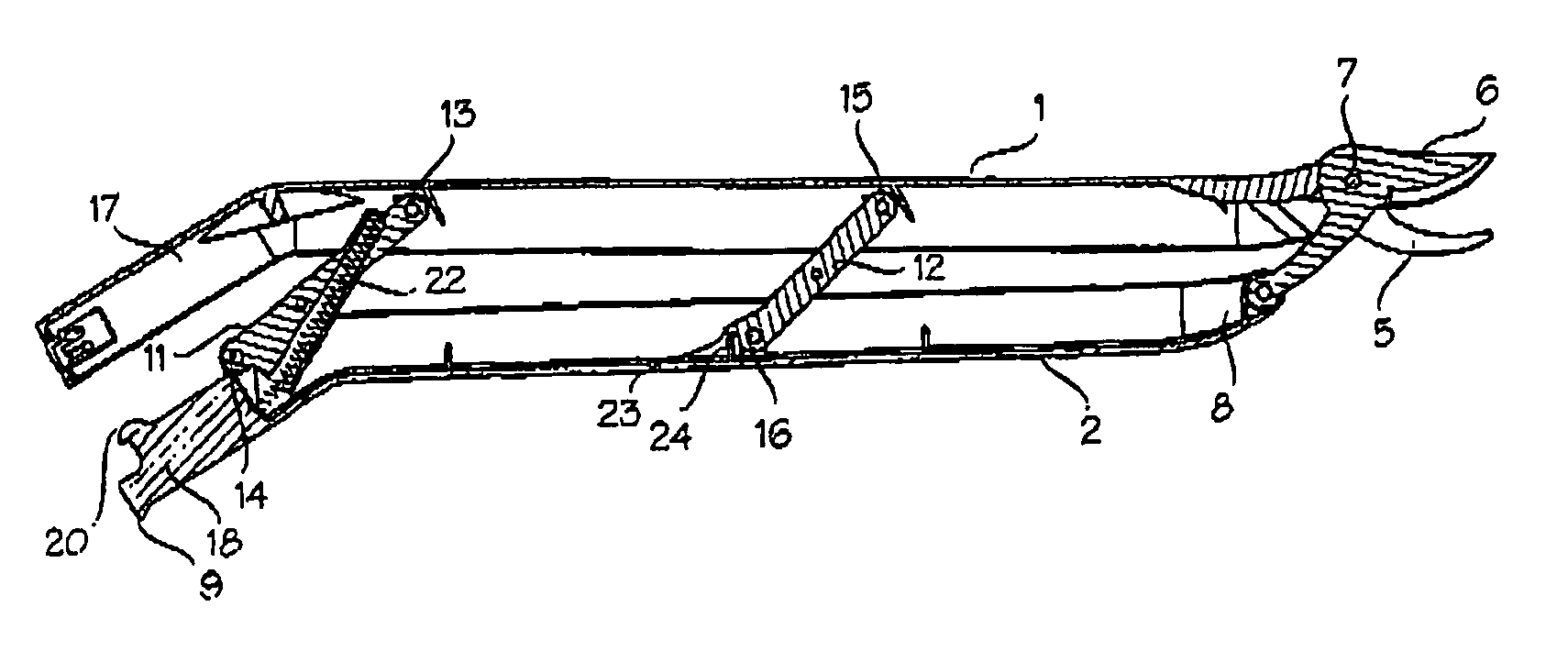

US-7441337-B2 figure 2
2
US-7441337-B2 figure 3
3

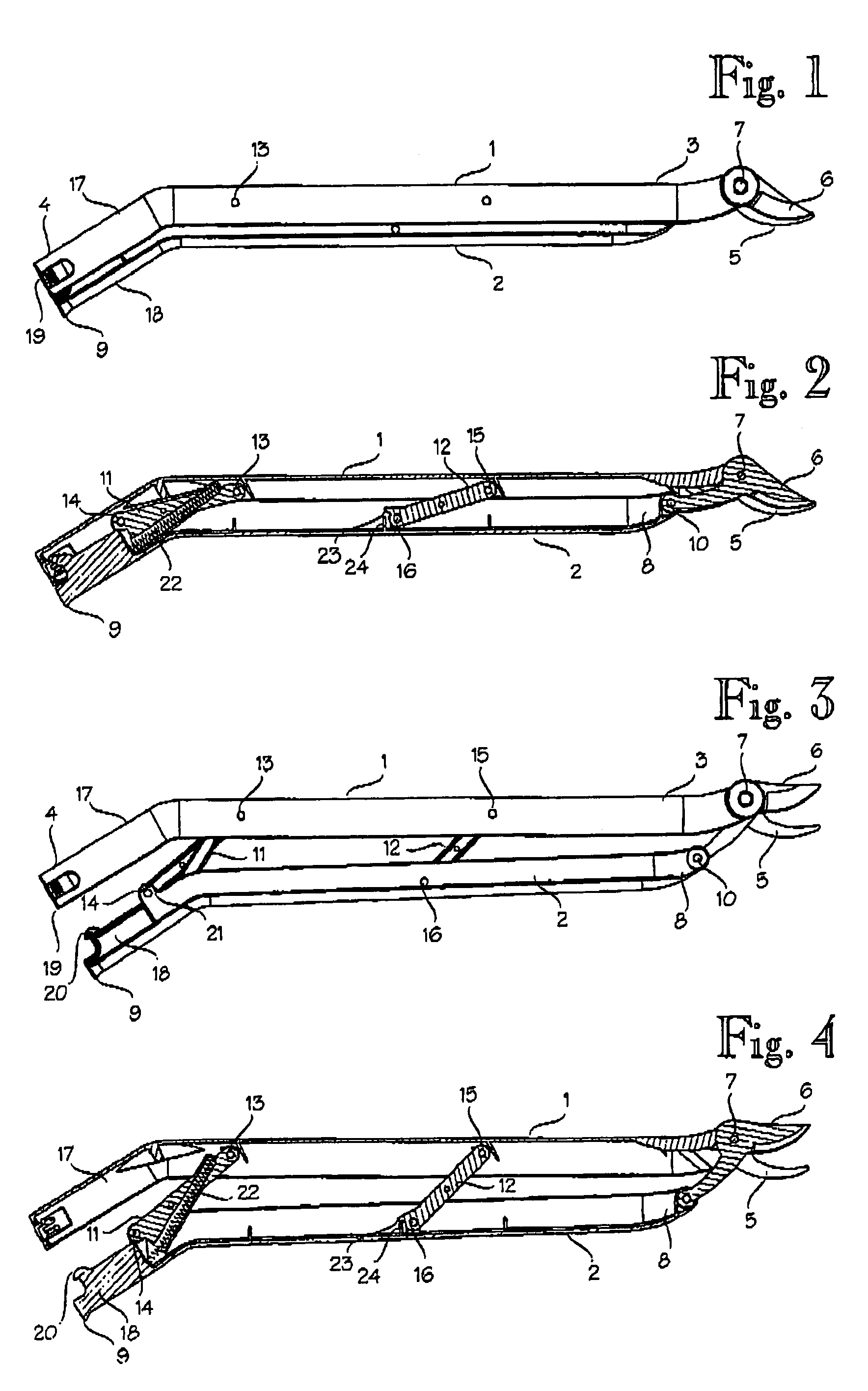

US-7441337-B2 figure 4
4
