景观桩系统

Landscape stake system

US-7434360-B2

用于固定景观边缘,便于打入地面。

专利摘要

一种景观桩系统,包括改进的桩和锤帽。桩包括锥形下部区域和中间区域。优选地,中间区域包括工字梁形式,以提供桩的增强,防止在将桩插入地面期间桩开裂。桩的上部区域包括第一U形通道,其配置成接收景观边缘板的一部分。桩的上部区域还包括多个水平凹槽和孔,配置成接收紧固件。锤帽包括配置成接收锤头的的基本水平表面和形成第二通道并配置成接收桩的上部区域的一对垂直腿。

Original abstractA landscape stake system comprises an improved stake and a hammer cap. The stake comprises a tapered lower region and an intermediate region. Preferably, the intermediate region comprises an I-beam format to provide reinforcement of the stake to prevent cracking of the stake during insertion of the stake into the ground. An upper region of the stake comprises a first U-shaped channel that is configured to receive a portion of a landscape edging board. The upper region of the stake further comprises a plurality of horizontal grooves and apertures configured to receive a fastener. The hammer cap comprises a substantially horizontal surface that is configured to receive the head of a hammer and a pair of vertical legs that form second channel and are configured to receive the upper region of the stake.

专利附图(8)

US-7434360-B2 figure 1
1

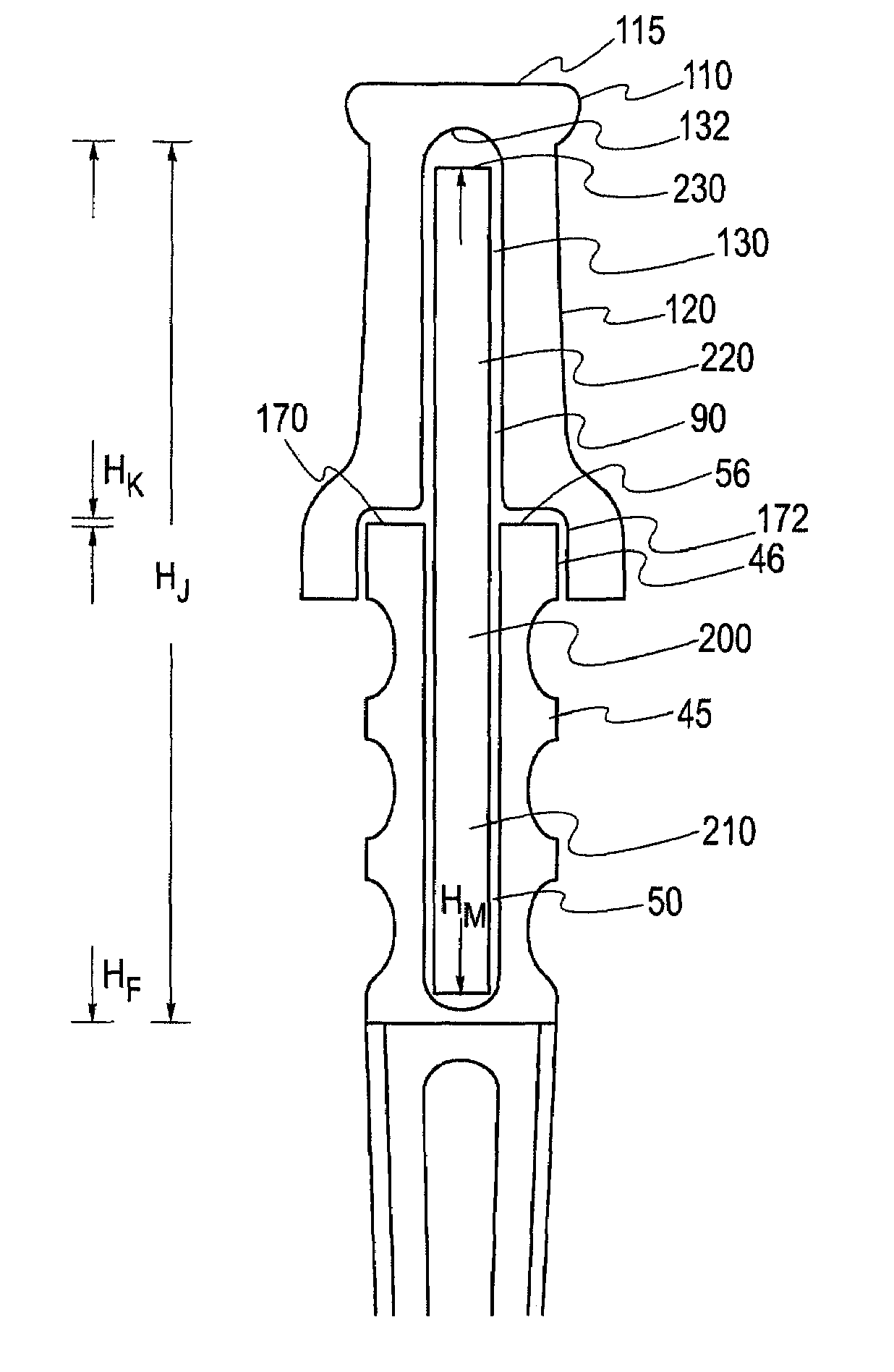

US-7434360-B2 figure 2
2
US-7434360-B2 figure 3
3

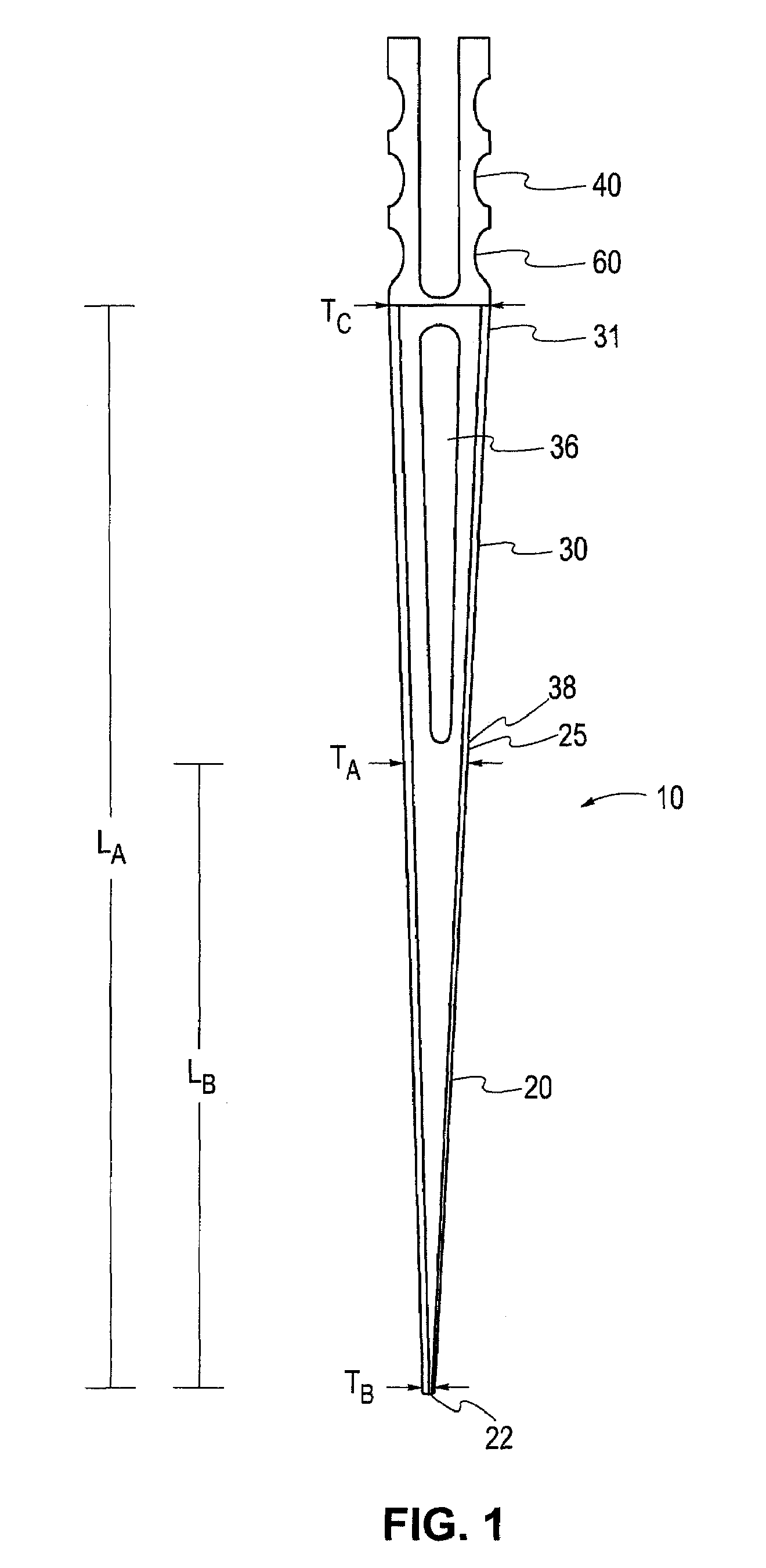

US-7434360-B2 figure 4
4
US-7434360-B2 figure 5
5

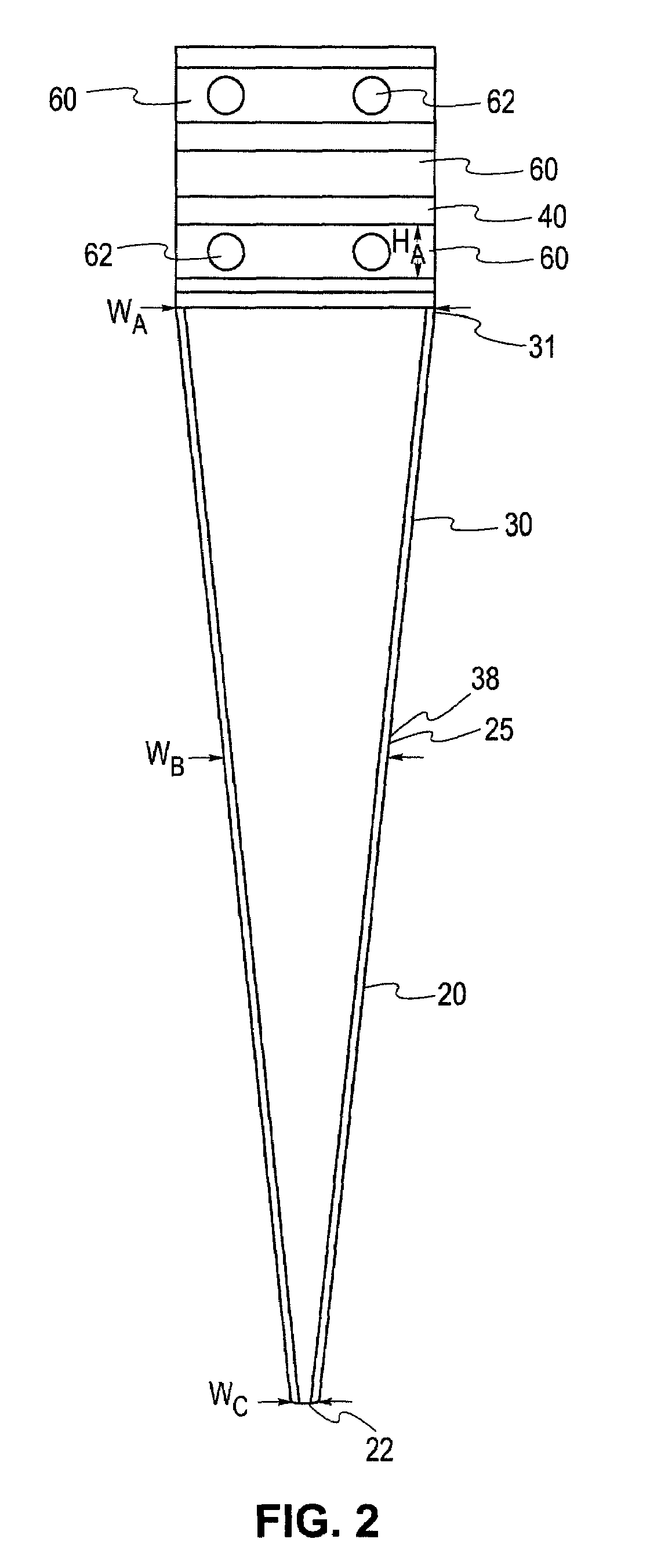

US-7434360-B2 figure 6
6
US-7434360-B2 figure 7
7

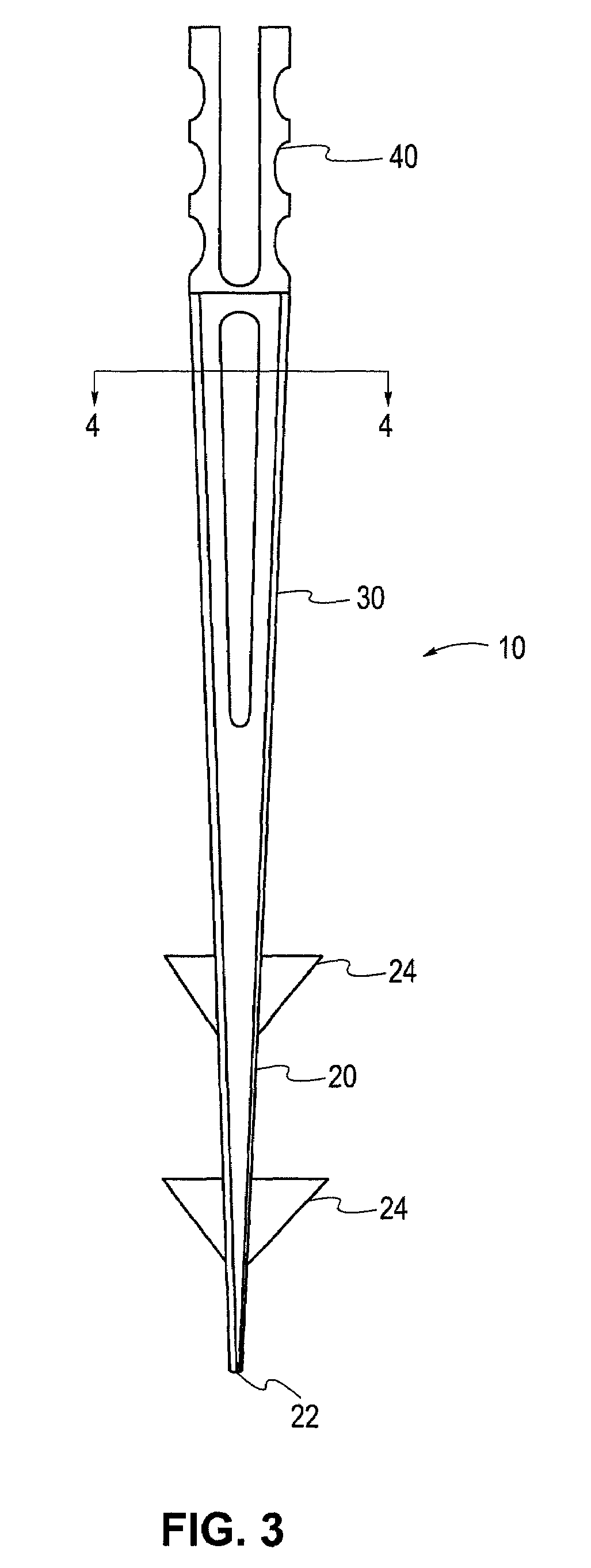

US-7434360-B2 figure 8
8
