提供防止手柄旋转时误操作油门杆的树篱修剪机。
专利摘要

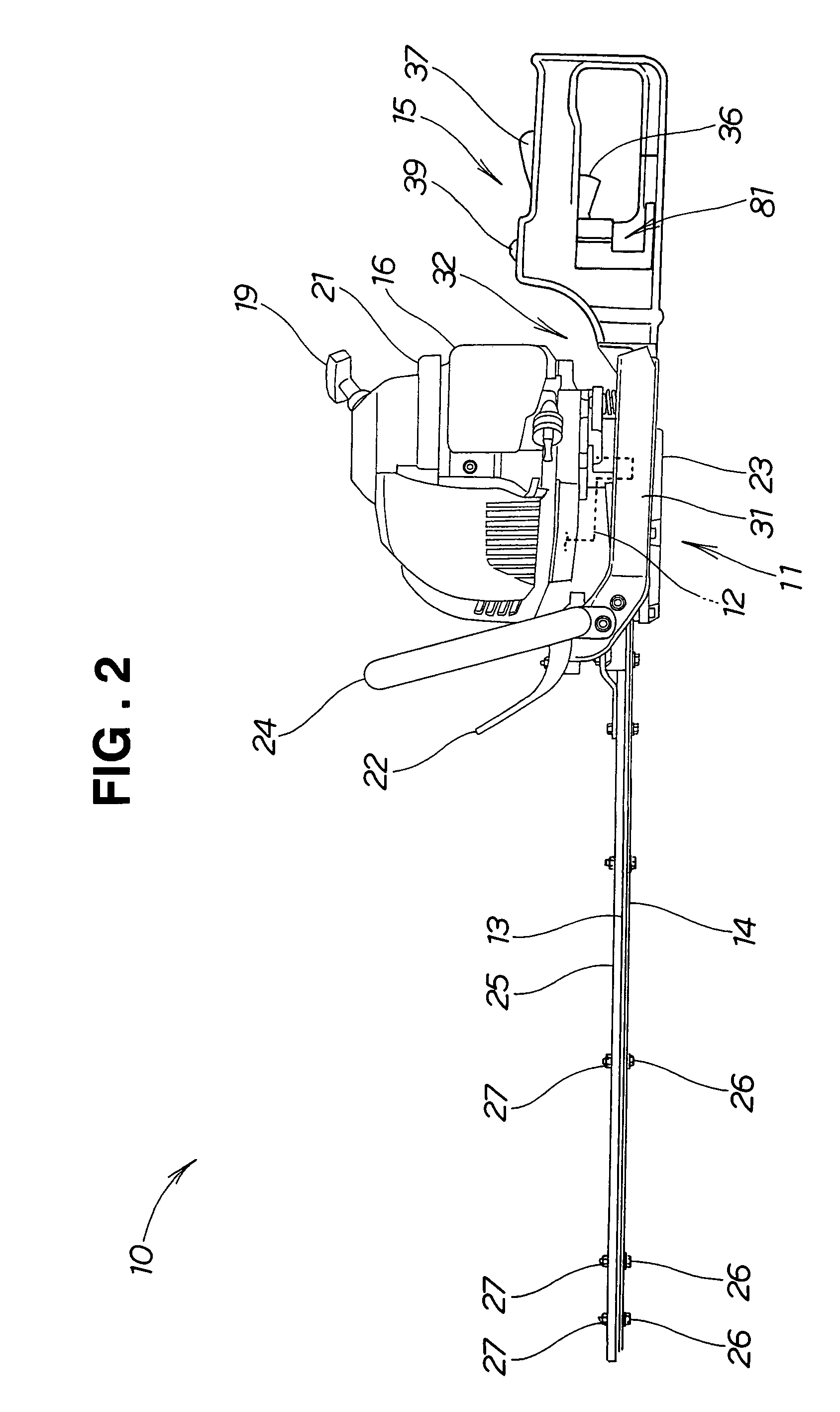

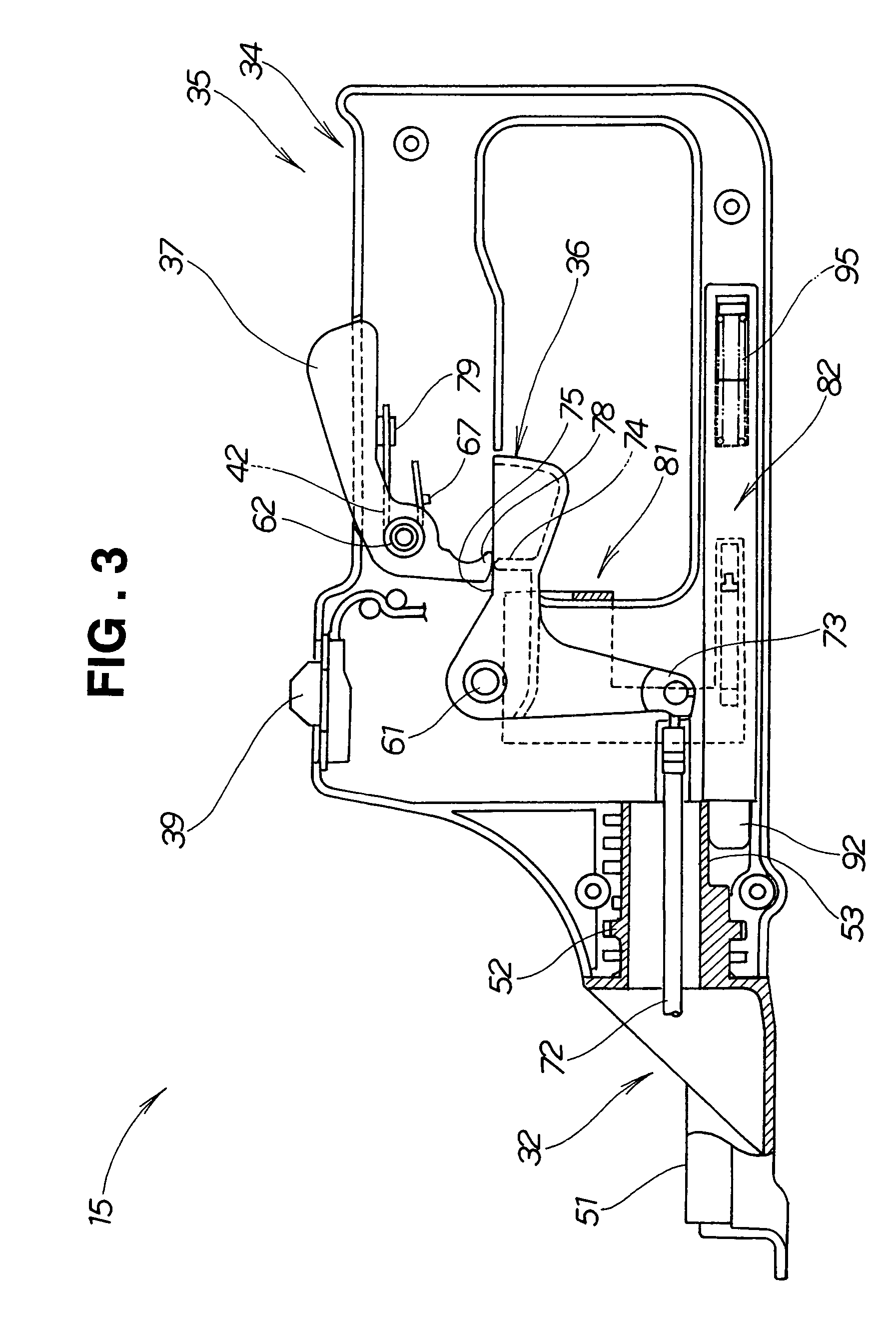

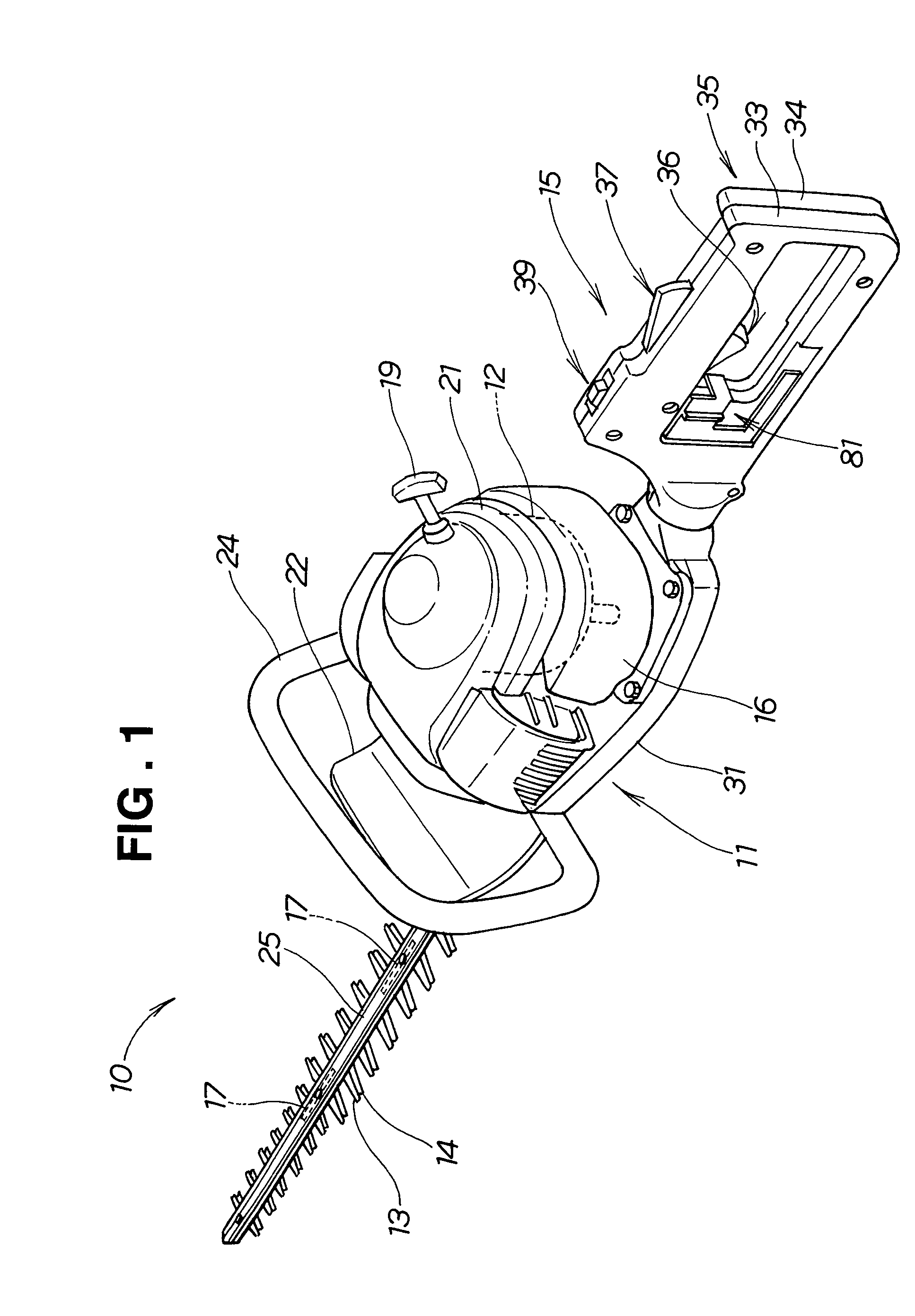

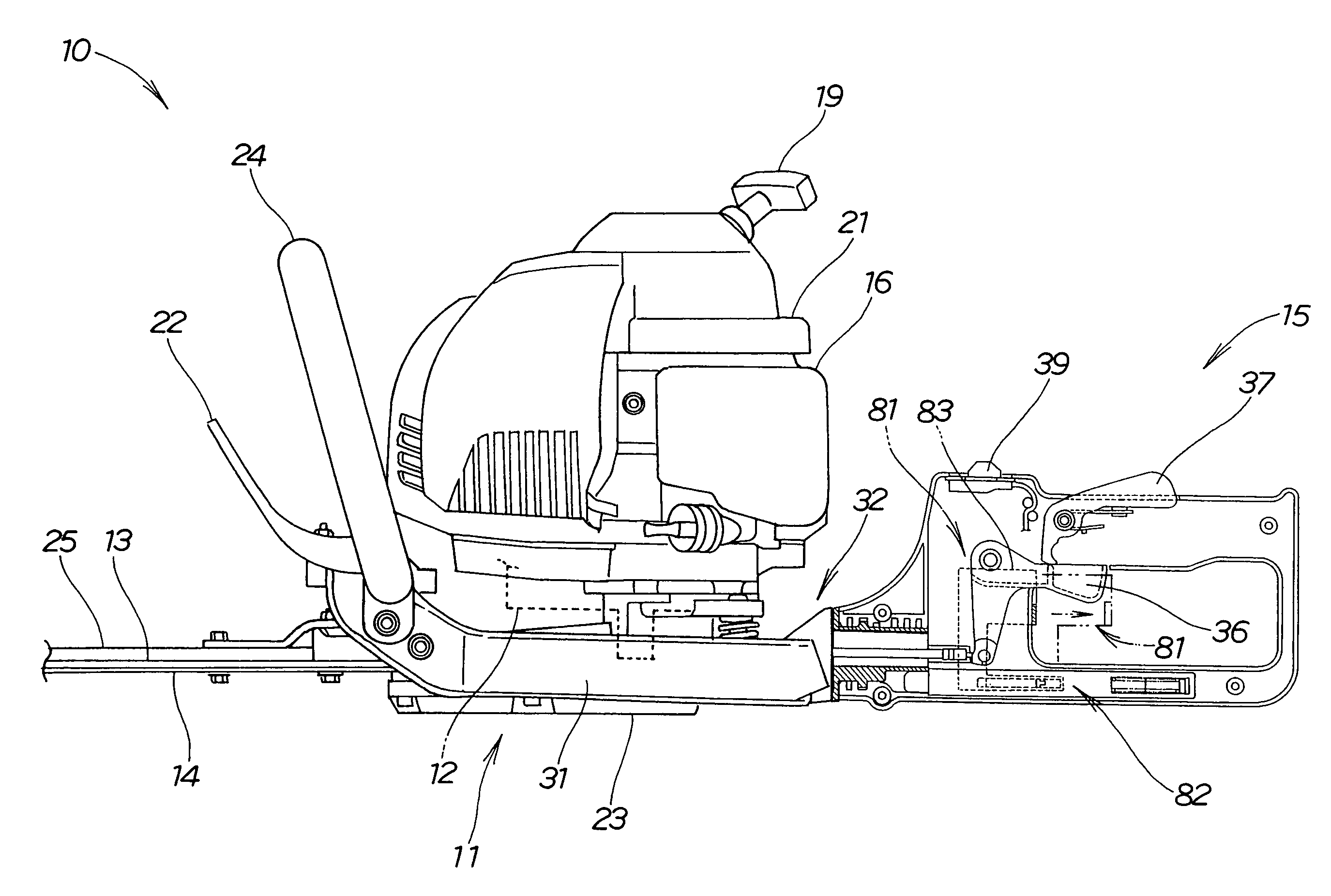

提供一种对树篱进行修剪操作的树篱修剪机。该树篱修剪机包括机身、可旋转地附接到机身的手柄、设置在手柄中的油门杆、用于防止手柄相对于机身旋转的锁定机构、以及用于将锁定机构从机身解锁的解锁构件。锁定机构从机身的解锁通过解锁构件朝向手柄后部的滑动运动来实现。当将锁定机构从机身解锁时，解锁构件围绕油门杆，使得油门杆不能操作，结果防止在手柄的旋转操作期间油门杆被错误操作。
Original abstractA hedge trimmer is provided which performs a trimming operation on a hedge. The hedge trimmer includes a machine body, a handle rotatably attached to the machine body, a throttle lever provided in the handle, a locking mechanism for preventing the handle from rotating relative to the machine body, and an unlocking member for unlocking the locking mechanism from the machine body. The unlocking of the locking mechanism from the machine body is effected by a slide movement of the unlocking member towards a rear part of the handle. When unlocking the locking mechanism from the machine body, the unlocking member surrounds the throttle lever so that the throttle lever can be inoperable with the result that the throttle lever is prevented from being erroneously operated during the rotational operation of the handle.
专利附图（8）
