用于植物存储和浇水的存储平台及浇水装置
Storage platform for storage and watering of plants and watering device
US-7398618-B2用于植物存储、浇水和运输。
专利摘要
一种用于存储、浇水和运输植物的存储托盘，其为矩形，并且在两个平行的窄侧上各具有两个安装构件，用于悬挂在框架支柱中，其特征在于，每个安装构件具有沿相应窄侧延伸的接合端部，并且在每种情况下在朝向最接近的长边的方向上自由终止，以及一种浇水装置，具有至少两个这样的存储托盘，一个设置在另一个上方，四个垂直框架支柱设置在存储托盘的角部区域，并设置有用于悬挂存储托盘的安装构件的插入凹槽，在每种情况下与存储托盘的窄侧相关联的框架支柱中的插入凹槽至少部分地彼此面对，使得存储托盘可以在横向方向上插入和移除。
Original abstractA storage tray for storing, watering and transporting plants, which is rectangular and has two mounting members on each of two parallel narrow sides for hanging in frame struts, characterised in that each mounting member has an engagement end portion extending along the respective narrow side and ending freely in the direction of the long side located closest in each case, and a watering device with at least two such storage trays disposed one on top of the other, with four vertical frame struts disposed in corner areas of the storage trays and provided with insertion recesses for hanging the mounting members of the storage trays in, the insertion recesses in frame struts associated in each case with a narrow side of the storage tray are at least partially facing each other, so that the storage trays can be inserted and removed in the transverse direction.

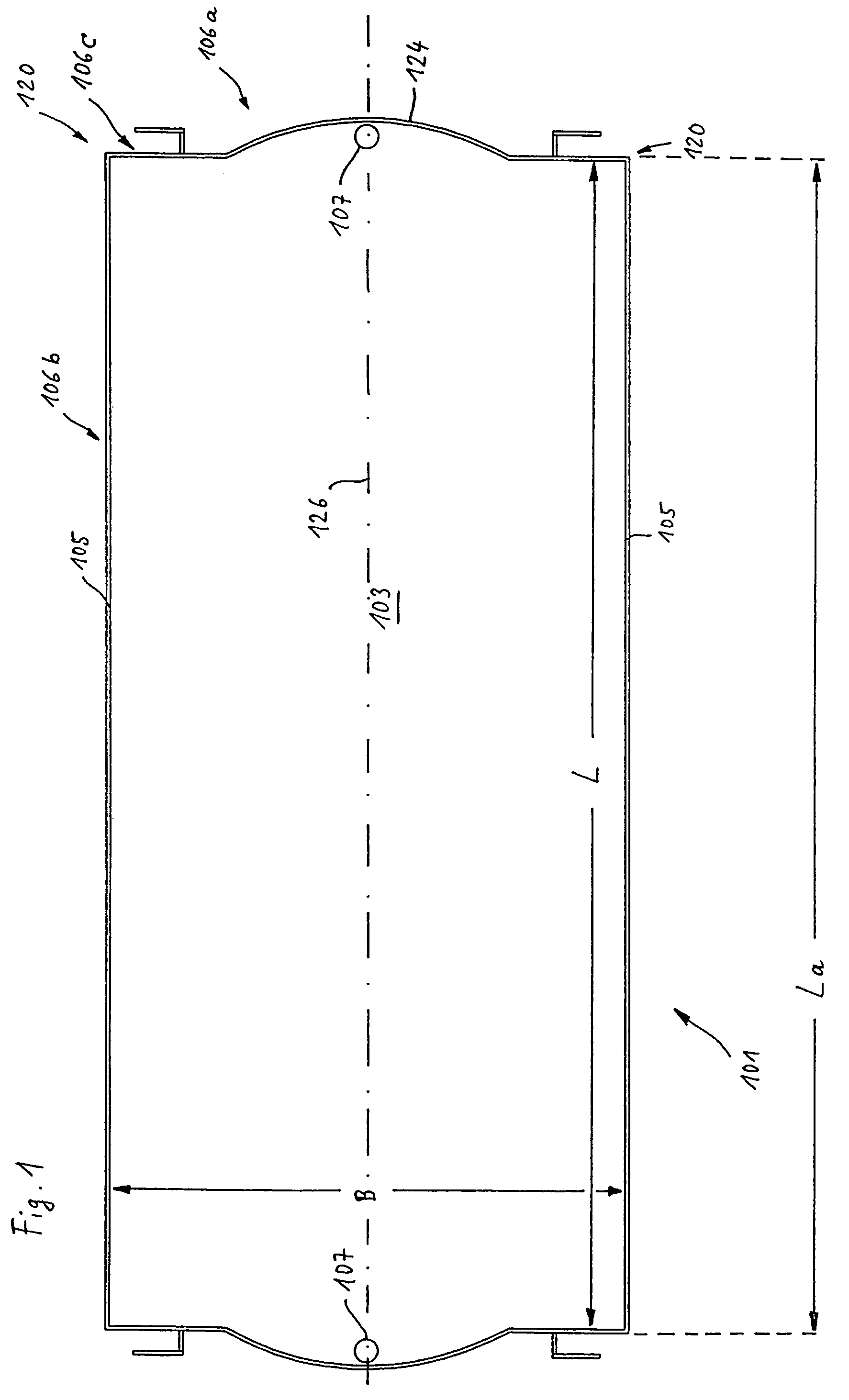

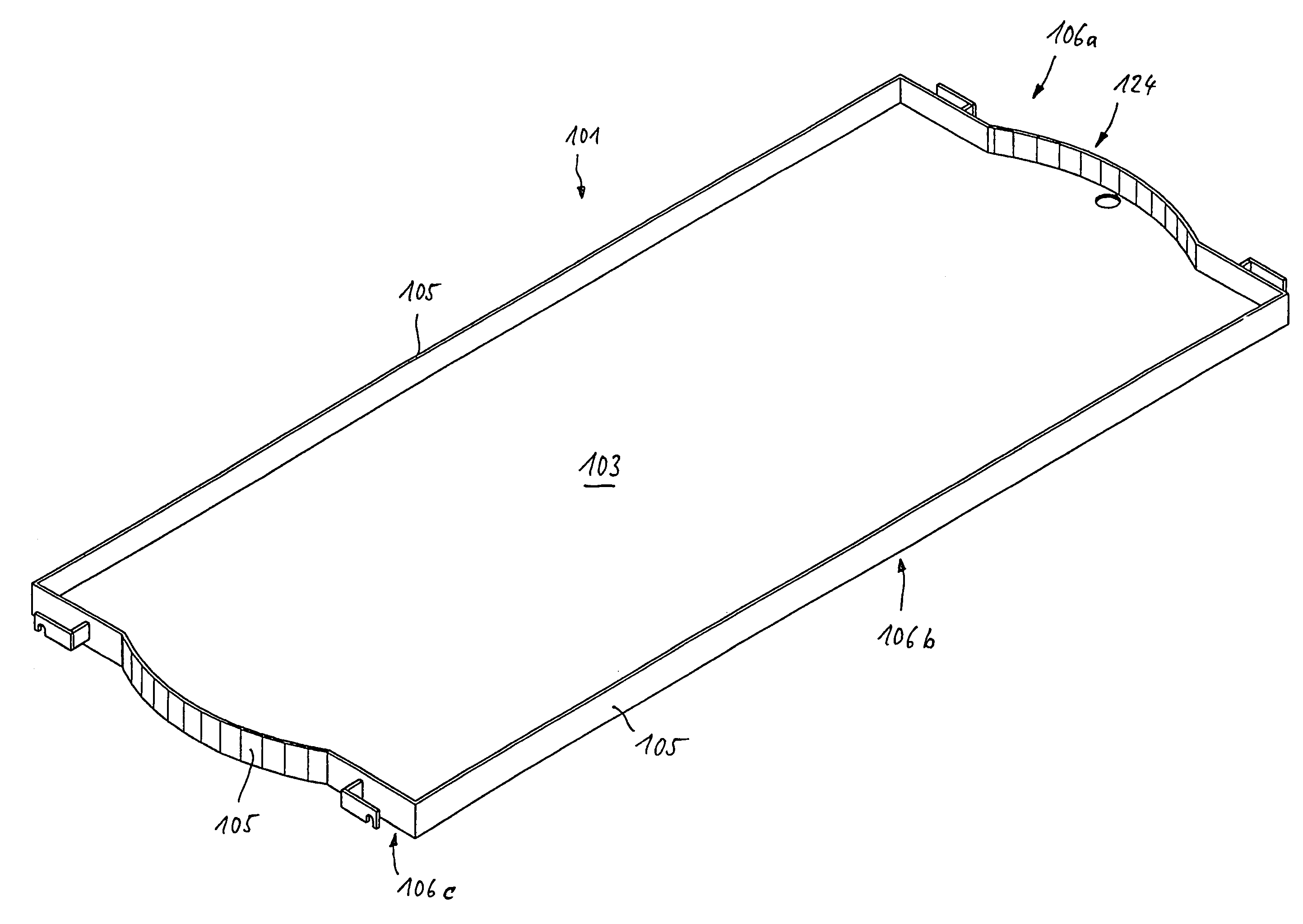

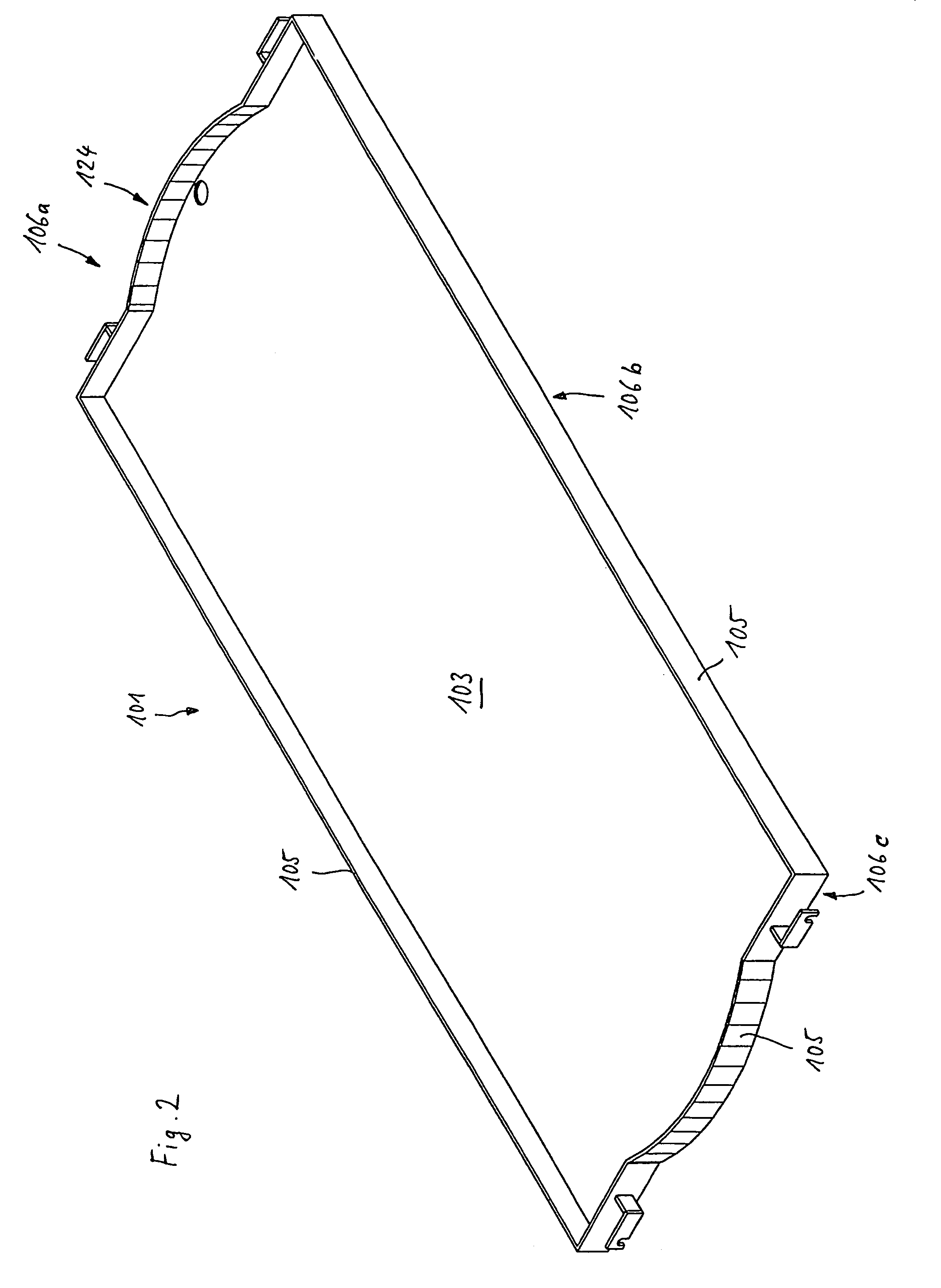

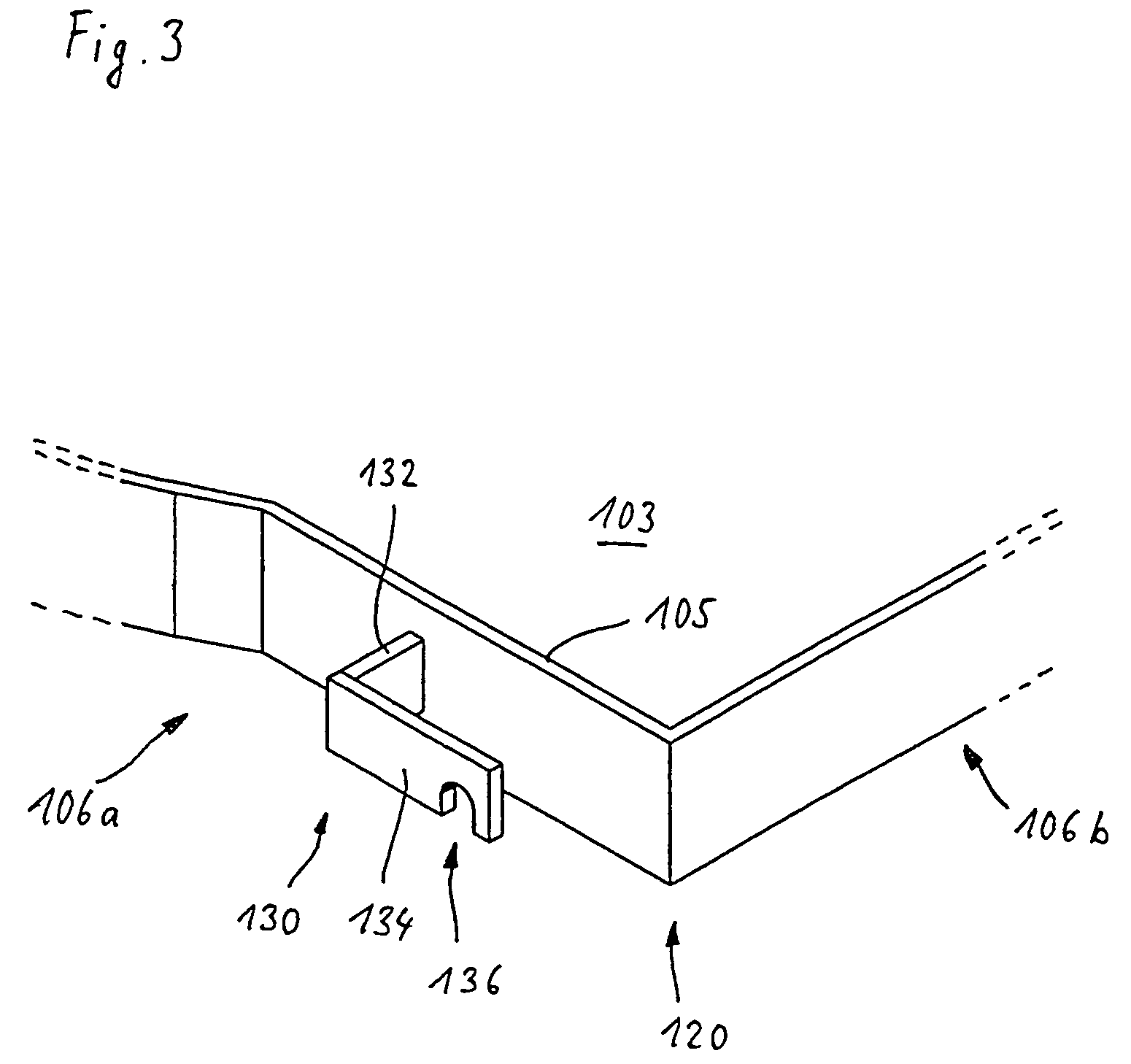

专利附图（8）
