具有角度调节功能的长臂园艺剪

Long-arm gardening shears having angle adjustable function

US-7370423-B1

一种可调节角度的长臂园艺剪,用于修剪草坪和树枝。

专利摘要

一种长臂园艺剪,包括主体、第一壳体、第二壳体、切割刀片组件、保持构件、按钮和弹簧。因此,调节切割刀片组件与主体之间的角度,从而调节长臂园艺剪的长度,便于使用者操作长臂园艺剪以在较低高度修剪草坪和在较高水平修剪树枝。此外,使用者只需按下按钮即可旋转切割刀片组件,并释放按钮即可锁定切割刀片组件,从而便于使用者调节长臂园艺剪的角度。

Original abstractA pair of long-arm gardening shears include a main body, a first casing, a second casing, a cutting blade assembly, a retaining member, a push button, and a spring. Thus, the angle between the cutting blade assembly and the main body is adjusted so that the length of the long-arm gardening shears is adjusted, thereby facilitating a user operating the long-arm gardening shears to shear the lawn at a lower height and the branches at a higher level. In addition, the use only needs to press the push button so as to rotate the cutting blade assembly and to release the push button so as to lock the cutting blade assembly, thereby facilitating the user adjusting the angles of the long-arm gardening shears.

专利附图(8)

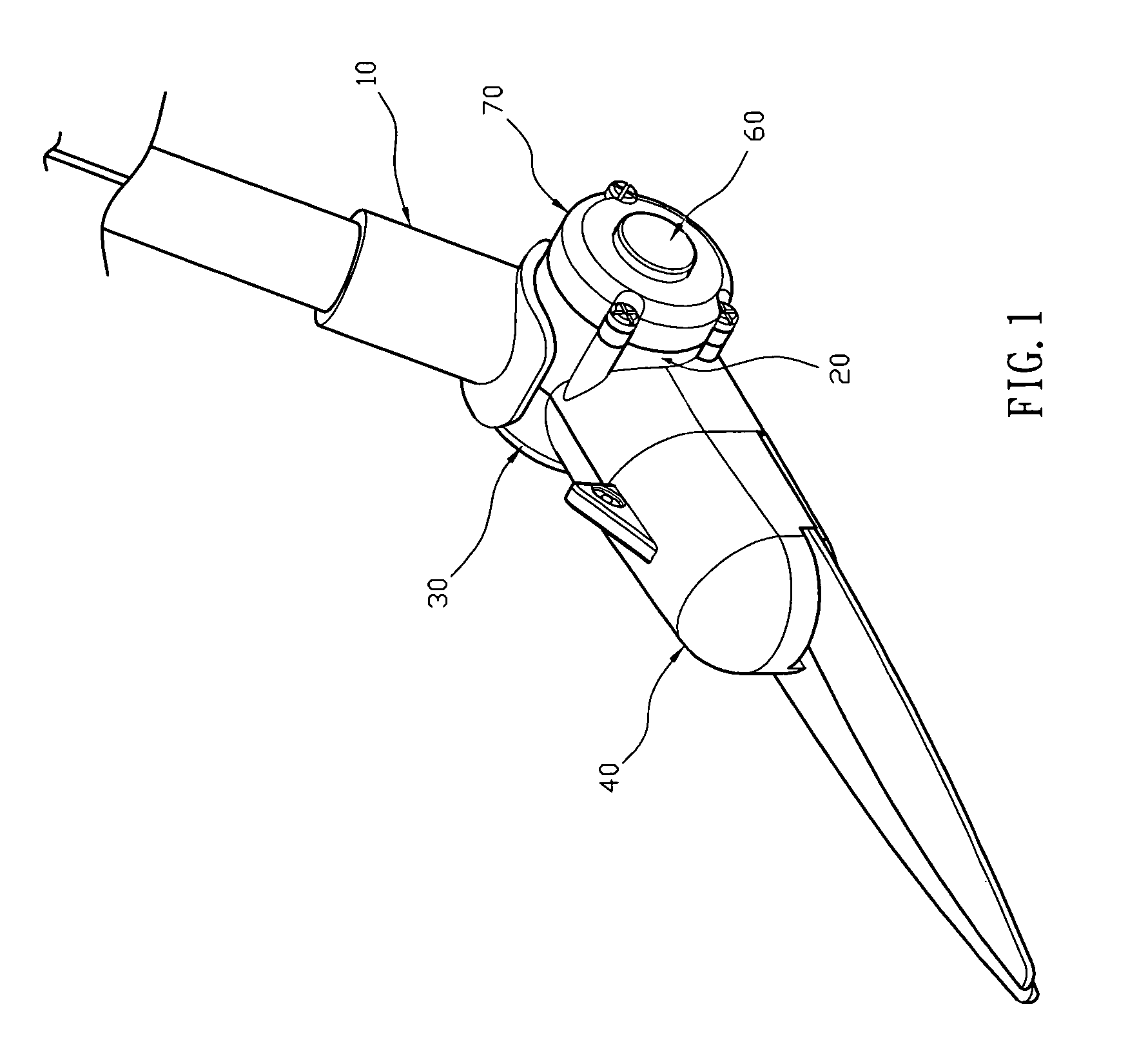

US-7370423-B1 figure 1
1

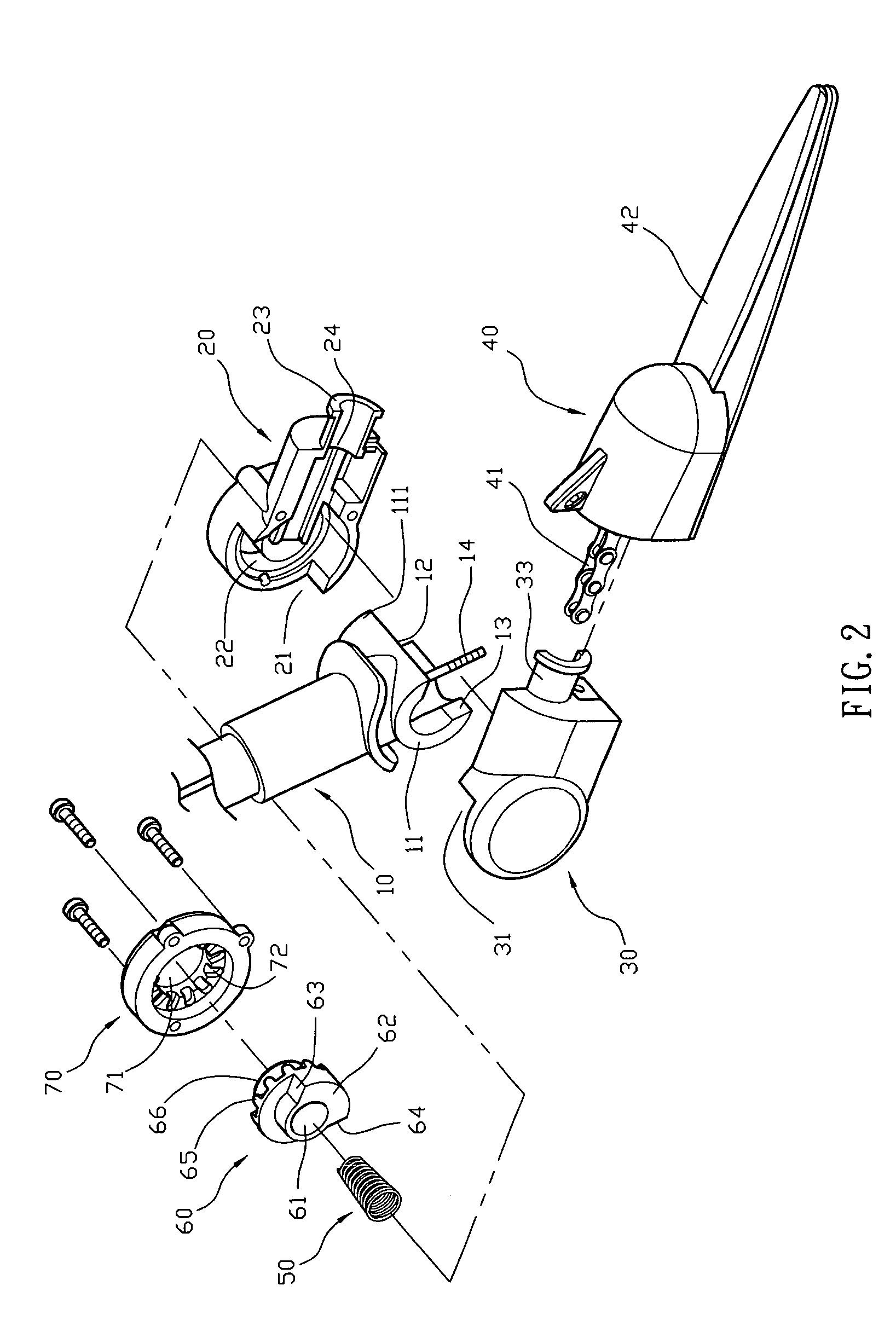

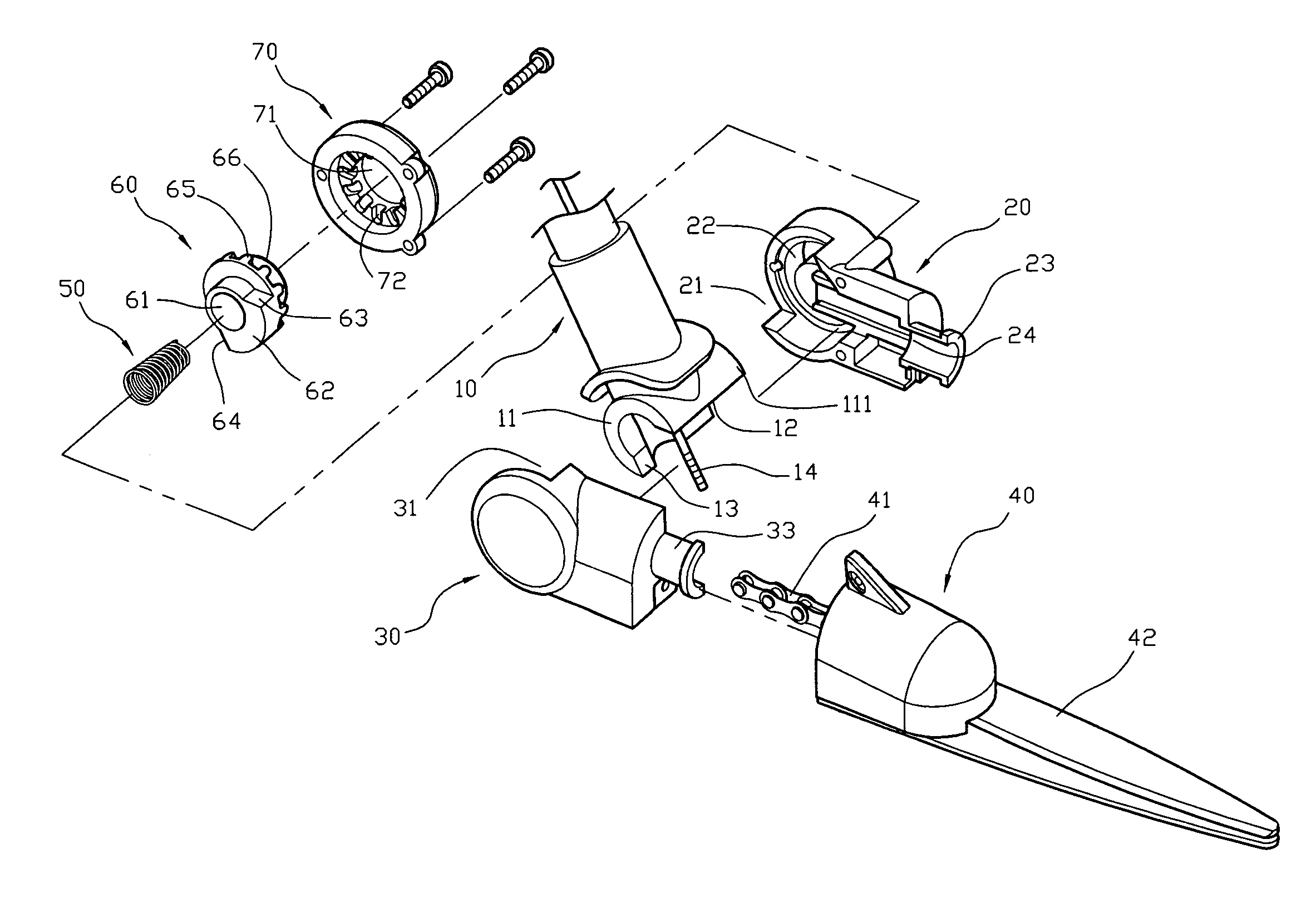

US-7370423-B1 figure 2
2

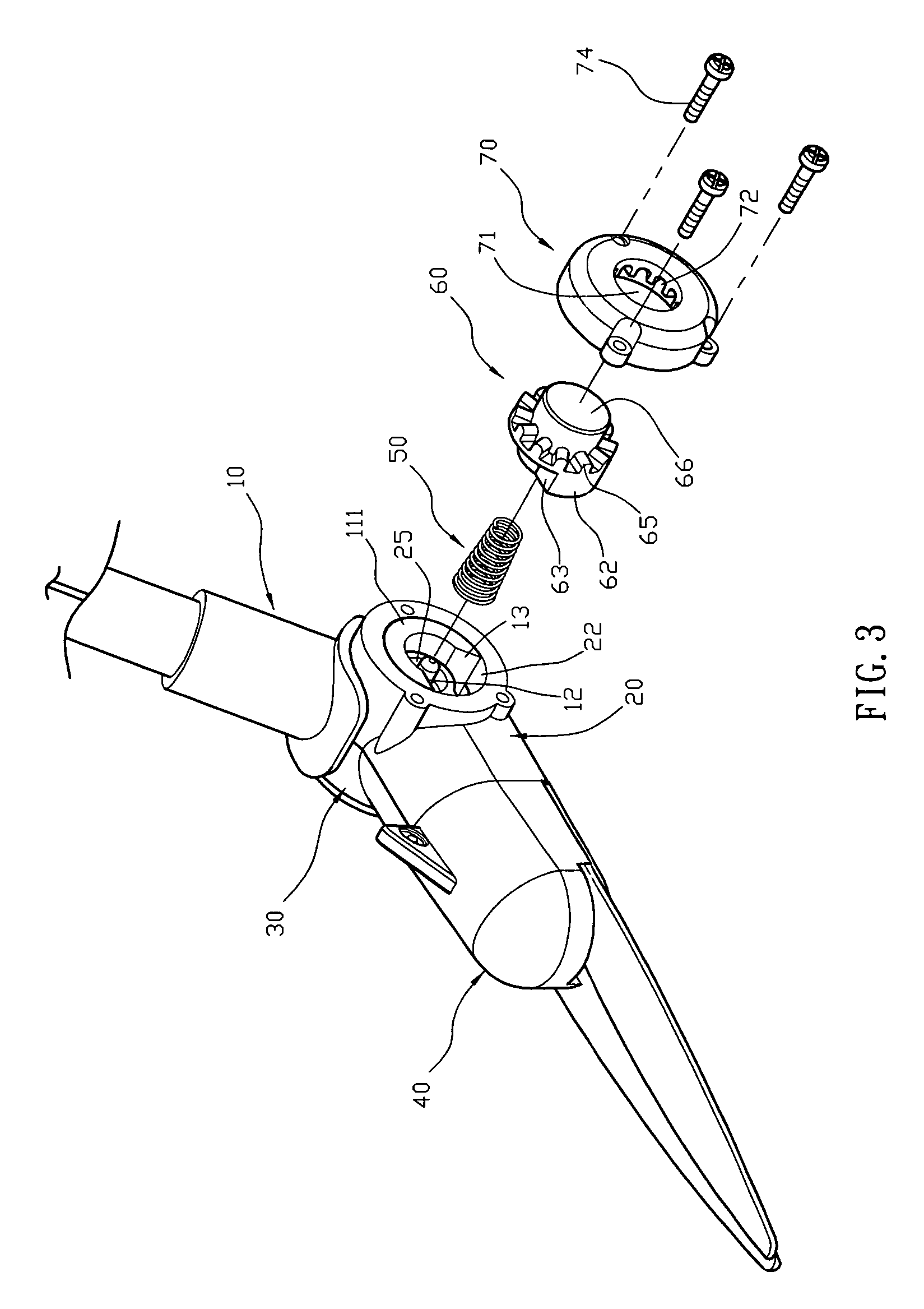

US-7370423-B1 figure 3
3
US-7370423-B1 figure 4
4
US-7370423-B1 figure 5
5
US-7370423-B1 figure 6
6
US-7370423-B1 figure 7
7
US-7370423-B1 figure 8
8
