用于展开草皮卷。
专利摘要
一种草皮展开机，包括框架，该框架适于固定到具有可垂直移动挂钩的车辆的后端。框架包括第一和第二水平间隔开且向后延伸的框架构件，第一和第二框架构件中的每一个具有后端。草皮卷支撑件可旋转地固定到第一和第二框架构件的后端并在其间延伸，用于在其上支撑草皮卷。草皮卷制动器可移动地固定到框架并可在第一和第二位置之间移动。当草皮制动器处于其第一位置时，制动器不与草皮卷接合。当草皮卷制动器处于其第二位置时，草皮卷制动器接合草皮卷，以防止草皮从草皮卷展开。
Original abstractA sod unrolling machine including a frame which is adapted to be secured to the rear end of a vehicle having a vertically movable hitch. The frame includes first and second horizontally spaced-apart and rearwardly extending frame members with each of the first and second frame members having a rearward end. A sod roll support is rotatably secured to the rearward ends of the first and second frame members and extends therebetween for supporting a sod roll thereon. A sod roll brake is movably secured to the frame and is movable between first and second positions. When the sod brake is in its first position, the brake is not in engagement with the sod roll. When the sod roll brake is in its second position, the sod roll brake engages the sod roll, to prevent the sod from unrolling from the sod roll.

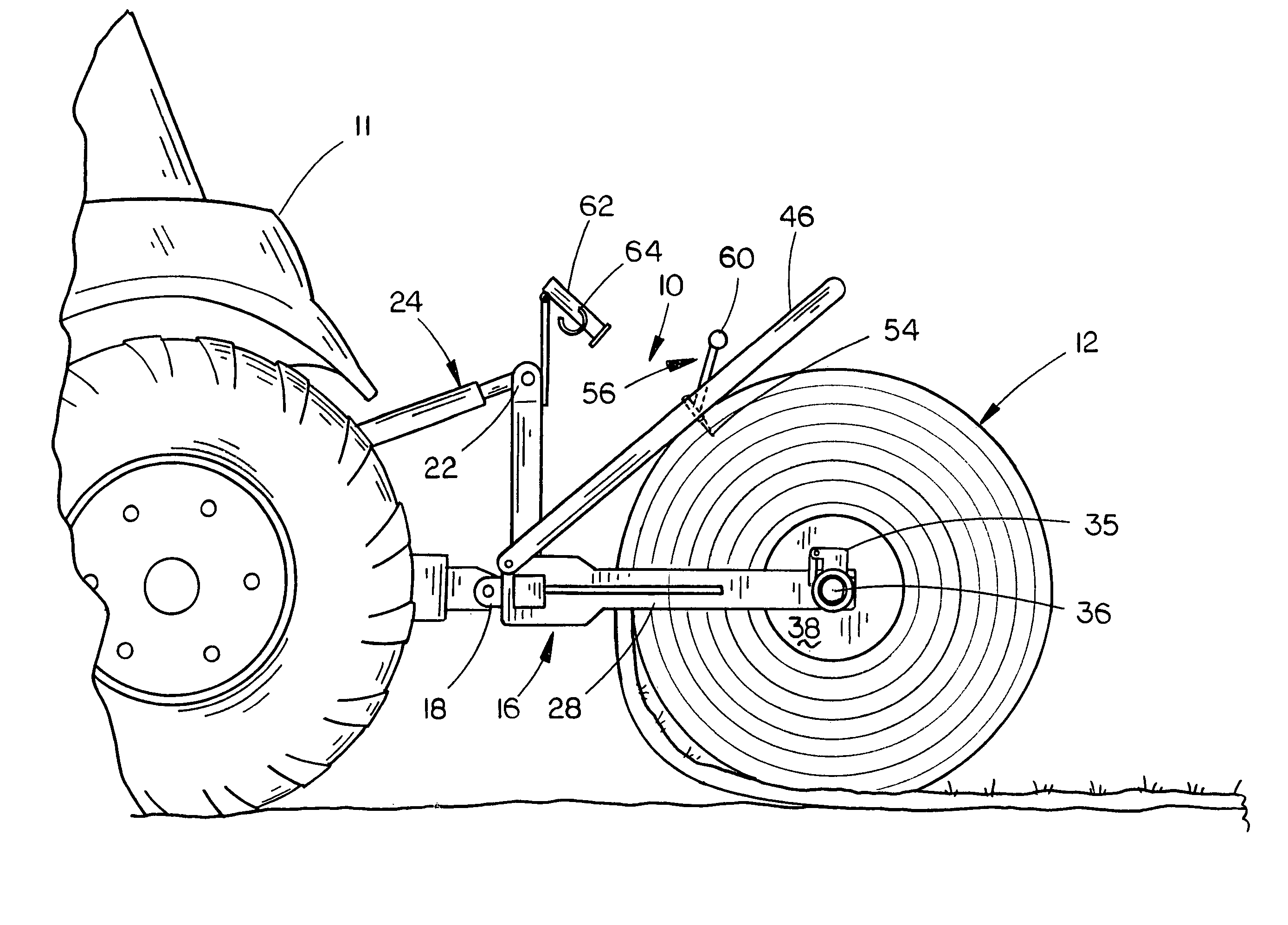

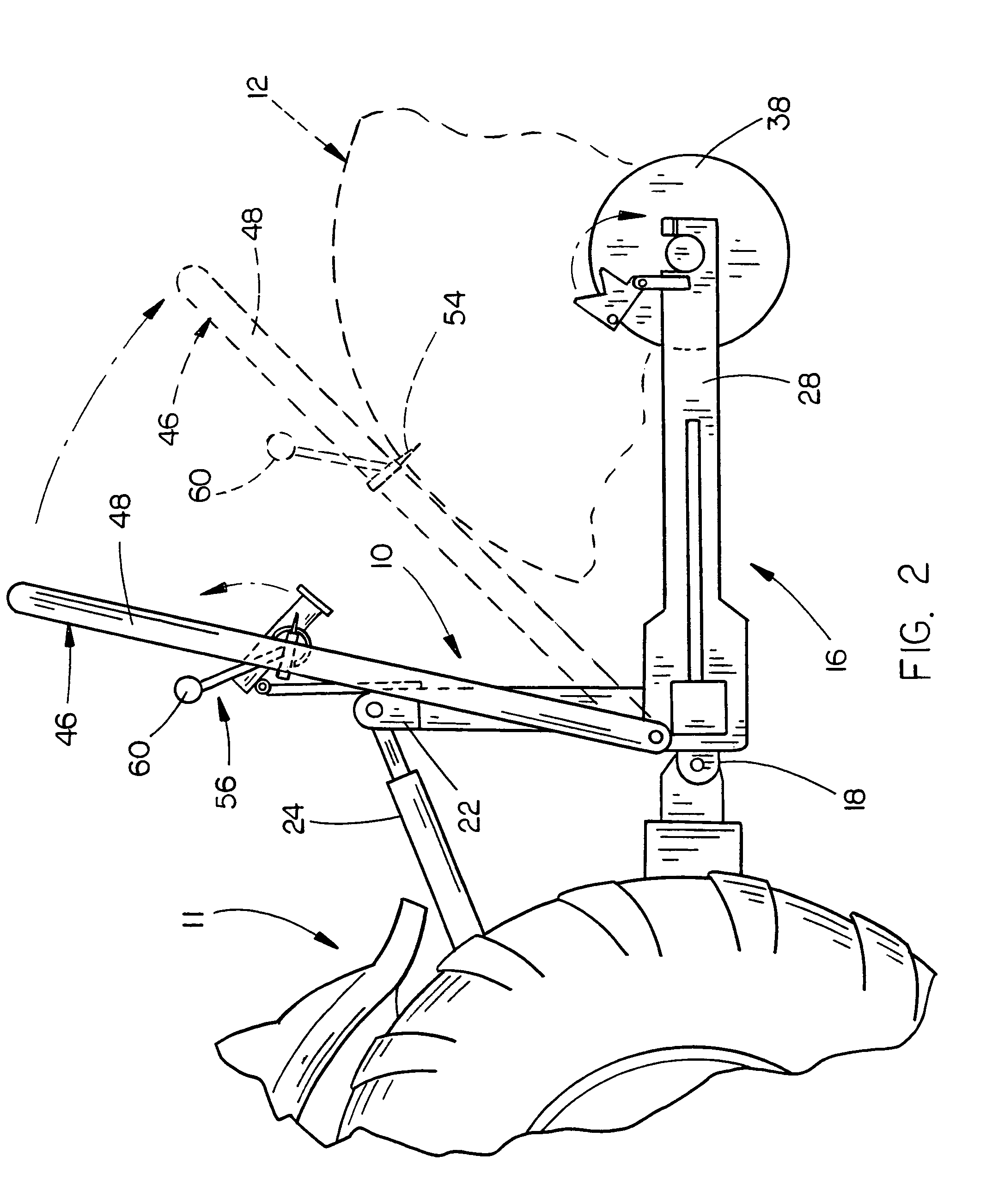

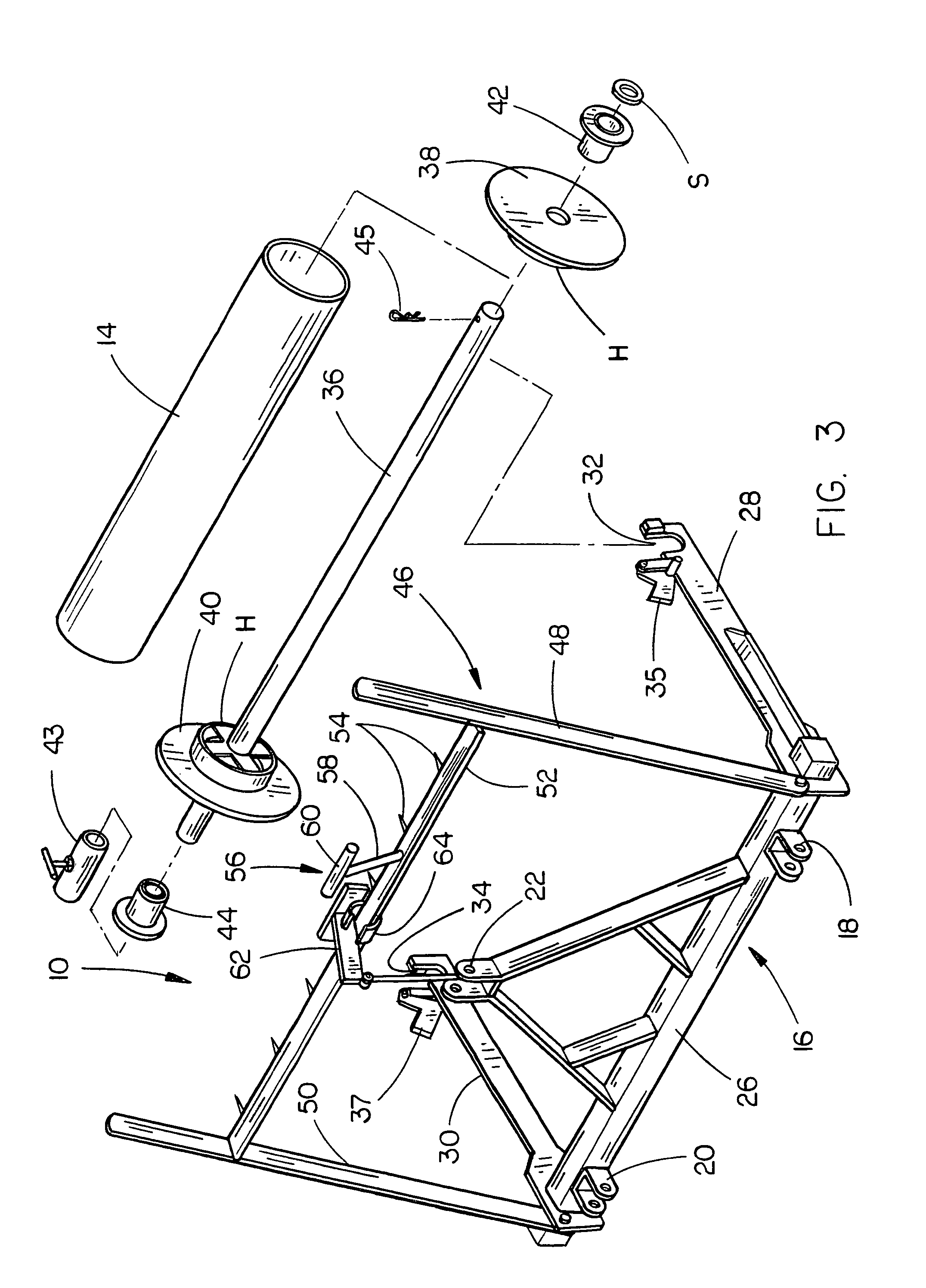

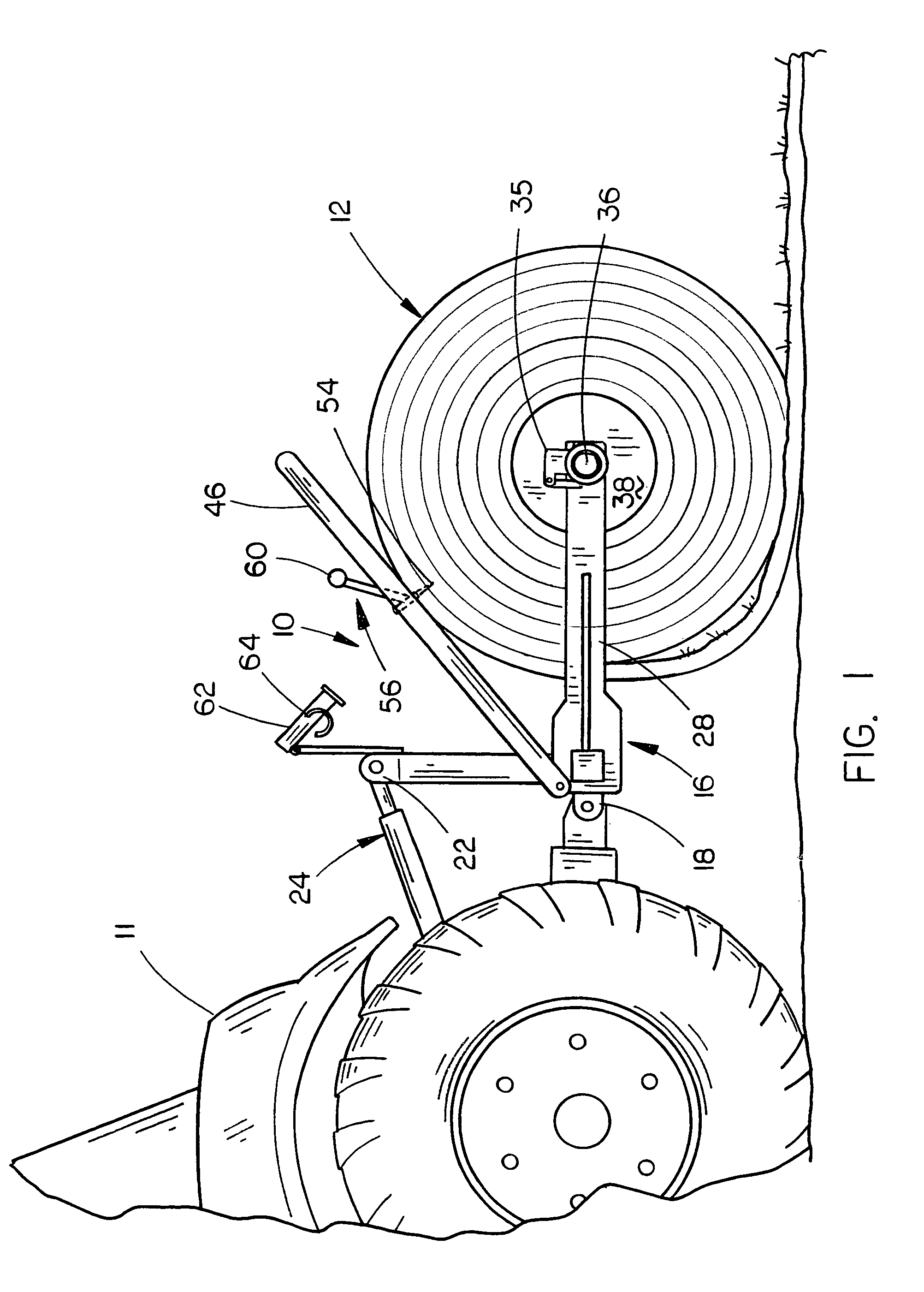

专利附图（8）
