一种带可折叠支撑腿的金属丝篮式种植器。
专利摘要

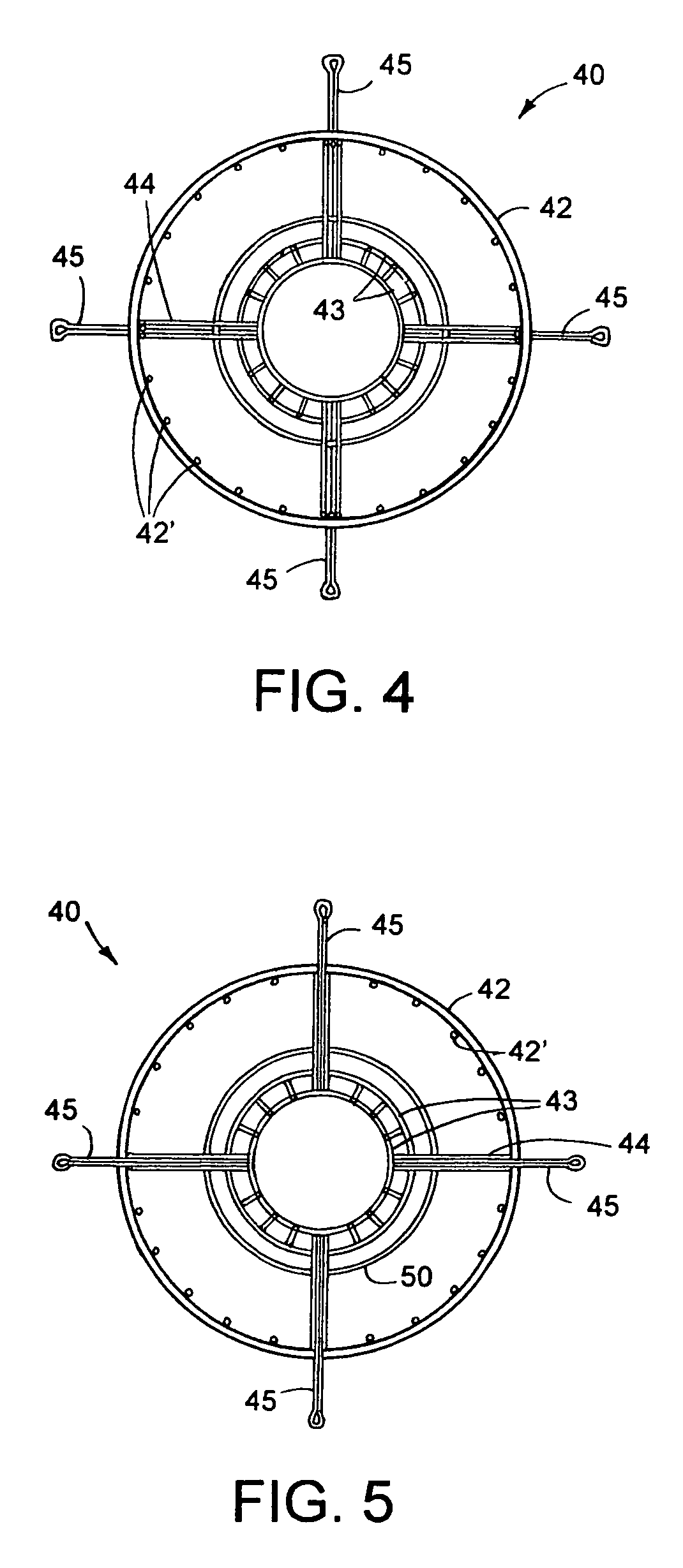

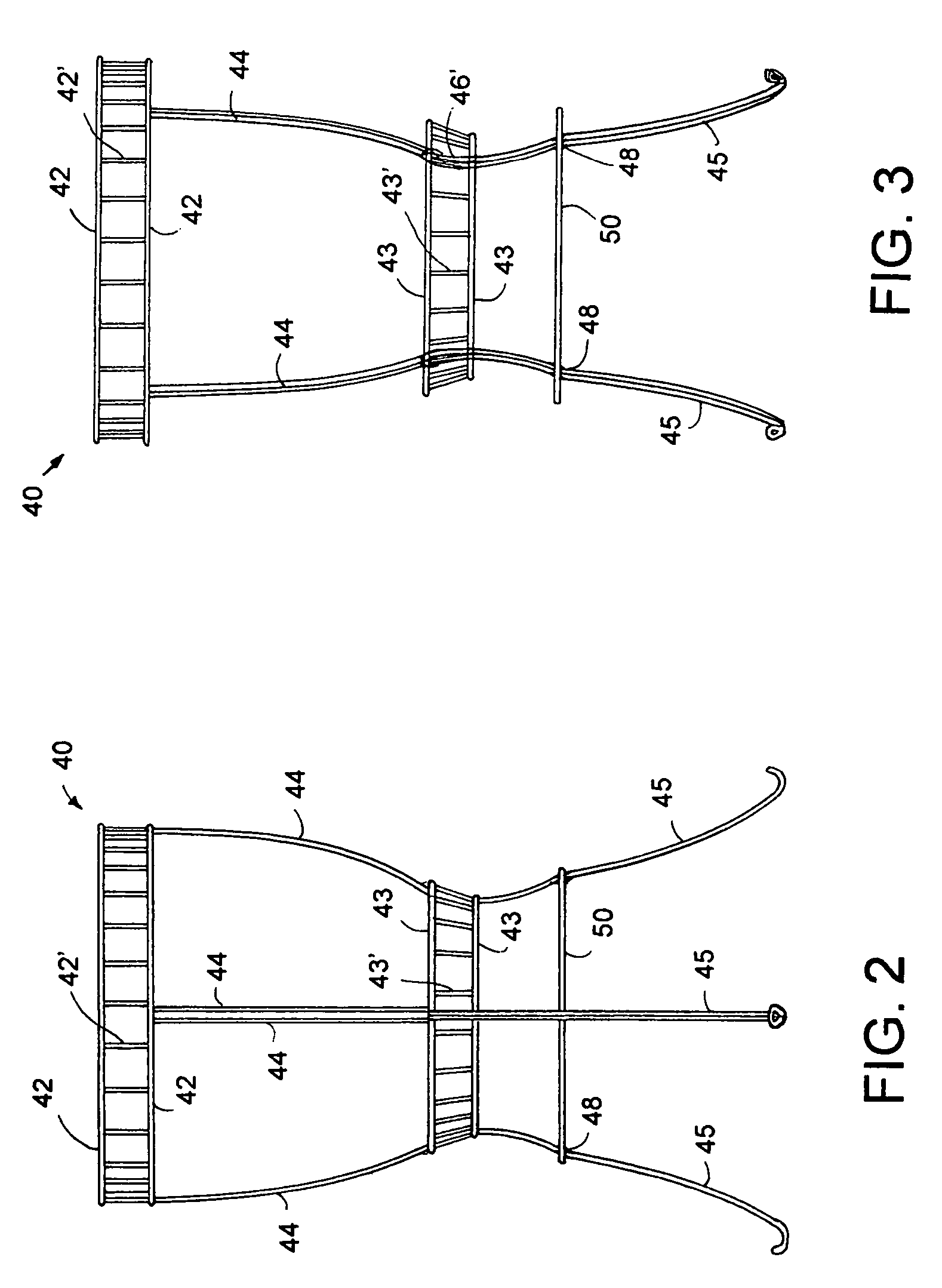

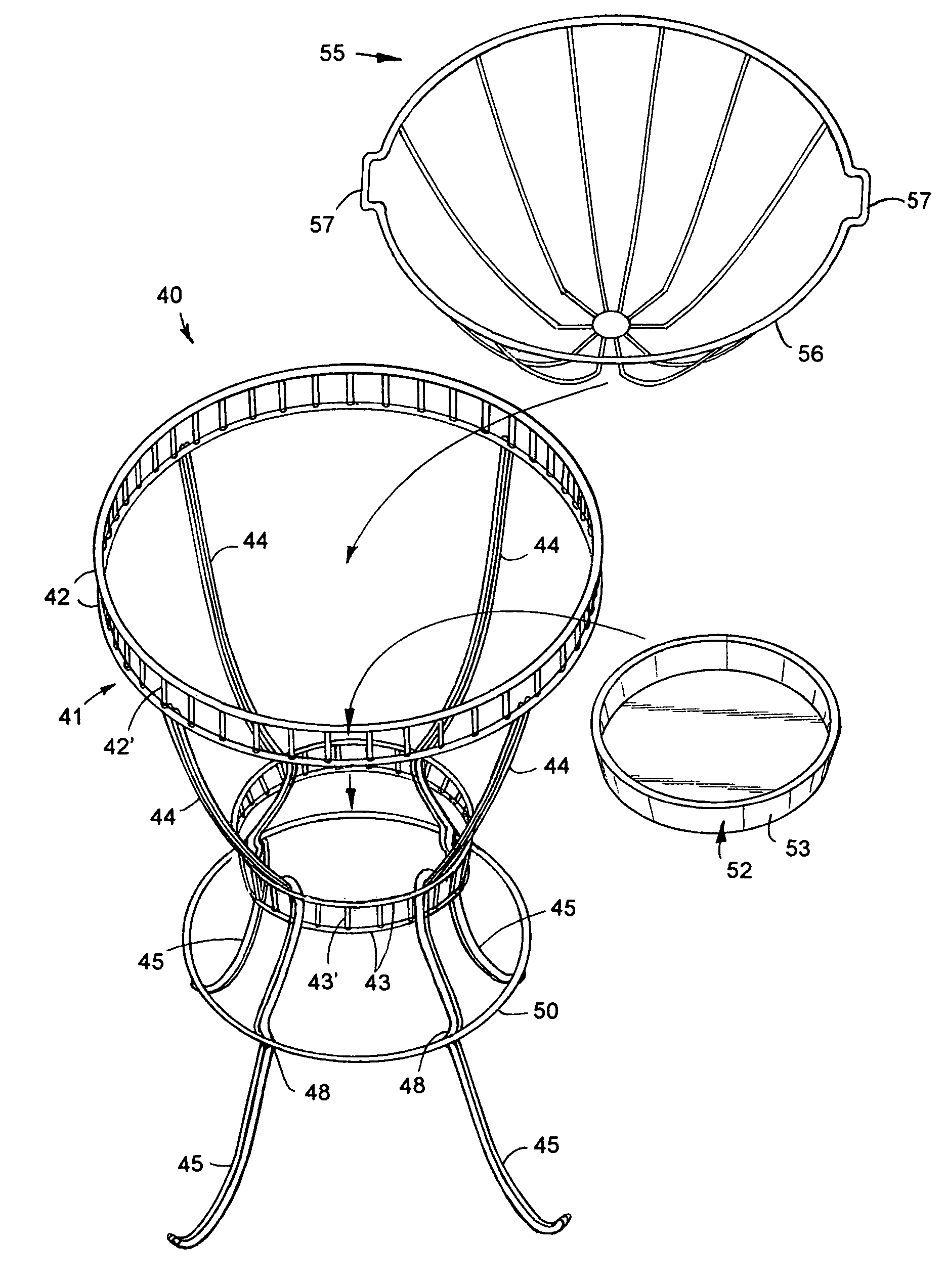

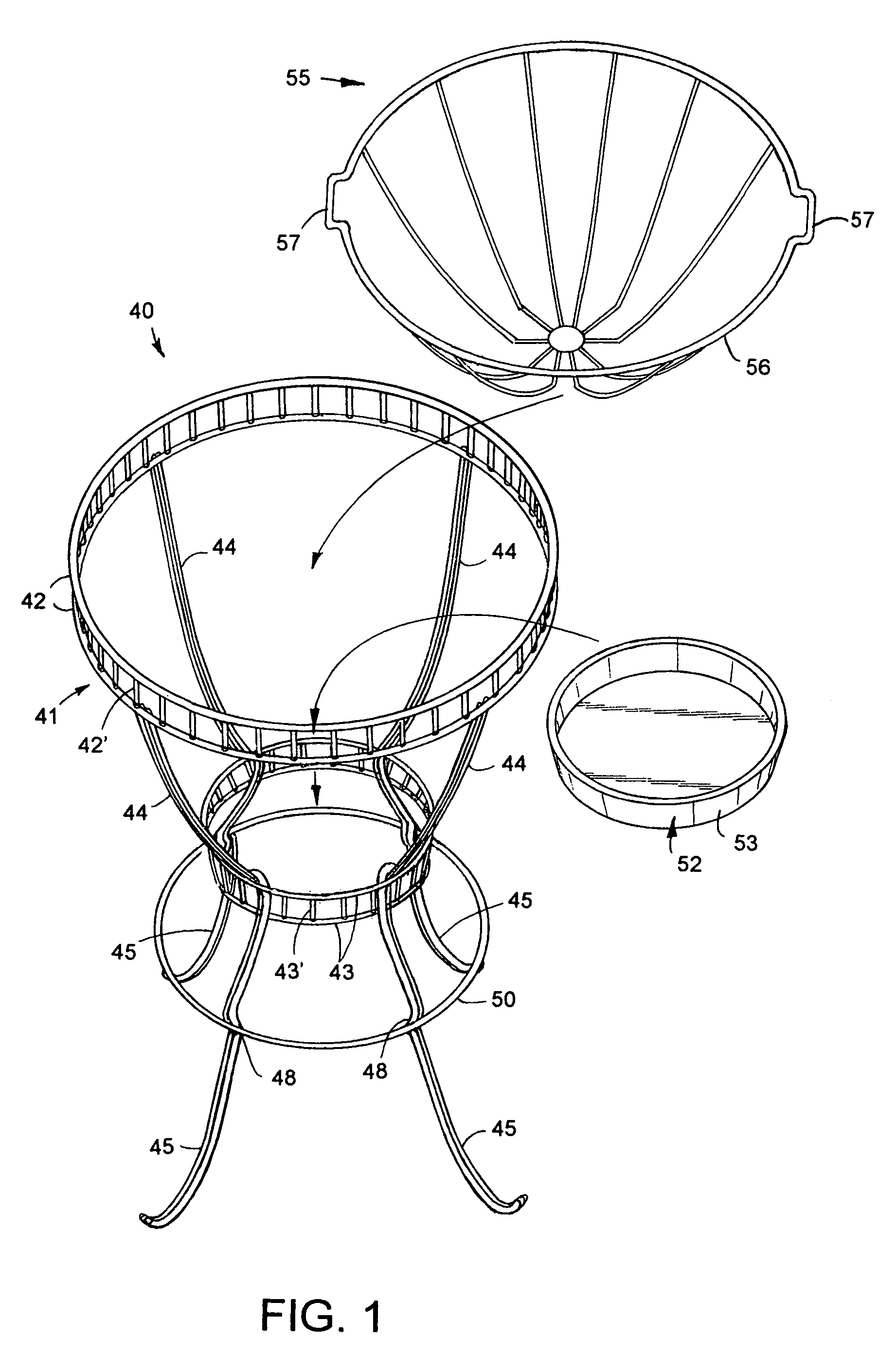

一种种植器，包括具有水平平行顶环、底环和连接的竖直金属丝的金属丝篮。四个折叠腿各包括可旋转地附接至底环的顶部环圈。腿在其向下展开位置时各包括短的内倾段，该内倾段嵌套入底环中以获得稳定性。腿还包括形成中等高度止动凹部的外倾段和脚部。保持环向下滑动以与所有四个止动凹部接合，将腿固定在其使用位置，由于与底环中凹部的嵌套关系，该位置特别稳定。还公开了滴水盘、浅的次级篮和替代性腿闩锁。
Original abstractA planter includes a wire basket having horizontal parallel top rings, bottom rings, and connected vertical wires. Four folding legs each include a top loop rotatably attached to the bottom rings. The legs when in their extended down position each include a short inwardly angled section that nests into the bottom rings for stability. The legs also include an outwardly angled section forming a mid-height detent recess, and a foot. A retainer ring slides downwardly into engagement with all four of the detent recesses to secure the legs in their use positions, which is particularly stable due to the nested relationship with the recesses in the bottom rings. A drip pan, shallow secondary basket and alternative leg-latches are also disclosed.
专利附图（8）
