用于在水面上展示和浇灌植物。
专利摘要
一种浮动花园装置，用于在花园漂浮在水体上时展示和浇灌至少一个活植物。该装置由浮力体和附接到浮力体的至少一个植物安装凹槽组成。凹槽由侧壁和底部组成。底部以非水平方向定位，通常形成五度至四十五度之间的角度。凹槽定位成使得仅底部的一部分与水流体连通，从而不淹没整个底部。花园装置可具有延伸穿过安装凹槽底部的至少一个流体通道，使得水可填充安装凹槽的浸没部分，或者其可具有附接到凹槽底部的芯吸装置，使得芯吸装置延伸到水中。
Original abstractA floating garden device for displaying and watering at least one living plant as the garden floats on a body of water. The device is composed of a buoyant body and at least one plant mounting recess attached to the buoyant body. The recess is comprised of a sidewall and a bottom. The bottom is positioned in a non-horizontal orientation, generally forming an angle between five degrees and forty-five degrees. The recess is located such that only a portion of the bottom is in fluid communication with the water, thus not submerging the entire bottom. The garden device may have at least one fluid passageway extending through the mounting recess bottom such that the water may fill the submerged portion of the mounting recess, or it may have a wicking device attached to the recess bottom such that the wicking device extends into the water.

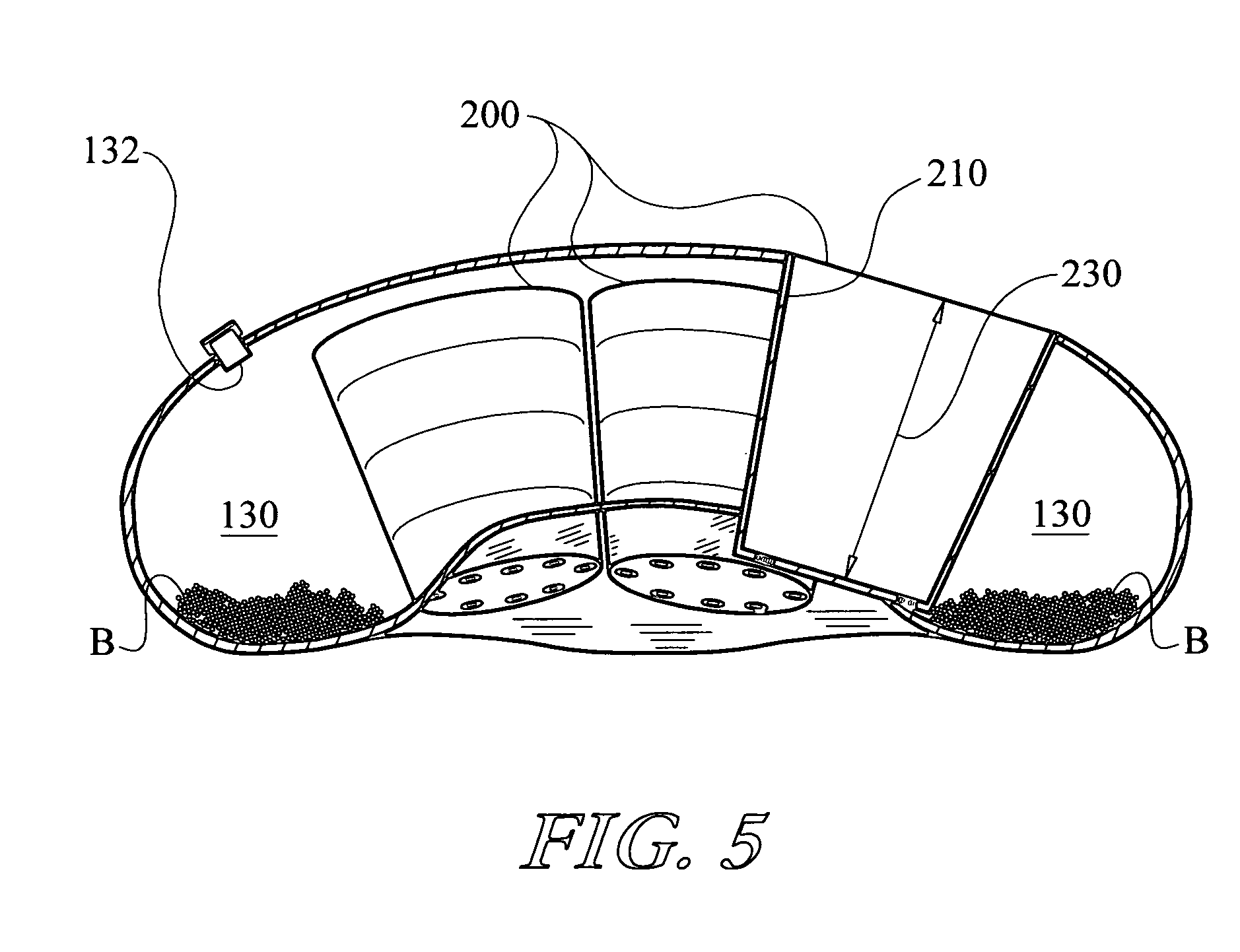

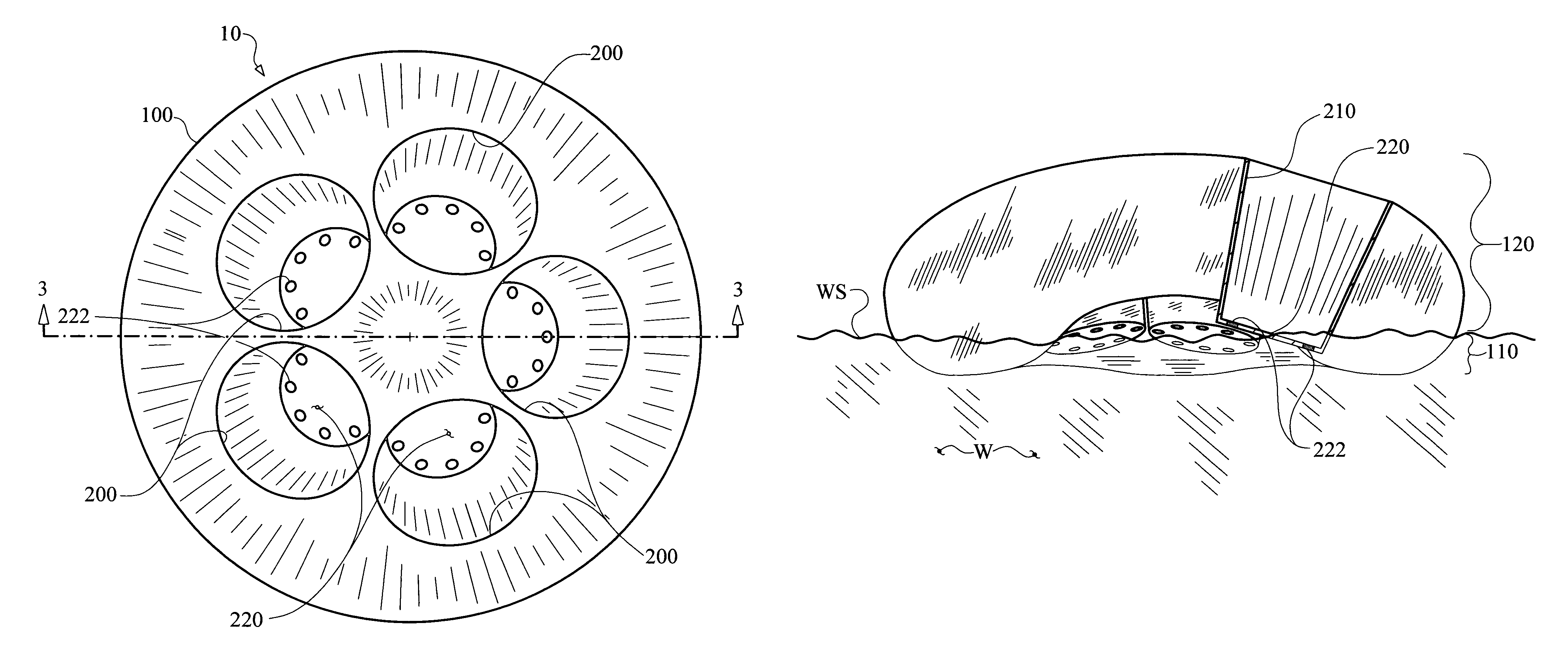

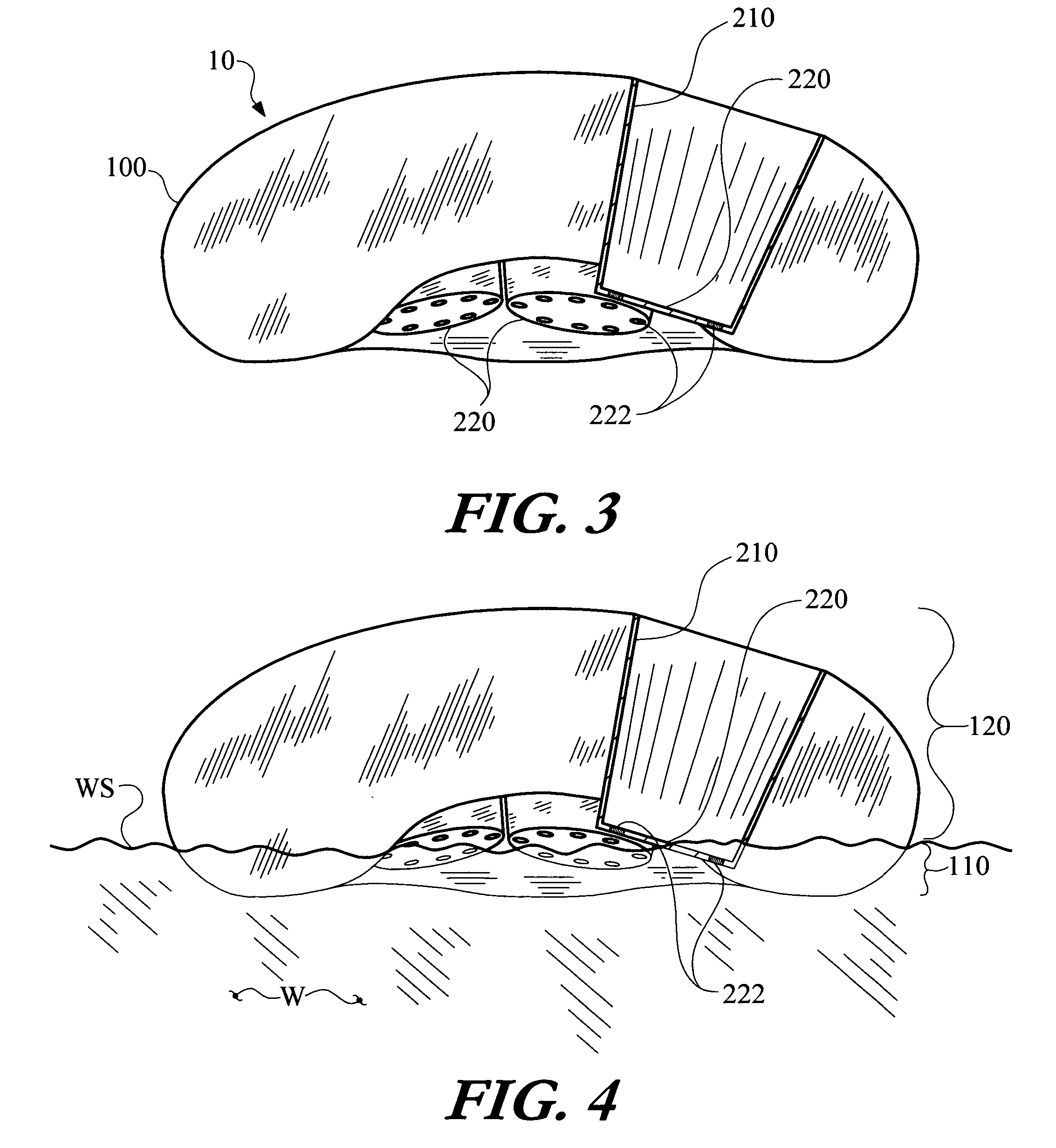

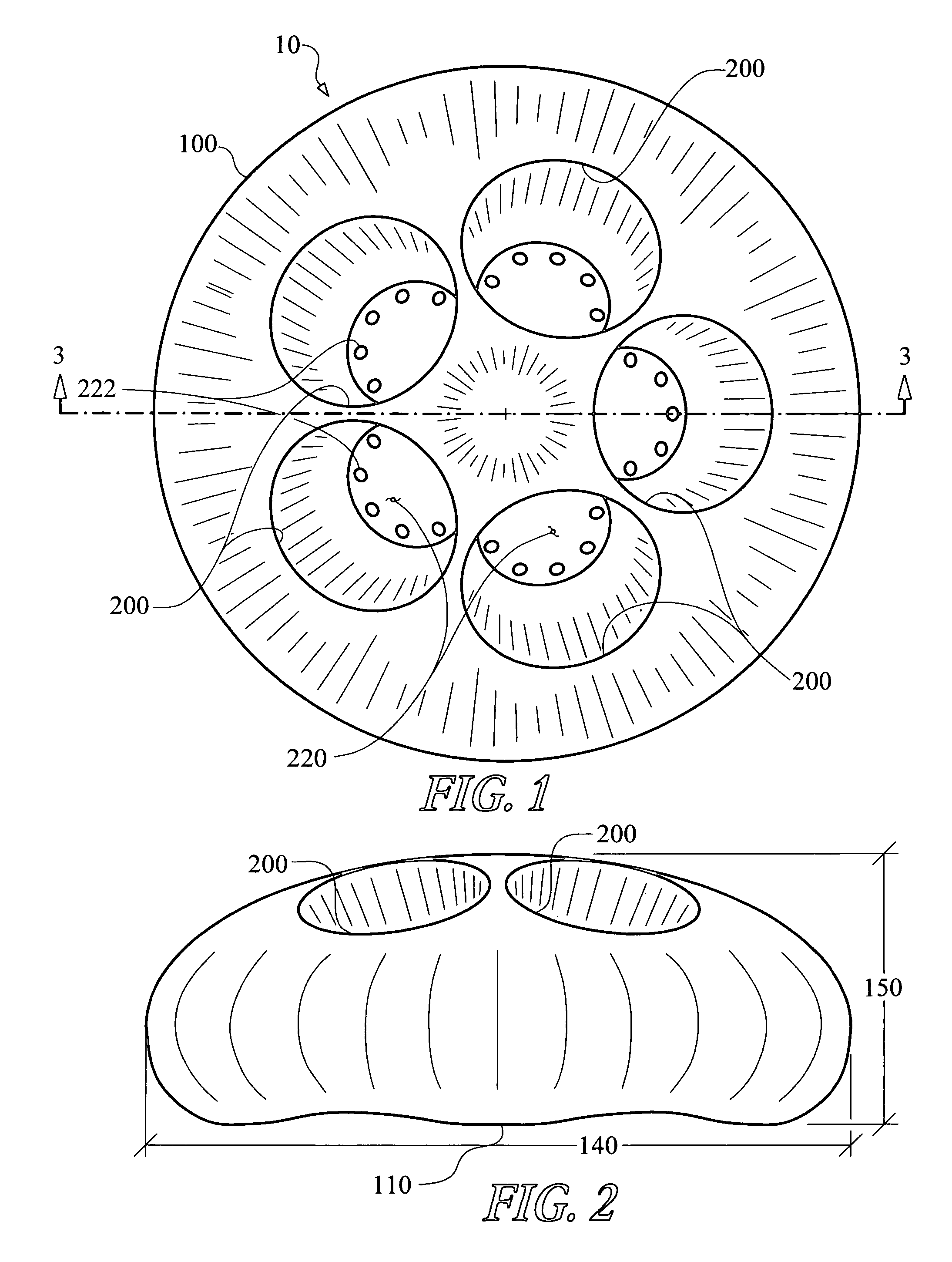

专利附图（8）
