用于安装展示和保存花卉布置的装置的设备和方法

Apparatus and method for mounting a device for displaying and preserving flower arrangements

US-7318297-B2

用于包装和展示花卉布置。

专利摘要

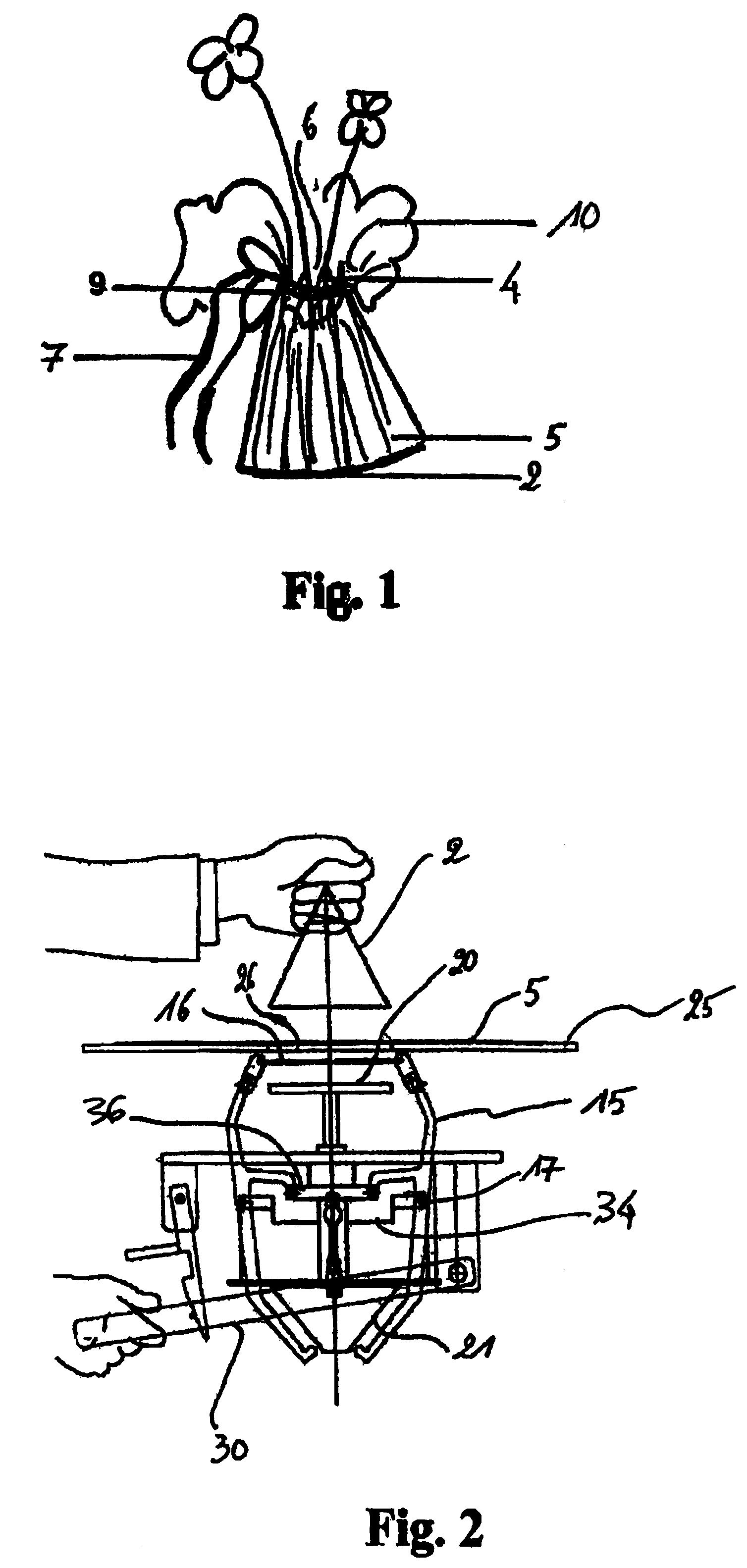

本发明涉及一种用于安装展示单个花卉布置的装置（10）的设备。该装置包括基座元件（2），其整个圆周上可设有或不设有凸起脊（4），以及可水密或不水密的片材（5），其放置在基座元件（2）下方，并在装置（10）的中心顶部周围聚集，并由诸如丝带（7）的紧固件（9）保持，以保持片材（5）围绕花卉布置密封。该设备包括若干可移动的枢转垂褶指状件（15），其与收紧绳（16）相关联，用于引导片材（5）围绕基座元件（2）；支撑底板（20），其沿垂直轴移动以支撑装置10；预定形状的引导装置（21），其连接到基板（20）以引导所有垂褶指状件（15）；以及致动装置（30），用于沿垂直轴移动基板（20）和引导装置（21），并用于使由引导装置（21）引导的所有垂褶指状件（15）枢转，使得绳（16）围绕垂褶片材（5）束紧。

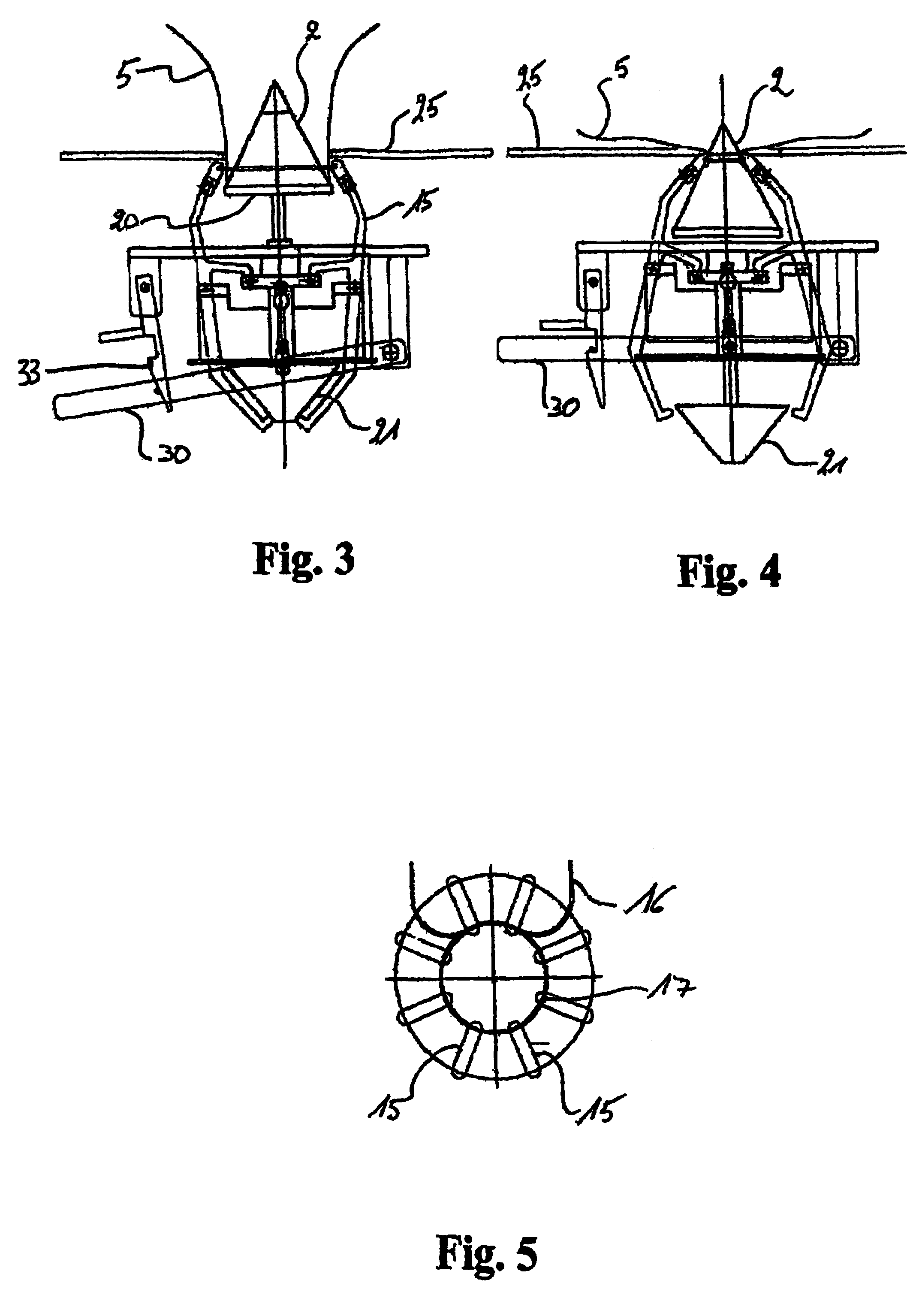

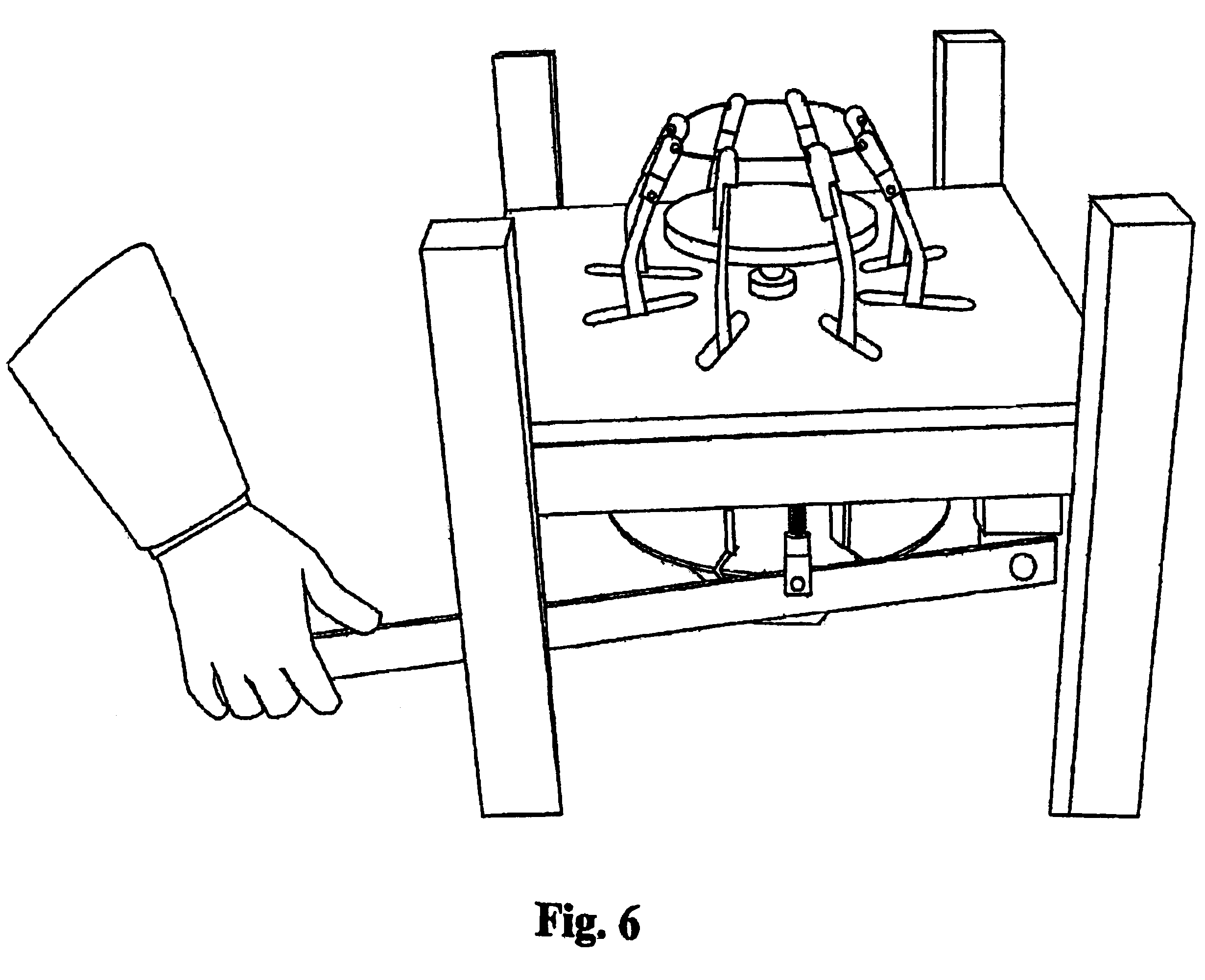

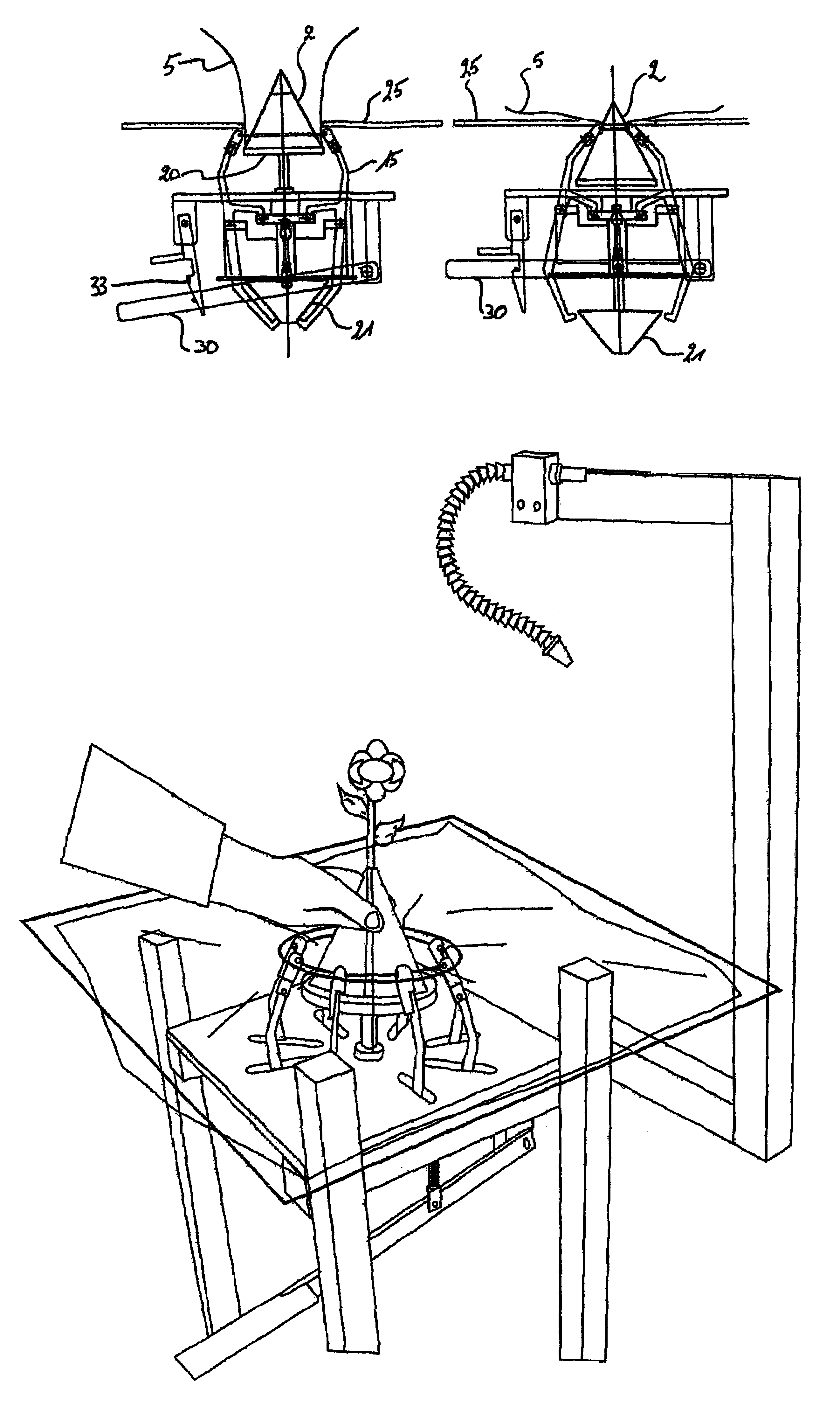

Original abstractThe invention concerns an apparatus for mounting a device ( 10 ) for displaying individual flower arrangements. The device includes a base element ( 2 ) which may or may not be equipped with a raised ridge ( 4 ) over its entire circumference, and a sheet ( 5 ) which may or may not be watertight placed under base element ( 2 ) and which is gathered around the center top of the device ( 10 ) and held by an fastener ( 9 ) such as a ribbon ( 7 ) for keeping the sheet ( 5 ) sealed around the flower arrangement. The apparatus includes several movable pivoting draping fingers ( 15 ) associated with a tightening cord ( 16 ) for guiding the sheet ( 5 ) around the base element ( 2 ), a support base plate ( 20 ) that moves along a vertical axis to support device 10 , a guide means ( 21 ) of a predetermined shape connected to base plate ( 20 ) for guiding all the draping fingers ( 15 ), and an actuating means ( 30 ) for moving the base plate ( 20 ) and the guide means ( 21 ) along the vertical axis and for pivoting all the draping fingers ( 15 ) that are guided by guide means ( 21 ) so that the cord ( 16 ) is bound around draped sheet ( 5 ).

专利附图（8）
