用于自动化移植植物，提高种植效率。
专利摘要

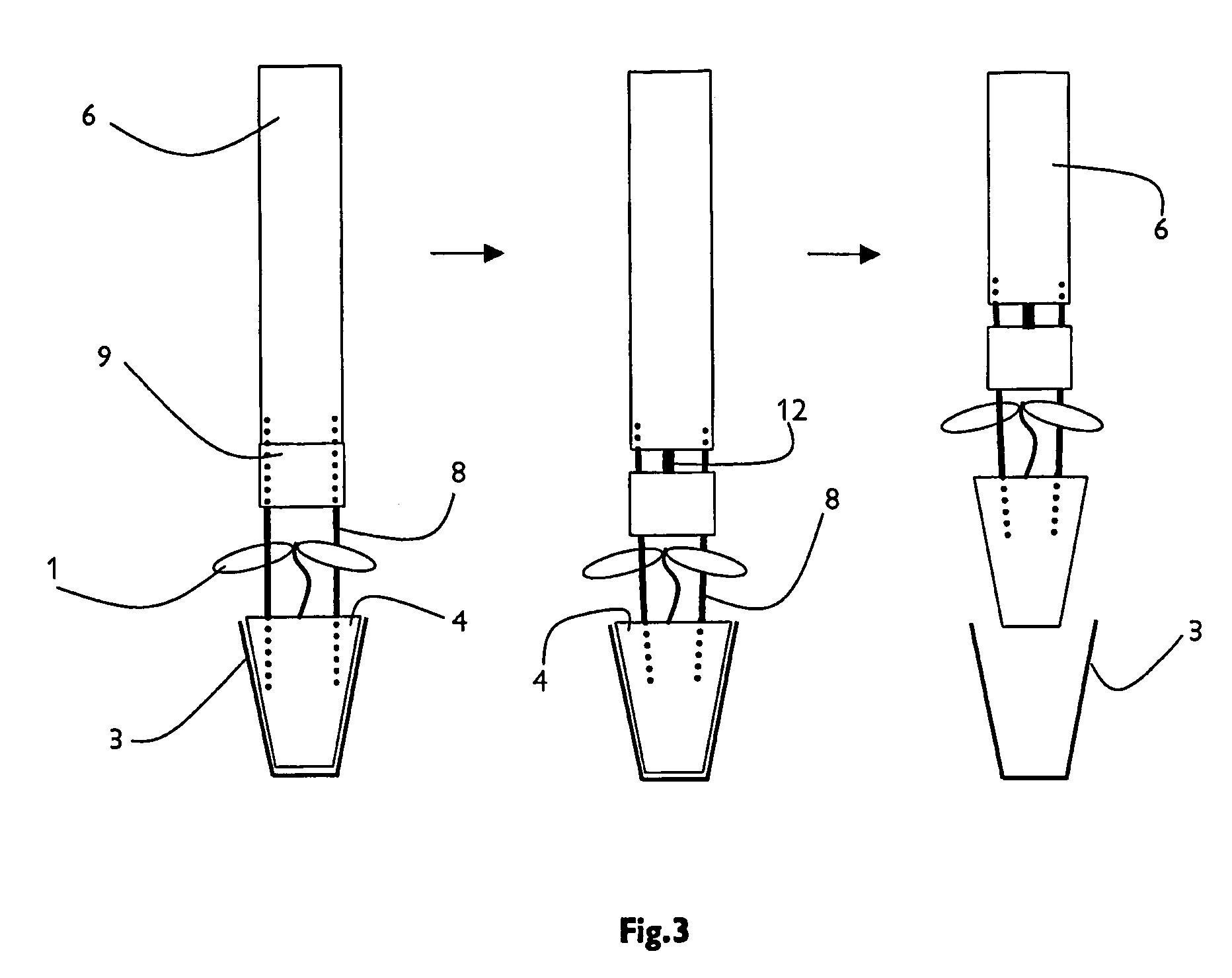

一种自动化种植机，包括：定位装置，布置成定位繁殖托盘；至少一个植物提取装置，适于将植物从由定位装置定位的繁殖托盘中拉出；以及输送组件，布置成接收由至少一个植物提取装置提取的植物并将接收的植物输送到地面。种植机通过插入手指将植物从托盘中的穴盘中提起，手指被导致会聚以夹住根球。植物运输装置包括两条轨道，使得一条可装载而另一条将植物运输到输送组件。
Original abstractAn automated planter includes a locating device arranged to locate a propagation tray; at least one plant extraction device adapted to pull a plant out of a propagation tray located by the locating device; and a delivery assembly arranged to receive a plant extracted by the at least one plant extraction device and deliver the received plant to the ground. The planter lifts the plants out of their cells in the tray by inserting fingers, which are caused to converge to pinch the root ball. A plant transport includes two tracks, such that one can be loaded while the other is transporting plants to the delivery assembly.

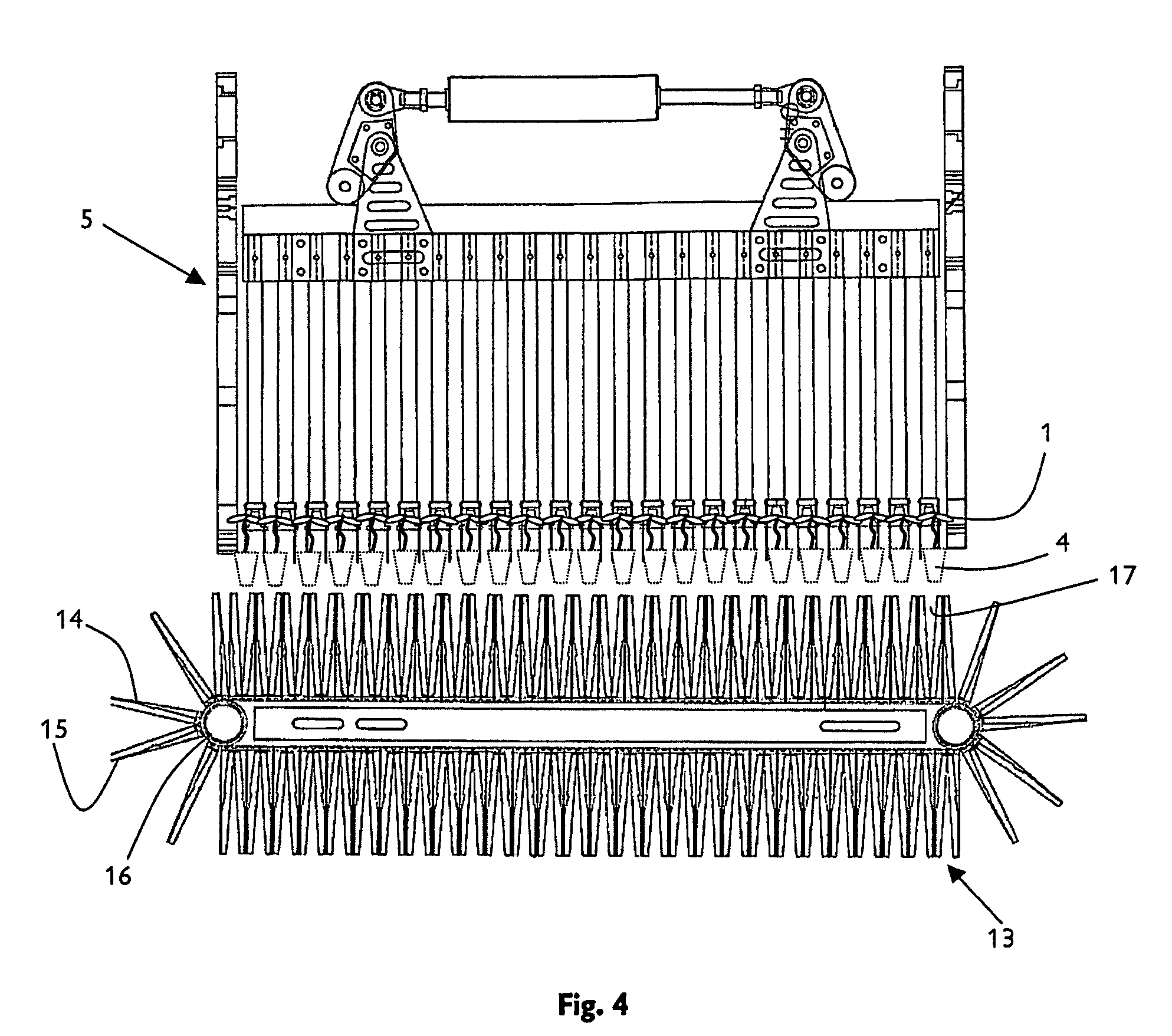

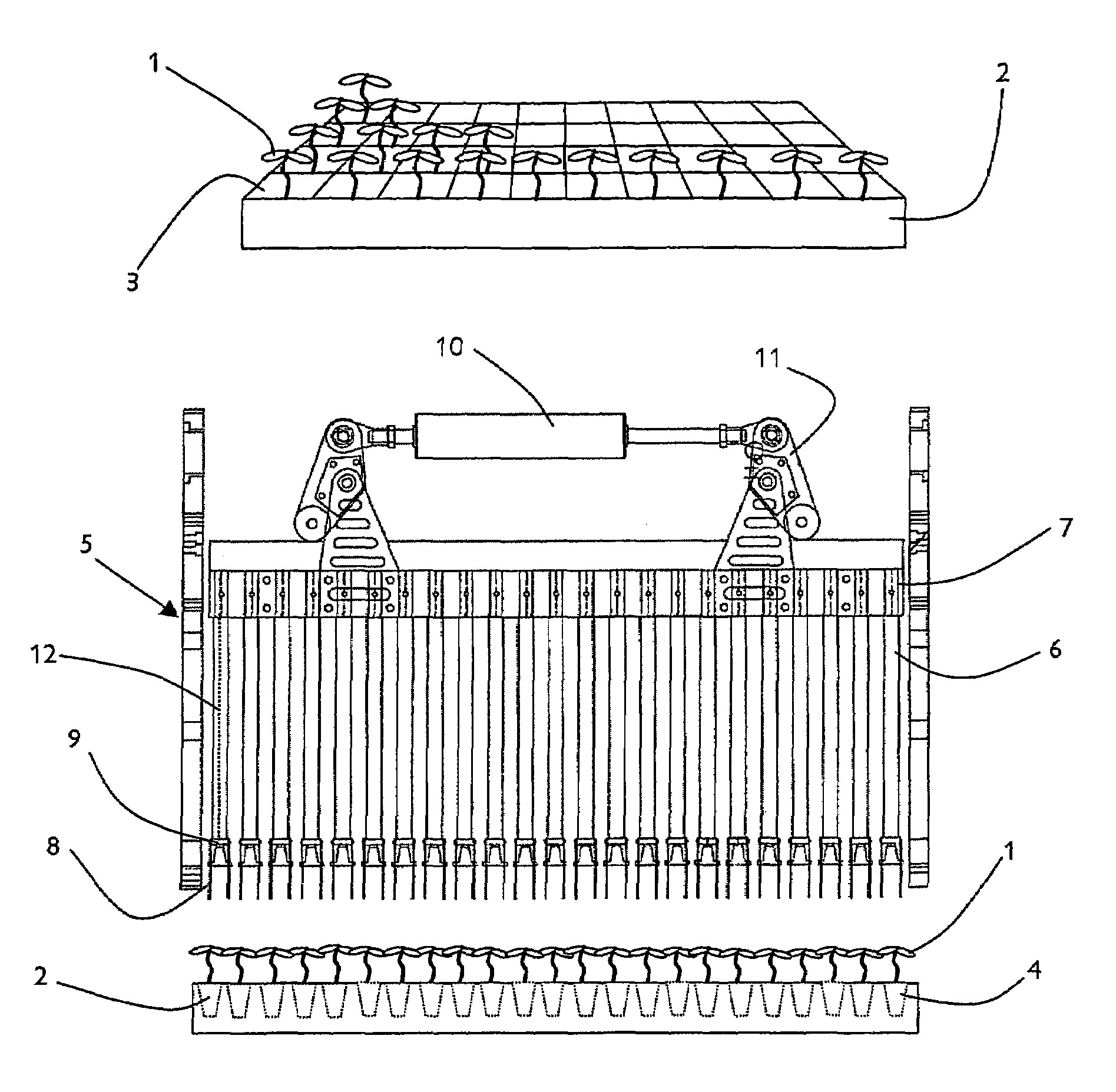

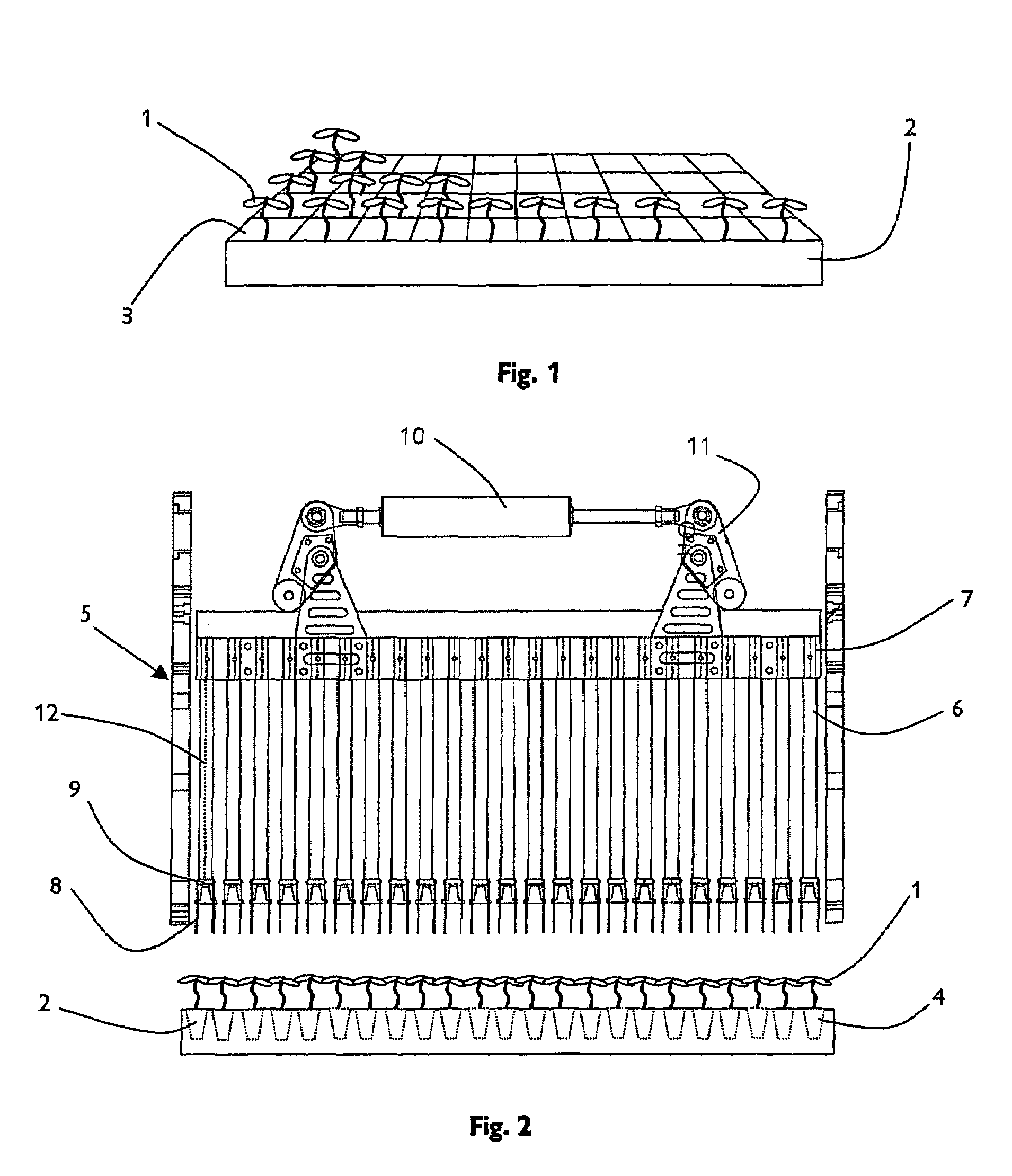

专利附图（8）
