用于保持丝绸花卉布置的支架

Stand for holding silk floral arrangements

US-7296773-B2

用于在墓地纪念物上支撑植物或物品。

专利摘要

本发明提供了一种用于保持丝绸花卉布置的支架,其包括:大致管状件,具有纵向轴线,并且沿纵向轴线在第一位置限定第一横截面积,在第二位置限定第二横截面积。该支架还包括附接到大致管状件一端的底座件,该底座件构造成以直立对准方式支撑大致管状件。该支架还包括第一面积调节件,其构造成沿纵向轴线在第一位置处接合大致管状件,该第一面积调节件限定第三横截面积,该第三横截面积小于大致管状件第一位置处限定的第一横截面积。该支架还进一步包括第二面积调节件,其构造成沿纵向轴线在第二位置处接合大致管状件,该第二面积调节件限定第四横截面积,该第四横截面积小于大致管状件第二位置处限定的第二横截面积。

Original abstractThe present invention provides a stand for holding silk floral arrangements that includes a substantially-tubular piece having a longitudinal axis and defining a first cross-sectional interior area at a first position along the longitudinal axis and a second cross-sectional interior area at a second position along the longitudinal axis. The stand also includes a base piece attached to an end of the substantially-tubular piece, the base piece configured to support the substantially-tubular piece in an upright alignment. The stand further includes a first area-adjustment piece configured to engage the substantially-tubular piece at the first position along the longitudinal axis, the first area-adjustment piece defining a third cross-sectional interior area that is smaller than the first cross-sectional interior area defined at the first position of the substantially-tubular piece. The stand still further includes a second area-adjustment piece configured to engage the substantially-tubular piece at the second position along the longitudinal axis, the second area-adjustment piece defining a fourth cross-sectional interior area that is smaller than the second cross-sectional interior area defined at the second position of the substantially-tubular piece.

专利附图(8)

US-7296773-B2 figure 1
1

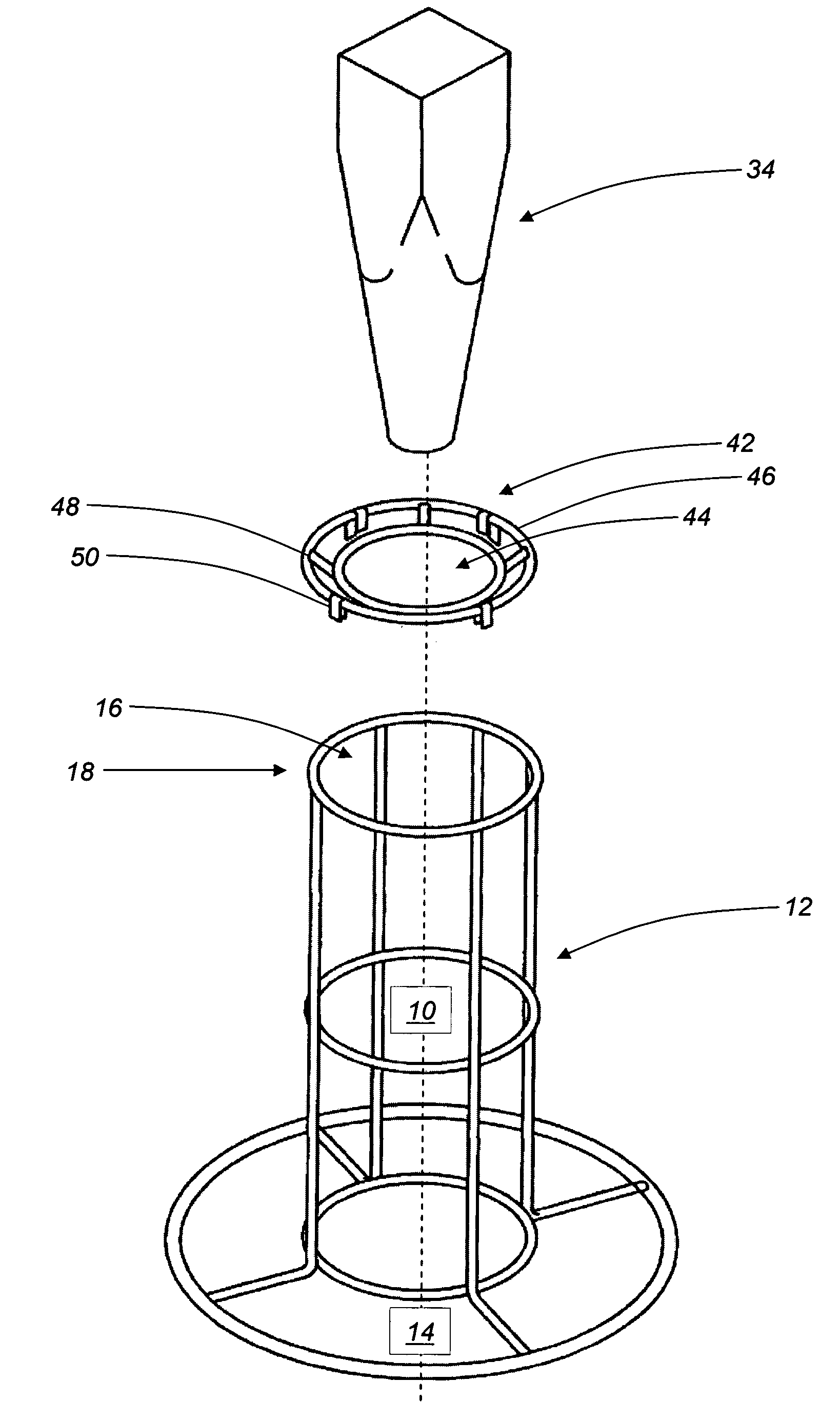

US-7296773-B2 figure 2
2
US-7296773-B2 figure 3
3

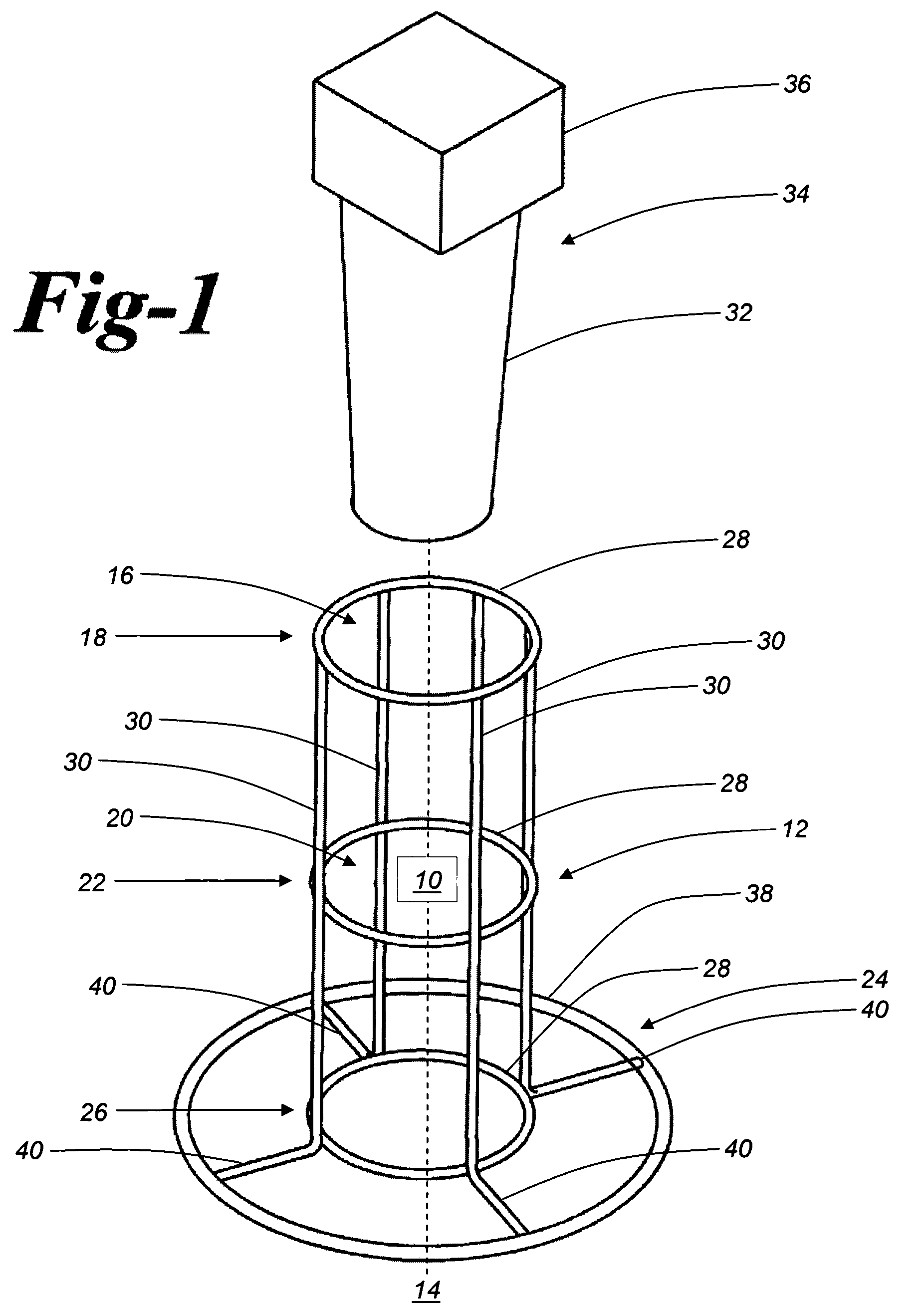

US-7296773-B2 figure 4
4
US-7296773-B2 figure 5
5

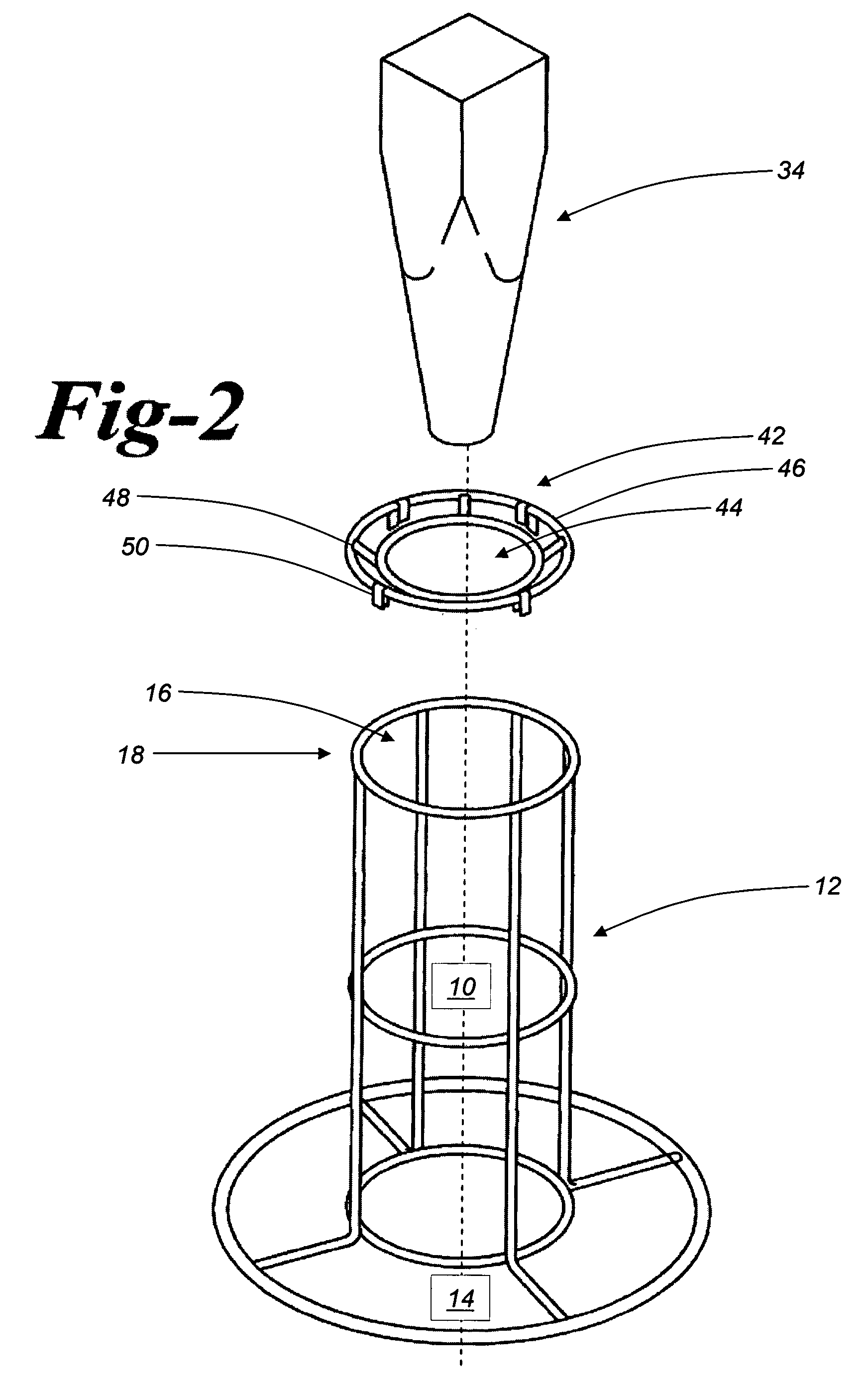

US-7296773-B2 figure 6
6
US-7296773-B2 figure 7
7

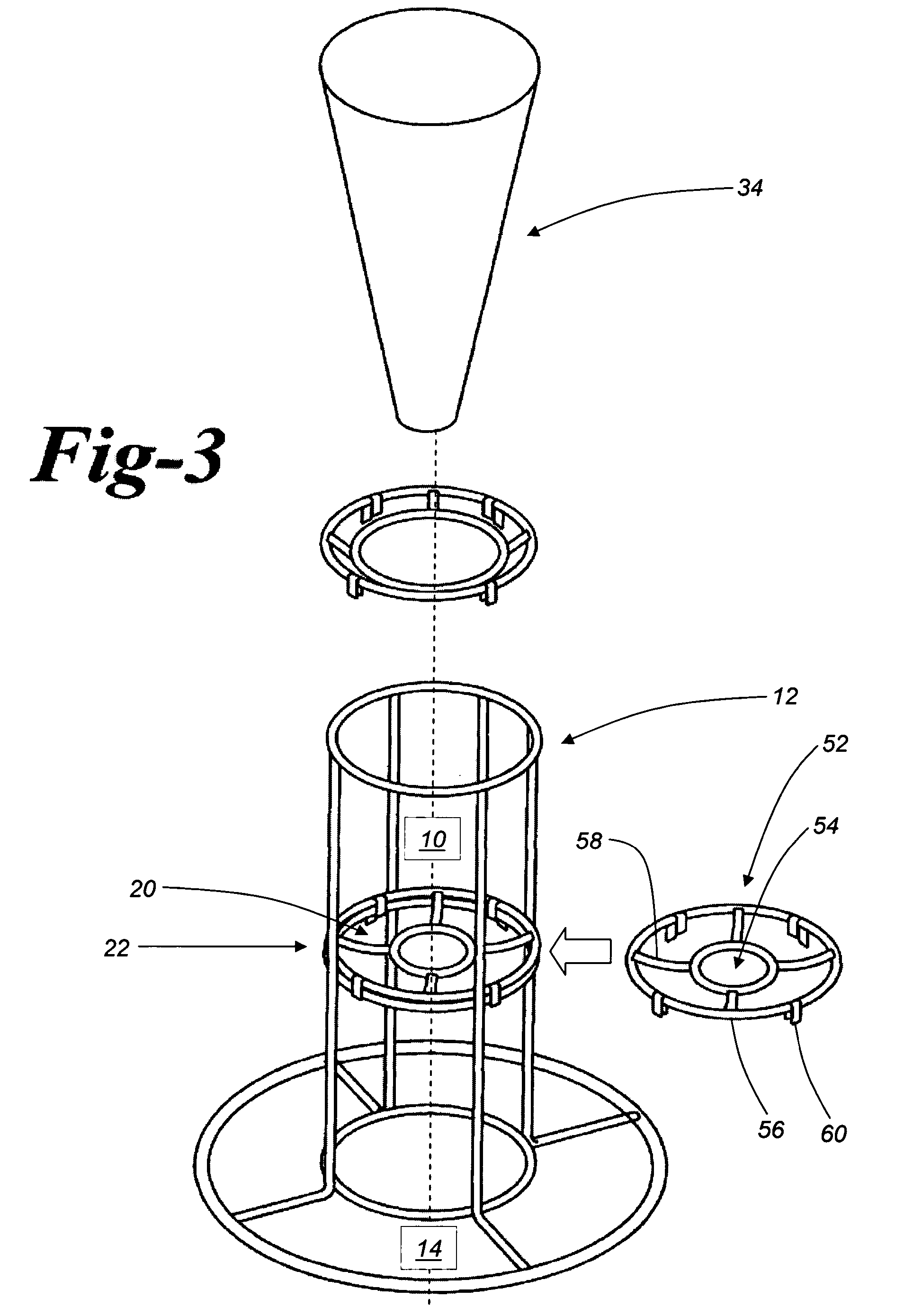

US-7296773-B2 figure 8
8
