Dispenser loading arrangement and method of loading a dispenser

US-8464976-B2

Abstract

A dispenser for sheet material such as paper towel, having a housing body and a housing cover. A feed mechanism in the dispenser includes a drive roller and a pressure roller forming a nip therebetween. Movement of the housing cover from a closed position towards an open position moves the pressure roller relatively away from the drive roller to open the nip. The reverse occurs during closing the cover. This allows easy access to the space between the rollers when adding a new supply of sheet material or when removing sheet material jams. A method for loading a dispenser is also included.

Patent figures（8）

US-8464976-B2 fig 1
1
US-8464976-B2 fig 2
2
US-8464976-B2 fig 3
3

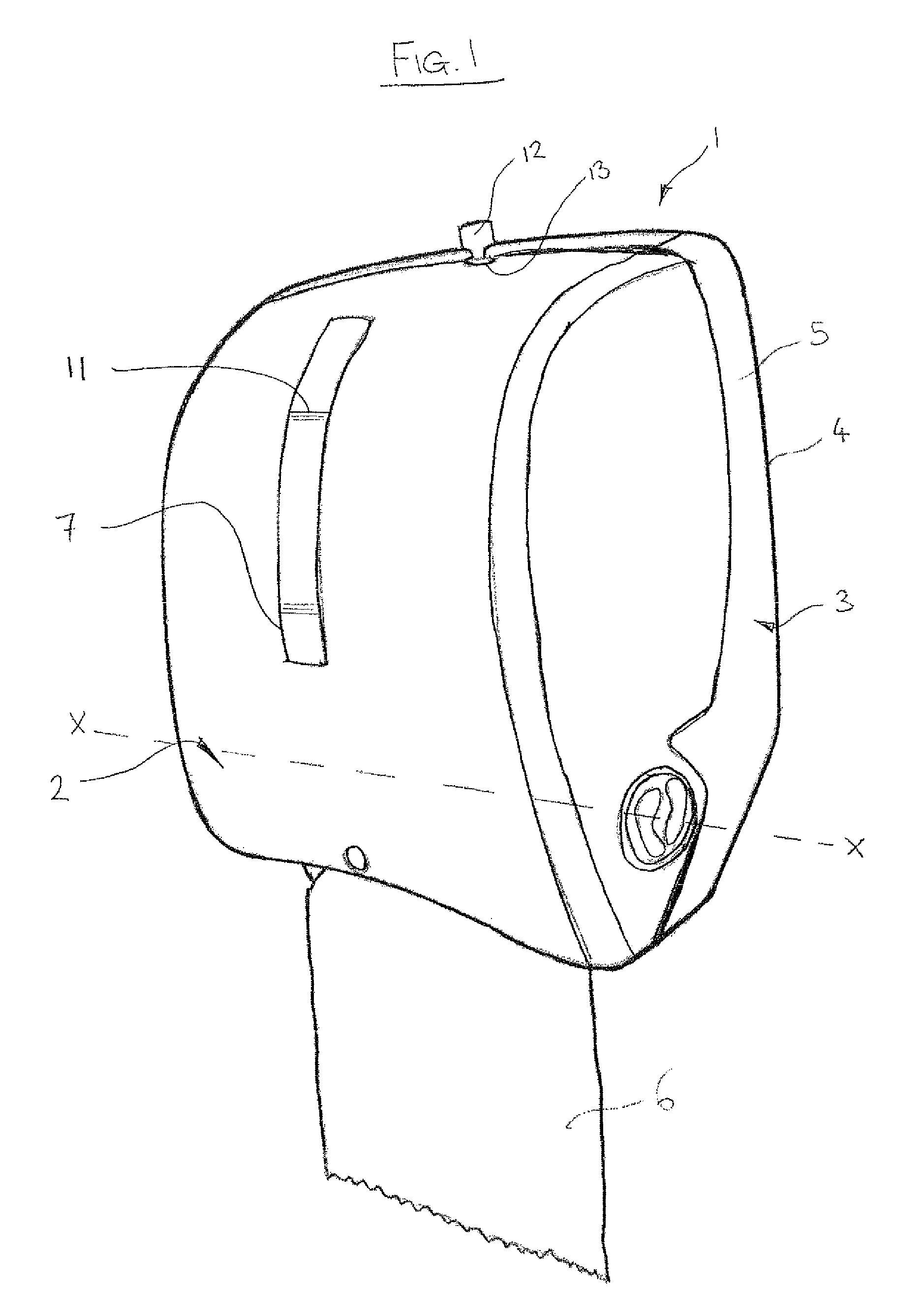

US-8464976-B2 fig 4
4
US-8464976-B2 fig 5
5

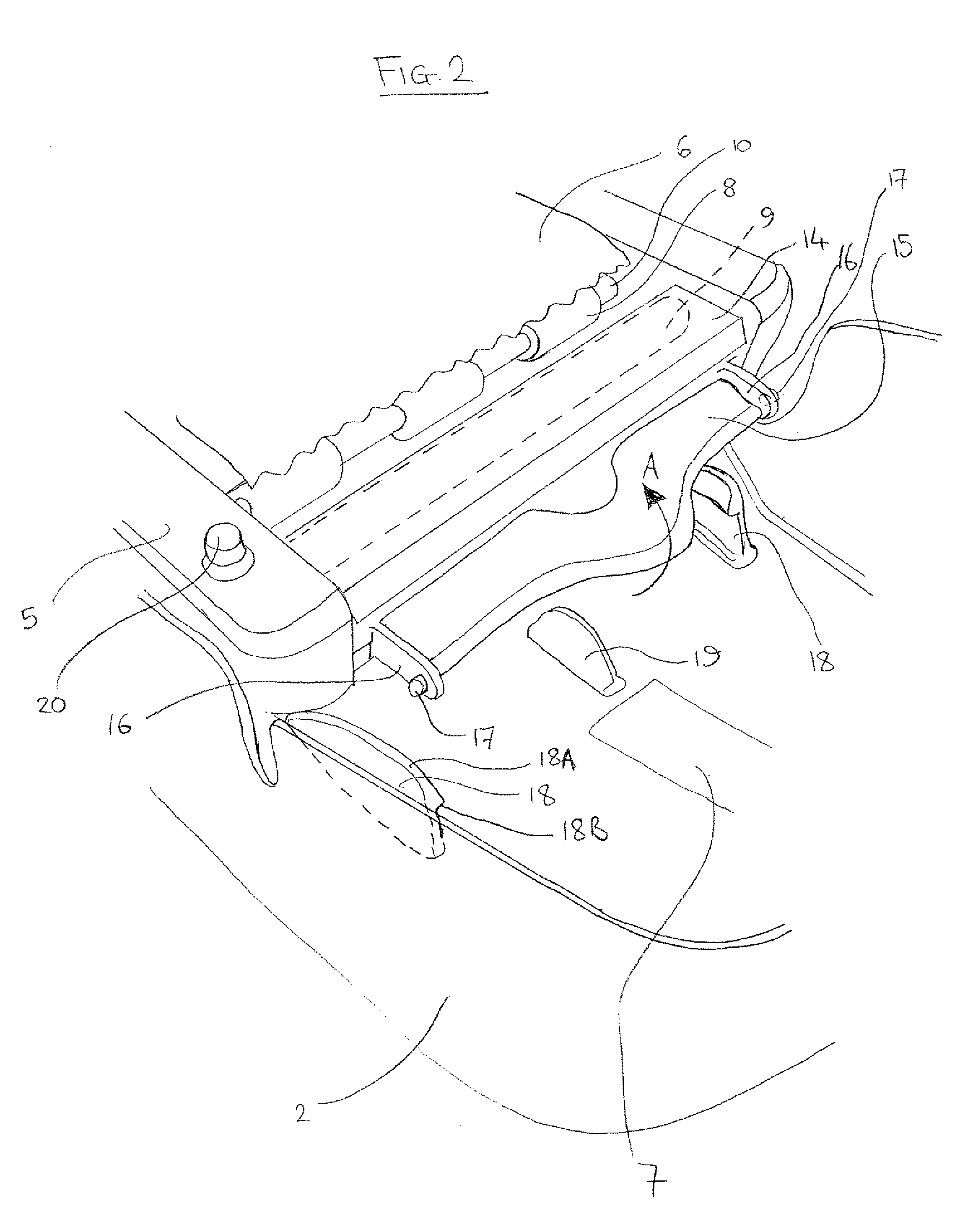

US-8464976-B2 fig 6
6
US-8464976-B2 fig 7
7

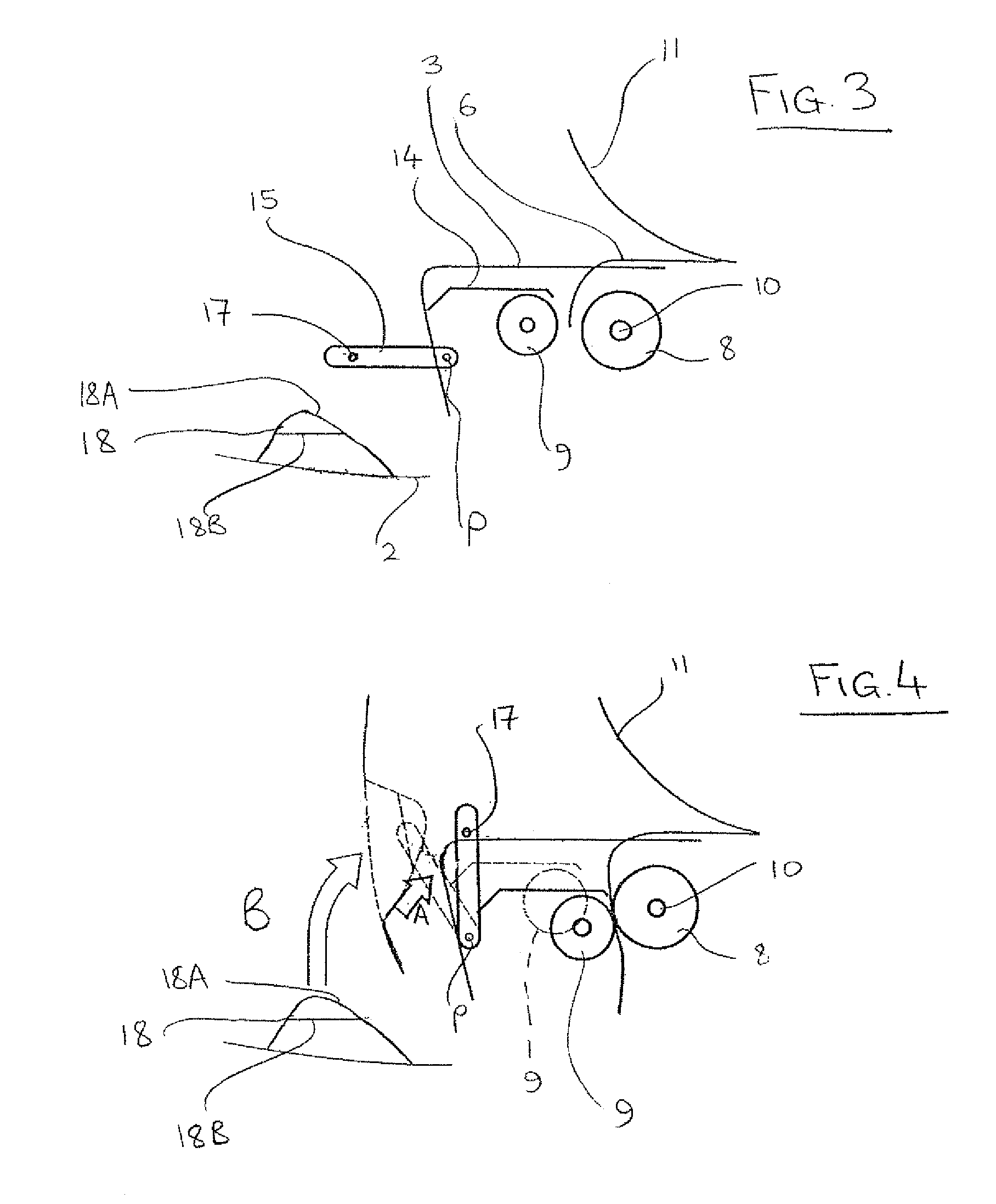

US-8464976-B2 fig 8
8
