Library ／ Containers & Packaging ／ Storage/mailing tube
Source reports Expired

Storage/mailing tube

US-8397944-B1

Abstract

A storage mailing tube having an elongated housing and a hand removable end cap with a rib positioned so as to facilitate hand alignment of the cap while at the same time forming limited frictional engagement sufficient to retain the end cap on the storage mailing tube during handling or transporting the storage mailing tube while allowing a user to access a document or item therein by hand removal of the end cap.

Patent figures（8）

US-8397944-B1 figure 1
1
US-8397944-B1 figure 2
2
US-8397944-B1 figure 3
3

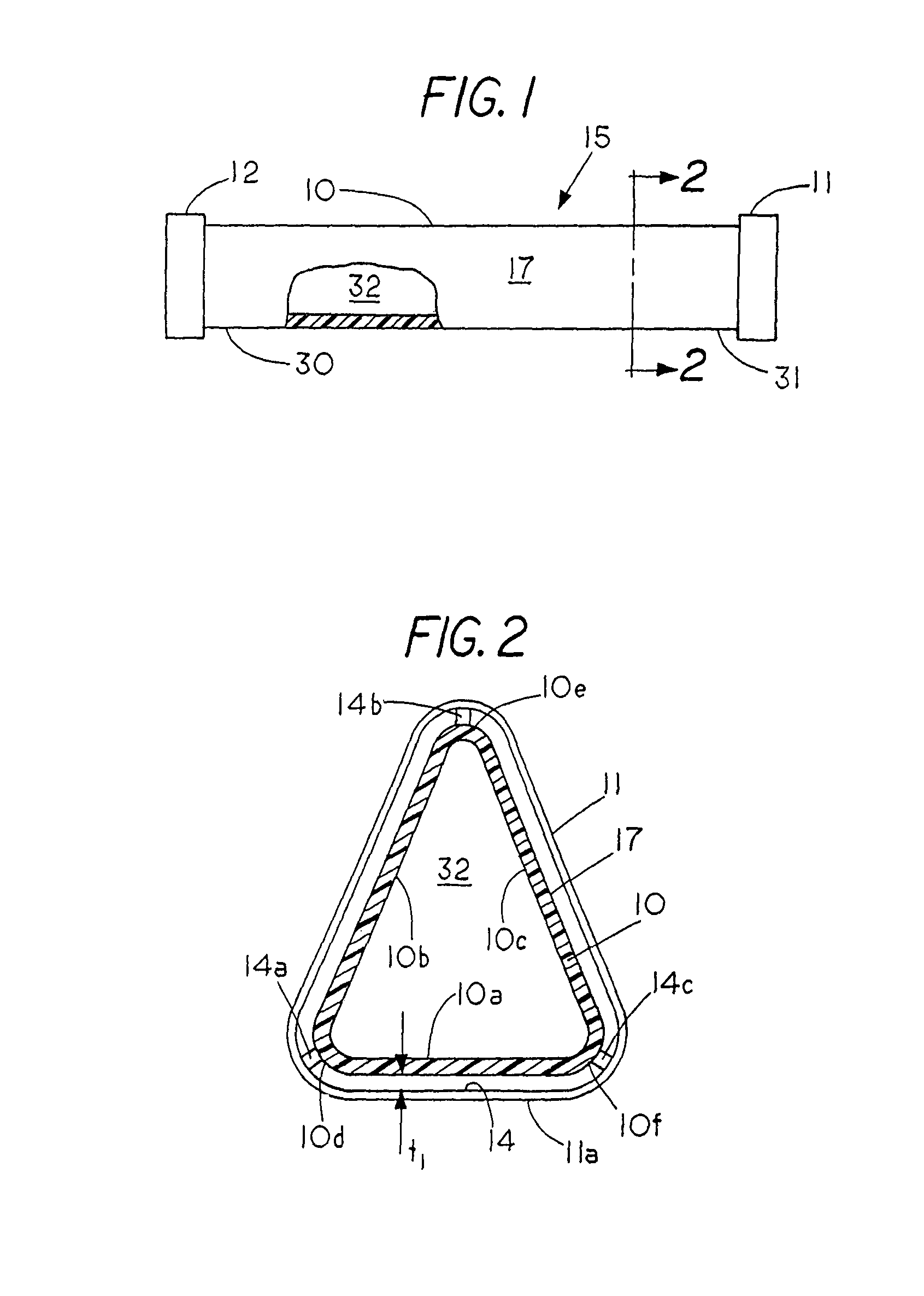

US-8397944-B1 figure 4
4
US-8397944-B1 figure 5
5
US-8397944-B1 figure 6
6
US-8397944-B1 figure 7
7

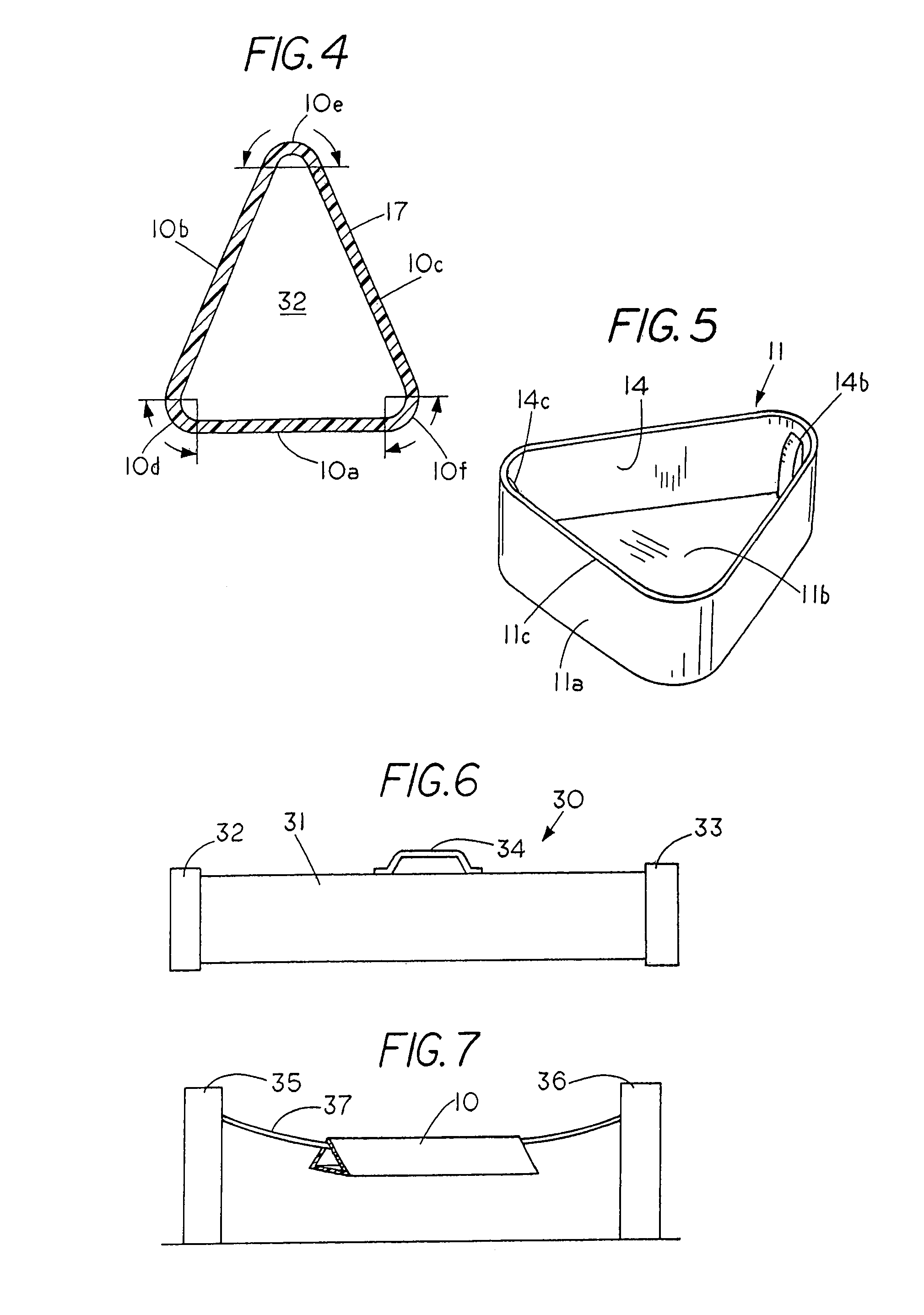

US-8397944-B1 figure 8
8
